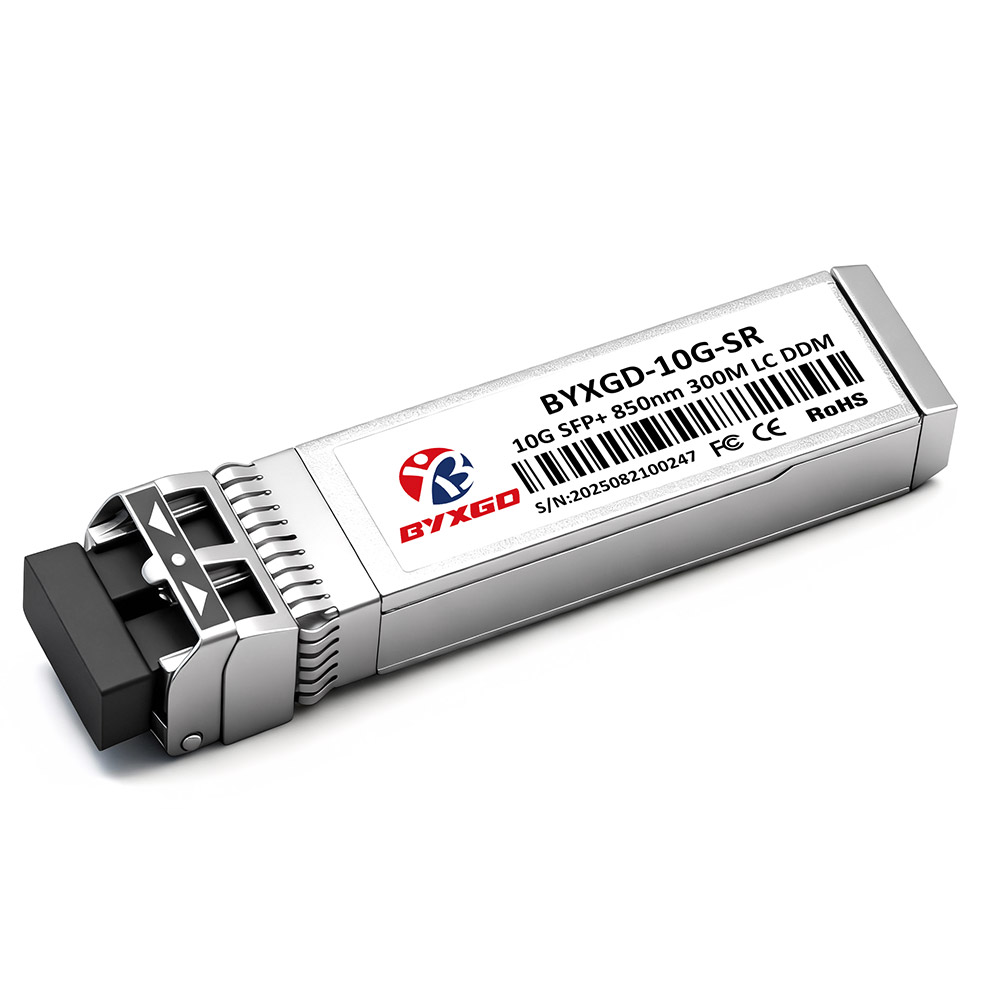

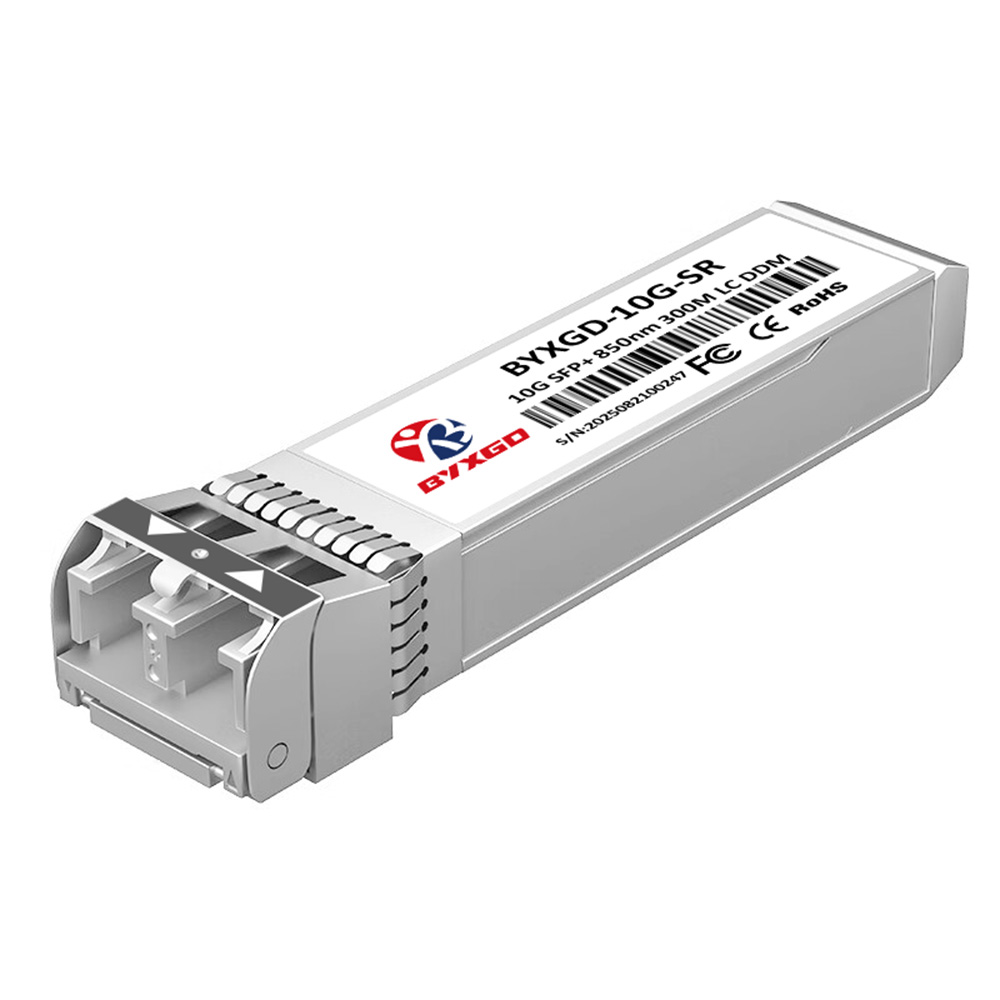

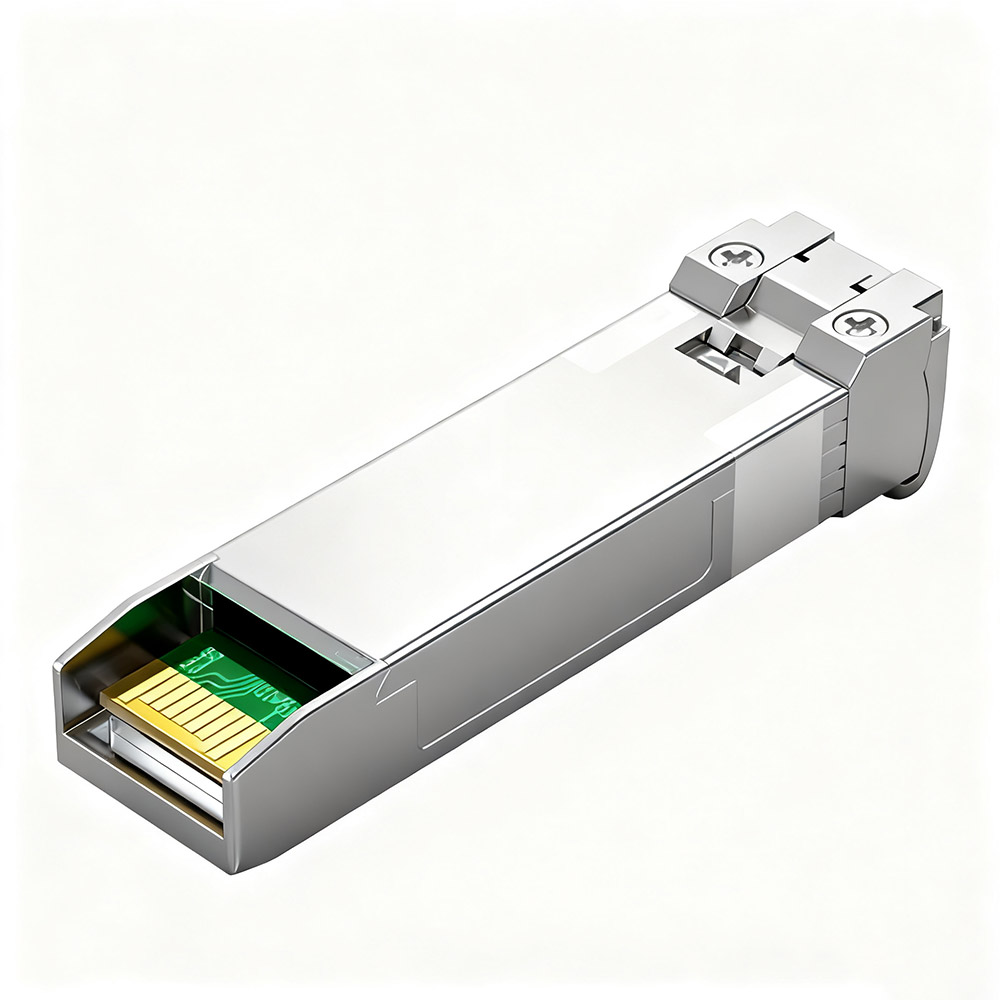

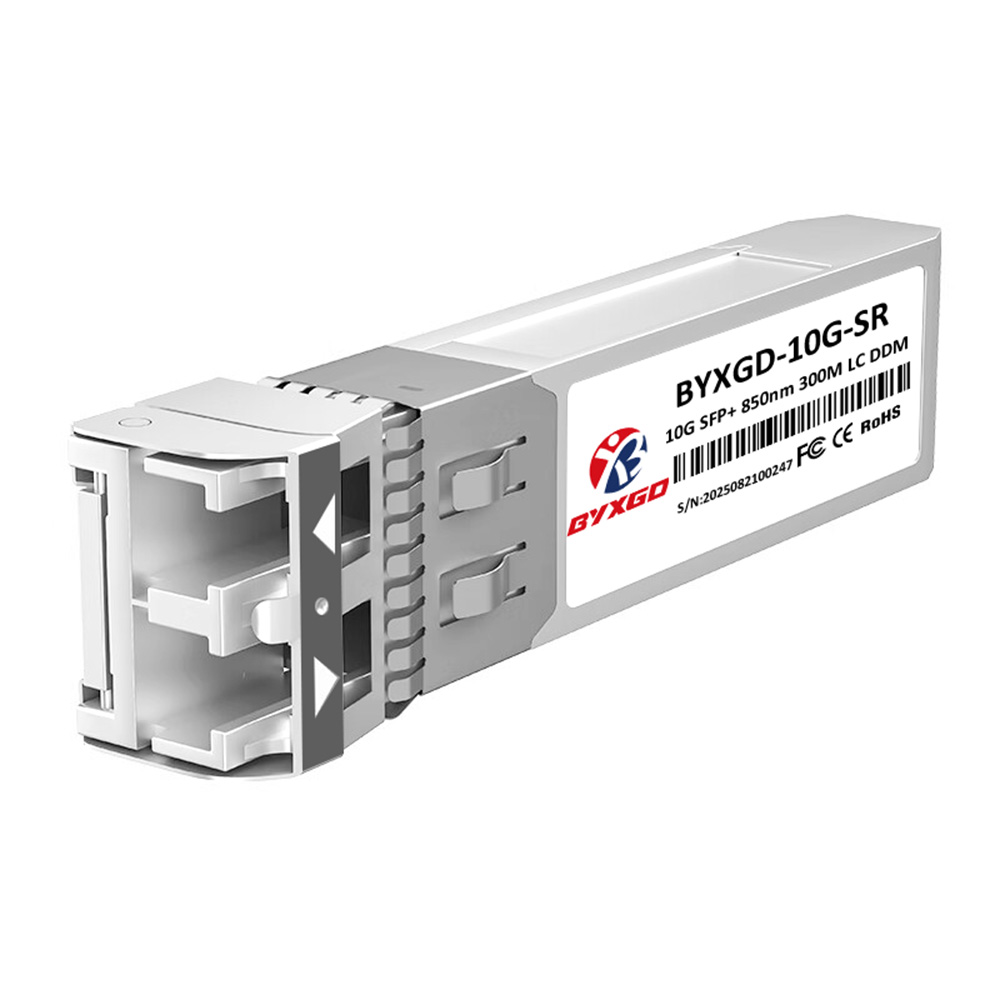

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ transceiver uses 850 nm VCSEL signaling with duplex LC. OM4 multimode fiber (MMF) supported distance is 400 m, while OM3 supports 300 m. It is compliant with SFF-8431, SFF-8432, and IEEE 802.3ae specifications, providing multi-vendor interoperability, including Digital Diagnostics Monitoring via a 2-wire serial interface per SFF-8472. The module emphasizes low power, low latency, and is ideal for high-density data center and enterprise wiring closet applications as well as service provider transport applications to Radio & Baseband Units.
This transceiver is suitable for application in switches, routers, servers, and network interface cards (NICs), all designed to lead to seamless integration into enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc., with a variety of brands and models in its design for broader interoperability within heterogeneous networks.
Compatible transceivers provide up to 400 m distance on OM4 fiber with LC duplex connector and the same standard compliance for reliable cross-vendor operation. This module is specifically coded and tested for reliable performance and operation with Cisco 10G switches and routers in a blended-brand situational experience.
Supported brands/models include Cisco SFP-10G-SR, Juniper EX-SFP-10GE-SR, Arista SFP-10G-SR, Brocade 10G-SFPP-SR, HPE ProCurve J9150A, HPE Aruba J9150D, HPE BladeSystem c-Class 455883-B21, HPE H3C JD092B, H3C SFP-XG-SX-MM850-A, Dell 407-BBOU, Extreme 10301, Intel E10GSFPSRX, NETGEAR AXM761, NVIDIA/Mellanox MFM1T02A-SR, Ciena 160-9111-900, Fortinet FN-TRAN-SFP+SR, Avago AFBR-708SMZ, Avaya AA1403015-E6, Alcatel Lucent iSFP-10G-SR, D-Link DEM-431XT-DD, F5-UPG-SFP+-R, Ubiquiti UF-MM-10G, MikroTik S+85DLC03D, etc.
Specifications
| Category | Specification |
| Form Factor | SFP+ |
| Brand | BYXGD |
| Max Data Rate | 10.3125 Gbps |
| Wavelength | 850 nm |
| Media | MMF (Multi-Mode Fiber) |
| Cable Distance | 300 m @ OM3; 400 m @ OM4 |
| Connector | Duplex LC |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| TX Power | -7.3 to -1 dBm |
| Receiver Sensitivity | < -11.1 dBm |
| Power Budget | 3.8 dB |
| Receiver Overload | -1 to +5 dBm |
| Typical Power Consumption | ≤ 1 W |
| Extinction Ratio | > 3 dB |
| DDM/DOM | Supported |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Storage Temperature | -40 to 85°C |
| Core Size | 50/125 µm |
| Modulation | NRZ |
| Protocols / Standards | IEEE 802.3ae; SFF-8472; SFF-8431; SFF-8432; SFP+ MSA compliant; CPRI; eCPRI |
| Compliance / Certifications | RoHS; CE; REACH |
| Warranty | 5 Years |
| Application / Use Cases | 10GBase-SR/10GBase-SW Ethernet; 10G Fiber Channel; 10G data center switches and routers; 10G NICs; 10G fiber media converters |
