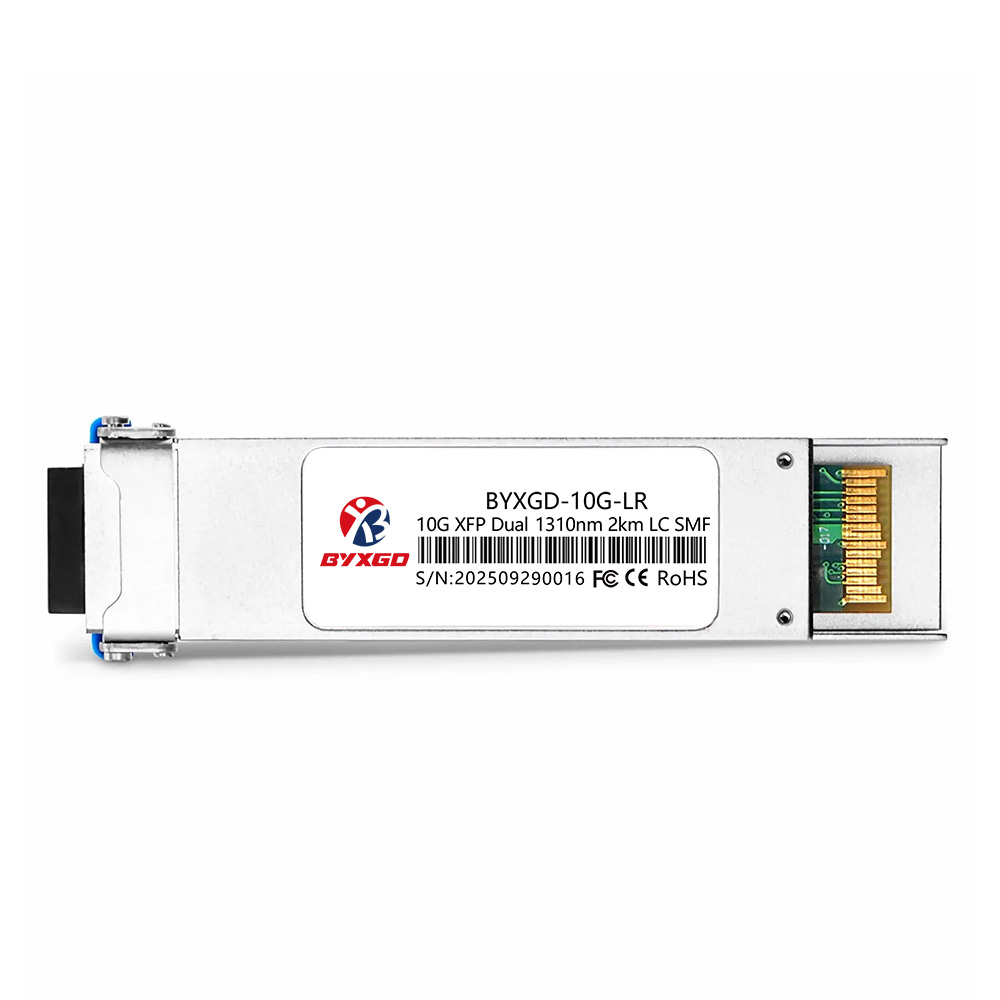

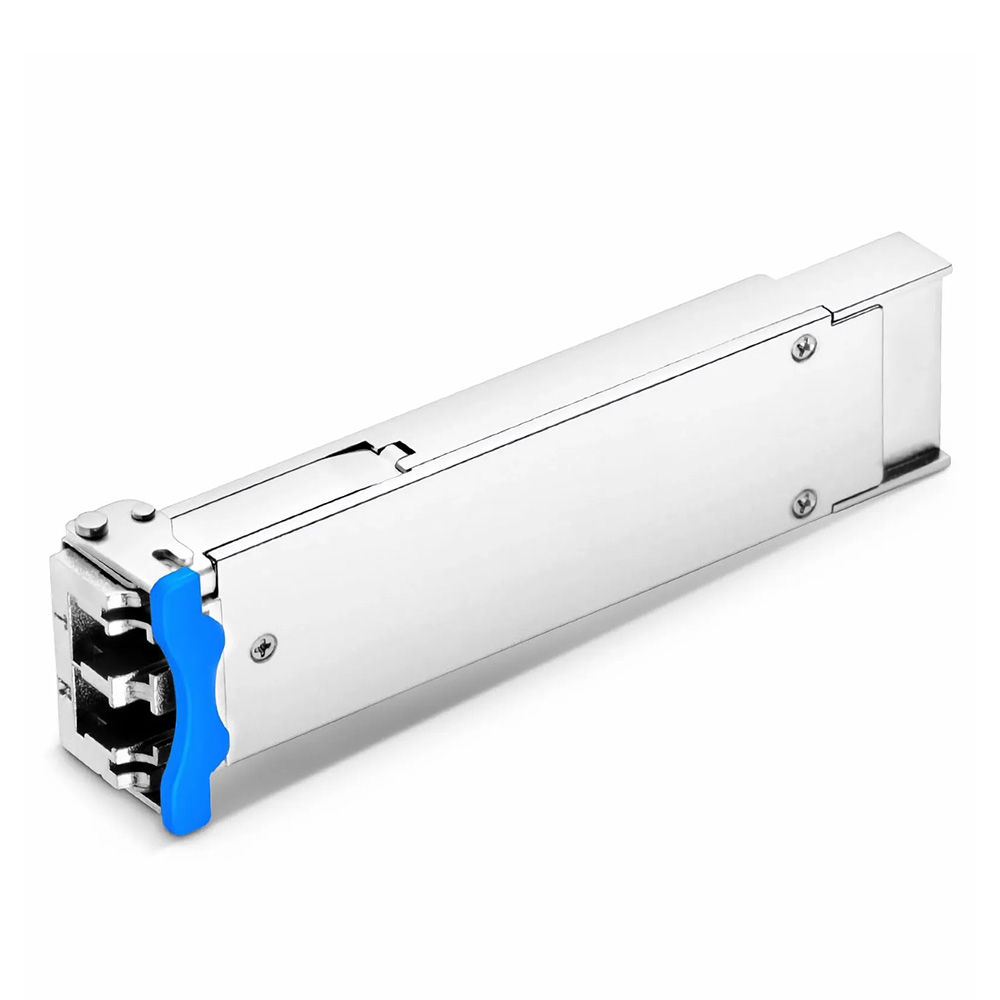

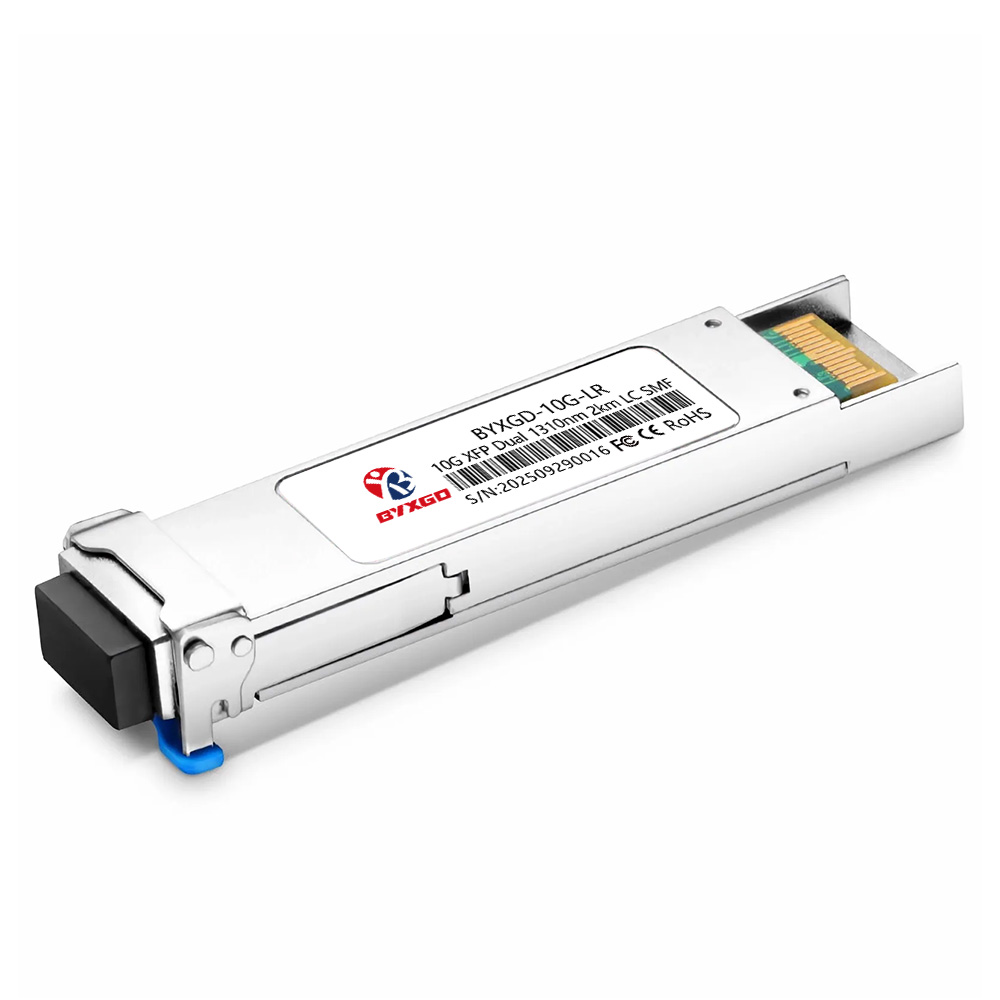

10GBASE-LRM XFP 1310nm 2km DDM Simplex LC/UPC SMF Transceiver operates at line rates ranging from 9.95 to 11.1 Gbps and is designed for single-mode fiber distances up to 2 km. The module features an FP transmitter, PIN receiver, 70-pin XFP MSA electrical connector, and complies with IEEE 802.3ae 10GBASE-LRM standards.
The integrated Digital Diagnostics Monitoring (DDM) is built in to provide real-time readings of temperature, voltage, laser bias current, and optical power levels for precise network management. The module uses a standard LC/UPC interface, supports hot-plug functionality for easy installation, maintenance, and upgrades, and there are extended temperature versions for harsh environments.
Powered by a single 3.3V supply, the typical power consumption is less than 2.5W, complies with RoHS standards, has low EMI emissions, and high ESD tolerance, delivering stable, reliable performance in 10-Gigabit Ethernet and Fibre Channel networks.
Specifications
| Item | Specification |
| Brand | BYXGD |
| Model | 10GBASE-LRM XFP 1310nm 2km |
| Form Factor | XFP |
| Max Data Rate | 9.95–11.1 Gbps |
| Wavelength | 1310 nm |
| Media | SMF |
| Max Distance | 2 km over SMF |

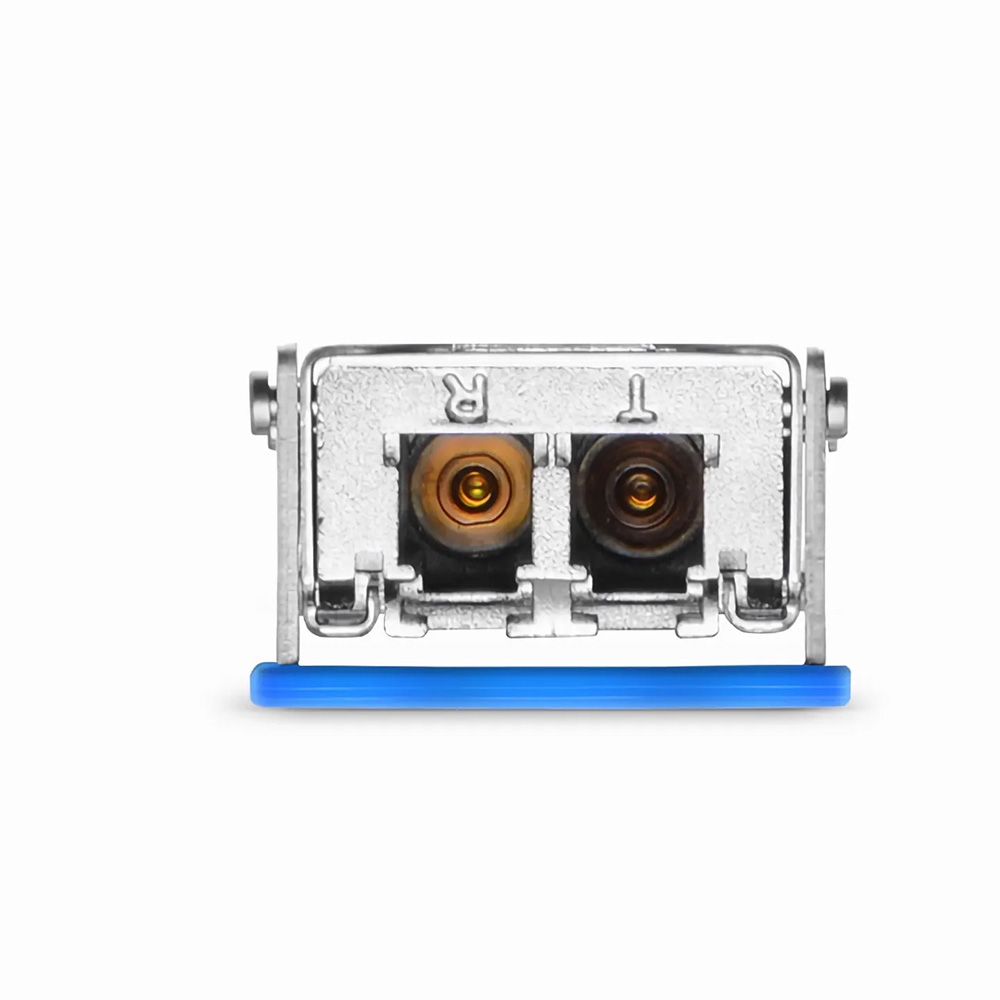

| Connector | LC Duplex (UPC) |
| Optical Components | FP transmitter / PIN receiver |
| DOM/DDM | Yes |
| TX Power (Avg) | -6.5 to +0.5 dBm |
| RX Sensitivity (Avg) | ≤ -8.4 dBm |
| RX Overload | ≥ +0.5 dBm |
| Extinction Ratio | ≥ 3.5 dB |
| Spectral Range | 1310 nm band |

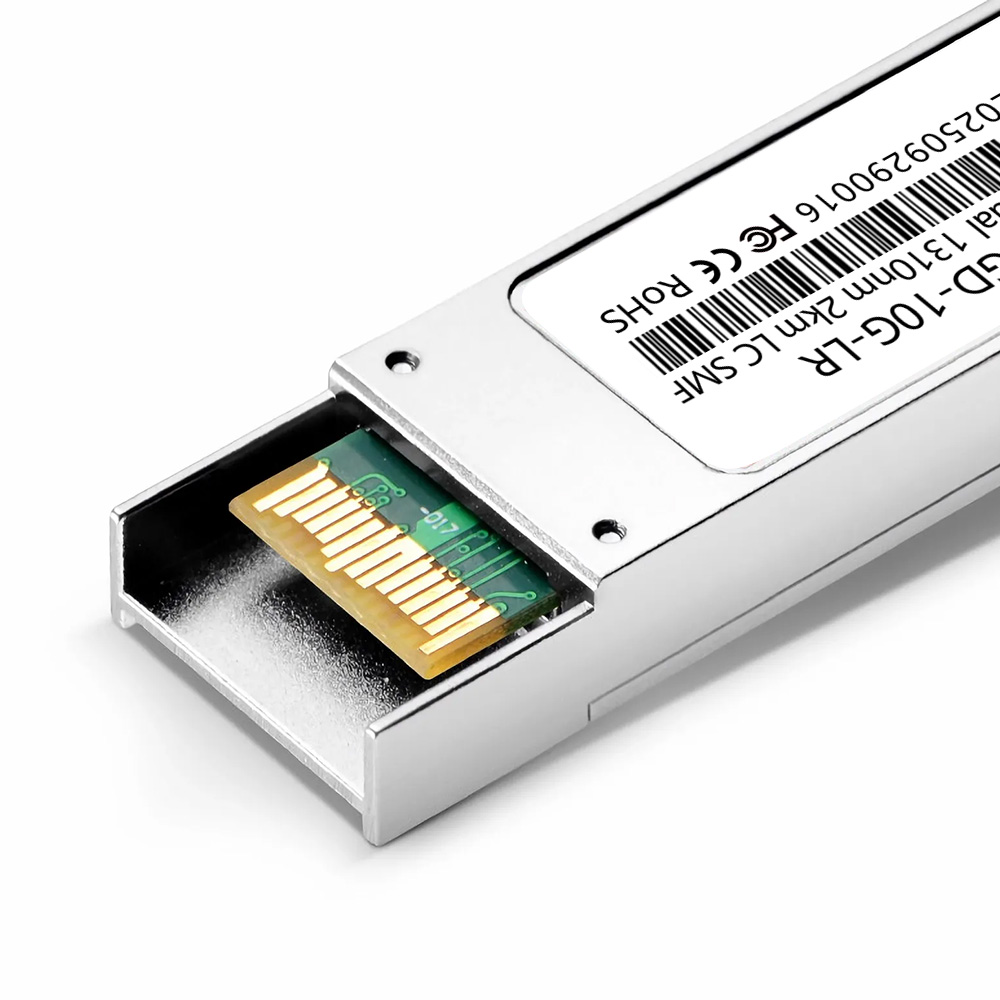

| Electrical Interface | XFP MSA 70‑pin |
| Supply Voltage | 3.3 V nominal |
| Power Consumption | < 2.5 W |
| Hot‑Swap | Yes |
| Operating Temp (Comm.) | 0 to 70°C (32 to 158°F) |
| Storage Temp | -40 to 85°C |
| EMI/ESD | Low EMI, enhanced ESD protection |
| Compliance | XFP MSA, IEEE 802.3ae (10GBASE‑LRM), IEC/EN 61000‑4‑2, IEC 60825, FDA 21 CFR 1040.10/.11, RoHS |
| Protocols | 10GBASE‑LRM Ethernet; 10G Fibre Channel profiles; CPRI/eCPRI where line rate fits |
| Applications | 10G data center switches/routers, NICs, SAN/FC, fiber media converters |
