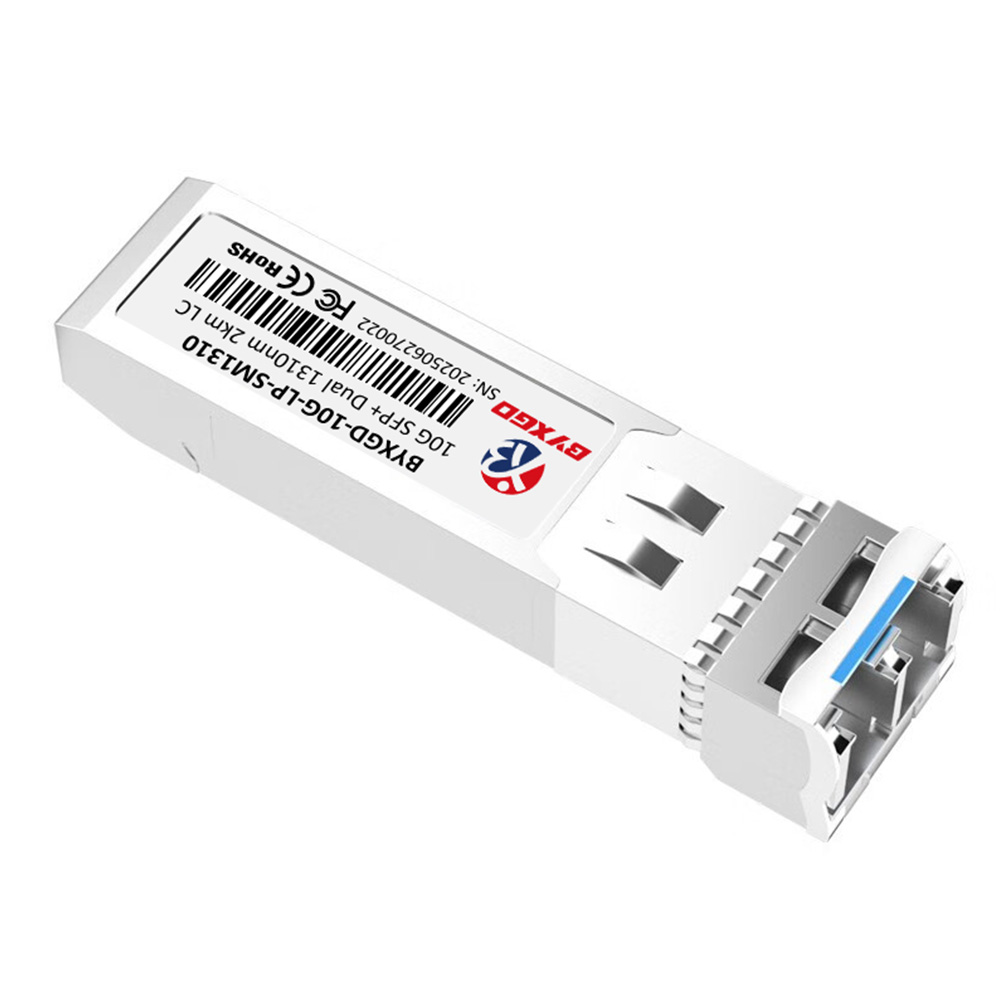

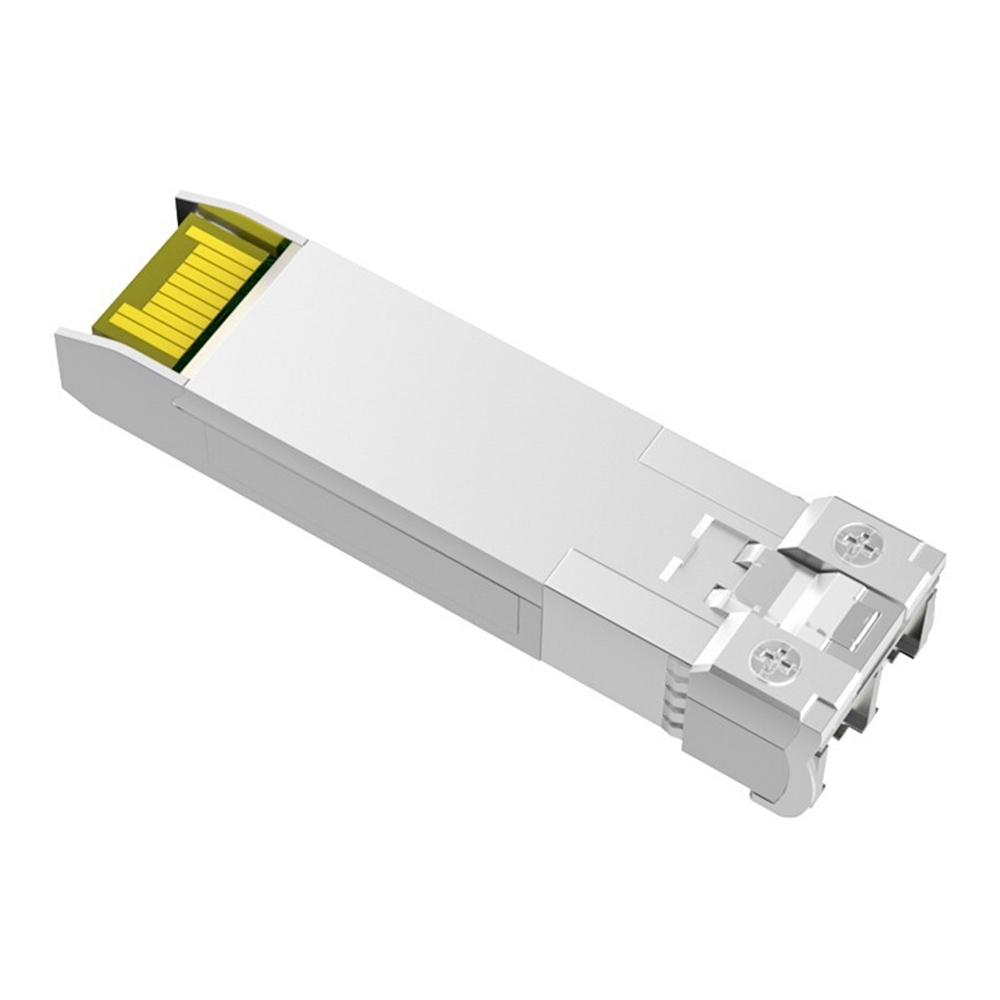

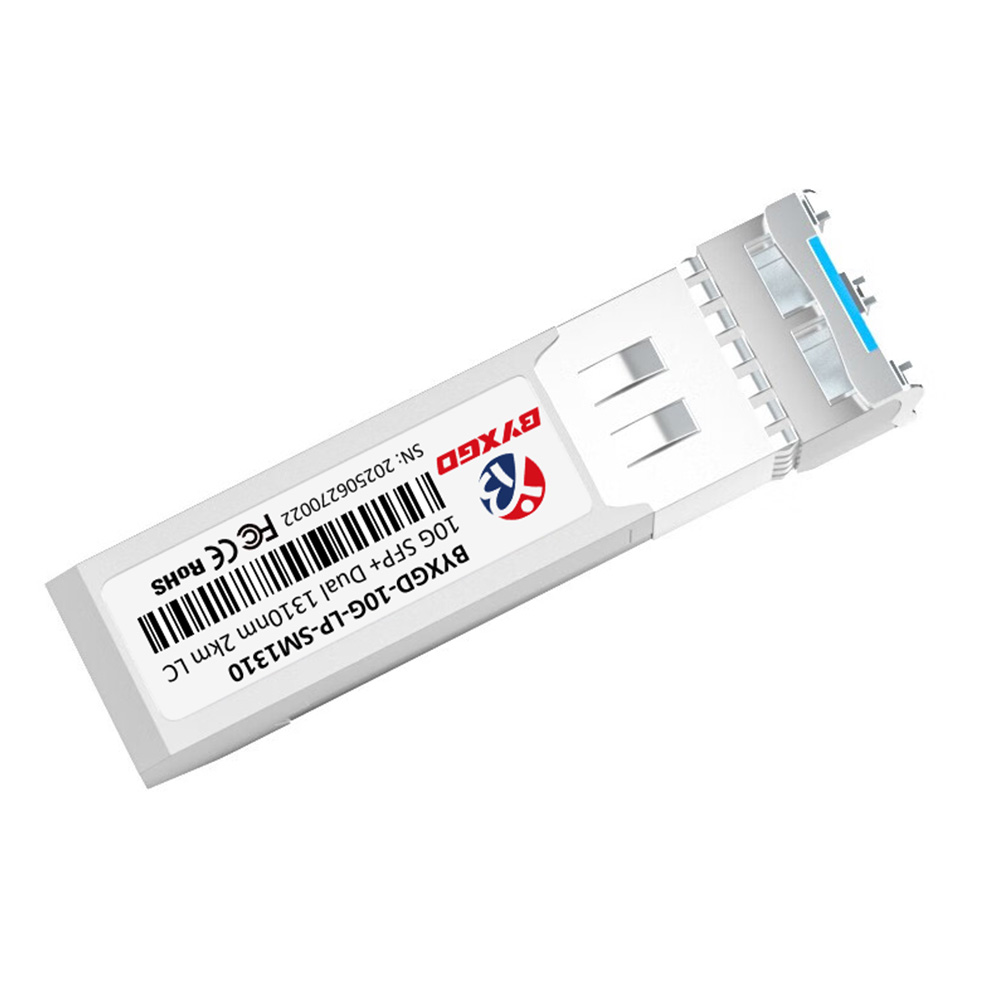

Cisco SFP-10G-LRM2 Compatible 10GBASE-LRM SFP+ 1310nm 2km LC/UPC SMF transceiver provides high-speed data transmission rates of up to 10Gbps over single-mode fiber in distances of up to 2km. The 1310nm wavelength provides dependable optical performance with low power consumption, and an LC duplex interface, making it ideal for dense network environments.
The module supports SFF-8431, SFF-8432, and IEEE 802.3ae 10GBASE-LR compliance, ensuring consistent operation in multiple vendor environments, and supports Digital Diagnostics Monitoring via the SFF-8472 interface for real-time tracking on key parameters such as temperature, voltage, bias current, and optical power.
Designed with an FH laser transmitter and a PIN photodiode receiver that integrates with a TIA, it guarantees consistent signal quality reliability. Fully compatible with Cisco SFP-10G-LRM2, Arista Networks SFP-10G-LRL, Brocade 10G-SFPP-LRM2, and NETGEAR AXM764, it is ideally used in Data Centers or for 10G Fiber Channel, SONET, and SDH applications where efficiency and longer distance are required.
Specifications
| Parameter | Specification |
| Product Brand | BYXGD |
| Product Model | Cisco SFP-10G-LRM2 Compatible 10GBASE-LRM SFP+ |
| Form Factor | SFP+ |
| Max Data Rate | 10.3125 Gbps |
| Wavelength | 1310 nm |
| Transmission Distance | Up to 2 km |
| Connector Type | Duplex LC |
| Optical Components | FP laser transmitter, PIN photodiode receiver |
| Fiber Type | Single-Mode Fiber (SMF) |
| Core Size | 9/125 μm @ SMF |
| Typical Power Consumption | <1.2 W |
| Transmit Power (Tx) | -6 to -0.5 dBm |
| Receiver Sensitivity (Rx) | ≤ -14.4 dBm |
| Receiver Overload | +0.5 to +1.5 dBm |
| Modulation Type | NRZ |
| Digital Diagnostics (DOM/DDM) | Supported per SFF-8472 |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Power Supply Voltage | 3.3 V |
| Compliance | SFP+ MSA, SFF-8431, SFF-8432, IEEE 802.3ae, CPRI, eCPRI |
| Safety Standards | Class 1 Laser, RoHS 6/6 compliant |
| Hot Pluggable | Yes |
| Dimensions | 56.5 × 13.7 × 8.5 mm |
| Weight | ~20 g |
| Application | 10G Ethernet, 10G Fiber Channel, SONET/SDH, Data Center Interconnects |
