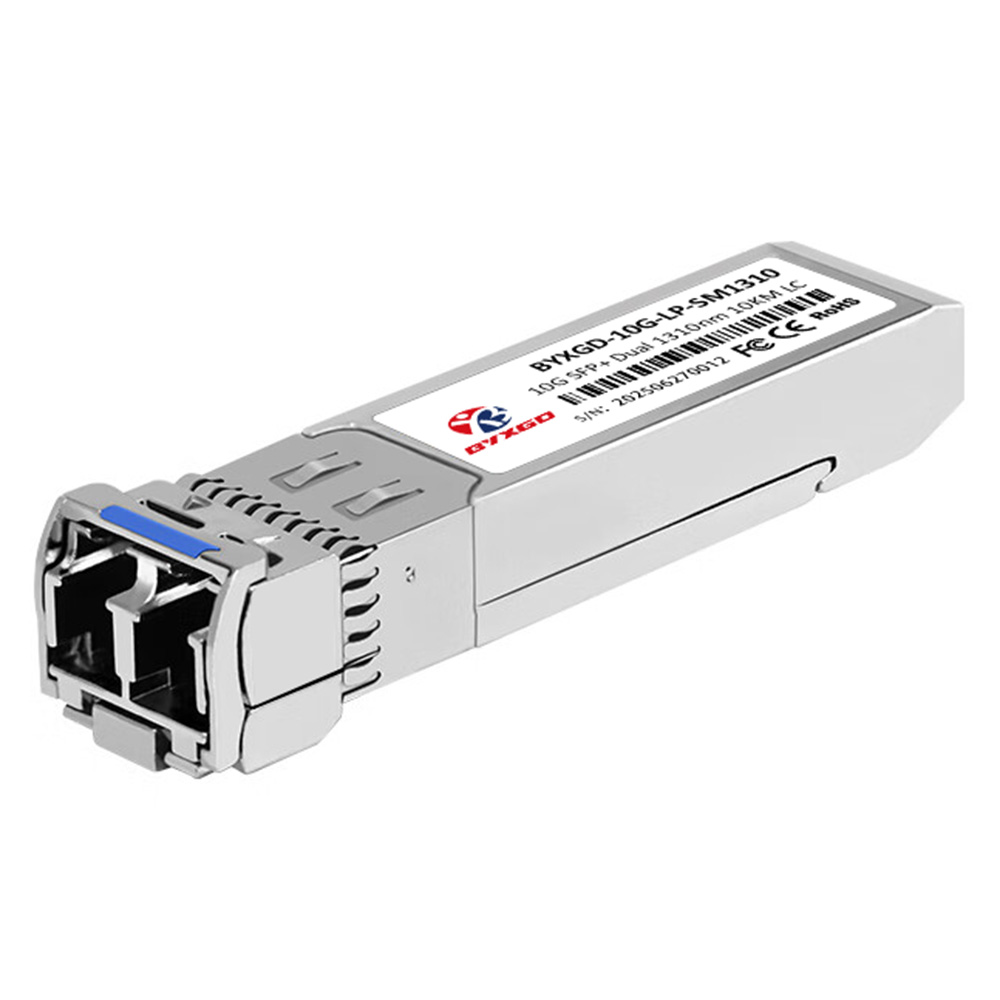

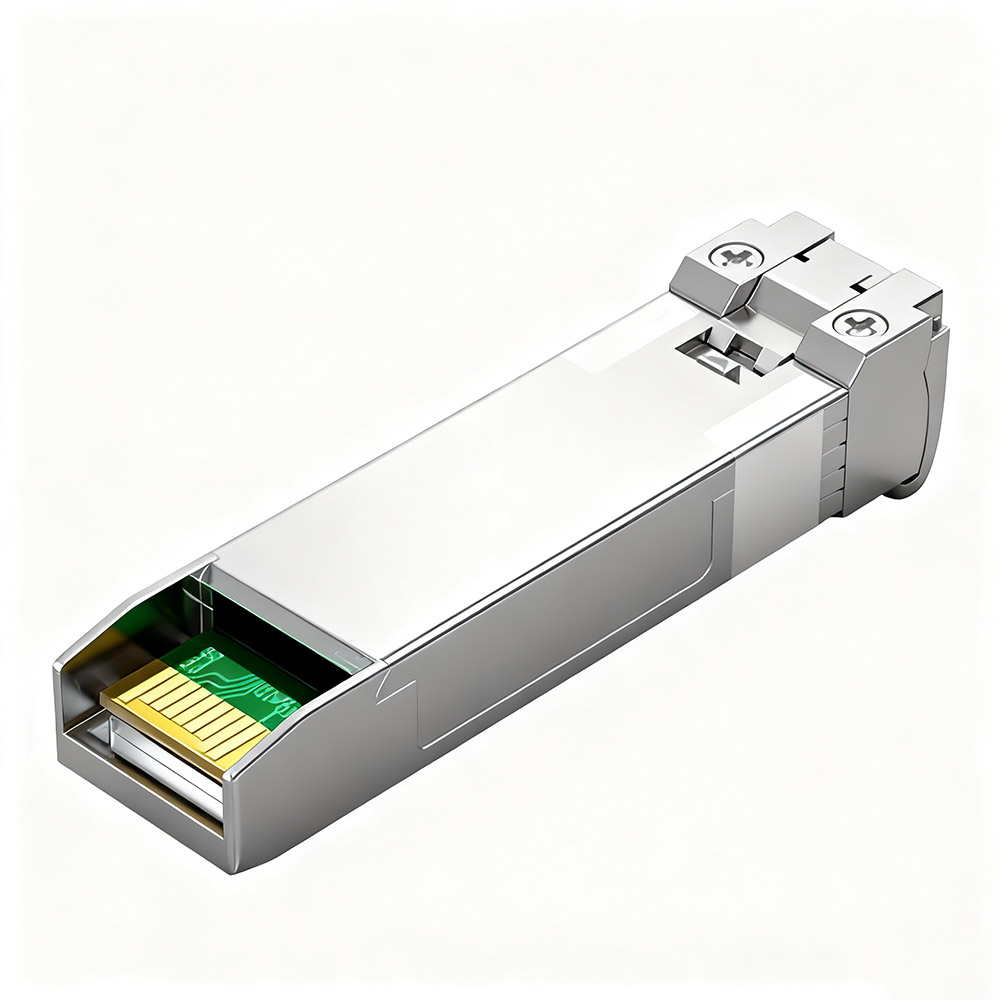

Cisco SFP-10G-LR-compatible 10GBASE-LR SFP+ transceiver utilizes the LC/UPC simplex connector to provide 10 Gigabit Ethernet over single-mode fiber (SMF) at distances up to 10 kilometers (km) with a 1310 nm wavelength. It is fully compliant with IEEE 802.3ae, SFF-8472, SFF-8431, and SFF-8432 standards, ensuring compatibility across all systems and reliable performance for links of any length.
This module also supports digital diagnostics monitoring (DDM) over a 2-wire serial interface to provide real-time diagnostics of optical power, temperature, and voltage. The module operates with a maximum power consumption of <1 W and has very low latency and stable operation when running continuously at high load. This transceiver is ideal for use in data centers, enterprise wiring closets, service provider transport systems, Radio & Baseband Unit applications, and other 10G optical networking applications.
This SFP+ optical transceiver is compatible with various models from multiple manufacturers, including Cisco SFP-10G-LR, HPE Aruba JM534A, Ubiquiti UF-SM-10G, Huawei OSX010N13, Juniper Networks EX-SFP-10GE-LR, Arista Networks SFP-10G-LR, Mellanox MFM1T02A-LR, Dell PowerConnect 330-2404, Brocade XBR-000182, Extreme Networks 10GB-LRLX-SFPP, HPE H3C JD094B, Ciena XCVR-S10V31, Avago AFCT-701SDZ, Intel E10GSFPLR, Alcatel-Lucent SFP-10G-LR, NETGEAR ProSafe AXM762, IBM BNT BN-CKM-SP-LR, Finisar FTLX1471D3BCL, 10GTEK AXS13-192-10, and Sophos ITFZTCHLR.
Specifications
| Parameter | Specification |
| Brand | BYXGD |
| Model | 10GBASE-LR SFP+ 1310nm 10km Simplex LC/UPC SMF |
| Form Factor | SFP+ (Hot-Pluggable) |
| Max Data Rate | 10.3125 Gbps |
| Wavelength | 1310 nm |
| Transmission Distance | Up to 10 km (G.652 OS2 SMF) |
| Connector Interface | Simplex LC/UPC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Transmitter Type | DFB Laser |
| Receiver Type | PIN Photodiode |
| TX Optical Power | -8.2 to +0.5 dBm |
| Receiver Sensitivity | ≤ -14.4 dBm |
| Optical Power Budget | 6.2 dB |
| Receiver Overload | 0.5 dBm |
| Extinction Ratio | ≥ 3.5 dB |
| Bit Error Rate (BER) | ≤ 1×10⁻¹² |
| Digital Diagnostics (DDM) | Supported |
| Modulation Format | NRZ (Non-Return-to-Zero) |
| Fiber Core Size | 9/125 µm |
| Power Consumption | ≤ 1 W |
| Power Supply Voltage | 3.3 V DC |
| Case Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Cooling Method | Passive |
| EMI Shielding | Metal Enclosure |
| Safety Standard | Class 1 Laser (FDA/IEC 60825-1 Compliant) |
| Compliance | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA |
| Supported Protocols | 10G Ethernet, CPRI, eCPRI |
