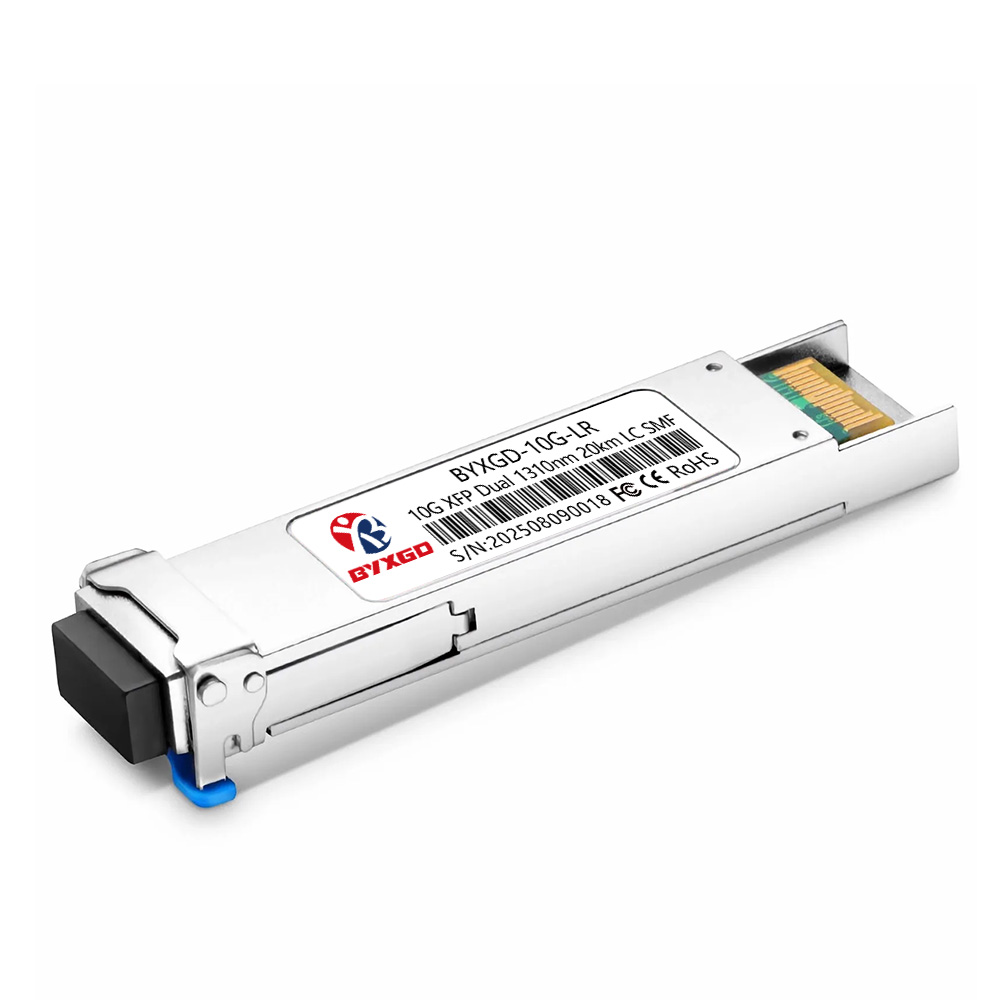

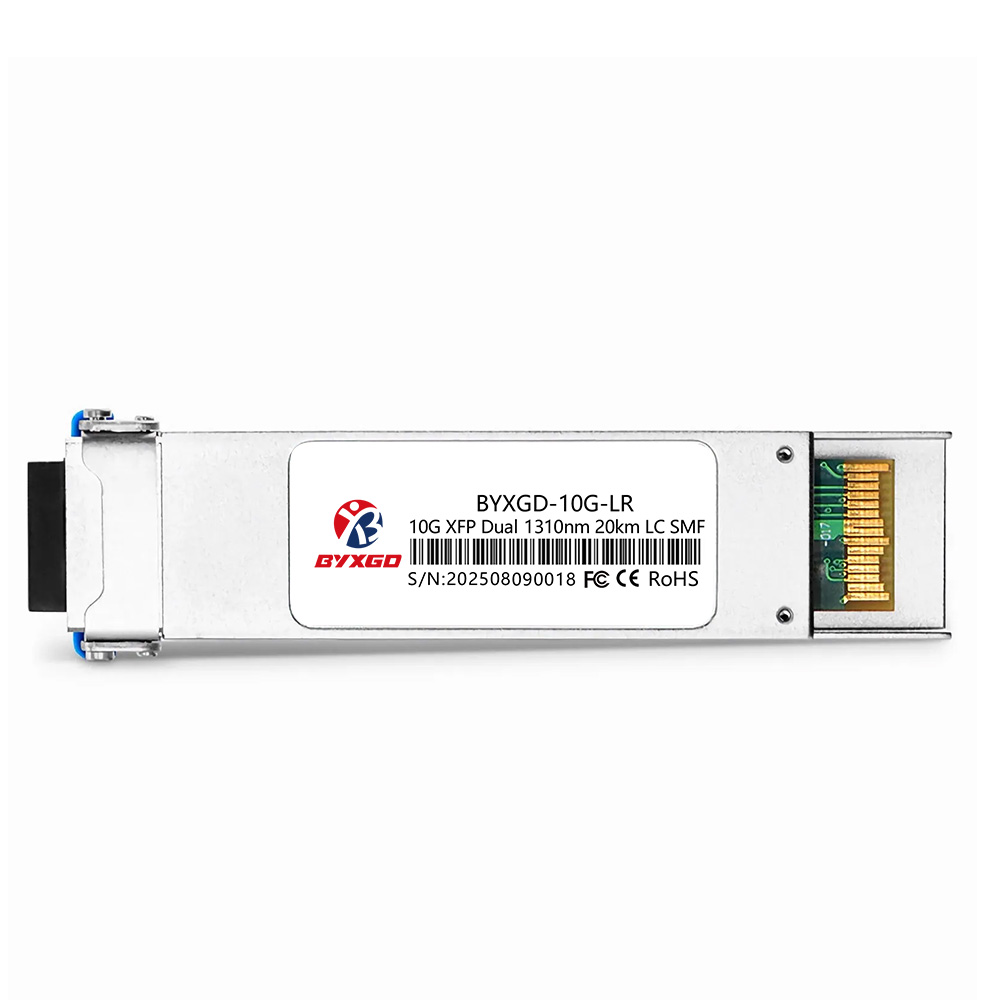

10GBASE-LR/MR XFP optical transceiver is a hot-swappable module designed to satisfy 10-gigabit long-reach applications over OS2 single-mode fiber. It operates on 9.95–11.1 Gbps line rates and is intended to support Ethernet, SONET/SDH, and Fibre Channel transport applications. The optical transceiver uses a 1310 nm DFB laser for the transmitter and a PIN receiver at the line signal. It supports up to 20 km of transmission distance, with the normal expected performance being a 12 dB link budget and BER ≤ 1×10⁻¹².

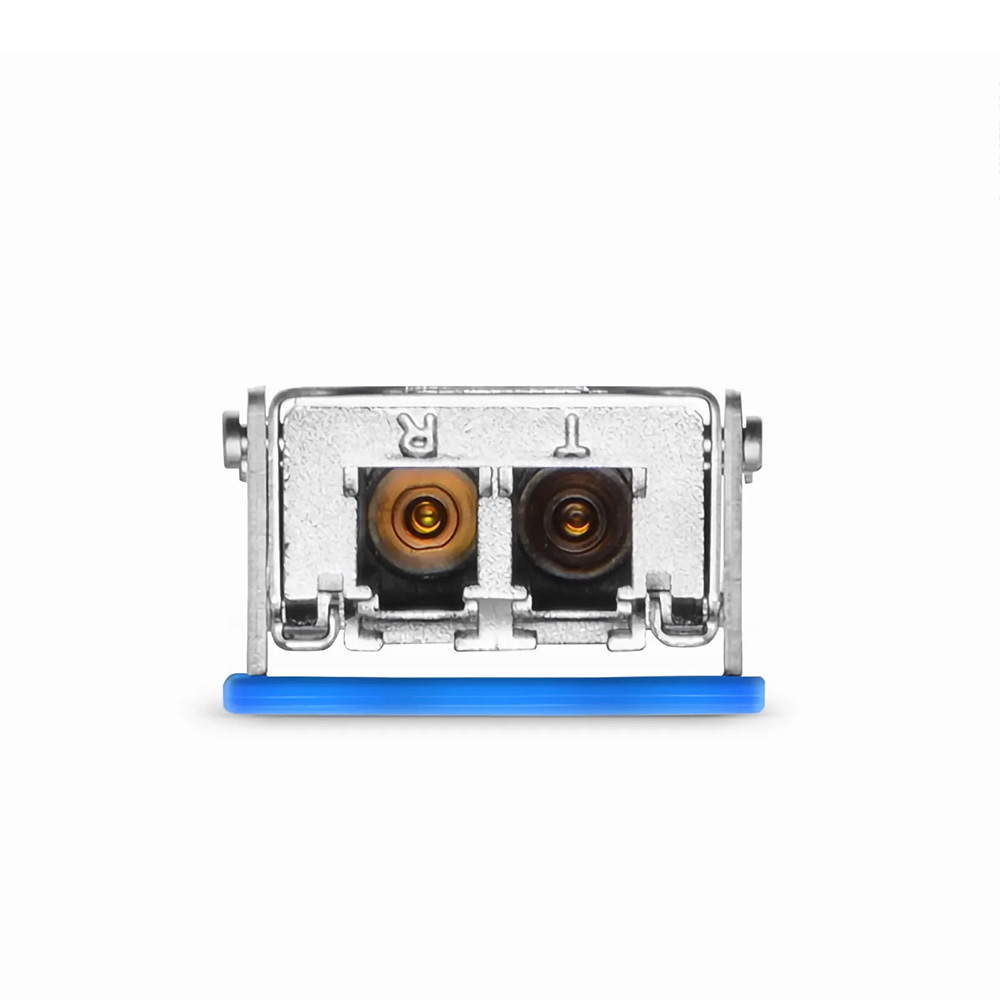

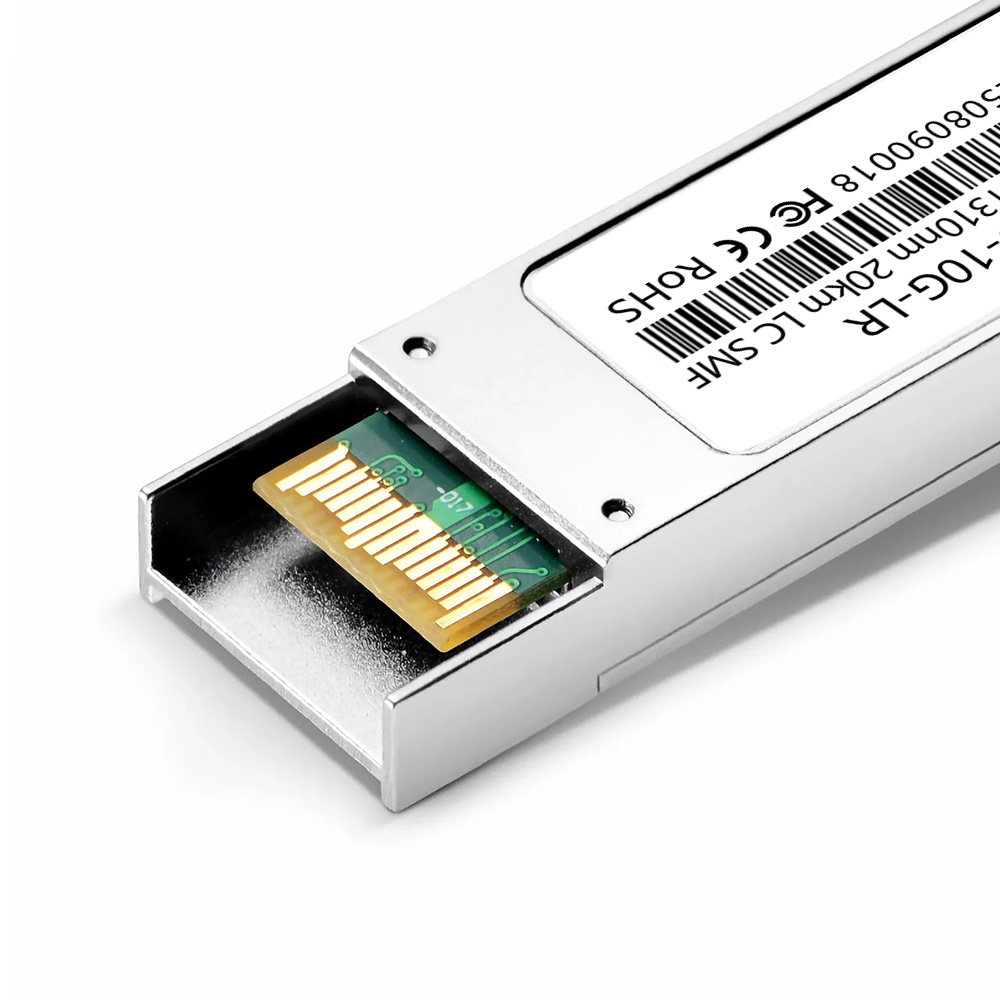

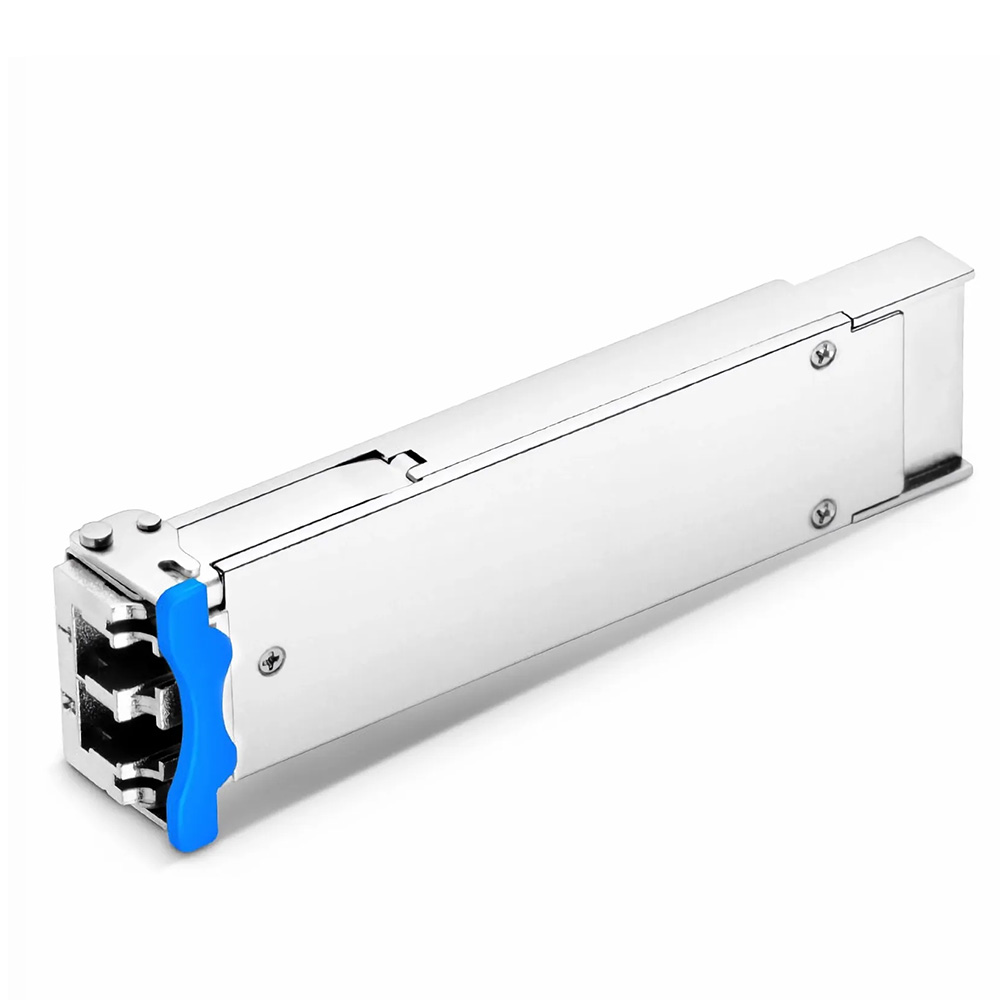

The optical transceiver is equipped with an LC duplex optical interface, an all-metal housing to reduce EMI, robust ESD protection, and operates from a 3.3 V single power supply with power consumption below 2.5 W. Digital diagnostics (DDM/DOM) are available through a 2-wire interface for monitoring temperature, voltage, bias current, and TX/RX optical power in real-time. It was designed to support compatibility with an XFP 10G port for ease of integration in XFP-compatible 10G ports and was manufactured to comply with famous 10G optical standards, laser eye-safety, and environmental regulatory standards, including RoHS. It supports commercial temperature operation specifications from 0 °C to +70 °C. We include a hot-pluggable latch in the provided design, allowing for easy installation of the optical transceiver module.
Specification
| Brand | BYXGD |
| Form Factor | XFP, hot‑pluggable |
| Host Interface | XFI, 100 Ω differential |
| Data Rate | 9.95–11.1 Gbps |
| Wavelength | 1310 nm (1260–1355 nm) |
| Fiber/Media | SMF (9/125 μm) |
| Connector | LC duplex, UPC |
| Max Distance | 20 km |
| Optical Components | DFB transmitter / PIN receiver |
| TX Output Power | −3 to +1 dBm |
| Average Launch Power | −6 to 0 dBm |
| Extinction Ratio | ≥ 3.5 dB |
| SMSR | ≥ 30 dB |
| RX Sensitivity | ≤ −12.6 to −14.4 dBm |
| Receiver Overload | 0 to ≥ +0.5 dBm |
| Bit Error Rate | ≤ 1×10⁻¹² |
| DDM/DOM | Yes |
| Supply Voltage | 3.13–3.45 V (nom. 3.3 V) |
| Power Consumption | < 2.5 W |
| EMI/ESD | All‑metal housing, enhanced ESD |
| Operating Temp | 0°C to +70°C (commercial) |
| Storage Temp | −40°C to +85°C |
| Laser Safety | Class 1 laser |
| Compliance | IEEE 802.3ae (10GBASE‑LR/LW), XFP MSA, INF‑8077i, RoHS |
| Applications | 10GBASE‑LR/LW Ethernet; 10G Fibre Channel; 10G data center switches/routers; NICs; media converters |
