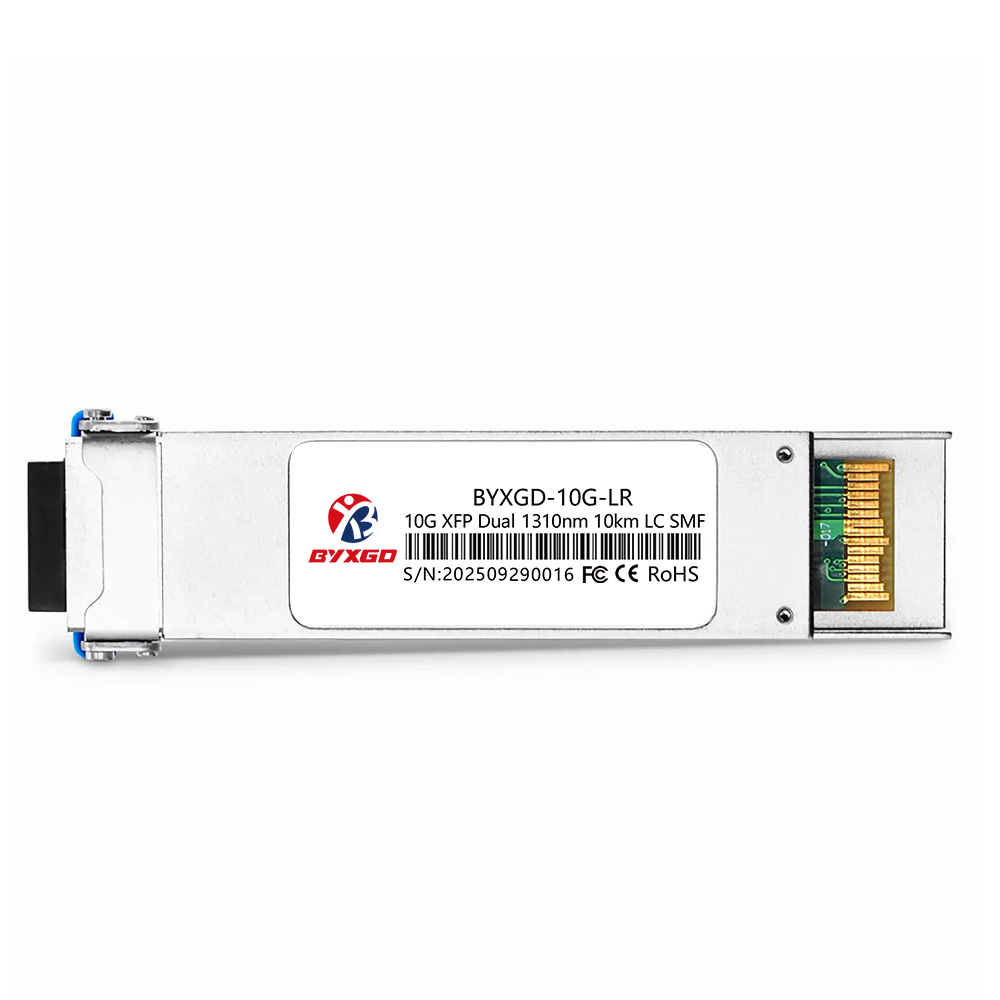

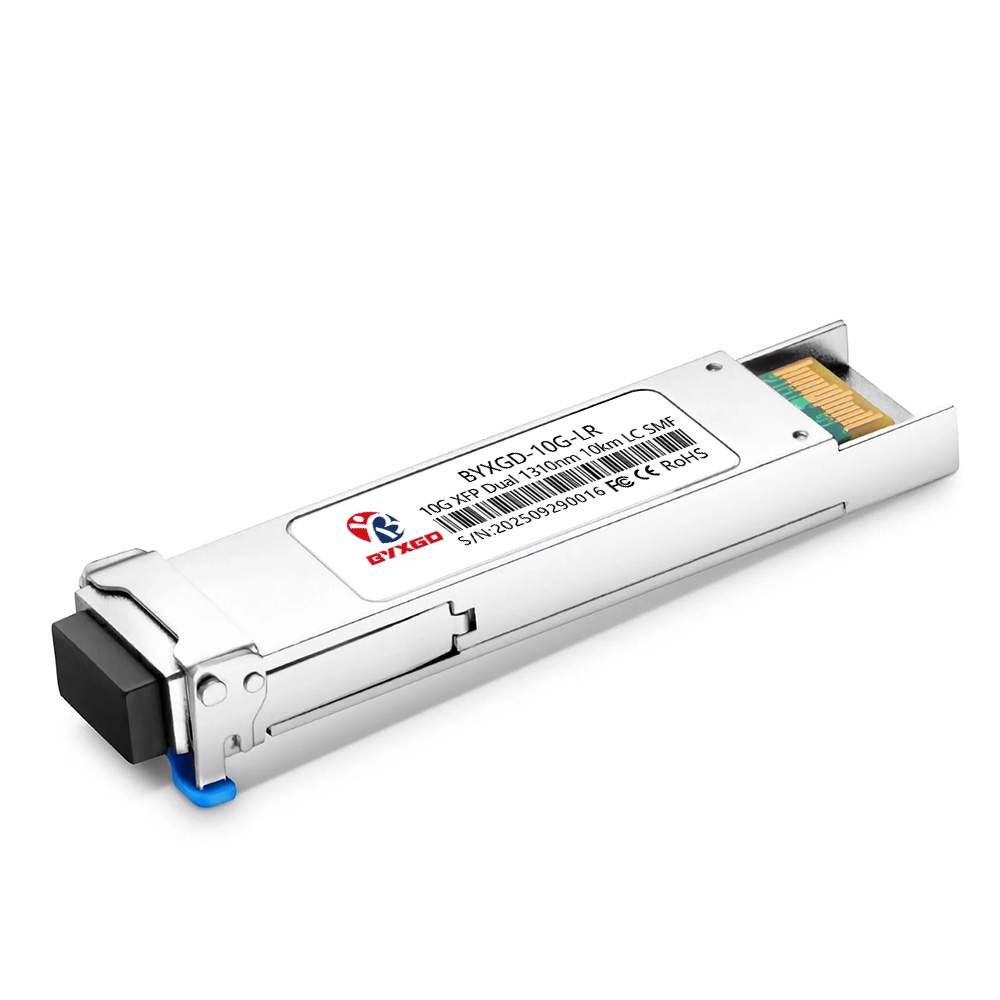

Cisco XFP-10GLR-OC192SR Compatible Transceiver Module enables 10GBASE-LR/LW and OC-192/STM-64 SR-1 multirate operation at 10.3125 Gb/s (LAN/WAN) and 9.953 Gb/s (OC-192/STM-64) over OS2 single-mode fiber. The module utilizes a 1310 nm DFB transmitter and operates with an LC duplex interface with a 10 km reach for 10GBASE-LR/LW and 2 km typical on POS for SR-1. The optical performance is specified to be TX -6 to 0 dBm and sensitivity to <= -14.5 dBm with a link budget of 8–14 dB dependent on application and power draw of <= 1.5 W in commercial conditions.

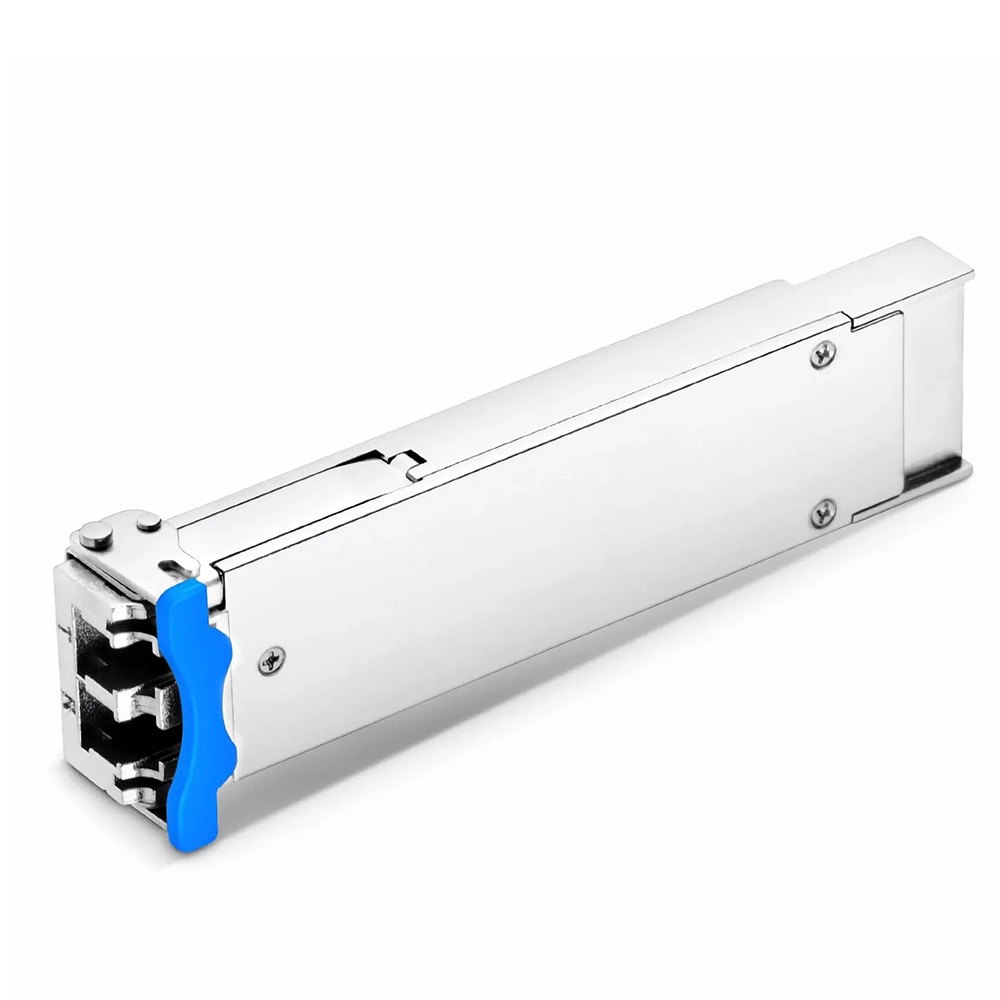

Physical characteristics include the hot-pluggable XFP form factor, which is compliant with the XFP MSA as well as IEEE 802.3ae 10GBASE-LR/LW and SONET/SDH OC-192 SR-1 that may be used in CPRI/eCPRI transport applications. The operating temperature is 0 to 70°C (32 to 158°F). For proper optical interoperability on the same link, the peer 10GBASE XENPAK, X2, and SFP+ must have optics that match. Real-time configuration and DDM/DOM support are also included to monitor the key parameters.
Brand and compatible models are as follows: Cisco XFP-10GLR-OC192SR Compatible, HPE JD108A, Huawei XFP-LX-SM1310, Juniper Networks EX-XFP-10GE-LR, Dell Networking 409-10007, Brocade 10G-XFP-LR, Extreme Networks 10G-XFP-LR, H3C XFP-LX-SM1310.
Specifications
| Parameter | Specification |
| Brand | BYXGD |
| Form Factor | XFP |

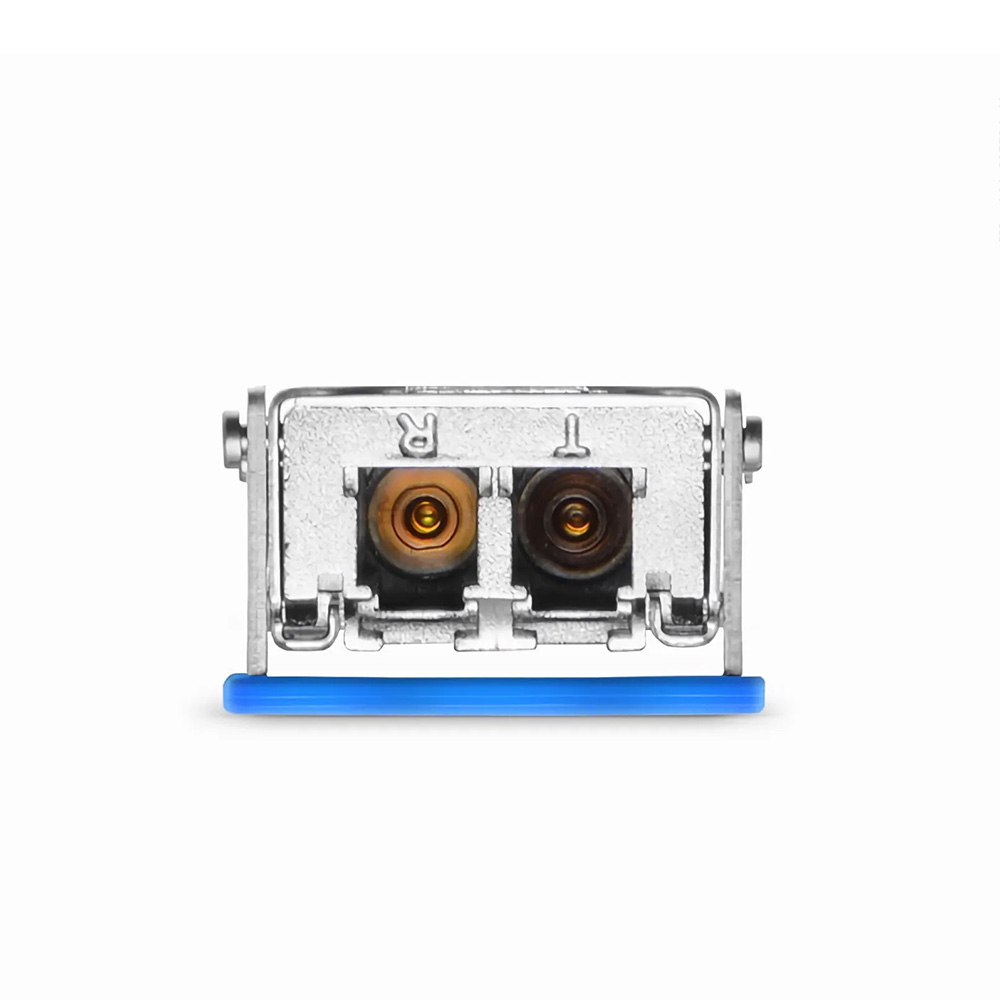

| Interface | LC Duplex, hot‑pluggable XFP MSA |
| Media | OS2 SMF, core size 9/125 µm |
| Wavelength | 1310 nm |
| Distance | 10 km |
| Max Data Rate | 9.95–11.3 Gbps (10GBASE‑LR/LW, OC‑192/STM‑64) |
| Modulation | NRZ |
| Transmitter Type | 1310 nm DFB |
| Receiver Type | PIN |
| TX Output Power | −6 to 0 dBm |
| Receiver Sensitivity | ≤ −12.6 dBm (typical LR spec), ≤ −14.5 dBm (variant) |
| Receiver Overload | 0 dBm |
| Power Budget | 6.6–14 dB |
| Extinction Ratio | ≥ 3.5 dB |
| Spectral Width (@−20 dB) | ≤ 1 nm |
| Side‑Mode Suppression Ratio | ≥ 30 dB |
| BER | ≤ 1×10^−12 |
| DDM/DOM | yes |
| Supply Voltage | 3.13–3.45 V |
| Typical Power Consumption | ≤ 1.5 W |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Storage Temperature | −40 to 85°C |
| Compliance/Protocols | IEEE 802.3ae 10GBASE‑LR/LW, SONET/SDH OC‑192 SR‑1, 10G FC 1200‑SM‑LL‑L, XFP MSA, INF‑8077i, CPRI, eCPRI |
| Interoperability | Optical interop with 10G XENPAK/X2/SFP+ on same link (matched optics) |

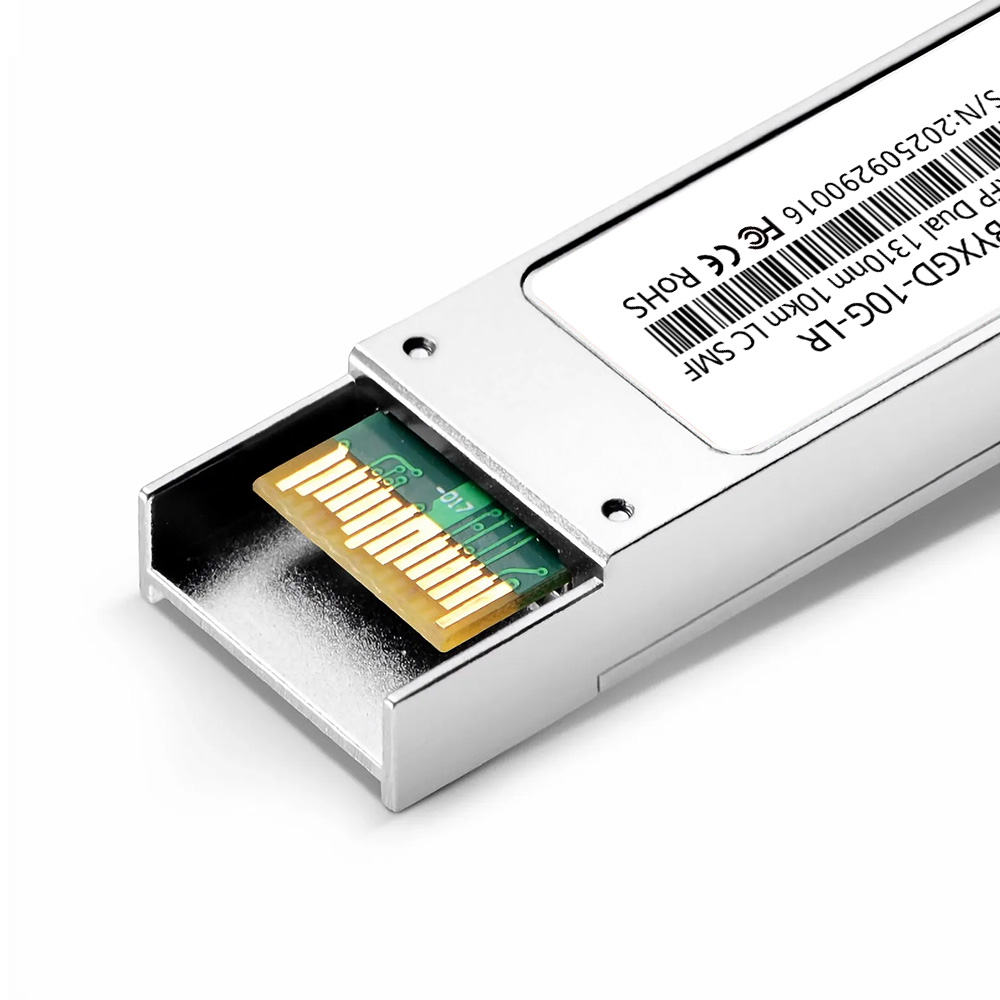

| Host Electrical Interface | XFI, AC‑coupled, 100 Ω differential |
| Management | Real‑time configuration via 2‑wire (SCL/SDA) |
| Connector Finish | LC/UPC |
| Warranty | 5 Years |
