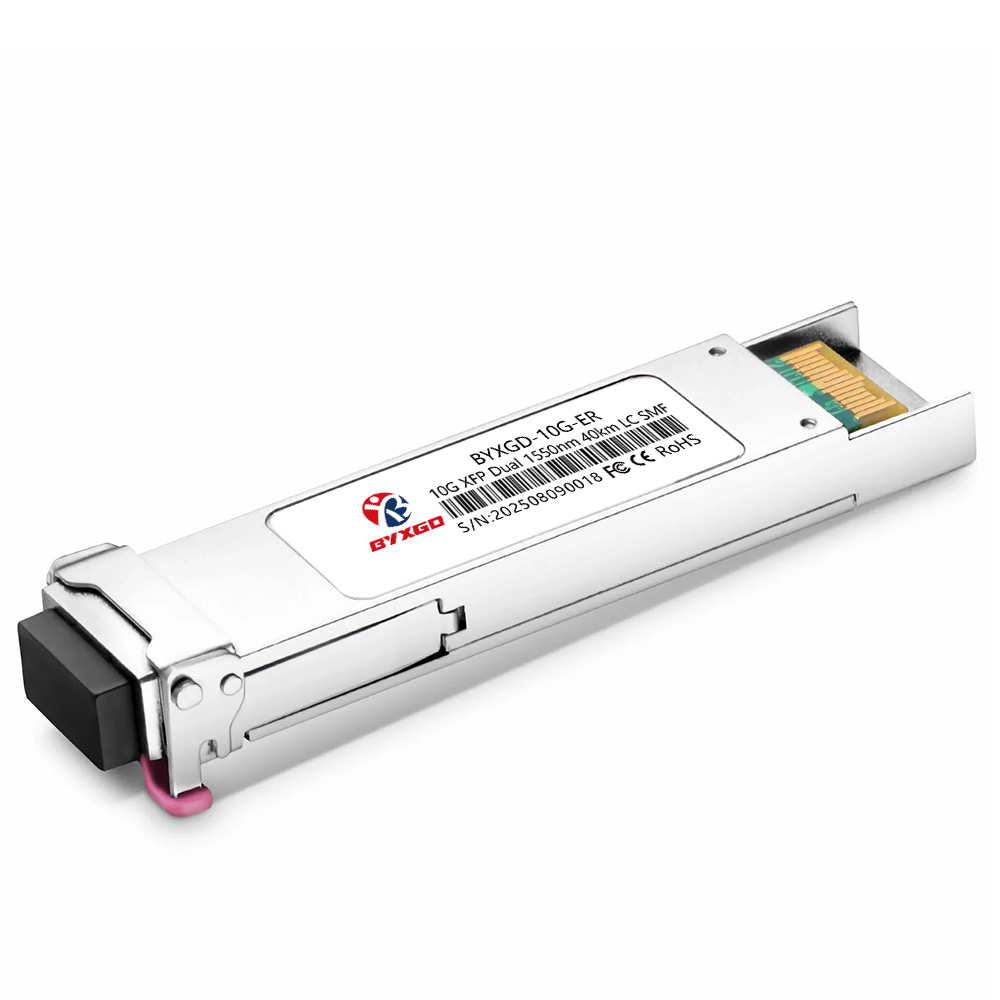

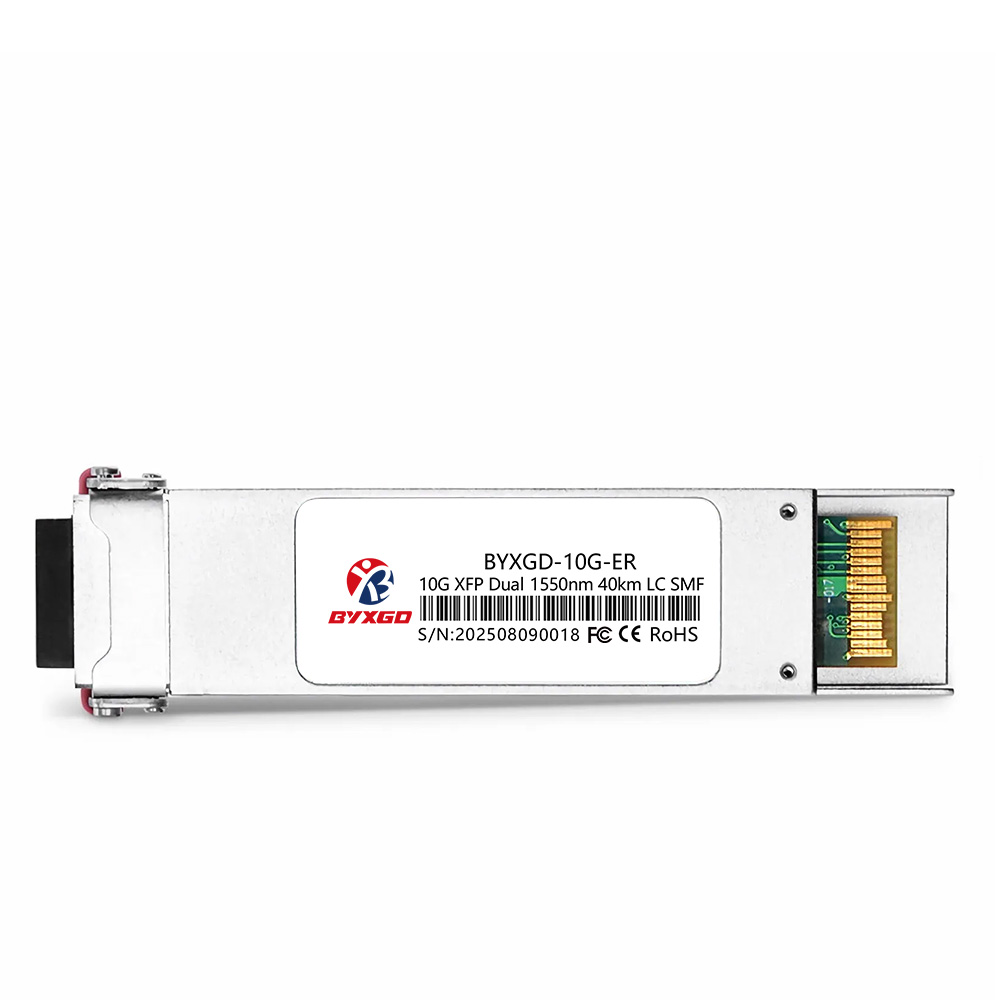

Cisco XFP-10GER-OC192IR Compatible 10GBASE-ER/EW and OC-192/STM-64 IR-2 XFP 1550nm 40km DDM Simplex LC/UPC SMF
1550 nm EML transmitter coupled with a PIN receiver fully supports 10G line rate at 9.95–11.1 Gbps; the optical budget allows 40 km over OS2 single-mode fiber. Duplex LC optical connector for the optical interface, XFP with a single 3.3 V power supply with hot-swap capability. DOM/DDM provides temperature, voltage, bias, Tx/Rx power for pre-emptive monitoring. IEEE 802.3ae 10GBASE-ER/EW, OC-192/STM-64 IR-2, XFP MSA, Class 1 laser, RoHS compliant; typical power ~3 W, maximum power ~3.5 W.
1550 nm centered transmit wavelength; PIN receiver sensitivity is tailored for ER links; designed and tested for low EMI performance and ESD immunity. No external reference clock is needed for operation, which is stable in normal temperature ranges. Applications include 10G Ethernet, Telecom, Data Center deployments, and SONET/SDH IR-2 links. The design includes a mechanical latch with EEPROM-based ID for host negotiation.
Brands and models supported by this device and tested include: Cisco XFP-10GER-OC192IR; HPE JD121A; Huawei XFP-LH40-SM1550; Juniper Networks EX-XFP-10GE-ER; Dell Networking XFP-10G-SM-ER; Brocade 10G-XFP-ER; Extreme Networks 10G-XFP-ER; H3C XFP-LH40-SM1550-F1.
Specifications
| Brand | BYXGD |
| Module | 10GBASE-ER/EW and OC-192/STM-64 IR-2 XFP |
| Form Factor | XFP |
| Data Rate | 10 Gbps |
| Wavelength | 1550 nm |
| Distance | 40 km |
| Fiber Type | OS2 SMF |

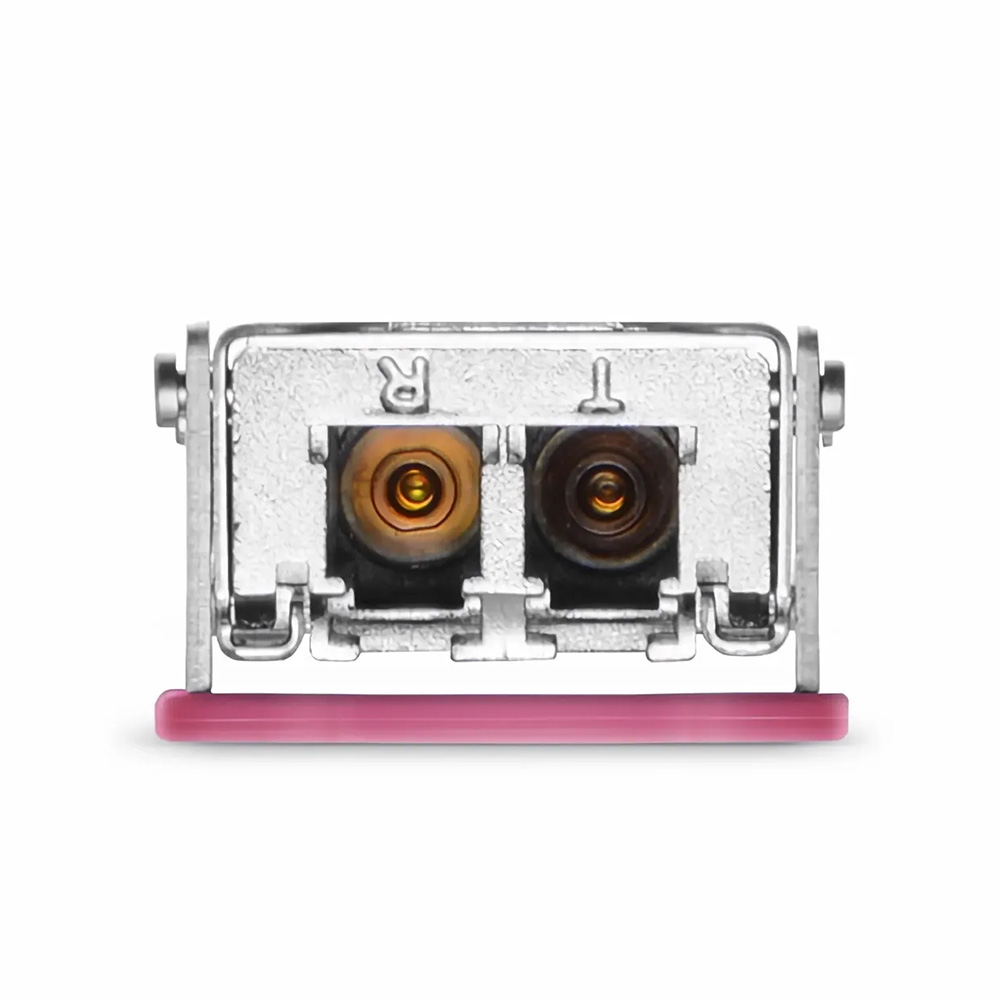

| Connector | LC duplex |
| Transmitter | EML 1550 nm |
| Receiver | PIN |
| TX Power | 0 to 4 dBm |
| Receiver Sensitivity | < -16 dBm |
| Optical Budget | Matched for 40 km ER over OS2 |
| DOM/DDM | yes |
| Power Consumption | < 3.5 W (typ. ~3 W) |
| Supply Voltage | 3.3 V |
| Hot Pluggable | Yes |
| EMI/ESD | Low EMI, robust ESD design |
| Reference Clock | Not required (internal CDR host‑independent) |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Media | Single‑mode fiber |
| Protocol | XFP MSA (INF‑8077i), IEEE 802.3ae 10GBASE‑ER/EW, OC‑192/STM‑64 IR‑2, CPRI, eCPRI |
| Applications | 10G Ethernet, Telecom, Data Center, SONET/SDH IR‑2 |
| Safety & Environment | Class 1 laser, RoHS |
| Warranty | 5 Years |
