SFP-10G-BX80-U is a protocol-independent SFP+ BiDi transceiver for 10GBASE-BX80-U networks. The module uses a simplex LC connector and operates on OS2 SMF, with an operational distance of 80 km. This BiDi transceiver transmits on one wavelength, at 1490 nm, which serves as the transmit wavelength, and receives on another wavelength, at 1550 nm, with a complementary wavelength pairing for the opposite direction. DIAGNOSTICS: uses I2C (SFF-8472) to provide real-time parameters. TESTED: each transceiver is tested for compatibility with switches, routers, servers, NICs, and other network/LAN devices. POWER: consumes low power, optimized for long-distance links, suited for low-energy links. APPLICATIONS: enterprise, wiring closets, dark fiber service provider transport, Radio & Baseband Units, NICs, campus interconnects.

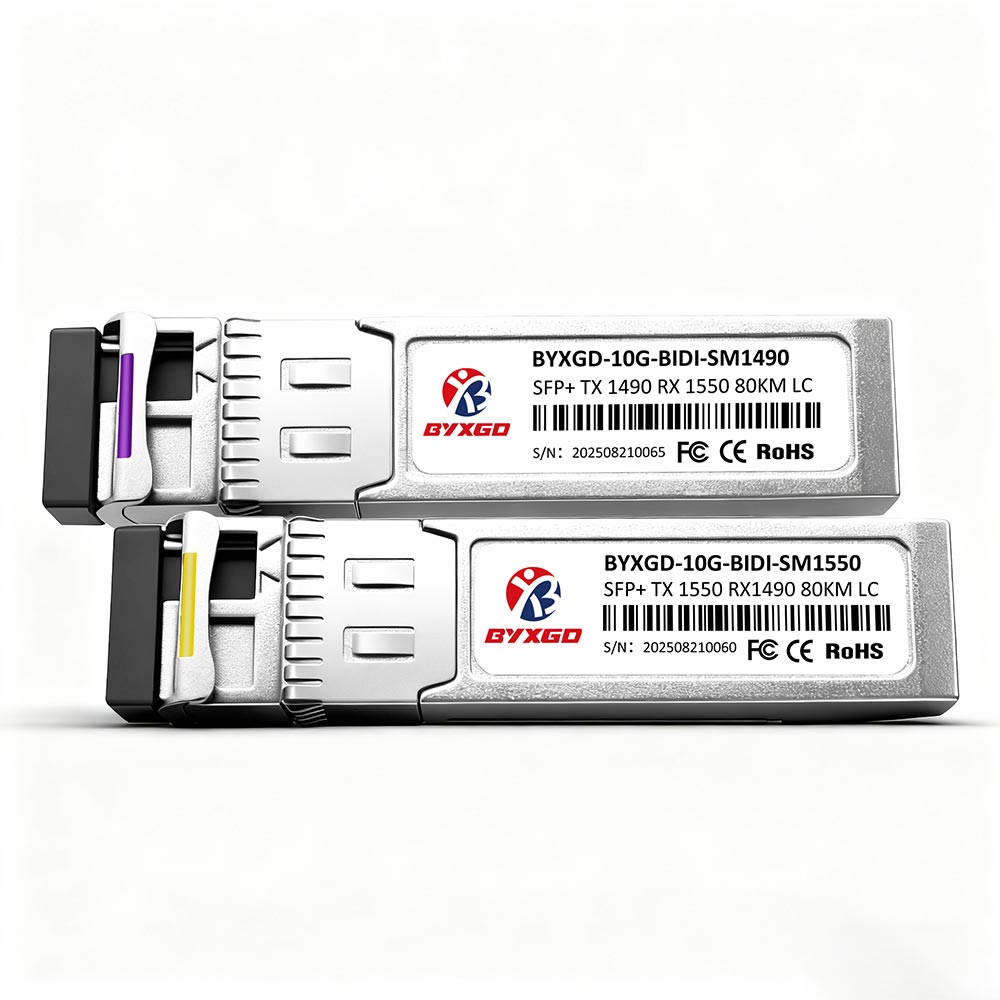

This BiDi module employs a cooled EML transmitter and APD receiver pair to operate. These BiDi pairs require a corresponding wavelength partner that travels in the opposite direction to complete the signal path. The BiDi transmitter effectively doubles the capacity of a fiber by WDM’ing the signal over a single fiber, with a cost-reducing installation based on cabling and infrastructure expenses. IDEAL USE CASES: MANs, data center interconnects over several buildings, inter-building links, backhaul, and offers long reach without installing new fiber.
Compatible brands and models: Generic SFP-10G-BX80-U; Cisco SFP-10G-BX80U; MikroTik S+45LC80D; Ubiquiti UF-SM-10G-S-U80; Fortinet FN-TRAN-SFP+BX80-U; Netgear AXM-SFP10G-BX80-U; D-Link DEM-436XT-BXU80; Mellanox MC3305611-BXU-80; Brocade 10G-SFPP-BXU-80K; Arista SFP-10G-ZRBD-U; Palo Alto PAN-SFP-PLUS-ZR-BXU; Allied Telesis SP10BD80-14; Juniper EX-SFP-10GE-BX80-U; Dell GP-SFP-10GBX-U-80; Intel E10GSFPBX80U; F5 F5-UPG-SFP+BX80U-R.
Specifications
| Form Factor | SFP+ BiDi |
| Brand | BYXGD |
| Data rate | 10.3125 Gbps |
| Wavelength | 1490 nm TX / 1550 nm RX |
| Max distance | 80 km |
| Media type | SMF |

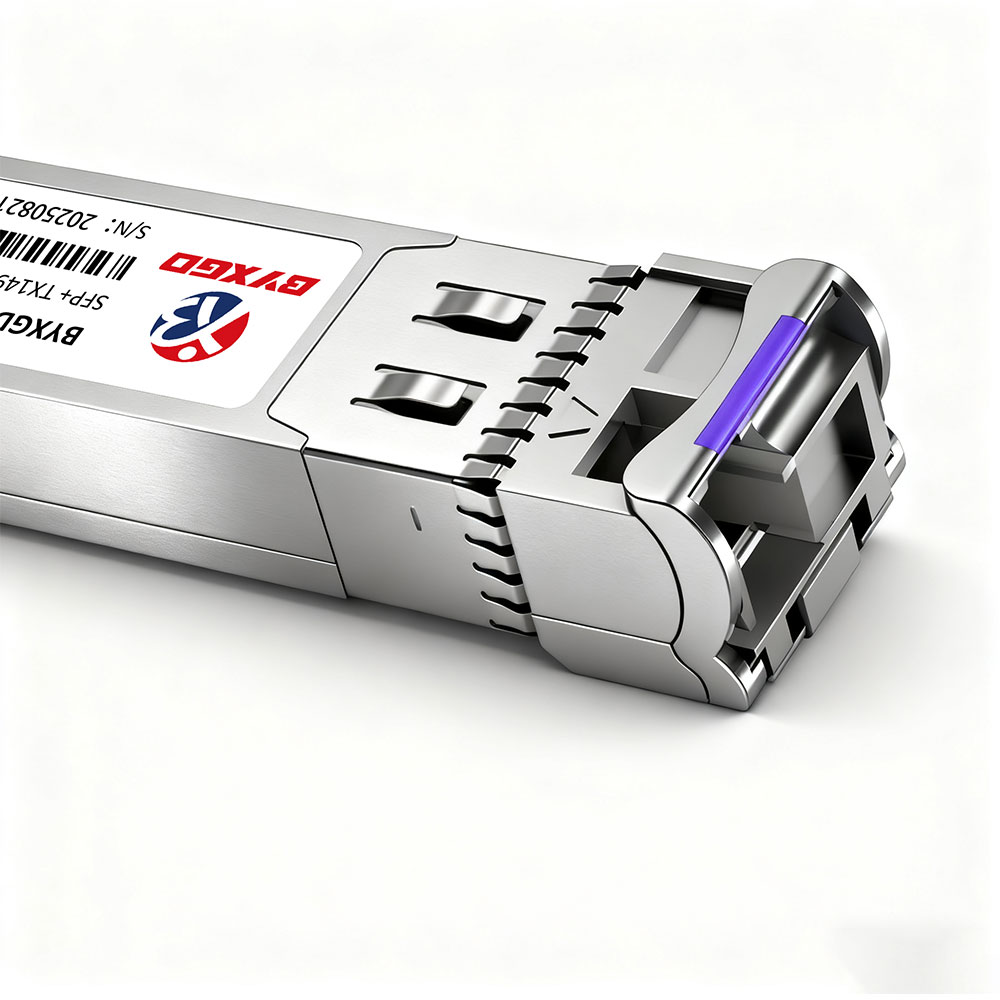

| Connector | Simplex LC |
| Transmitter type | EML |
| Receiver type | APD |
| TX power | 0 to 5 dBm |
| Receiver sensitivity | ≤ -23 dBm |
| Extinction ratio | > 7.5 dB |
| Receiver overload | > -7 dBm |
| DOM/DDM | Yes |
| Operating temperature | 0 to 70 °C |
| Storage temperature | -40 to 85 °C |
| Compliance | SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472, RoHS, CE, REACH |
| Applications | 10GBase-ZR/10GBase-ZW Ethernet, 10G fiber channel, 10G data center switches and routers, 10G NICs, 10G fiber media converters |
| Power consumption | 1.5 W |
| Dimensions (L × W × H) | 56.7 × 13.7 × 8.5 mm |
| Shipping weight | 0.03 kg |
| Notes | Requires matched pair with complementary wavelength and compatible host hardware |
