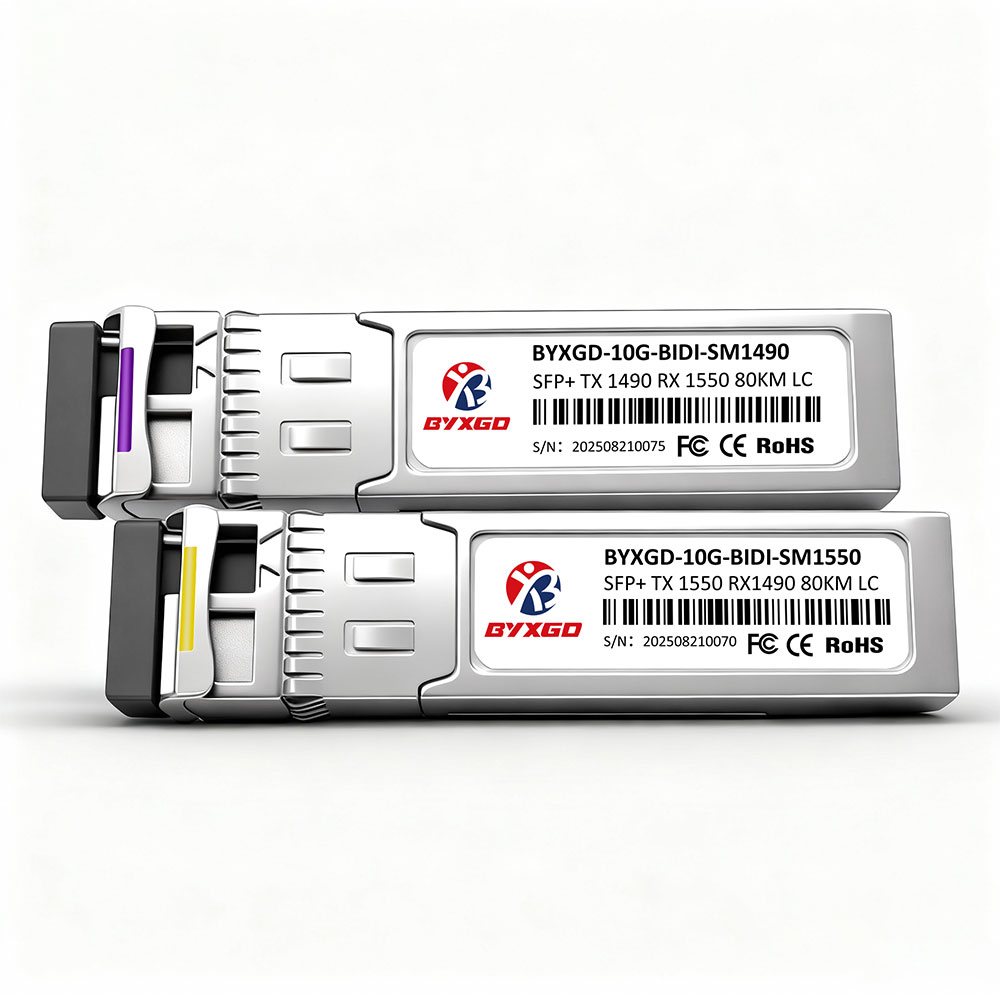

10GBASE-BX80-D SFP+ BiDi transceiver for the Cisco SFP-10G-BX80D compatible supports up to 80 km of 10GBASE-BX80 throughput over a single strand of SMF using an LC simplex connector. It transmits at 1550 nm while receiving at 1490 nm over the same fiber pair, allowing for dual directions over a single fiber while taking up little rack space. The BiDi design is intended for long-haul links and is optimized for enterprise wiring closets, service provider transport applications, Radio & Baseband Units (RAN & BBU), data center interconnects, and more. Digital diagnostics are available on the I2C interface as per SFF-8472, exposing real-time operating parameters. Each unit has verified compatibility with a wide selection of switches, routers, servers, NICs, and other compatible 10G devices. The BiDi design reduces fiber count required as well as the total cost of ownership for MANs, campus networks, and backhaul situations. A matched pair is required to operate correctly and achieve full 80 km reach, matching the wavelength of each device’s counterpart.
Compatible brands and models: Cisco SFP-10G-BX80D, Juniper EX-SFP-10GE-BX80-U, Dell GP-SFP-10GBX-U-80, Brocade 10G-SFPP-BXU-80K, Extreme 10GB-BX80-D, Nvidia/Mellanox MC3305611-BXD-80, Ubiquiti UF-SM-10G-S-D80, Netgear AXM-SFP10G-BX80-D, D-Link DEM-436XT-BXD80, Intel E10GSFPBX80D, F5 F5-UPG-SFP+BX80D-R, etc., are all part of the full compatibility set.
Note: This module is designed for long reach, minimal fiber plant deployments, and should only be deployed in matched pairs (one from each pair). All parameters have been validated according to Broadcom, and each module has been verified reliable across supported switches, routers, servers, NICs, and network interface devices.
Specifications
| Parameter | Value |
| Form Factor | SFP+ BiDi |
| Data Rate | 10 Gbps |
| Wavelength | 1550nm-TX / 1490nm-RX |
| Media Type | SMF |
| Max Distance | 80 km |
| Transmitter Type | EML BiDi |
| Receiver Type | APD |
| Transmitter Power | 0 ~ 5 dBm |
| Receiver Sensitivity | < -23 dBm |
| Extinction Ratio | > 7.5 dB |

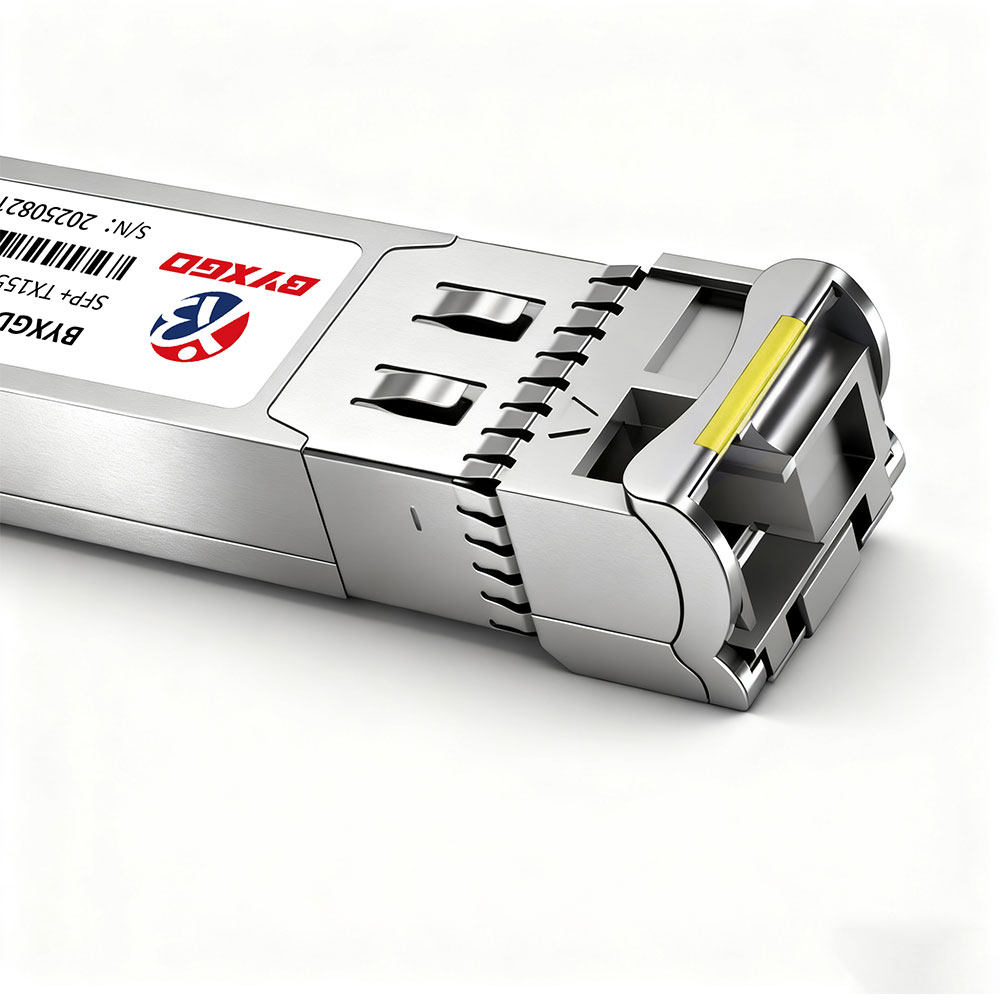

| Connector | LC Simplex |
| DOM / DDM | Yes |
| Compliance | SFP+ MSA, IEEE 802.3ae, SFP+ MSA Compliant, CPRI, eCPRI |
| Power Consumption | 1.5 W |
| Operating Temperature | 0 ~ 70°C |
| Storage Temperature | -40 ~ 85°C |
| Other | RoHS, CE, REACH |
| Size (LxWxH) | 56.7 × 13.7 × 8.5 mm |
| Weight | 0.03 kg |
| Applications | 10GBase-ZR/10GBase-ZW Ethernet, 10G fiber channel, data center networking, high-speed NICs, fiber media converters |
