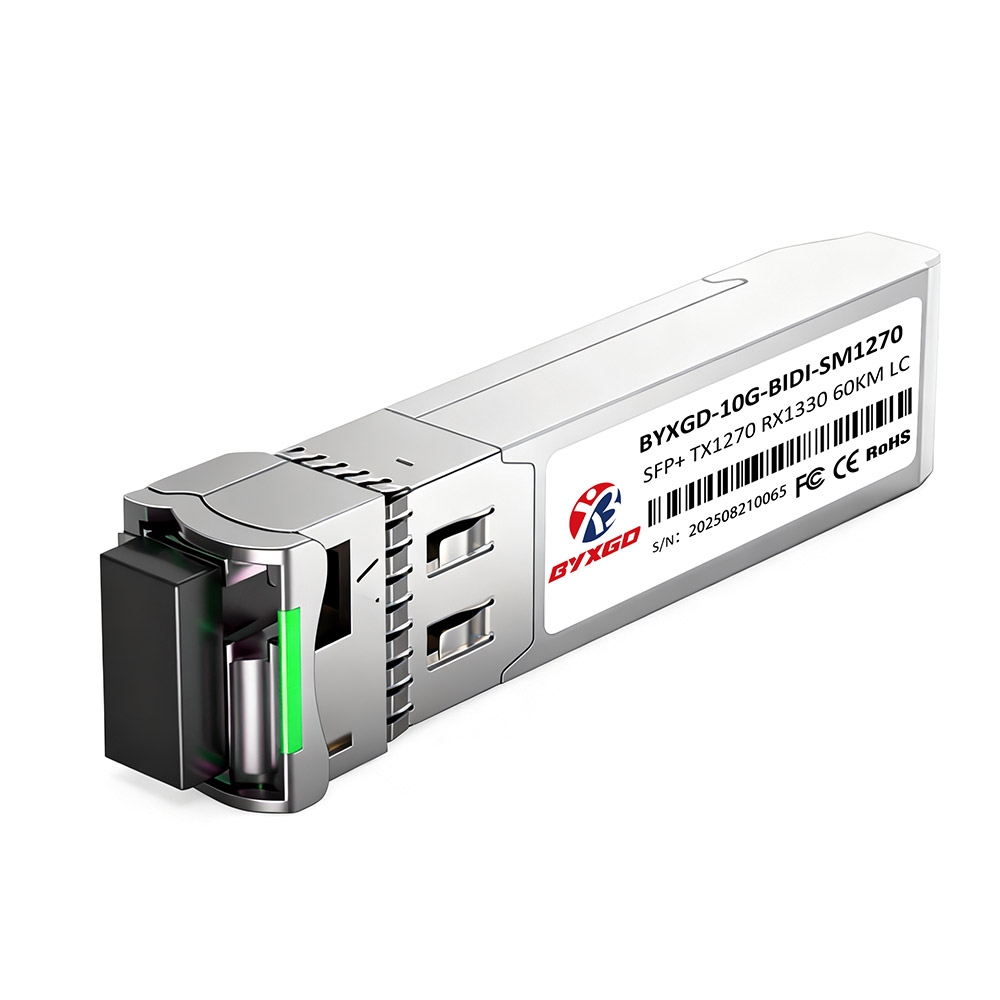

Cisco SFP-10G-BX60U compatible 10GBASE-BX60-U SFP+ BiDi transceiver with Single-Mode Fiber transmission rates of 10Gbps, and extended reach up to 60km. This transceiver operates on a simplex LC/UPC connector, and uses wavelengths of 1270nm to transmit, and 1330nm to receive, providing excellent bandwidth and solid connectivity in dense networking environments. Using wavelength division multiplexing (WDM) technology to reduce cabling complexity and improve efficiency, these BiDi modules enable bidirectional transmission over a single fiber.
The module conforms to SFP+ Multi-source Agreement (MSA) and IEEE 802.3ae standards and is hot-pluggable with digital diagnostic monitoring (DDM) and a power consumption of less than 1.5W. Each unit is tested individually for switch, router, and server compatibility and performance in major brand equipment.
Compatible with: Cisco SFP-10G-BX60U, Generic SFP-10G-BX60-U, Extreme 10GB-BX60-U, MikroTik S+23LC60D, Ubiquiti UF-SM-10G-S-U60, Fortinet FN-TRAN-SFP+ZR60BD27, Netgear AXM-SFP10G-BX60-U, D-Link DEM-436XT-BXU60, Nvidia/Mellanox MFM1T02A-ZR60-BXU, Brocade 10G-SFPP-BXU-60K, Palo Alto PAN-SFP-PLUS-ZR60-BXU, Allied Telesis AT-SP10BD60-12, Juniper EX-SFP-10GE-BX60-U, Dell GP-SFP-10GBX-U-60, Intel E10GSFPBX60U, F5 F5-UPG-SFP+BX60U-R.
This SFP module is ideal for enterprise wiring closets, service provider transport networks, Radio & Baseband Units, and NICs that require long-range, high-speed fiber connectivity.
Specifications
| Specification | Description |
| Brand | BYXGD |
| Model | 10GBASE-BX60-U SFP+ BiDi |
| Form Factor | SFP+ |
| Transmission Mode | BiDi |
| Maximum Data Rate | 10.3125 Gbps |
| Wavelength | 1270nm Transmit / 1330nm Receive |
| Maximum Transmission Distance | 60 km |

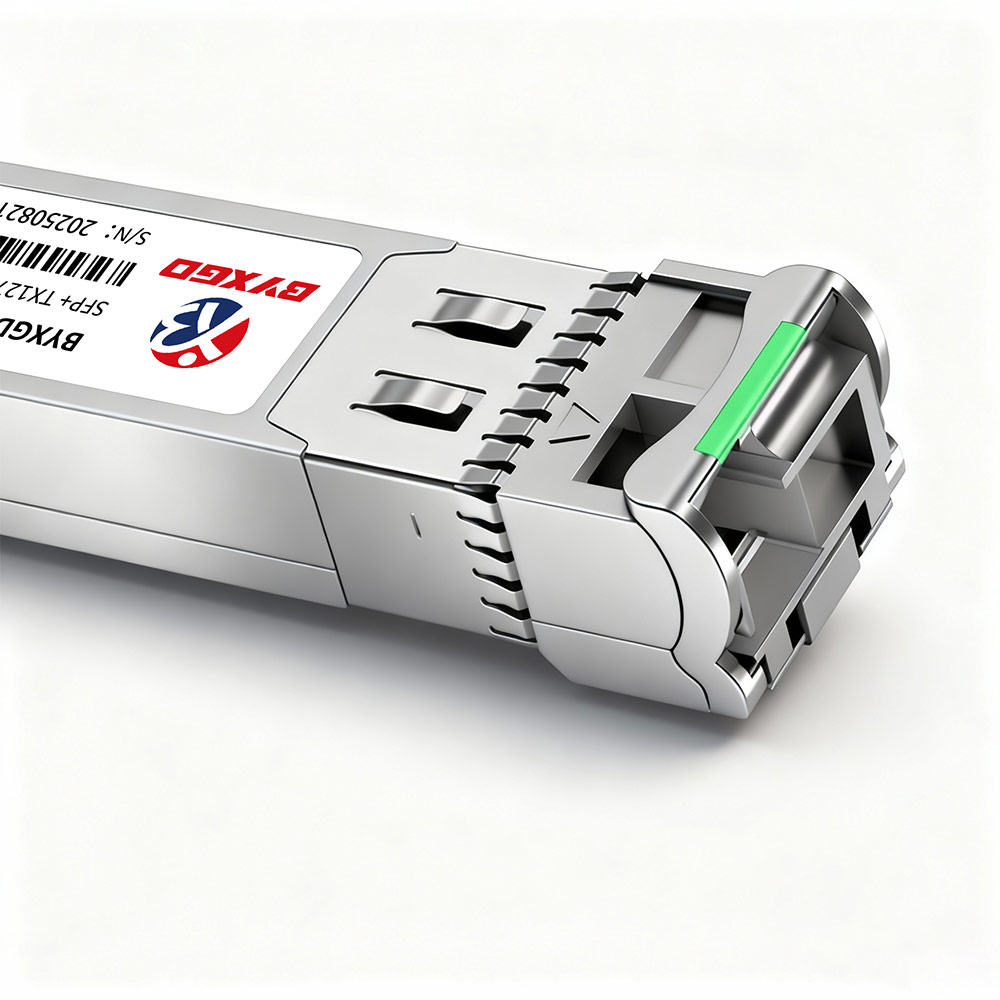

| Connector Type | Simplex LC/UPC |
| Optical Components | DFB Laser and APD Receiver |
| Fiber Type | Single-mode Fiber (SMF) |
| Digital Diagnostic Monitoring (DDM/DOM) | Supported |
| Transmitter Power (Tx Power) | 0 ~ +5 dBm |
| Receiver Sensitivity (Rx Sensitivity) | < -20 dBm |
| Receiver Overload | > -7 dBm |
| Extinction Ratio | > 3.5 dB |
| Power Consumption | < 1.5 W |
| Operating Temperature Range | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Compliance Standards | SFP+ MSA, IEEE 802.3ae 10GBASE-BX, SFF-8431, SFF-8432, SFF-8472, CPRI, CE, RoHS, REACH |
| Applications | 10GBase-ZR/ZW Ethernet, 10G Fiber Channel, Data Center Switches and Routers, Network Interface Cards (NICs), Fiber Media Converters, Enterprise and Metro Networks |
| Dimensions (L x W x H) | 56.7 × 13.7 × 8.5 mm |
| Shipping Weight | 0.03 kg |
