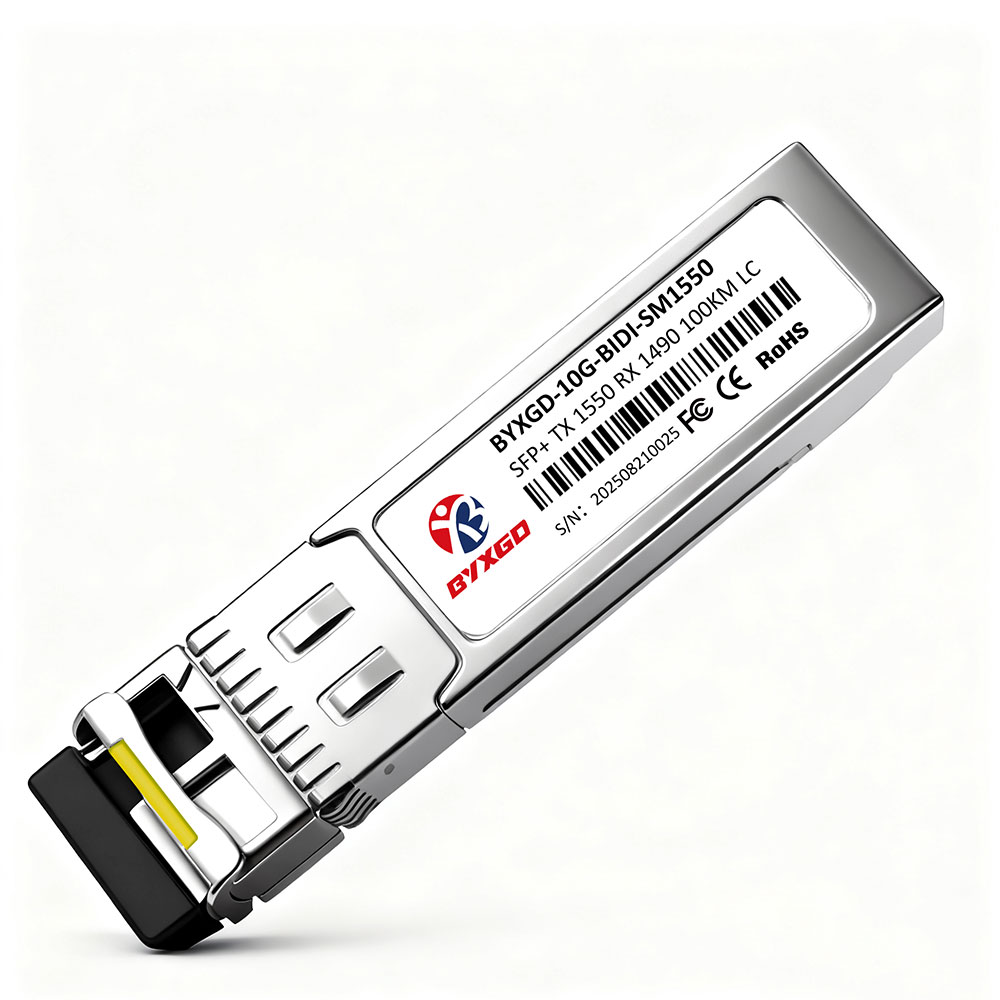

10GBASE-BX100-D SFP+ BiDi 1550nm-TX/1490nm-RX 100km Simplex LC/UPC SMF Transceiver

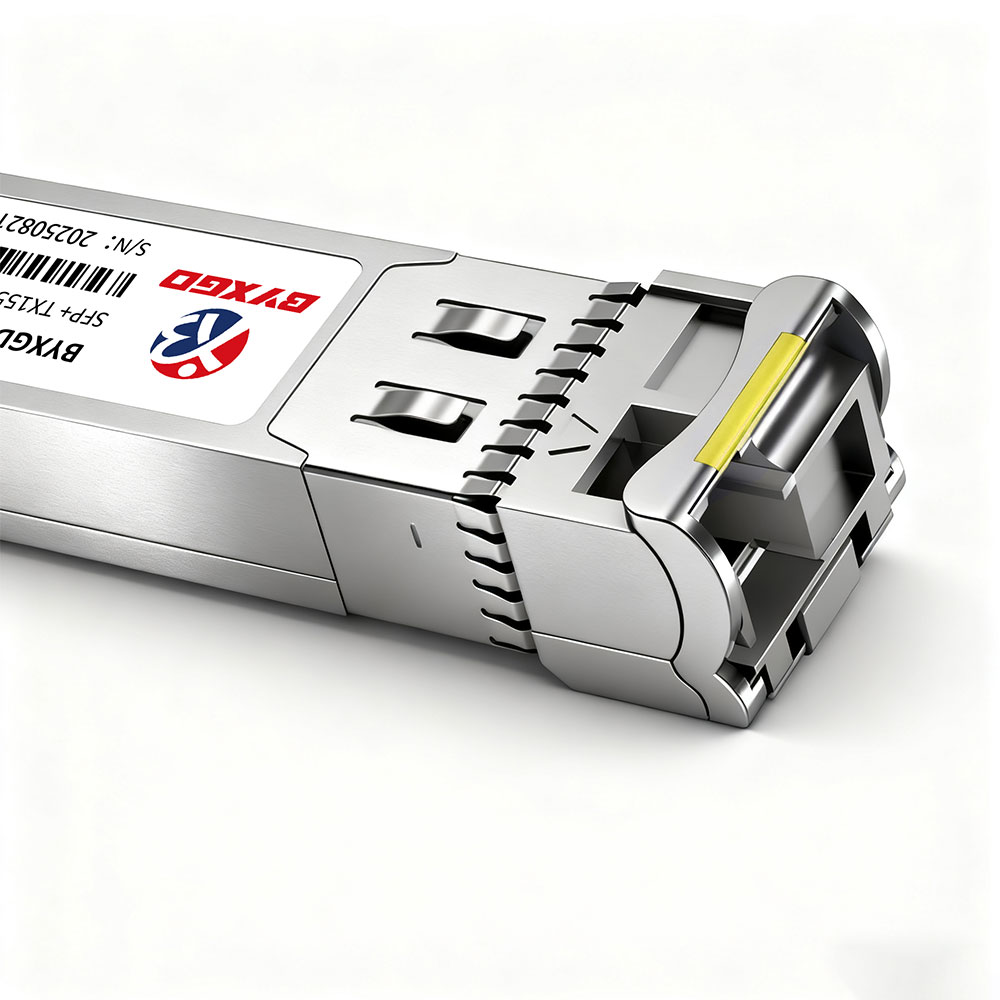

Cisco SFP-10G-BX100D Compatible 10GBASE-BX100-D SFP+ BiDi module provides the ability to transmit 10 Gbps over a single strand of fiber, which can be either single-mode fiber (SMF) or multimode fiber (MMF). This particular model utilizes a single-mode fiber (SMF) strand and Wavelength Division Multiplexing (WDM) technology, with a transmission wavelength of 1550 nm and a receiving wavelength of 1490 nm, with maximum distances of 100 km. The SFP module employs a simplex LC/UPC connector, features a cooled EML transmitter and APD receiver, and, in order to transmit and receive data utilizing a single strand of fiber, must be paired with a complementary wavelength on the far side of the link to operate multidirectionally. Data sheets emphasize low power consumption along with high-speed performance for enterprise-level and service provider networks, for applications that range from enterprise wiring closets, service provider transport applications, to Radio & Baseband Units.

Brands and models covered: Cisco SFP-10G-BX100D, Generic SFP-10G-BX100-D, Extreme 10GB-BX100-D, Ubiquiti UF-SM-10G-S-D100, Juniper EX-SFP-10GE-BX100-D, Dell GP-SFP-10GBX-D-100, and Intel E10GSFPBX100D. The BiDi module is designed for OS2 single-mode fiber (SMF) transceiving with a single fiber path, allowing for long-range links while requiring fewer cables. The module has applications for metro, campus, and data center interconnects, or inter-building use, especially in scenarios where fiber connectivity is limited. It is equipped with I2C digital diagnostics per SFF-8472 for reading real-time status, and is tested individually on the compatible switches, routers, servers, and NICs listed above to ensure compatibility.

Specifications
