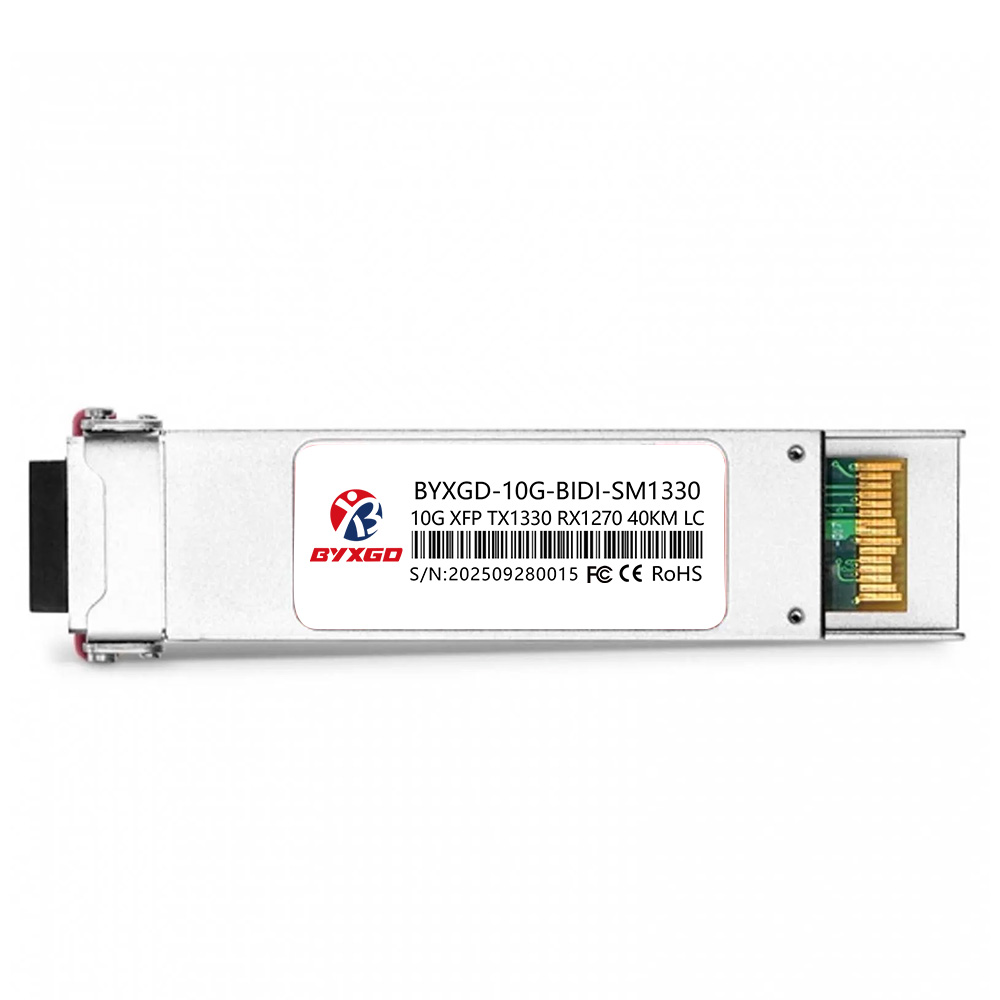

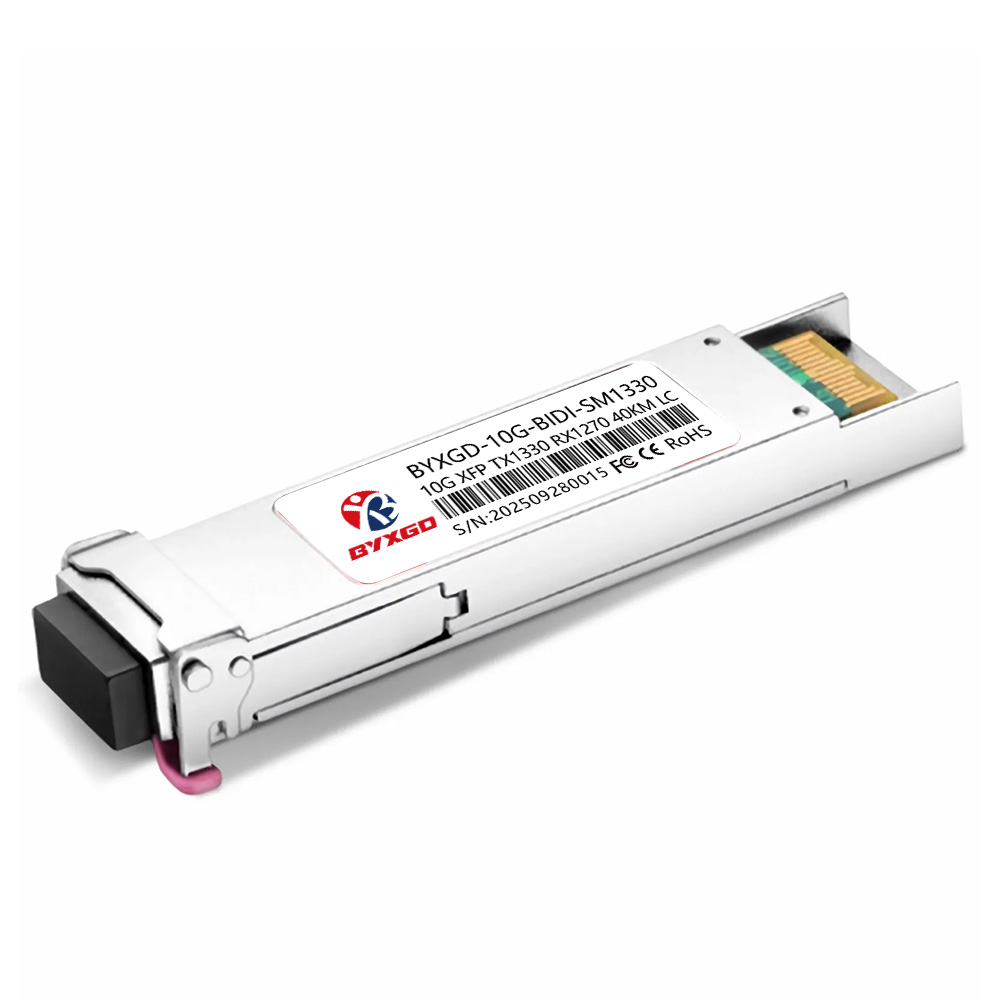

Cisco XFP-10G-BX40D-I Compatible BiDi XFP Transceiver is designed for long-distance 10G connections where fiber utilization and permanent optical performance are important. The 1330nm DFB transmitter and 1270nm PIN receiver provide signal integrity in high-performing networks often sensitive to signal degradation, making this transceiver ideal for metro access, enterprise backbone, and carrier aggregation applications.

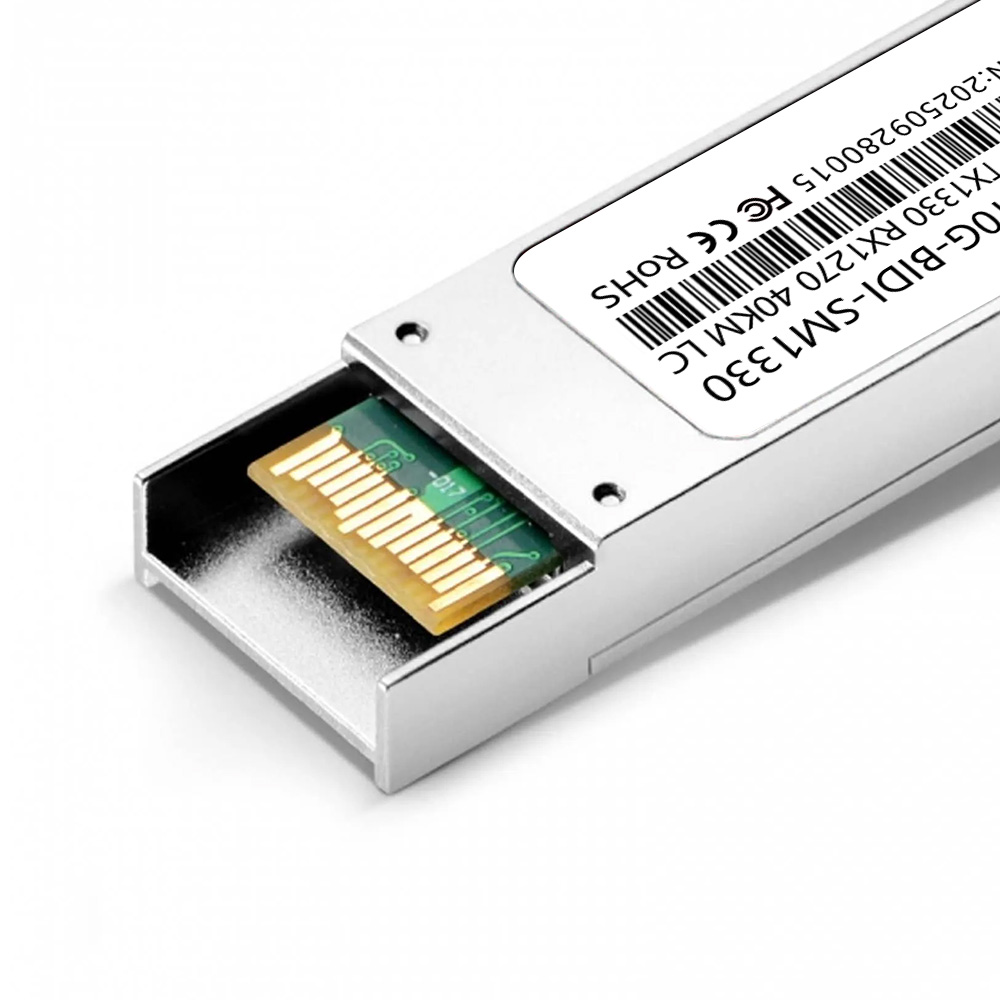

The transceiver module is housed in an all-metal case for extra EMI protection, ensuring constant functionality in the most demanding high-density switching and routing platforms. The transceiver has been tested thoroughly and is guaranteed to operate reliably with the Cisco XFP-10G-BX40D-I, the Juniper EX-XFP-10GE-BX32-40, the Dell GP-XFP-10GBX-D-40, and the Brocade 10G-XFP-BXD-40K modules, making it a viable option for both 10G Ethernet and 10G Fibre Channel applications.
Specifications
| Parameter | Value |
| Brand | BYXGD |
| Product Type | 10GBASE-BX XFP BiDi Transceiver |
| Form Factor | XFP, hot-pluggable |
| Max Data Rate | 10.7 Gbps |
| Wavelengths | 1330nm TX / 1270nm RX |
| Fiber Type | OS2 SMF |
| Max Distance | 40 km |
| Connector | LC simplex (UPC) |
| Transmitter | DFB BiDi laser |
| Receiver | PIN photodiode |
| TX Optical Power | 1 to 5 dBm |
| Receiver Sensitivity | ≤ -15 to -16 dBm (typical) |
| Receiver Overload | 0 dBm (typical) |
| Power Consumption | < 1.5 W |
| Digital Diagnostics | DDM/DOM supported |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C |
| Supply Voltage | 3.3 V nominal |
| Bit Rate Support | 9.95 to 10.7 Gbps |
| Encoding | NRZ, 64B/66B as applicable by host |
| Management | 2‑wire serial interface per XFP MSA |
| Protocol Compliance | XFP MSA (INF‑8077i); IEEE 802.3ae 10GbE; CPRI/eCPRI (host-dependent) |
| Applications | 10GBASE-BX Ethernet; 10G Fibre Channel; OC‑192/STM‑64 (host-dependent) |
| EMC/Safety | Class 1 laser; RoHS compliant |
| Warranty | 5 Years |
