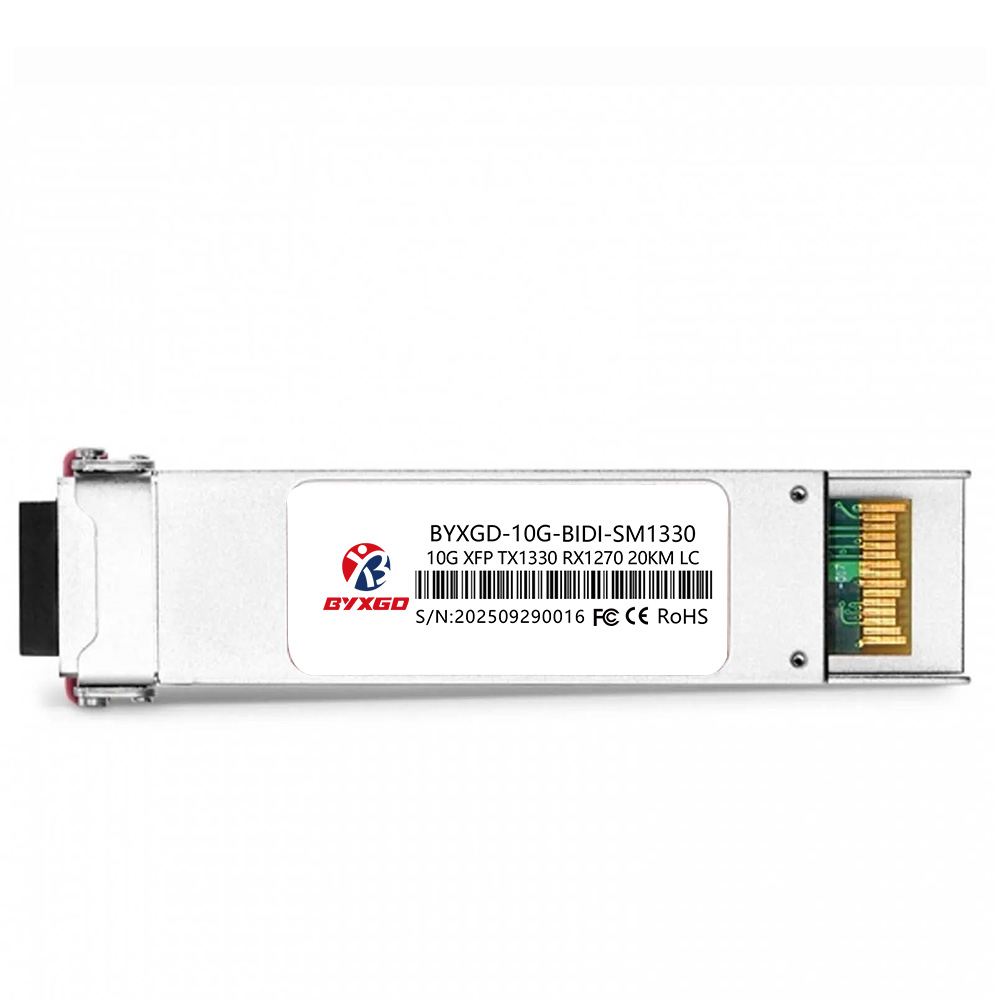

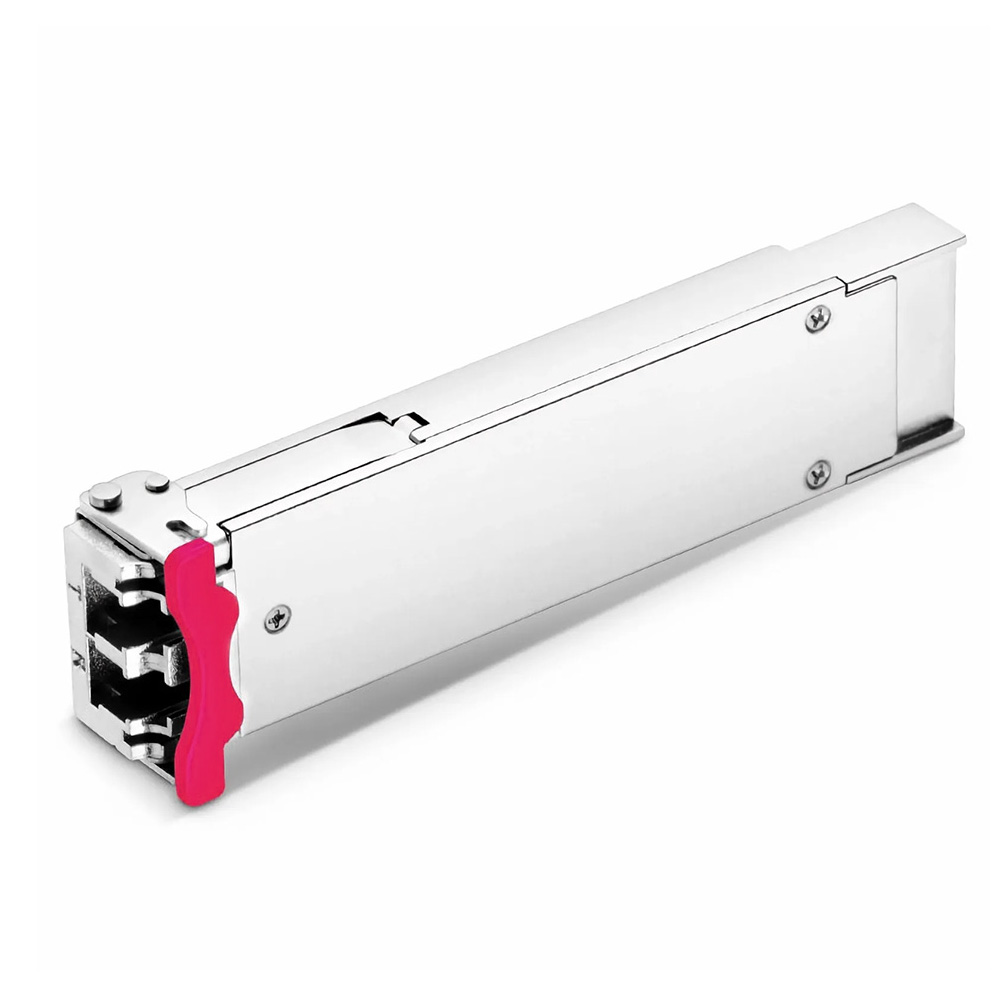

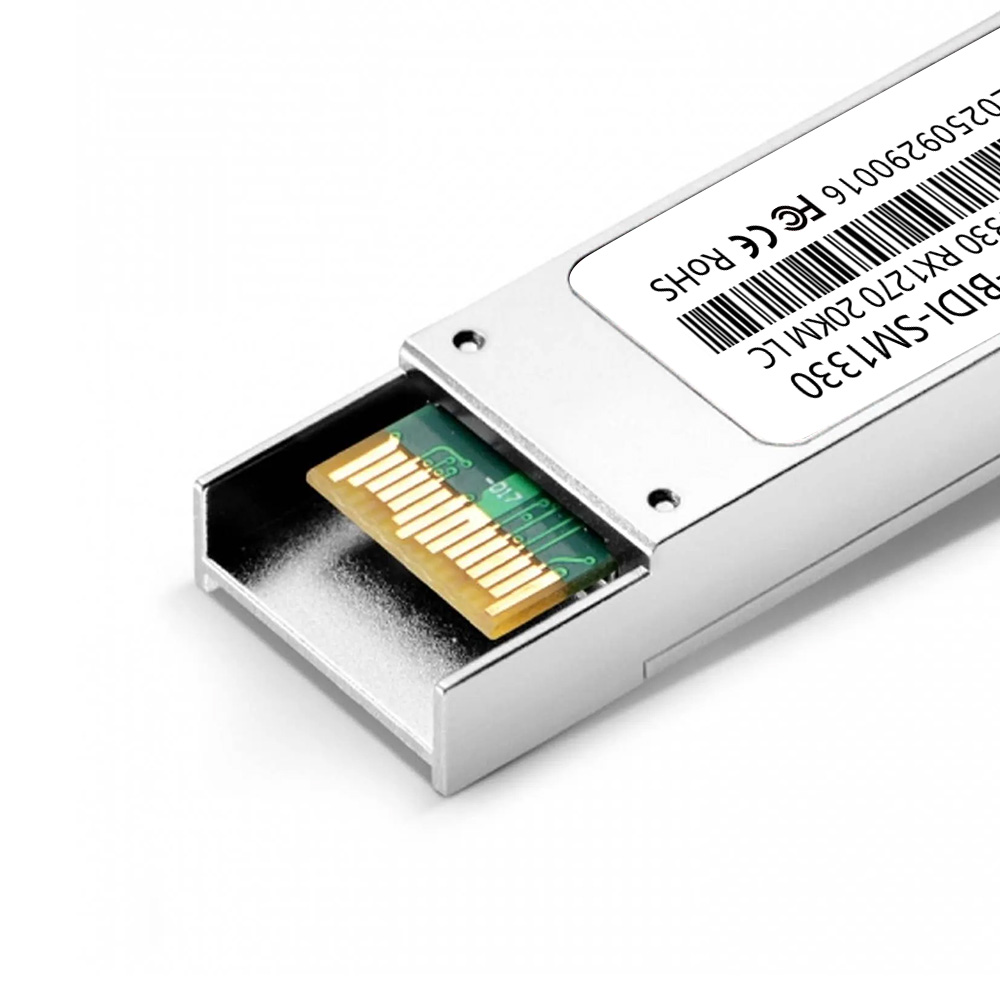

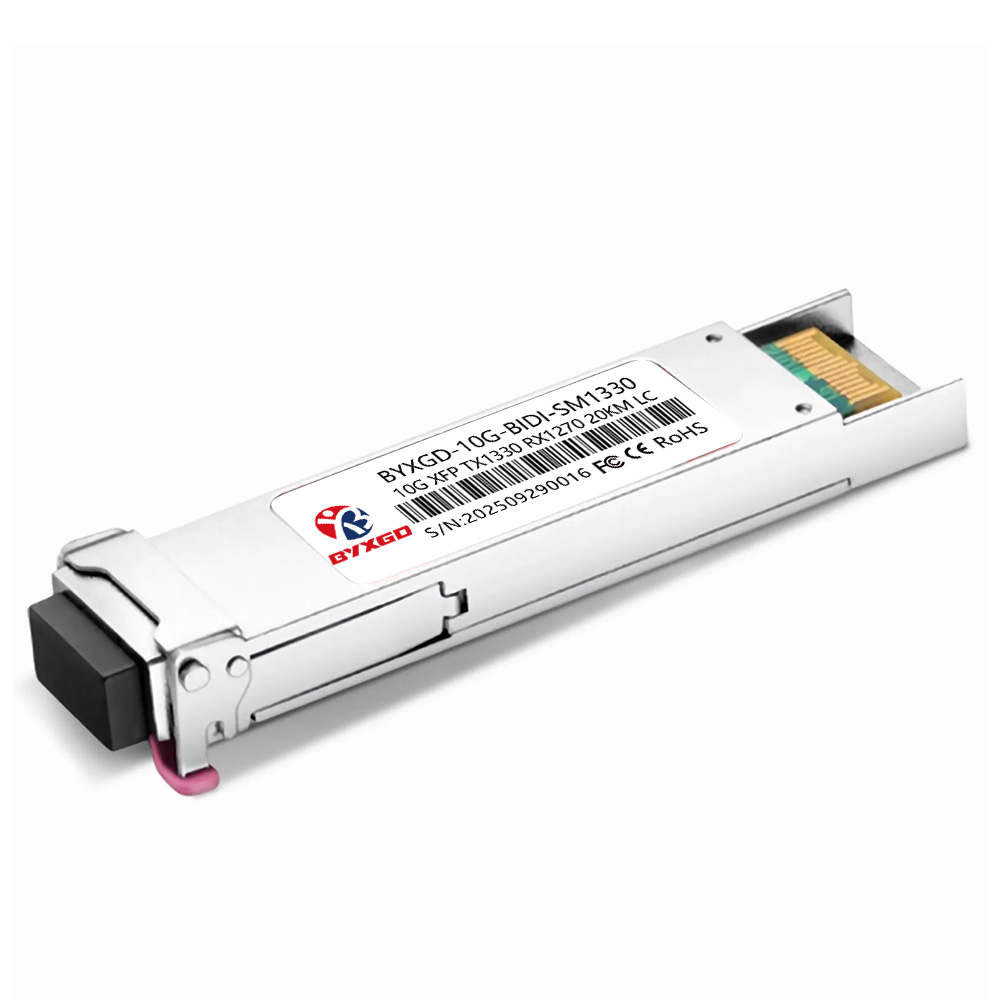

Cisco XFP-10G-BX20D Compatible 10GBASE-BX XFP BiDi 1330nm TX / 1270nm RX 20km DDM Simplex LC/UPC SMF Transceiver is designed to deliver 10G bi-directional optical links using single-mode fiber. It is compatible with the Cisco XFP-10G-BX20D and alternative part numbers from Juniper Networks (EX-XFP-10GE-BX32-20), Brocade (10G-XFP-BXD-20K), and Dell (DE) (GP-XFP-10GBX-D-20).
The module operates from 9.95Gb/s to 10.5Gb/s using a 1330nm DFB laser transmitter and 1270nm PIN receiver to support 20km link lengths on G.652 fiber. Typical optical output is +1 to +5dBm with a receiver sensitivity of -15dBm. It provides duplex communication over a single strand of fiber using Wavelength Division Multiplexing (WDM) technology and is equipped with a simplex LC/UPC connector.
The module has been designed to comply with the following standards: XFP Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-LR/LW standards, and 10GFC 1200-SM-LL-L. The module operates on a single +3.3V power supply with a total power consumption of 2 Watts or less. Digital Diagnostic Monitoring (DDM) allows full real-time monitoring of internal temperature, supply voltage, laser bias current, and received optical power. The operating temperature is between 0°C and +70°C, and the transceiver module complies with IEC 60825 Class 1 laser safety standard, while meeting RoHS environmental standards for energy efficiency and stable long-distance performance.
Specifications
| Parameter | Value |
| Brand | BYXGD |
| Form Factor | XFP |
| Host Interface | XFI electrical/XFP MSA |
| Line Coding | NRZ |
| Max Data Rate | 9.95 to 10.5 Gb/s |
| Wavelengths | 1330 nm TX / 1270 nm RX |
| Fiber Type | SMF (OS2/G.652) |
| Max Distance | 20 km |
| Connector | LC simplex (BiDi) |
| Transmitter Type | 1330 nm DFB laser |
| Receiver Type | 1270 nm PIN/TIA |
| TX Optical Power | +1 to +5 dBm |
| RX Sensitivity | ≤ -15 dBm |
| Receiver Overload | 0 dBm max |
| Optical Budget | ≥ 16 dB |
| DOM/DDM | Supported |
| Management Interface | 2‑wire serial/XFP MSA |
| Power Supply | +3.3 V nominal |
| Power Dissipation | < 2 W |
| Operating Temperature | 0 to +70 °C (32 to 158 °F) |
| Storage Temperature | -40 to +85 °C |
| Bit Error Ratio (BER) | ≤ 1×10^-12 |
| Modulation | NRZ |
| EMI/ESD | Low EMI |
| Safety | Class 1 laser |
| Environmental | RoHS |
| Compliance | XFP MSA INF‑8077i, IEEE 802.3ae 10GBASE‑LR/LW, 10G Fibre Channel 1200‑SM‑LL‑L |
| Applications | 10GbE 10GBASE‑BX, 10G FC, OC‑192/STM‑64, OTU2 |
