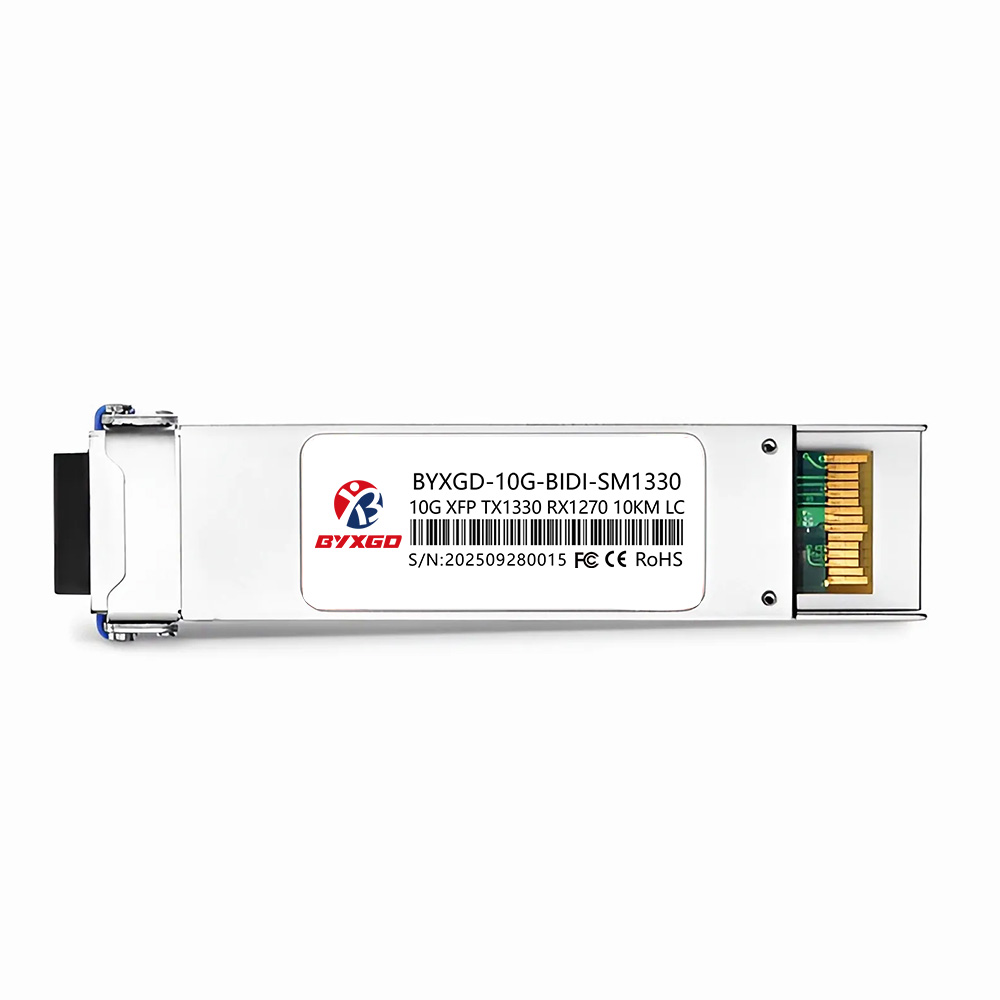

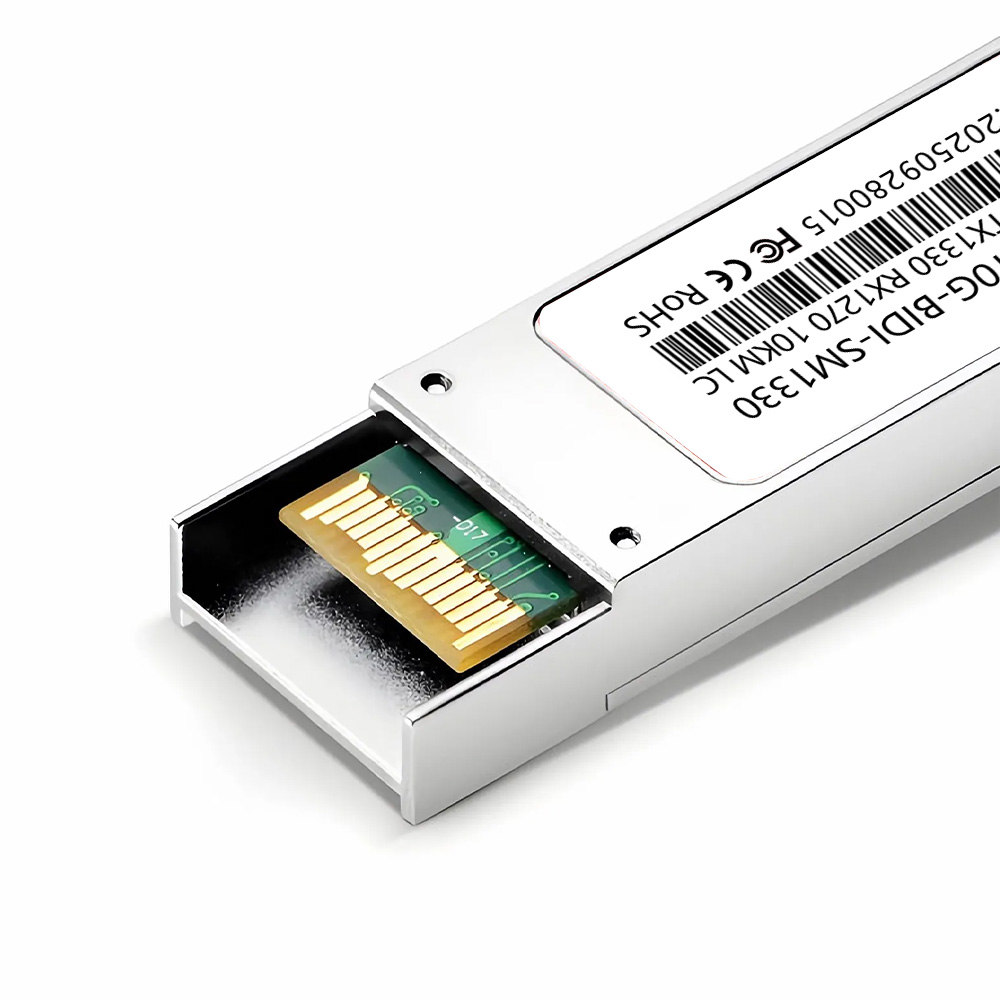

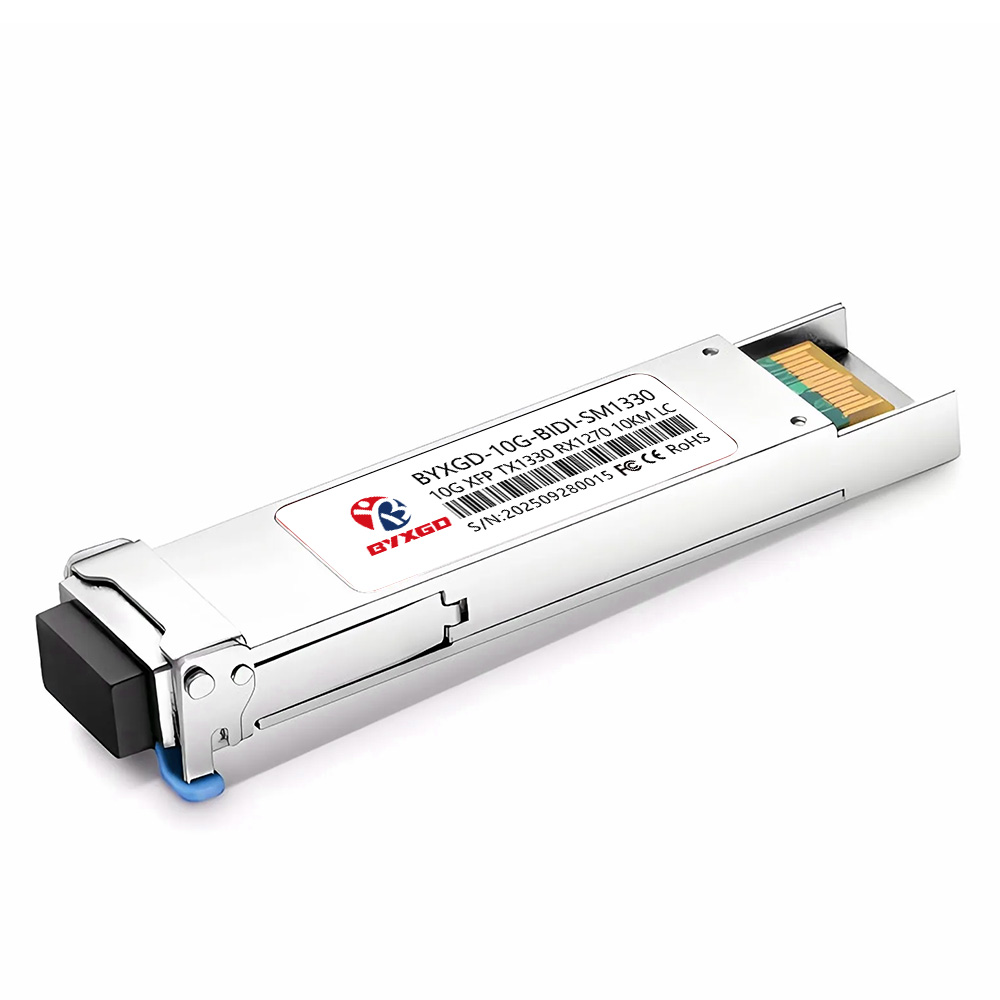

Compatible Cisco XFP-10G-BXD-I 10GBASE-BX XFP BiDi transceiver is purpose-built for 10G bi-directional data transmission over single-mode fiber and up to a distance of 10 km utilizing WDM technology. The transmission of 1330 nm over the single strand along with receiving light from 1270 nm reduces fiber counts, while also improving port density in high-density 10G networking.
This module utilizes a simplex LC/UPC connector and fully adheres to XFP MSA compliance and IEEE 802.3ae standards. The 10GBASE-BX XFP transceiver includes an uncooled DFB laser transmitter and a PIN photodiode receiver while supporting digital diagnostic monitoring (DDM) for real-time monitoring of operating temperature, voltage, optical power, and bias current. The transceiver has a power consumption spec lower than 1.2W, ideal for the high-density environment of a large enterprise network.
This 10G optical transceiver is fully compatible with a variety of equipment, including Cisco switches, routers, servers, and NICs. It is also compatible with Juniper Networks EX-XFP-10GE-BX32, Dell GP-XFP-10GBX-D-10, and Brocade 10G-XFP-BXD-10K models, making it an easy-to-implement, multi-vendor solution.
Each unit is fully tested for guaranteed stability and interoperability within all major 10G optical platforms and provides a compact package, dependable performance, and low power profile, at a cost-effective price point for long-distance 10G Ethernet and fiber channel applications.
Specifications
| Parameter | Specification |
| Brand | BYXGD |
| Model Name | 10GBASE-BX XFP BiDi 1330nm-TX/1270nm-RX 10km |
| Form Factor | XFP |
| Interface Type | Hot-pluggable |
| Data Rate | 10 Gbps |
| Transmission Distance | Up to 10 km |
| Transmission Medium | SMF, OS2 |
| Wavelength (TX/RX) | 1330 nm TX/ 1270 nm RX |
| Connector Type | LC Simplex (UPC) |
| Transmitter Type | DFB BiDi laser |
| Receiver Type | PIN photodiode |
| Optical Output Power (TX) | -5 to 0 dBm |
| Receiver Sensitivity (RX) | < -14 dBm |
| Receiver Overload | > 0 dBm |
| Extinction Ratio | > 3.5 dB |
| Optical Budget | ≥ 9 dB |
| DDM/DOM Support | Yes |
| Power Supply | 3.3 V |
| Power Consumption | < 1.5 W |
| Compliance | XFP MSA, IEEE 802.3ae 10GBASE-BX, INF-8077i, RoHS, CE, REACH |
| Protocols | 10G Ethernet, 10G Fibre Channel, CPRI, eCPRI |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 85% (non-condensing) |
| Dimensions (L × W × H) | 78 × 18.4 × 8.5 mm |
| Weight | 0.03 kg |
| Compliance and Safety | LASER Class 1, IEC 60825-1, FDA 21 CFR 1040.10 |
| Warranty | 5 Years |
| Applications | 10GBASE-LR/LW Ethernet, Data Center Links, Switches, Routers, NICs and Optical Media Converters |
