Cisco XFP-10G-BX60U-I Compatible BiDi XFP 10GBASE-BX Transceiver is specifically designed for applications over single-fiber long-reach networks requiring high optical sensitivity. It provides deployment flexibility in 10GBASE-ER/EW Ethernet and 10G Fibre Channel applications across transport, backbone, and carrier-grade access networks.
The module is equipped with a DFB transmitter and APD receiver that will maintain an acceptable signal at the other end of 60km links in conditions where the power budgets are tight, as commonly seen in other transceivers. The architecture does not require an external reference clock and hence permits a simplified system design without external timing stability, which is known to be a challenge with multi-vendor applications.

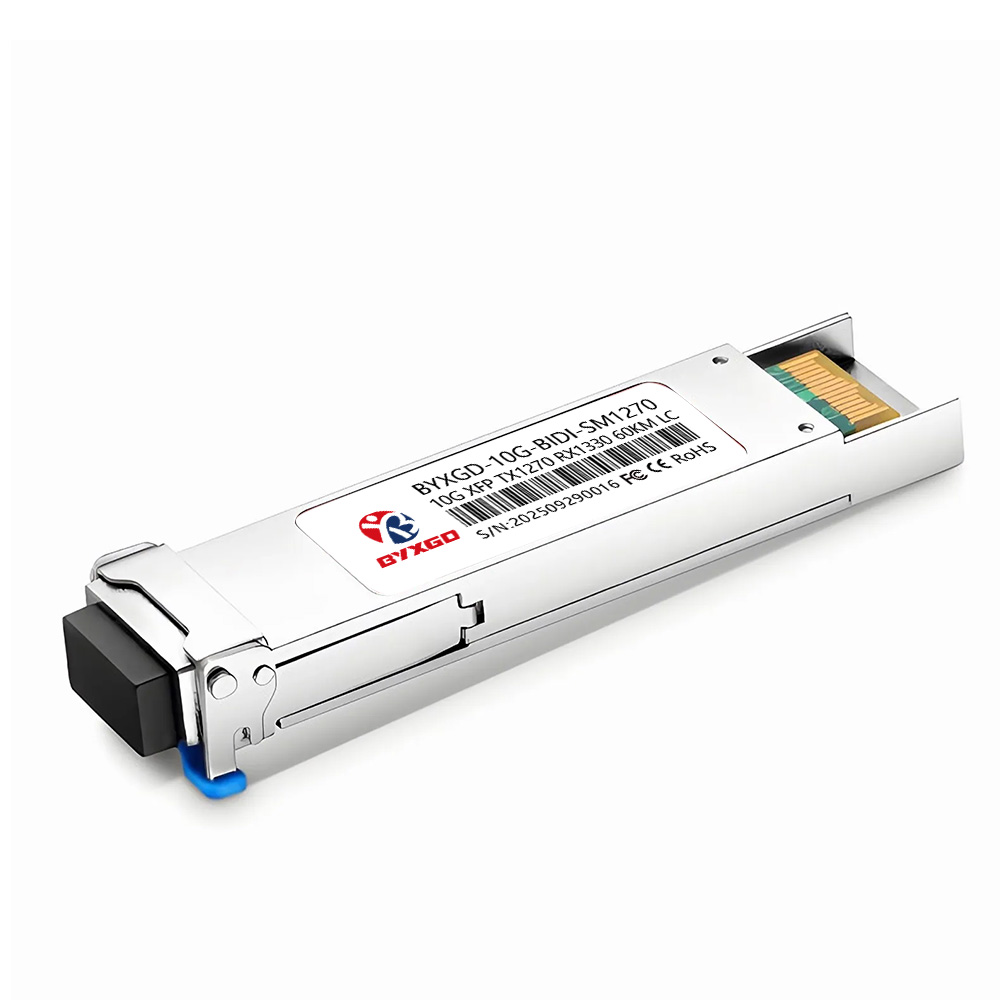

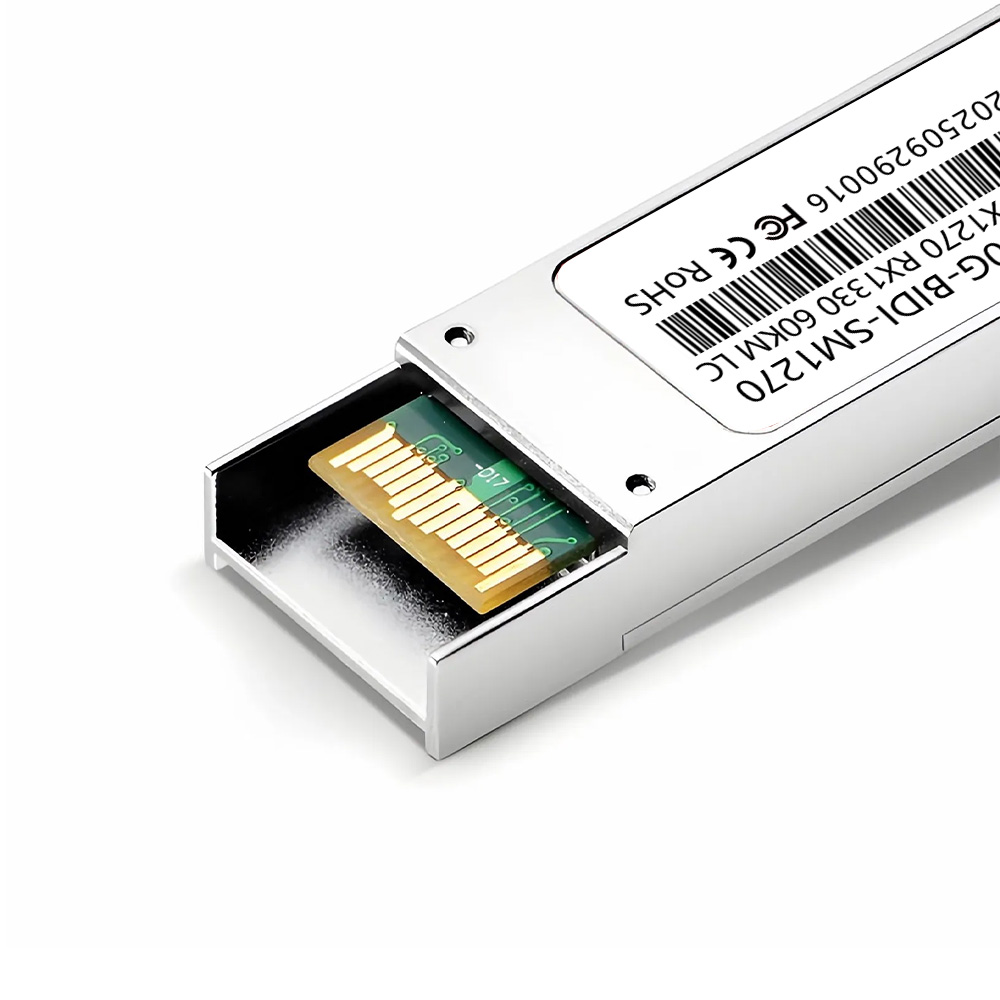

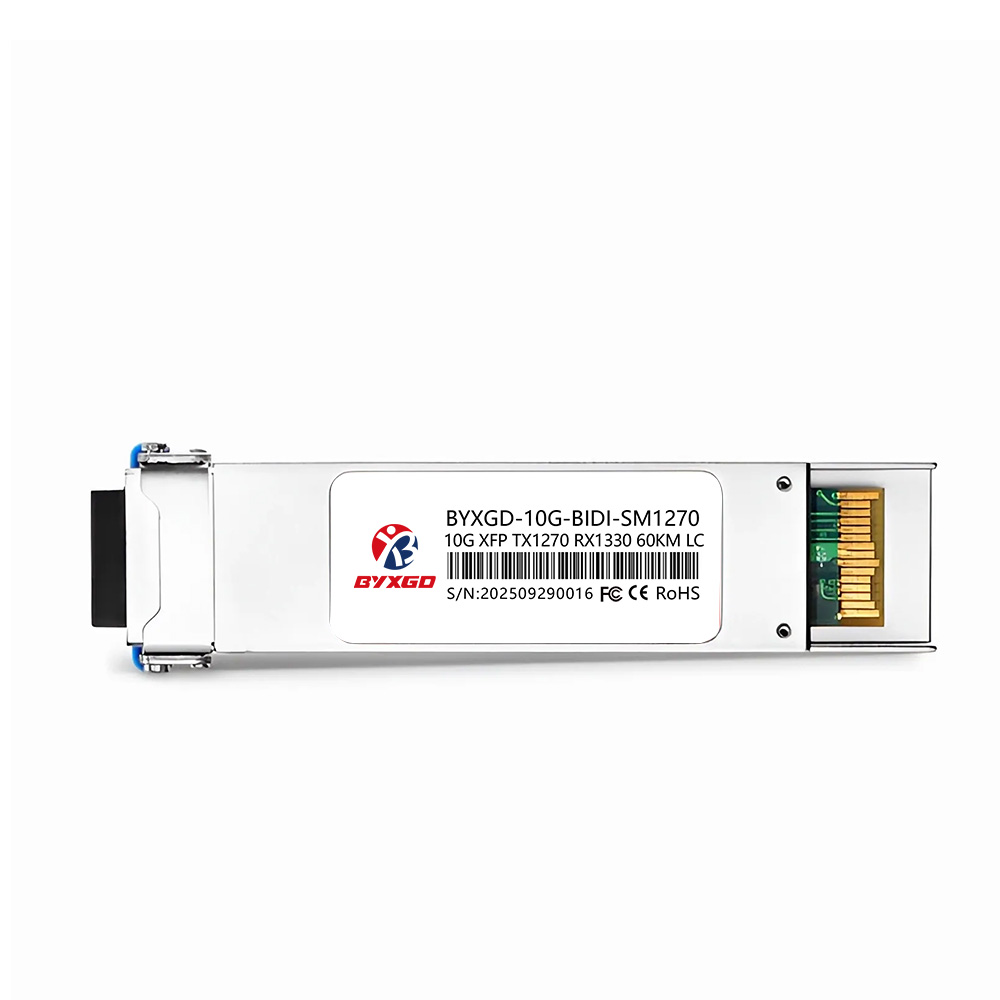

The transceiver is built with a metal-shielded housing to prevent EMI and ensure durability. It is RoHS compliant and provides IEC-60825 Class 1 laser safety to ensure safe deployment in a high-density optical system, and all optical and functional characteristics are tested on each unit to ensure link performance stability, data integrity, and interoperability with equipment such as Cisco XFP-10G-BX60U-I, Juniper EX-XFP-10GE-BX23-60, Dell GP-XFP-10GBX-U-60, and Brocade 10G-XFP-BXU-60K.
Specifications
| Parameter | Specification |
| Model | BYXGD 10GBASE-BX XFP BiDi |
| Form Factor | XFP |
| Data Rate | 9.95 to 11.1 Gbps |
| Wavelength | TX: 1270 nm / RX: 1330 nm |
| Distance | Up to 60 km over OS2 single-mode fiber |
| Optical Components | 1270 nm DFB laser transmitter / 1330 nm APD receiver |
| Connector Type | LC Simplex (UPC polish) |
| Fiber Type | OS2 SMF |
| Transmitter Power (TX) | +1 to +5 dBm |
| Receiver Sensitivity (RX) | < −20 dBm |
| Receiver Overload | > −7 dBm |
| Extinction Ratio | > 3.5 dB |
| DDM | Supported |
| Power Consumption | < 1.5 W (typical) |
| Power Supply Voltage | Single 3.3 V DC |
| Operating Temperature | 0 °C to 70 °C (32 °F to 158 °F) |
| Storage Temperature | −40 °C to 85 °C (−40 °F to 185 °F) |
| Dimensions (L × W × H) | 78 × 18 × 8.5 mm |
| Weight | 0.05 kg |
| Interface Standard Compliance | IEEE 802.3ae 10GBASE‑ER/EW, 10G Fibre Channel, XFP MSA Rev 4.5, INF‑8077i |
| Applications | 10G Ethernet, Fibre Channel, Data Center Switches, Routers, Optical Transmission Systems |
| Mechanical / EMI / ESD Protection | Low EMI design, IEC/EN 61000‑4‑2 ESD standard compliant |
| Laser Safety | Class 1 Laser, FDA 21 CFR 1040.10 & 1040.11, IEC‑60825 compliant |
| Environmental Compliance | RoHS Directive 2011/65/EU and lead‑free |
| Warranty | 5 Years |
| Return Policy | 30‑Day Free Return |
| Technical Support | Lifetime after‑sales support |
