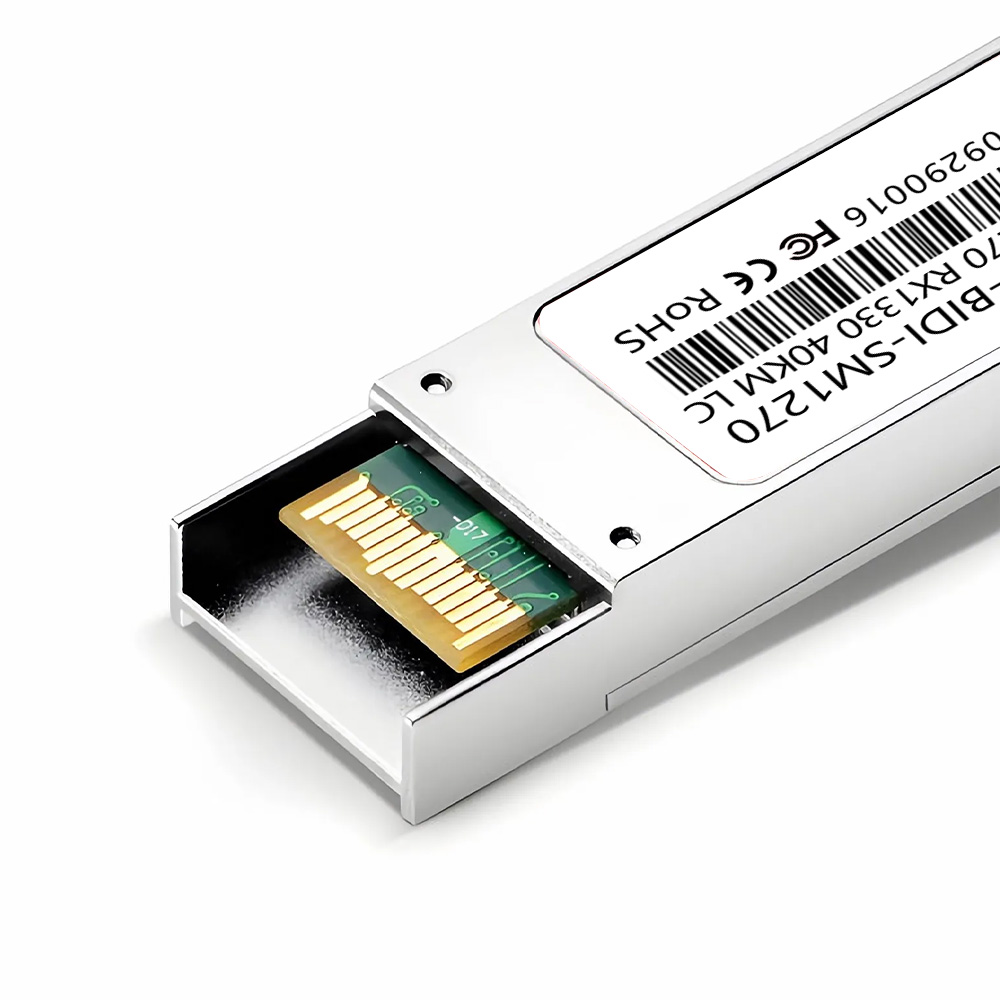

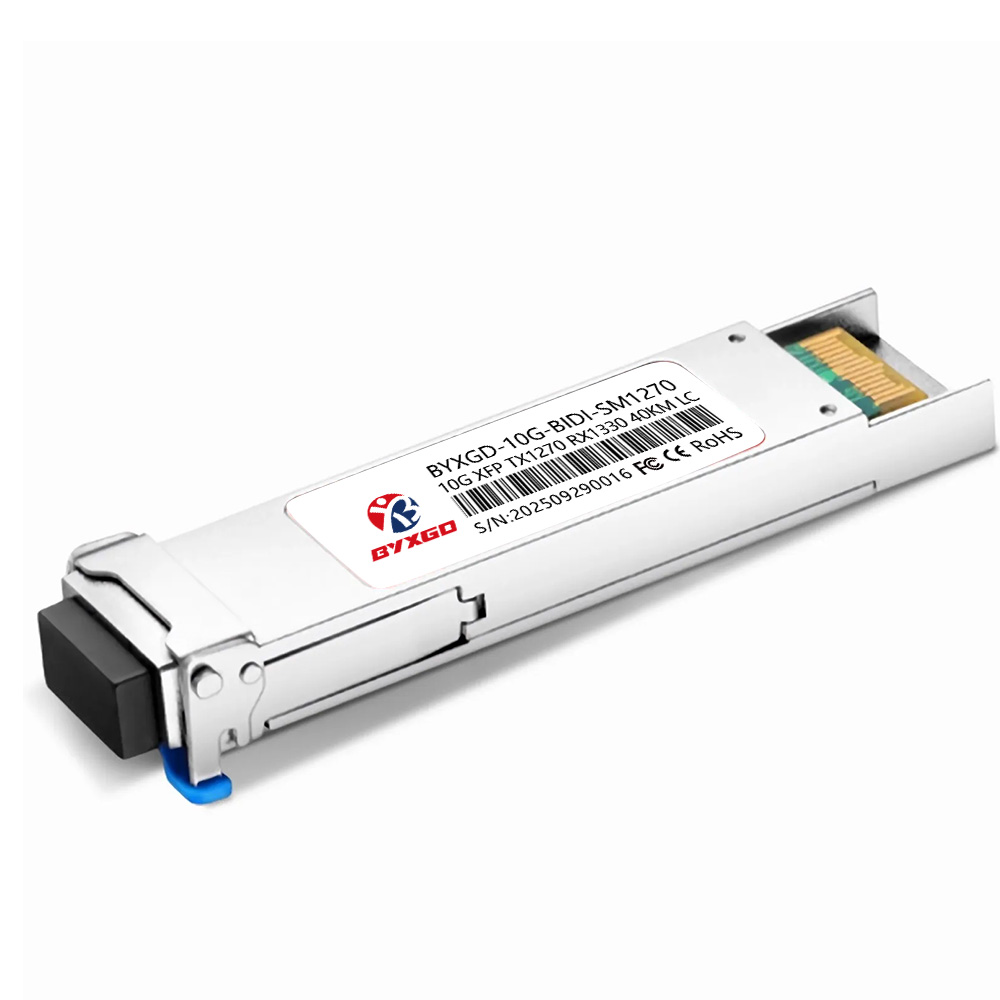

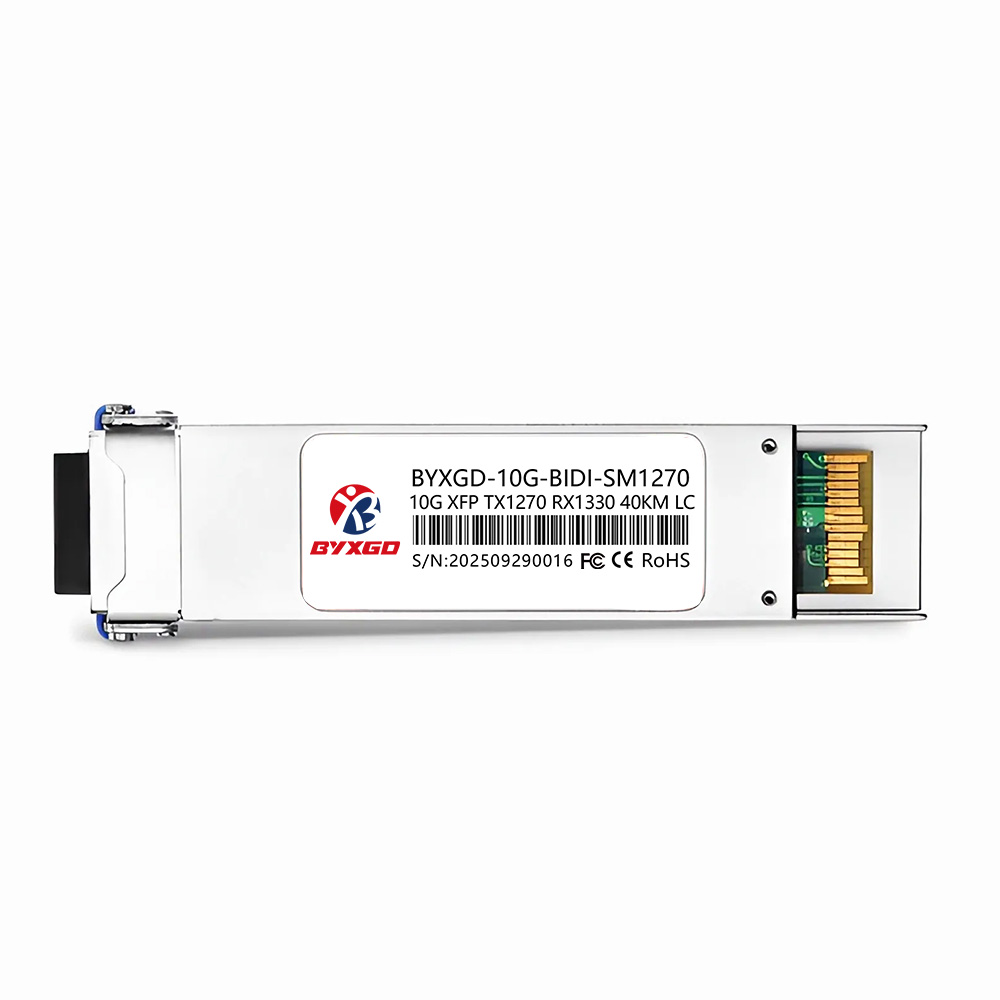

Cisco XFP-10G-BX40U-I Compatible 10GBASE-BX XFP BiDi Transceiver is engineered for long-reach 10G Ethernet applications when there is no fiber available, and stable optical capability is needed for metro access, enterprise backbone links, and point-to-point applications.
This transceiver utilizes a 1270nm DFB laser and a 1330nm PIN receiver with TI, offering excellent optical stability and delay performance even in the most demanding Ethernet environments. The module has an all-metal enclosure that provides enhanced EMI performance and operates under a wide temperature range of 0°C to +70°C. The transceiver features an XFI electrical interface for deployment in many devices and is compatible with the following platforms: Cisco XFP-10G-BX40, Juniper EX-XFP-10GE-BX23-40, Dell GP-XFP-10GBX-U-40, and Brocade 10G-XFP-BXU-40K. This transceiver provides reliable 10G connectivity in switching and routing applications.
Specifications
| Parameter | Specification |
| Brand | BYXGD |
| Form factor | XFP, hot‑pluggable |
| Application standard | 10GBASE‑BX (BiDi) |
| Max data rate | 9.95–11.3 Gbps |
| Wavelengths | 1270 nm TX / 1330 nm RX |
| Fiber type | OS2 9/125 µm SMF |
| Max distance | 40 km |
| Connector | LC simplex (UPC) |
| Optical transmitter | 1270 nm DFB, uncooled |
| Optical receiver | 1330 nm PIN + TIA |
| TX optical power | 1 to +5 dBm (average) |
| Receiver sensitivity | ≤ −15 dBm |
| Receiver overload | 0 dBm (max input) |
| Center wavelength tolerance | TX 1260–1280 nm; RX 1320–1340 nm |
| Spectral width | ≤ 1 nm |
| SMSR | ≥ 30 dB |
| Bit error rate | ≤ 1×10^-12 (with FEC conditions per MSA) |
| DOM/DDM | Supported (Tx/Rx power, Vcc, Temp) |
| Electrical interface | XFI serial interface |
| Supply voltage | 3.13–3.45 V (nominal 3.3 V) |
| Power consumption | < 1.5 W |
| Commercial temperature | 0 to +70 °C |
| EMI/ESD | All‑metal housing, ESD protected |
| Compliance | XFP MSA (INF‑8077i), IEEE 802.3ae, RoHS |
| Protocol support | 10GbE, SONET/SDH OC‑192/STM‑64, 10G FC; CPRI/eCPRI applicability at 10G rates |
| Management | 2‑wire serial management (DOM) |
| Warranty | 5 Years |
