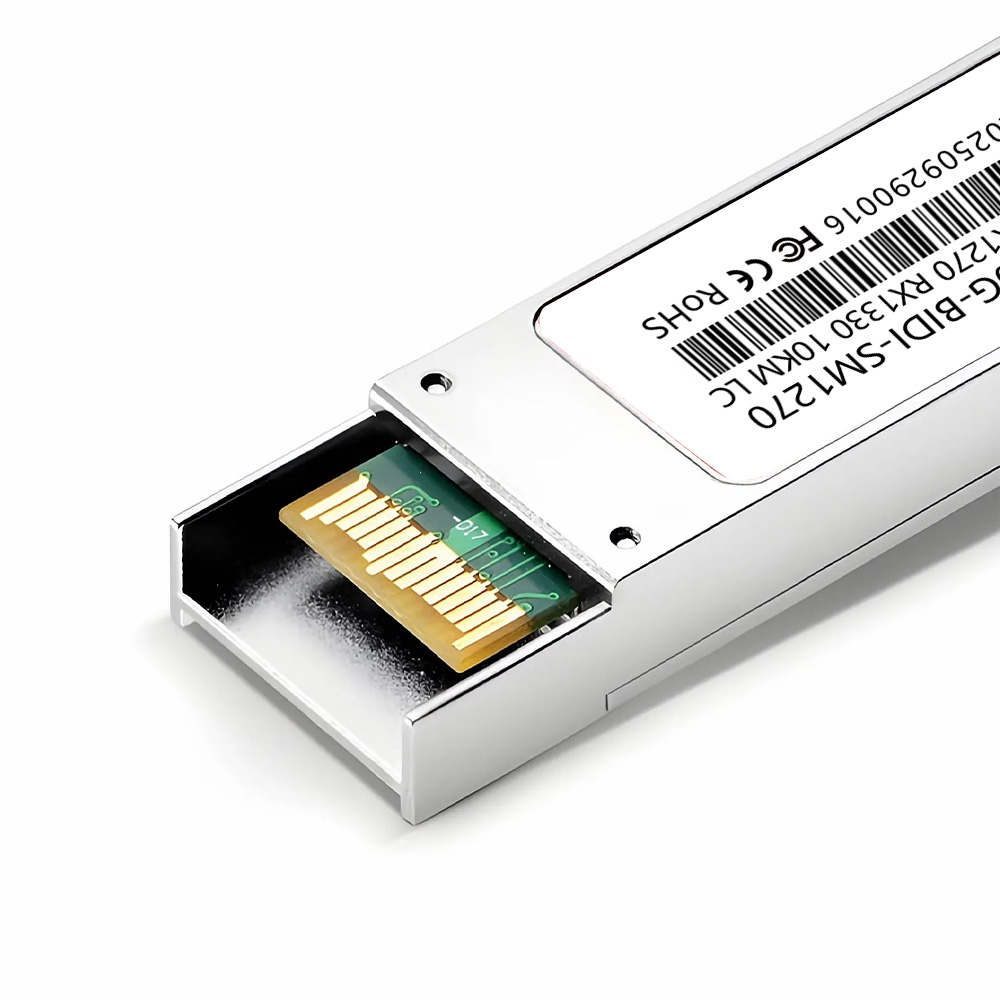

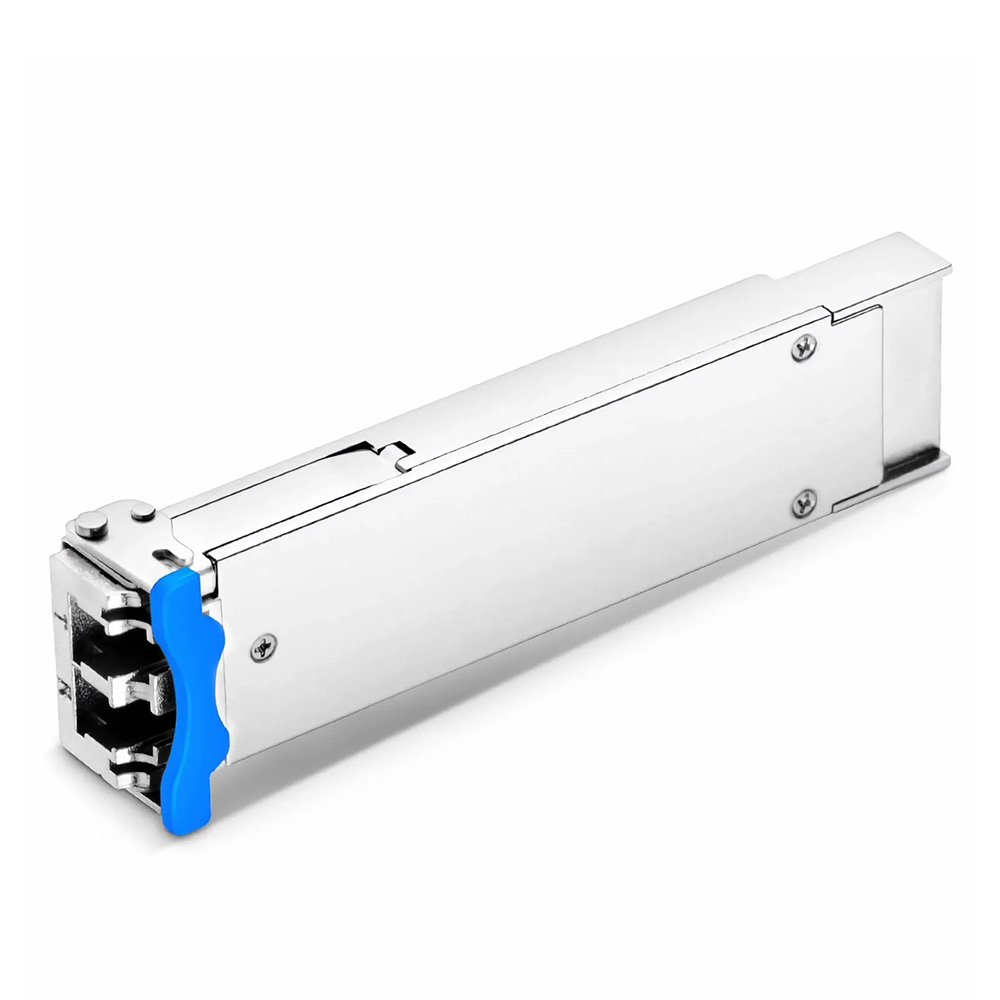

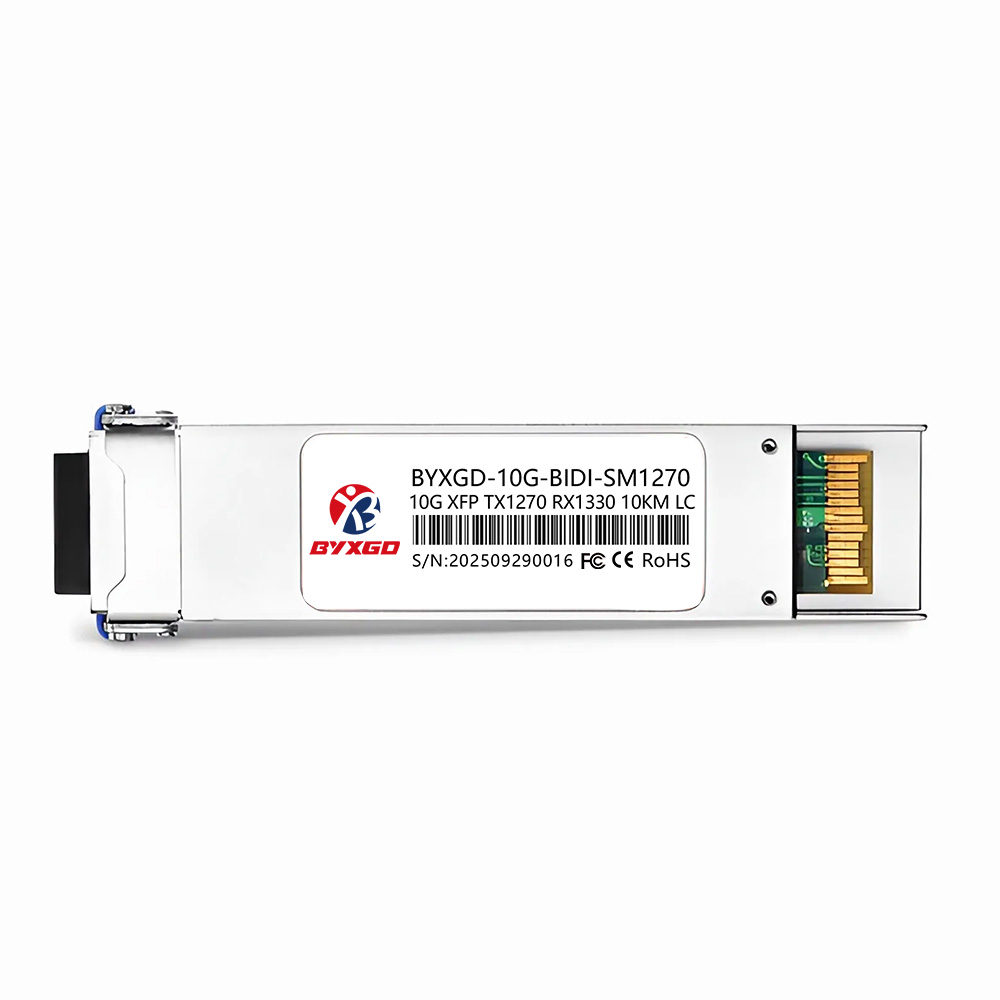

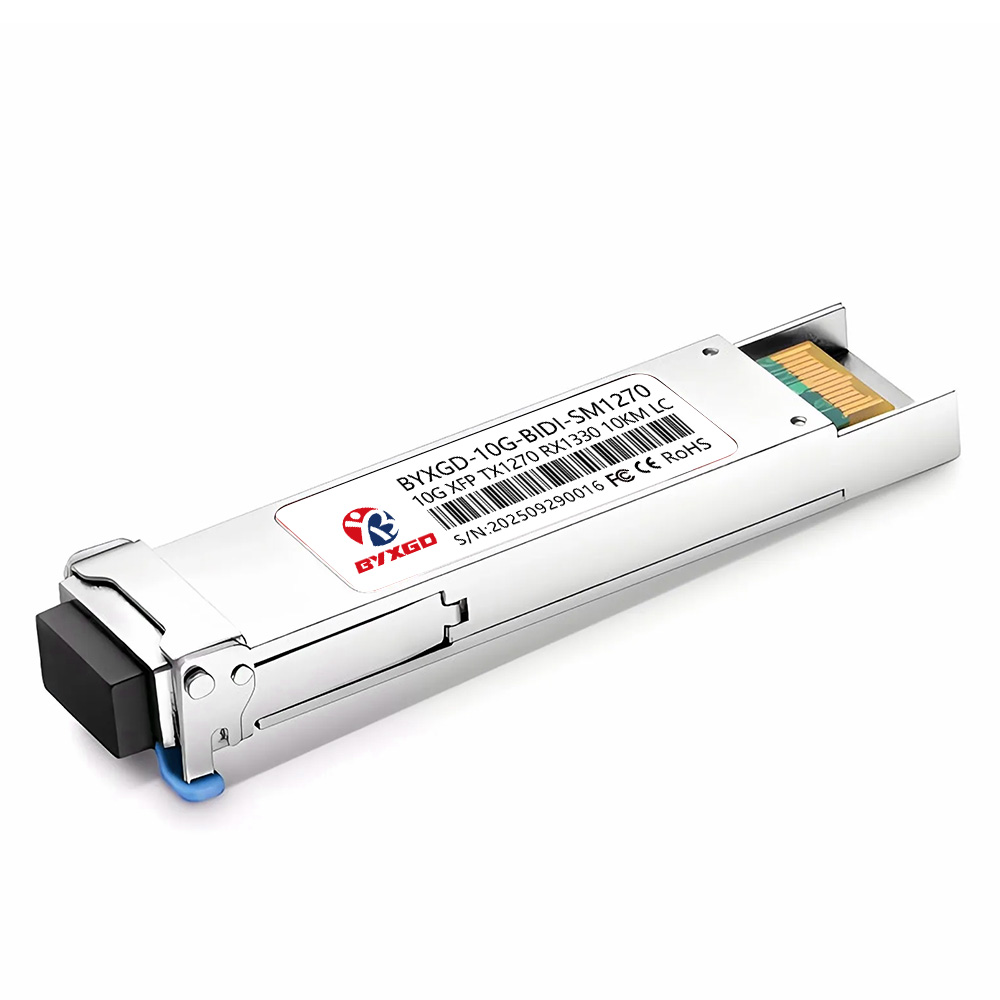

Cisco XFP-10G-BXU Compatible 10GBASE-BX XFP BiDi Transceiver permits transmission rates between 9.95 Gb/s and 11.1 Gb/s on a single strand of single-mode fiber for distances extending to 10 km. This module operates using a 1270 nm transmit wavelength and a 1330 nm receive wavelength, which means the full-duplex, bidirectional data is sent on a single single-mode fiber without interference through the use of WDM technology on a simplex LC/UPC connector. This module’s design is optimized to use the available fiber efficiently and integrates optical performance with power consumption below 2 W using a DFB laser and PIN receiver.
This module complies with the XFP MSA and IEEE 802.3ae standards and is hot-pluggable, meaning it can be deployed flexibly across all network switches, routers, servers, and NICs. DDM (Digital Diagnostic Monitoring) is built in to monitor key parameters in real time, including optical power, temperature, and voltage to enhance the reliability of the network.
This module has been fully tested and coded for compatibility with devices including Generic SFP-10G-BX10-U, Cisco SFP-10G-BXU, HW SFP-10G-BXU1 02310QBJ, Extreme 10GB-BX10-U, MikroTik S+23LC10U, Ubiquiti UF-SM-10G-S, UACC-OM-SM-10G-S-2, Fortinet FN-TRAN-SFP+BD27, Netgear AXM-SFP10G-BX-U, D-Link DEM-436XT-BXU10, Nvidia / Mellanox MFM1T02A-LR-BXU, Brocade 10G-SFPP-BXU-S, Arista SFP-10G-LRBD-U, Palo Alto PAN-SFP-PLUS-LR-BXU, Allied Telesis AT-SP10BD10/I-12, Juniper EX-SFP-10GE-BX10-U, Dell GP-SFP-10GBX-U-10, Intel E10GSFPBXU, F5 F5-UPG-SFP+BXU-R.
Specifications
| Parameter | Specification |
| Brand / Model | BYXGD 10GBASE-BX |
| Form Factor | XFP (BiDi) |
| Data Rate | 10 Gbps (9.95 to 11.1 Gbps) |
| Wavelengths | 1270nm TX/ 1330nm RX |
| Transmission Distance | Up to 10 km over OS2 SMF |
| Optical Components | DFB laser transmitter, PIN photodiode receiver |
| Connector Type | LC Simplex, UPC polish |
| Cable Type | OS2 Single-Mode Fiber |
| Transmitter Power (TX) | -5 to 0 dBm |
| Receiver Sensitivity (RX) | < -14 dBm |
| Receiver Overload | > 0.5 dBm |
| Extinction Ratio | > 3.5 dB |
| Power Consumption | < 1.5 W |
| DDM / DOM Support | Yes |
| Protocols Compliance | XFP MSA, IEEE 802.3ae, INF-8077i, CPRI, eCPRI |
| Regulatory Compliance | RoHS, CE, REACH |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Applications | 10GBASE-LR/10GBASE-LW Ethernet, 10G Fiber Channel, 10G Data Center Switches/Routers, 10G NICs, 10G Media Converters |
| Hot-Pluggable | Yes, compliant with XFP MSA standard |
| Digital Diagnostics | Measures optical power, temperature, voltage, bias current |
| Mechanical Dimensions (L×W×H) | 78 × 18.3 × 8.5 mm |
| Weight | 0.03 kg |
| Warranty | 5 Years |
