Is your network feeling the pressure of the increasing demand for data? Imagine upgrading your existing 10G Ethernet connections without having to replace everything. 10G SFP+ modules allow flexible, high-speed connectivity that can address a multitude of network use cases.
This guide will walk you through 10G SFP+ modules, introducing multiple types, how to choose, and how to ensure the best performance for your network. When finished, you should be able to make informed decisions that will optimize maximum speed, compatibility, and cost.
10G SFP+ Modules For Sale
Categories of 10G SFP+ Modules
Others
What Are SFP+ Modules and Why Are They Critical for 10G Networks?
SFP+ modules are small, hot-swappable transceivers that connect network devices at speeds up to 10 Gigabits per second. SFP+ provides the necessary hardware to support 10G Ethernet connectivity, allowing electrical signals, converted to optical or copper signals, to move at high speeds.
In comparison to its predecessors, SFP+ has a smaller form factor and better performance, with lower power consumption at the same time than other deployments (i.e., XFP). Unlike bulky XFP, SFP+ measures slightly less than two inches wide, allowing it to be deployed into small ports and enabling higher density of devices on fewer switches.
Benefits of SFP+
- Size: Smaller than XFP; the smaller footprint opens the ability to port more devices on switches.
- Power: Lower power saves on operating costs and heat.
- Flexibility: Available in different distances as fiber or copper options; the modules can be company- or application-specific.
In other words, SFP+ can be thought of as a modern, lightweight, efficient connector for those high-speed data highways in place of a larger outdated structure, meaning cost savings at a minimum. All in all, this combination of size, efficiency, and performance is the very reason why SFP+ modules are the most used link for today’s 10 Gigabit Ethernet networks.
SFP+ Module Ecosystem: Where Do I Get to the Customized 10G Module Categories
Exploring the wide array of 10G SFP+ modules may feel like you are looking through a huge toolbox and choosing from your network’s most specific needs. By keeping in mind and understanding the categories below, you will better choose not just a 10G SFP+ module but the one that meets the needs of your network.

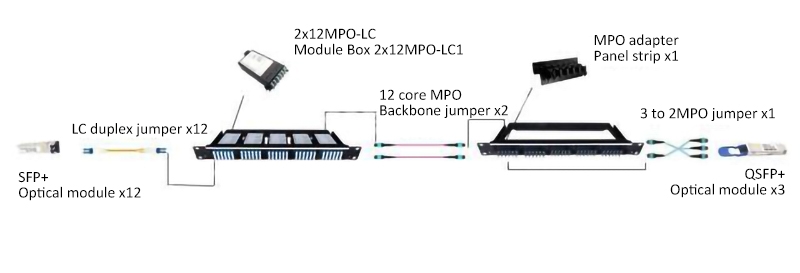

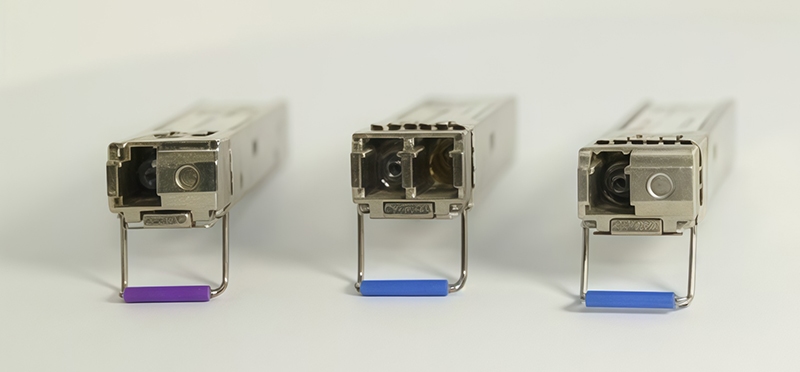

Standard 10G SFP+ (SR/LR/ER/ZR)
Standard 10G SFP+ modules are the standards for today’s high-speed networks. They are identified by distinctions of:
- SR (Short Reach): Up to 300 meters for multimode fiber, similar to those deployed in data centers and campus networks.
- LR (Long Reach): Up to 10 kilometers for single-mode fiber, typically fiber used in metropolitan-type or enterprise backbones.
- ER (Extended Reach): Up to 40 kilometers, which relates to long distances and broader campus and regional applications.
- ZR (Zealous Reach): Beyond 80 kilometers, which for the most part applies to different carrier or specialized capabilities.
Fiber Efficient 10G BiDi SFP+
10G BiDi SFP+ modules provide an innovative way to send and receive data over a single fiber strand using different wavelengths. Therefore, you can save fiber capacity when fiber strands are limited or expensive.
BiDi modules are ideal for simplifying deployment and minimizing fiber costs. They are widely adopted as enterprises and campuses upgrade to newer technology and want to make as few changes to the network infrastructure as possible.
High Density 10G CWDM/DWDM SFP+
For networks that require higher channel density, 10G CWDM and DWDM SFP+ modules allow you to multiplex many 10G signals over a single fiber pair, exponentially increasing the use of fiber and the ability to scale the network.
CWDM: Provides a cost-effective multiplexer with wider channel spacing for metropolitan areas, as well as enterprise needs.
DWDM: Provides tight channel spacing for carrier-grade long-haul transmission of high-volume data transmission capacity.
CWDM and DWDM technology are important for carriers and large-scale networks to expand and improve capacity efficiency.
Direct Attach Cables (DAC/AOC)
Direct Attach Cables are another usable form factor. DACs and AOCs will offer you a solution for high-speed short-distance plug-and-play connections, typically in data center or server rack applications.
DAC: A copper-based short-distance inexpensive cable usually up to 7 meters.
AOC: An active optical short-distance cable with better reach and flexibility up to 100 meters. AOC helps with EMI immunity.
DACs and AOCs are typically the first choice for installs ready for production, speed, and deployment in a dense data center environment.
Each of the specialized 10G SFP+ categories solves some part of the overall problem for your network. Fiber saving, channel density, and simple cabling are all important to evaluate when selecting the module. Each of these applications can be evaluated to get the most performance per cost for your 10G Ethernet network.
Level 1 Factors for Selecting a 10G SFP+ Module
The overall selection process begins with evaluating each factor that will affect network performance to cost. You should work with the module that best meets your distance requirements, fiber type, and overall budget for the network.
Distance of Transmission
Think about how far data needs to travel. If working across short distances in data centers, SR (short reach) modules intended for multimode fiber are generally cheaper. For longer distances between buildings or within a metro network, typically LR (long reach) or ER (extended reach) modules designed for single-mode fiber are the best option.
Fiber Type
For short reaches, multimode fiber works fine and uses SR modules. Single-mode fiber supports greater distances using LR or better modules. Driving a module with the correct fiber type ensures the least chance of signal loss or performance issues.
Cost Considerations
Cost is always a concern, so cost must be balanced with future expansion capabilities. With fixed wavelength modules, you pay less but have fewer options when expanding. With tunable modules, you’ll pay more but have the option to change the channel or wavelength for longer distances. In complex or expanding networks, tunable or upgraded modules will allow for growth into the network.
Network Design
Take into account the compatibility of equipment in your network design, including the layout of your network and equipment. When dealing with switch ports that are densely populated, you may need a compact SFP+ and a module that uses low power. Also, consider physical cabling constraints or future upgrade paths that need to be considered in an evolving infrastructure.
Think of choosing a 10G SFP+ module as similar to choosing an ideal set of lenses for a camera; you need the right focus and clarity for the nature and situation you are photographing, again weighing the quality against the costs of the lenses.
In the end, following the suggested top-level criteria will ensure that the right SFP+ module meets your deadlines while providing a base for expanding to a more efficient and scalable ten-gigabit network that has broad 10G SFP compatibility.
10G CWDM SFP+ vs. DWDM SFP+ vs. Standard SFP+: Comparing and Selecting Each
Choosing a 10G SFP+ module can be decided upon largely based on the reach, capacity, price, or the ability to expand in respect to the applications and implementation that you can tolerate. Knowing the differences between 10G CWDM, DWDM, and standard SFP+ modules will provide educated and confident decisions adapted for your situation.
Comparison Table
| Feature | 10G CWDM SFP+ | 10G DWDM SFP+ | Standard 10G SFP+ |
| Cost | Moderate | High | Low |
| Maximum Reach | Up to 80 km | Up to 80+ km (often longer) | Up to 10 km (varies by type) |
| Channel Count | Up to 18 | 40-80 or more | Single channel |
| Deployment Complexity | Moderate | High | Low |
| Maintenance | Moderate | High | Low |
| Typical Use Cases | Metro, enterprise | Carrier, long haul | Data centers, short-range links |
When to use 10G CWDM?
10G CWDM SFP+ has an attractive mix of low cost, high channel density, and manageably low complexity. Therefore, CWDM SFP+ modules serve extremely well in metropolitan networks and enterprise interconnects. In short, CWDM allows multiple channels over fewer fibers without the channel density and complex tuning capabilities of DWDM.
DWDM modules are used primarily in carrier networks where high channel density, dense fiber utilization, and increased distance are required. DWDM modules are often more expensive and will require more management as the increased channel density decreases overall distance.
Standard 10G SFP+ modules are still the best approach for a simple, short-distance link (intra-data center cabling) due to the very low cost and simple deployment option; however, standard SFP+ modules cannot multiplex over longer distances.
Consider CWDM SFP+ modules to be similar to an efficient, organized city road network where you want to move traffic along efficiently but at a low cost. Think of DWDM modules like a complicated expressway system developed for moving heavy loads at high speeds but with a lot of complexity. Standard SFP+ modules are like side streets to quickly move from point A to point B but will only be able to do so over a short distance.
This easy comparison is meant to inform a network planner when CWDM SFP+ modules are a good option that provide the best technology and business outcomes for your deployed network in regards to scalability, cost efficiency, and ease of deployment—all while providing the best possible performance for the business.
Special Considerations for BiDi, CWDM, and DWDM Modules
There are special considerations for advanced 10G SFP+ modules such as BiDi (Bidirectional), CWDM (Coarse Wavelength Division Multiplexing), and DWDM (Dense Wavelength Division Multiplexing), which all have unique operational characteristics; therefore, most require some reading to operate correctly:
- BiDi Modules: Use a single fiber (AS A REMINDER) transmitting and receiving signaling on separate wavelengths, which is a very fiber-efficient solution. However, you must pay special attention to fiber polarity to ensure you neither receive nor transmit signaling from fiber ports that cause errors. It is also recommended, after termination and connections are made, to label the fiber to ensure there is no confusion or misconnection. Otherwise, tracking down where a disconnected or misconnected fiber is located could be difficult and time-consuming.
- CWDM/DWDM Modules: Operate by multiplexing multiple wavelength channels over the same fiber. Due to the multiplexed nature, wavelength management must be strictly adhered to since even slight misalignment will result in unnecessary crosstalk or loss of signaling. You also have to be aware of the fiber being used; if it is the wrong type or if CWDM and DWDM are on the same fiber, your performance will suffer.
For both CWDM and DWDM modules, care needs to be taken with temperature due to the channel density. Special temperature considerations can be an issue, and since the number of channels is restricted, much tighter tuning of the laser will be required. As with all continuous wave optical (CW) systems, excessive heat or cold shifts the laser wavelengths too far from their designated point and results in false error signaling or complete link failure. As with most CW lasers, the temperature at which they operate must be controlled and monitored to ensure long-term dependability.
If you can integrate a common installation, maintenance, and troubleshooting approach into network management, that will maintain the most overall uptime. Be careful while addressing the unique needs of specialized modules and pay attention to potential failure due to complex data center environments or disruptions of bandwidth utilization; again, these needs should be taken care of from the outset of installation.For a deeper understanding of how to identify and prevent such issues, refer to the blog Optical Module Failure Diagnosis and Prevention: Securing Network Stability.
Choosing the Right 10G SFP+ Module for Performance and Cost Efficiency
Choosing 10G SFP+ modules that are a good technology choice will depend on the overall efficiency you have identified for good connectivity and a high-performance network. The right decision will improve scalability, keep costs down, and simplify network management.
You can browse a wide range of 10G modules or gain specialized professional assistance to support your unique needs. You can also feel confident that you have chosen the right 10G SFP+ module that combines low cost and easy deployment while perfectly implementing professional options available with higher confidence within your overall solutions.
