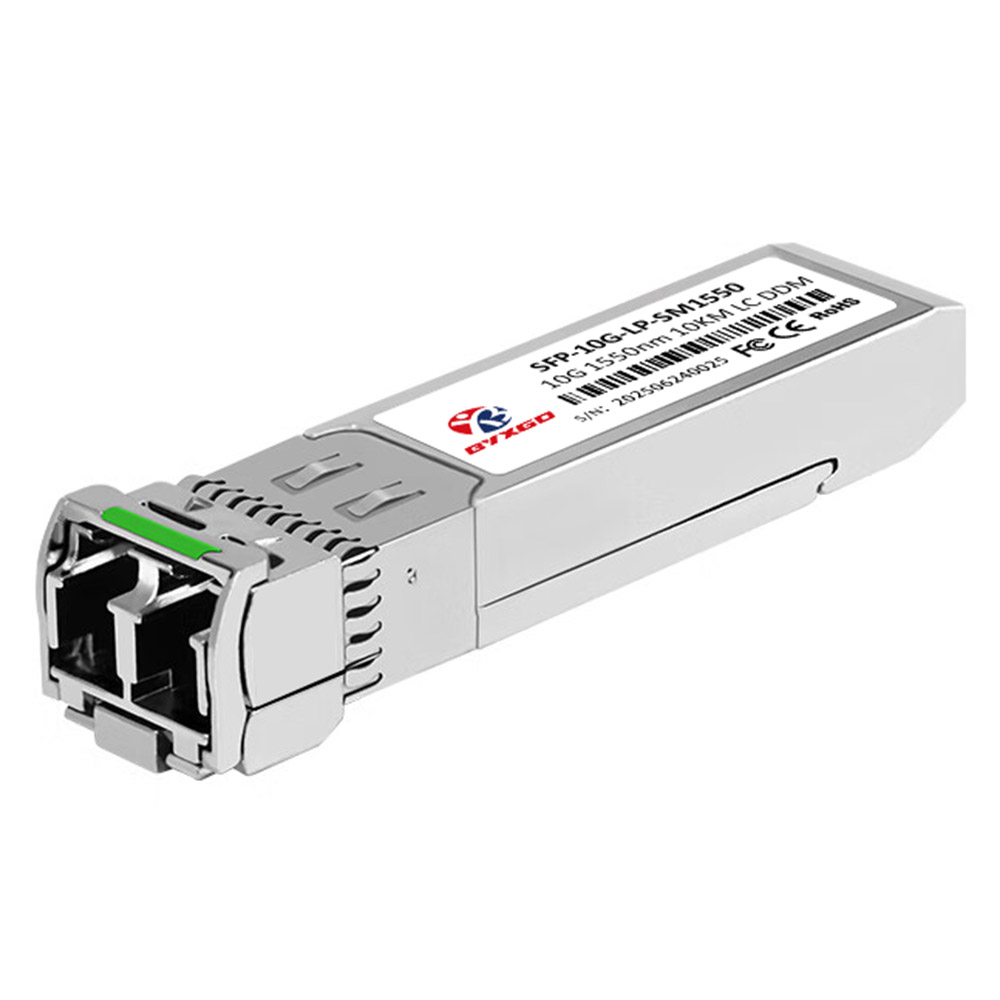

10G SFP+ LC/UPC Optical Transceiver Module, 1310nm/1490nm/1550nm, Compatible with Cisco/Mikrotik/HPE/TP-LINK/HP/Juniper/Huawei

Transmission Distance: 300m | 2km | 10km | 20km | 40km | 60km | 80km
Compatible Brand: Arista | Avago | Brocade | Chelsio | Ciena | Cisco | Dell | D-Link | Extreme | Fortinet | Generic | H3C | Huawei | IBM | Juniper | Intel | Mellanox | Mikrotik | Ubiquiti | ZTE | Palo | HPE | HP | QNAP | TP LINK | Finisar | Customized

Offers 10G SFP+ data rate with selectable wavelengths: 1310 nm, 1490 nm, 1550 nm for single-mode fiber (SMF).

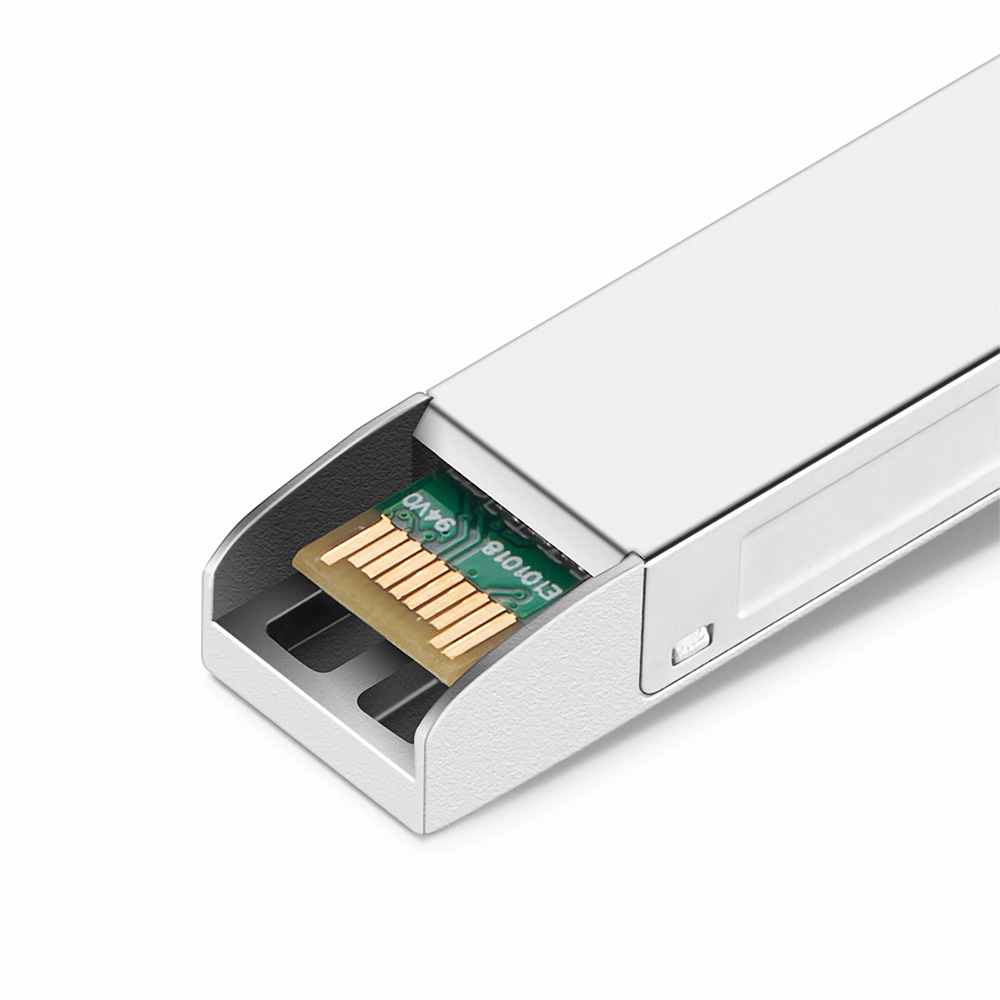

Hot-pluggable SFP+ form factor with Duplex LC/UPC connector; operates from a single 3.3V supply with optimized power consumption for data center efficiency.
Digital Diagnostic Monitoring (DDM/DOM) provides real-time measurements of optical power, temperature, laser bias current, transmitter and receiver parameters to facilitate proactive maintenance.
Fully compliant with SFP+ MSA INF-8074i, GR-253-CORE, ITU-T G.959.1 (and relevant ITU standards), FC-PI v2.0 and SFF-8472 v9.5 for interoperability; RoHS and Class 1 laser safety compliant.
Broad OEM compatibility which minimizes integration risk in multi-vendor networks and enables common carrier and enterprise capability.

Original price was: $65.00.Current price is: $25.00.

Categories: Fiber Optic Transceivers, 10G/25G/40G/100G Modules

Description

10G SFP+ LC/UPC Optical Transceiver Module is a thoroughly tested, hot-swappable module that is designed to offer broad interoperability with a number of different branded switches, routers, servers, and network interface cards. It is compatible with 10GBASE Ethernet and 10G Fibre Channel, providing reliable data rates in many carrier and data-center applications. The transceiver is designed to work in SONET OC-192 / SDH networks to integrate with the existing optical hierarchy. The transceiver module is in a compact SFP+ form factor with low power levels and excellent EMI shielding. Each unit is tested to guarantee quality and performance in a multi-vendor environment.

BYXGD 10G SFP+ Optical Transceiver Modules

Part No.	Data Rate	Wavelength	Distance	Source	Output Power (dBm)	Sensitivity (dBm)	Connector	Voltage
BYXGD-PP-M85L-03D	10G	850nm	300m	VCSEL/PIN	1~-6	＜-11	LC	3.3V
BYXGD-PP-S31L-2D	10G	1310nm	2km	FP/PIN	1~-7	＜-12	LC	3.3V
BYXGD-PP-S31L-10D	10G	1310nm	10km	DFB/PIN	1~-7	＜-14	LC	3.3V
BYXGD-PP-S31L-20D	10G	1310nm	20km	DFB/PIN	1~-6	＜-14	LC	3.3V
BYXGD-PP-S31L-40D	10G	1310nm	40km	DFB/PIN	1~-6	＜-15	LC	3.3V
BYXGD-PP-S55L-40D	10G	1550nm	40km	EML/PIN	5~-2	＜-15	LC	3.3V
BYXGD-PP-S55L-80D	10G	1550nm	80km	EML/APD	5~-1	＜-23	LC	3.3V
BYXGD-PP-S55L-100D	10G	1550nm	100KM	EML/APD	5~-1	＜-25	LC	3.3V
BYXGD-PP-S55L-110D	10G	1550nm	110km	EML/APD	5~0	＜-25	LC	3.3V

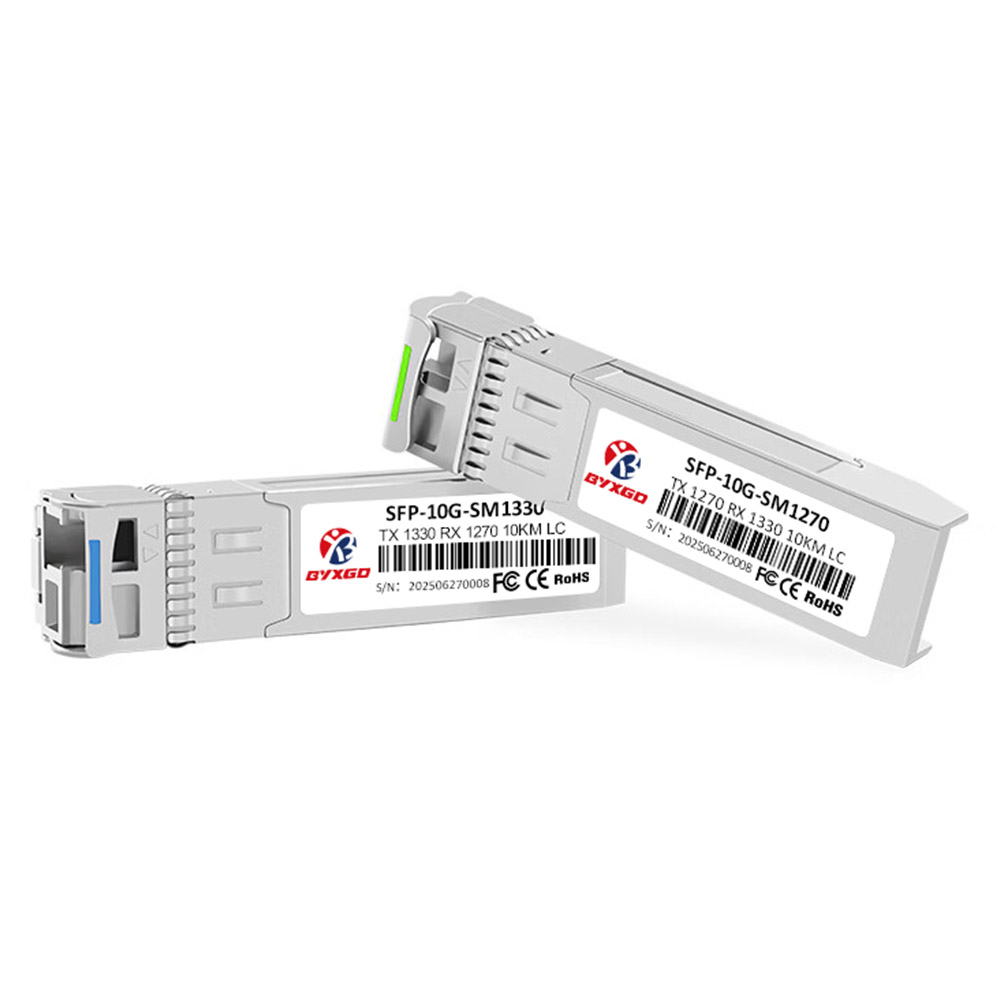

BYXGD-PP-B23L-10D	10G	Tx1270nm/Rx1330nm	10km	DFB/PIN	1~-7	＜-14	LC	3.3V
BYXGD-PP-B32L-10D	10G	Tx1330nm/Rx1270nm	10km	DFB/PIN	1~-7	＜-14	LC	3.3V
BYXGD-PP-B23L-20D	10G	Tx1270nm/Rx1330nm	20km	DFB/PIN	1~-6	＜-14	LC	3.3V
BYXGD-PP-B32L-20D	10G	Tx1330nm/Rx1270nm	20km	DFB/PIN	1~-6	＜-14	LC	3.3V
BYXGD-PP-B23L-40D	10G	Tx1270nm/Rx1330nm	40km	DFB/PIN	5~1	＜-15	LC	3.3V
BYXGD-PP-B32L-40D	10G	Tx1330nm/Rx1270nm	40km	DFB/PIN	5~1	＜-15	LC	3.3V
BYXGD-PP-B23L-60D	10G	Tx1270nm/Rx1330nm	60km	DFB/APD	5~1	＜-20	LC	3.3V
BYXGD-PP-B32L-60D	10G	Tx1330nm/Rx1270nm	60km	DFB/APD	5~1	＜-20	LC	3.3V
BYXGD-PP-B45L-80D	10G	Tx1490nm/Rx1550nm	80km	EML/APD	5~0	＜-23	LC	3.3V
BYXGD-PP-B54L-80D	10G	Tx1550nm/Rx1490nm	80km	EML/APD	5~0	＜-23	LC	3.3V
BYXGD-PP-B45L-100D	10G	Tx1490nm/Rx1550nm	100km	EML/APD	5~1	＜-25	LC	3.3V
BYXGD-PP-B65L-100D	10G	Tx1550nm/Rx1490nm	100km	EML/APD	5~1	＜-25	LC	3.3V

BYXGD 10G XFP Transceiver Modules

Part No.	Data Rate	Wavelength	Distance	Source	Output Power (dBm)	Sensitivity (dBm)	Connector	Voltage
BYXGD-XP-M85L-03D	10G	850nm	300m	VCSEL/PIN	1~-6	＜-11	LC	3.3V
BYXGD-XP-S31L-2D	10G	1310nm	2km	FP/PIN	1~-7	＜-12	LC	3.3V
BYXGD-XP-S31L-10D	10G	1310nm	10km	DFB/PIN	1~-7	＜-14	LC	3.3V
BYXGD-XP-S31L-20D	10G	1310nm	20km	DFB/PIN	1~-6	＜-14	LC	3.3V
BYXGD-XP-S31L-40D	10G	1310nm	40km	DFB/PIN	1~-6	＜-15	LC	3.3V
BYXGD-XP-S55L-40D	10G	1550nm	40km	EML/PIN	5~-2	＜-15	LC	3.3V
BYXGD-XP-S55L-80D	10G	1550nm	80km	EML/APD	5~-1	＜-23	LC	3.3V
BYXGD-XP-CXXL-40D	10G	1470～1610nm	40km	EML/PIN	4~-1	＜-16	LC	3.3V
BYXGD-XP-CXXL-80D	10G	1470～1610nm	80km	EML/APD	5~0	＜-23	LC	3.3V
