Cisco SFP-H10GB-CU1M Compatible 10G SFP+ DAC Cable Passive Direct Attach Copper Twinax Cable

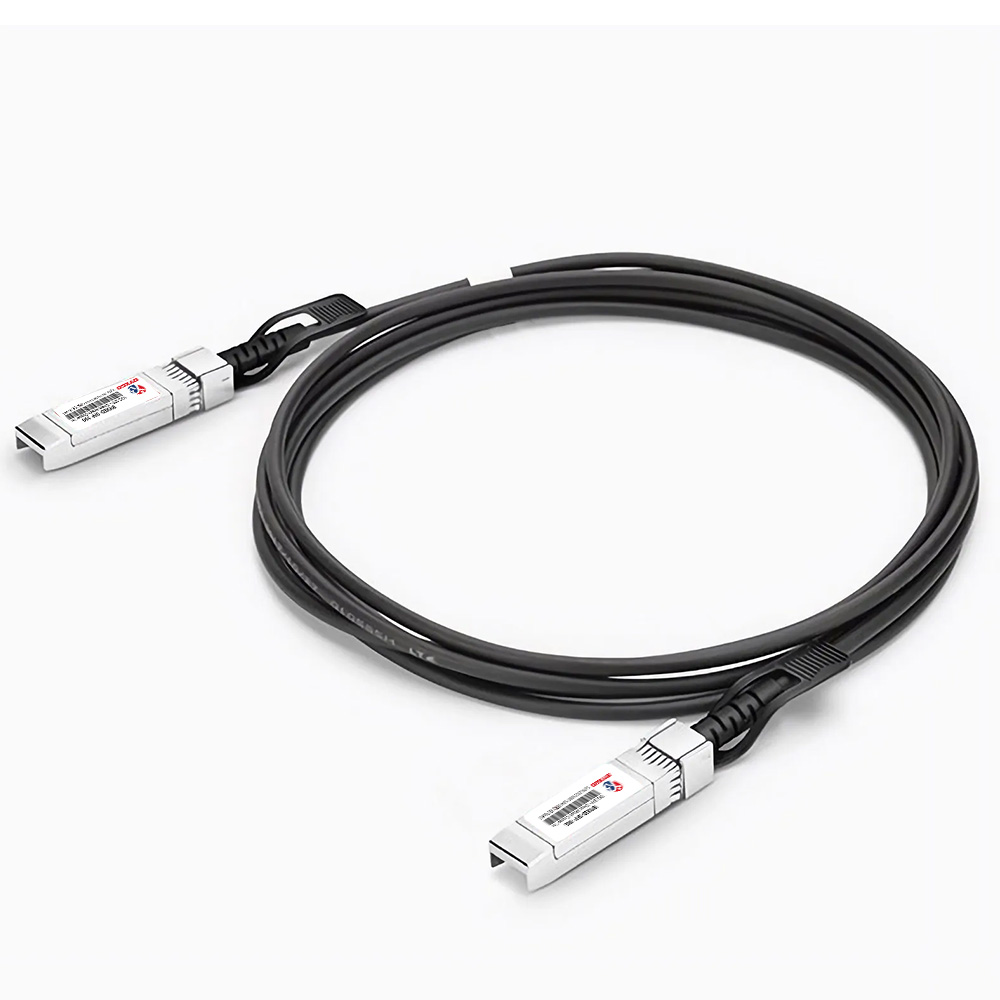

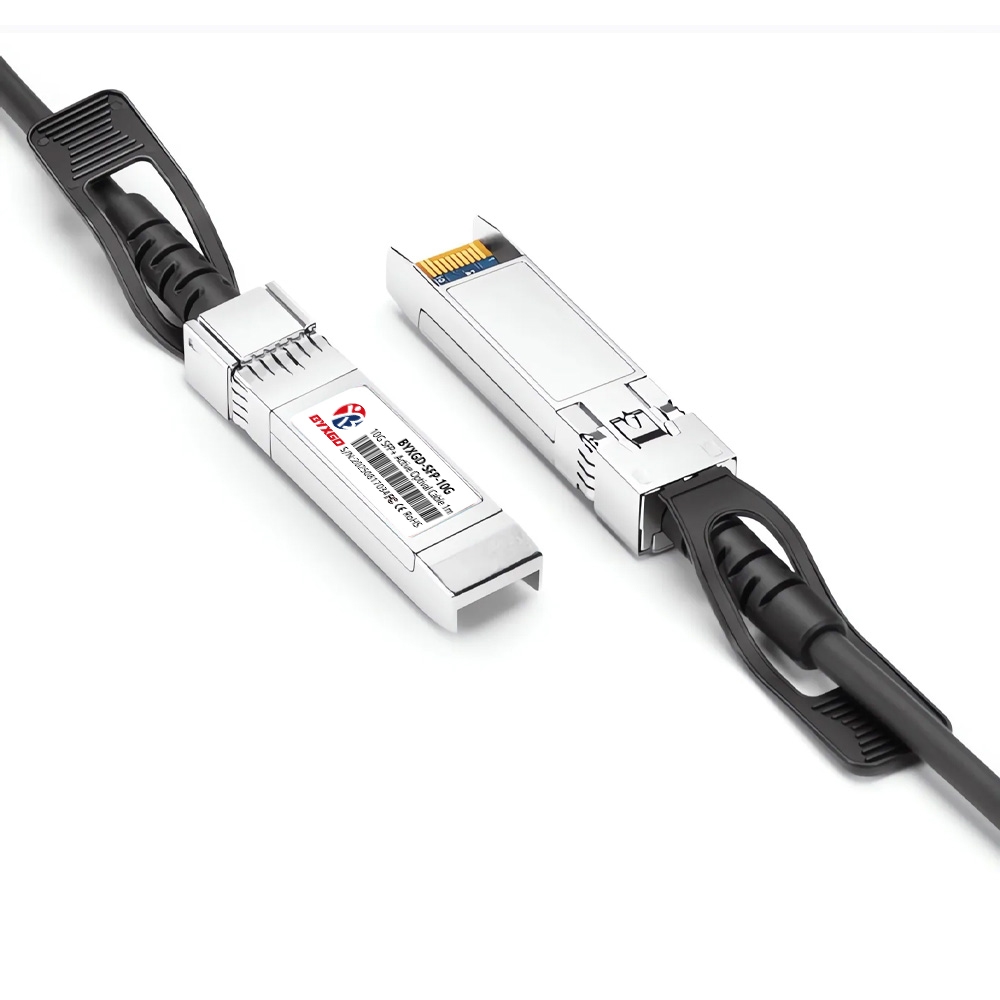

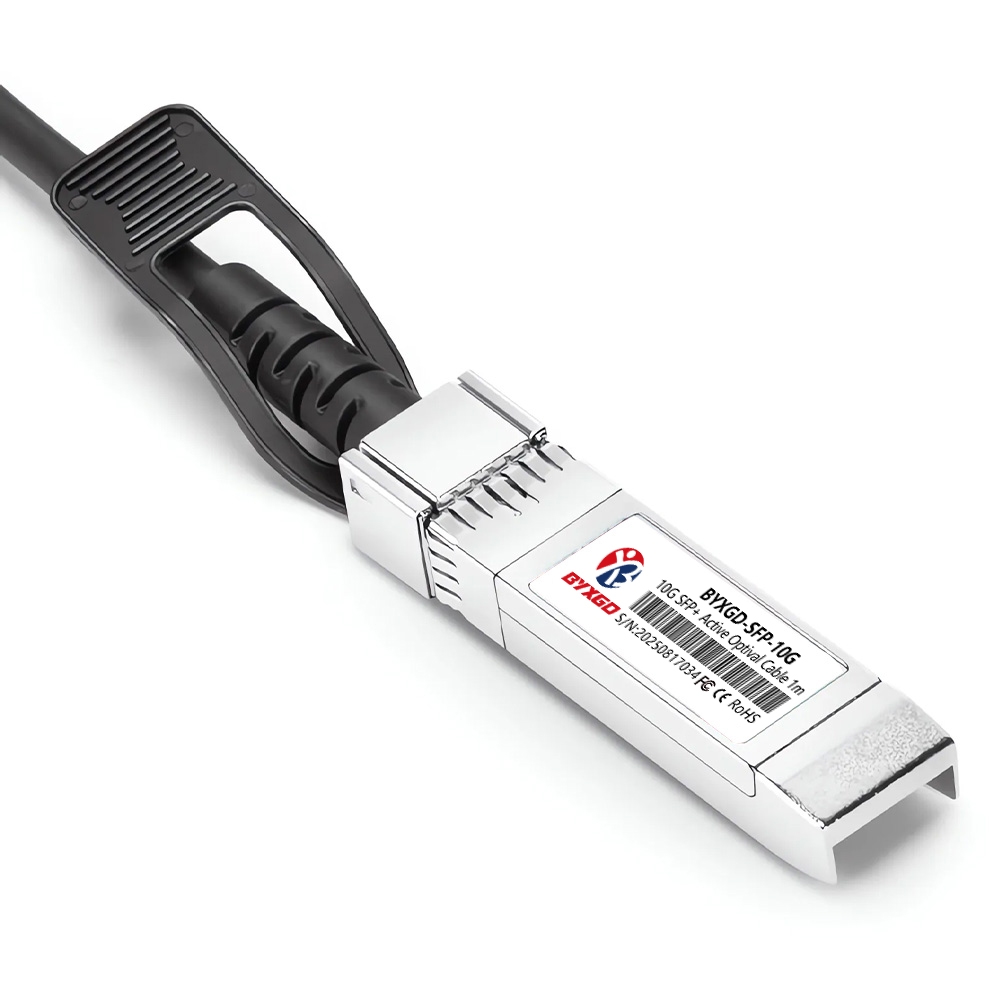

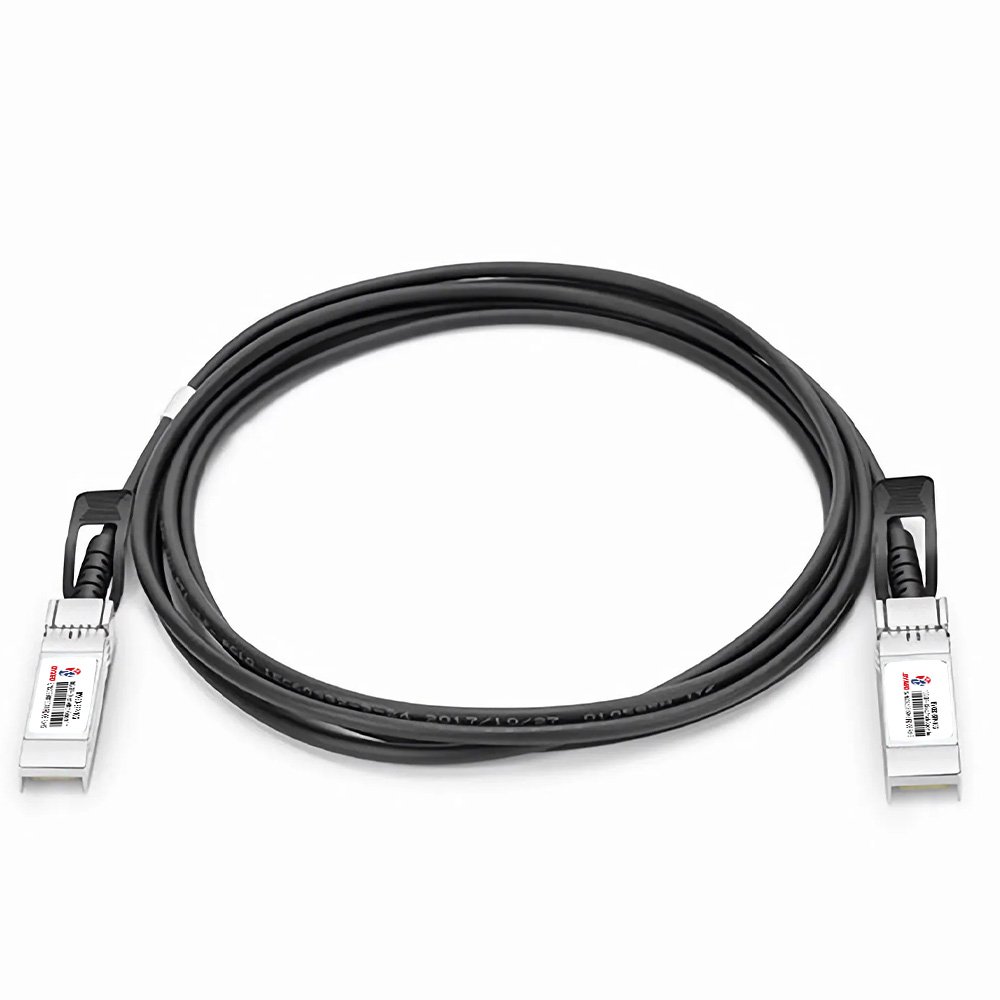

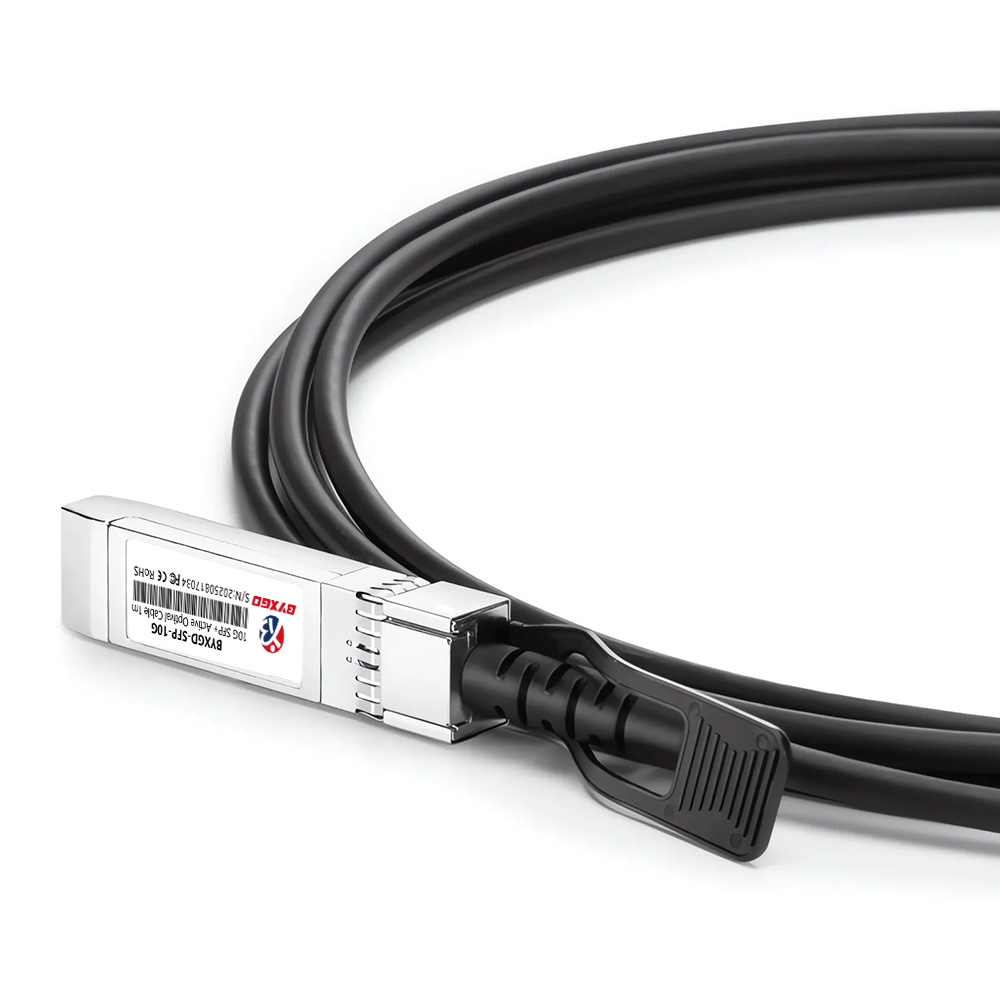

Cisco SFP-H10GB-CU1M Compliant 10G SFP+ DAC Passive Direct Attach Copper Twinax Cable from BYXGD provides support for a variety of lengths including: 0.50 m (2 ft), 1.00 m (3 ft), 1.50 m (5 ft), 2.00 m (7 ft), 2.50 m (8 ft), 3.00 m (10 ft), 4.00 m (13 ft), 5.00 m (16 ft), 6.00 m (20 ft), 7.00 m (23 ft), and 10.00 m (33 ft). Each cable includes two SFP+ connectors terminated with AWG24/AWG30 passive twinax cables with a 100-ohm impedance rating, an insertion loss of less than 10 dB/10 m, and a time delay skew of less than 100 ps/10 m.

Data rates can achieve speeds of up to 10.3125 Gbps (11 GBd bi-directional) for 1G-10G Ethernet and 1G-8G Fibre Channel applications. Maximum power consumption is 0.10 W per end (at 3.30 V) and supply current is less than 4.00 mA. The cable complies with IEEE 802.3, SFF-8431, SFP+ MSA, and 10GFC standards; it is also RoHS and UL #E116441 certified. The operating temperature for this cable is 0°C – 70°C (storage -40°C – 85°C). The minimum bend radius for this cable is 23 mm.

This cable has been validated for digital transmission performance with TDR and VNA testing methodologies and works with Cisco Catalyst 2960/3850 and Nexus 9000/7000 series switches and routers; it is designed to be used in rack-to-rack and intra-rack links in data centers, storage environments, and HPC environments.

Specifications

10G SFP+ Passive Direct Attach Copper Twinax Cable Transceivers type
