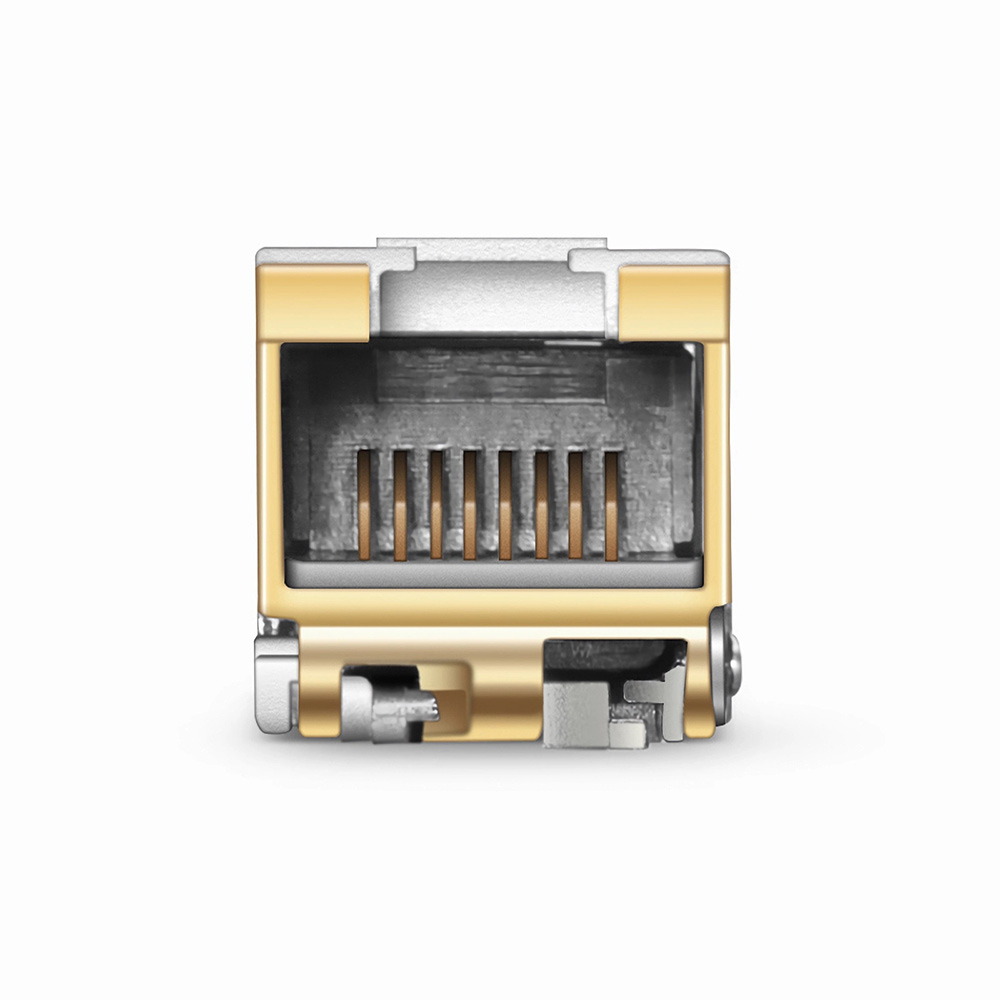

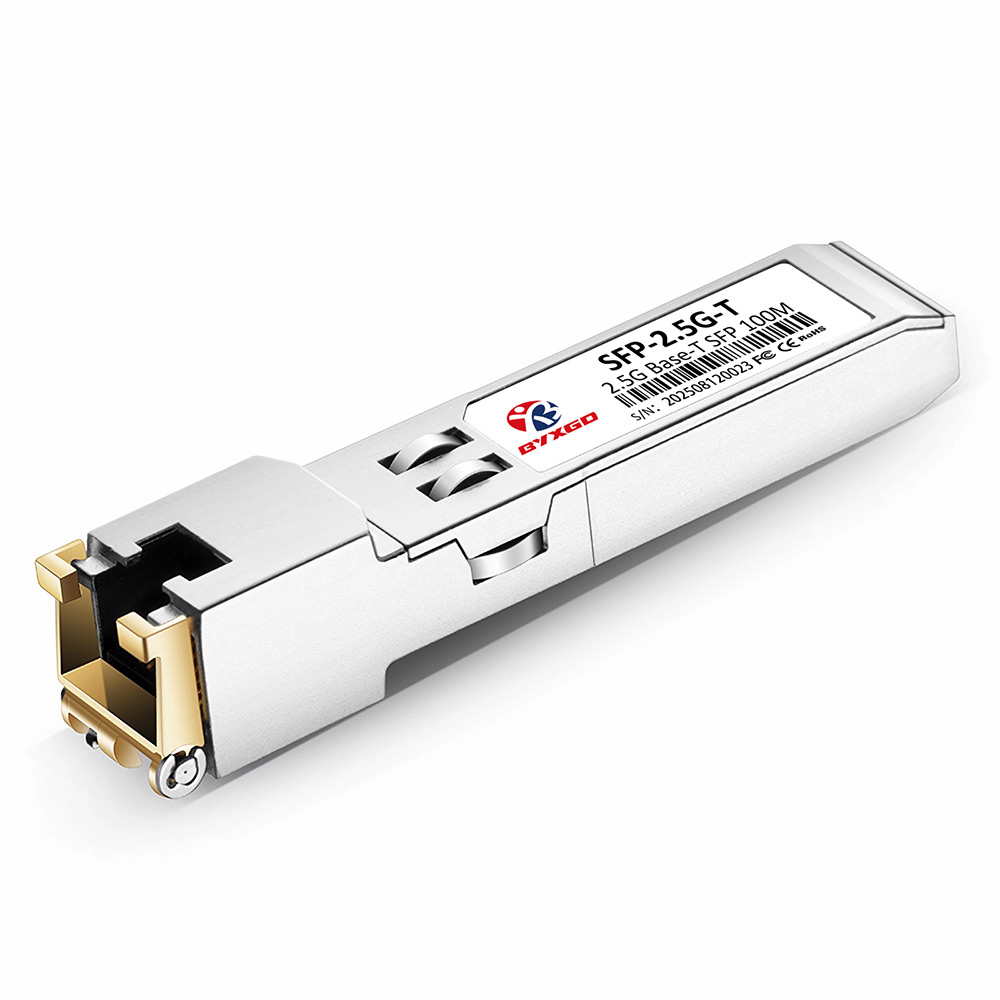

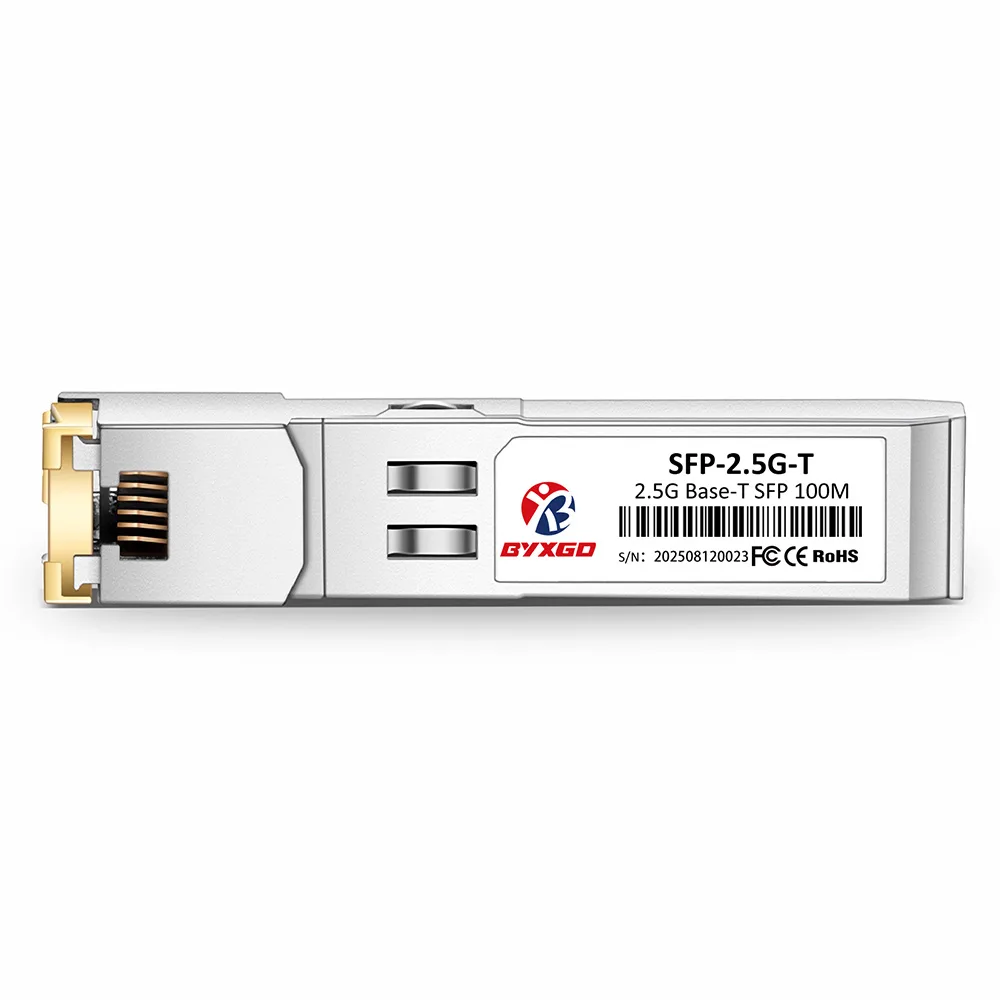

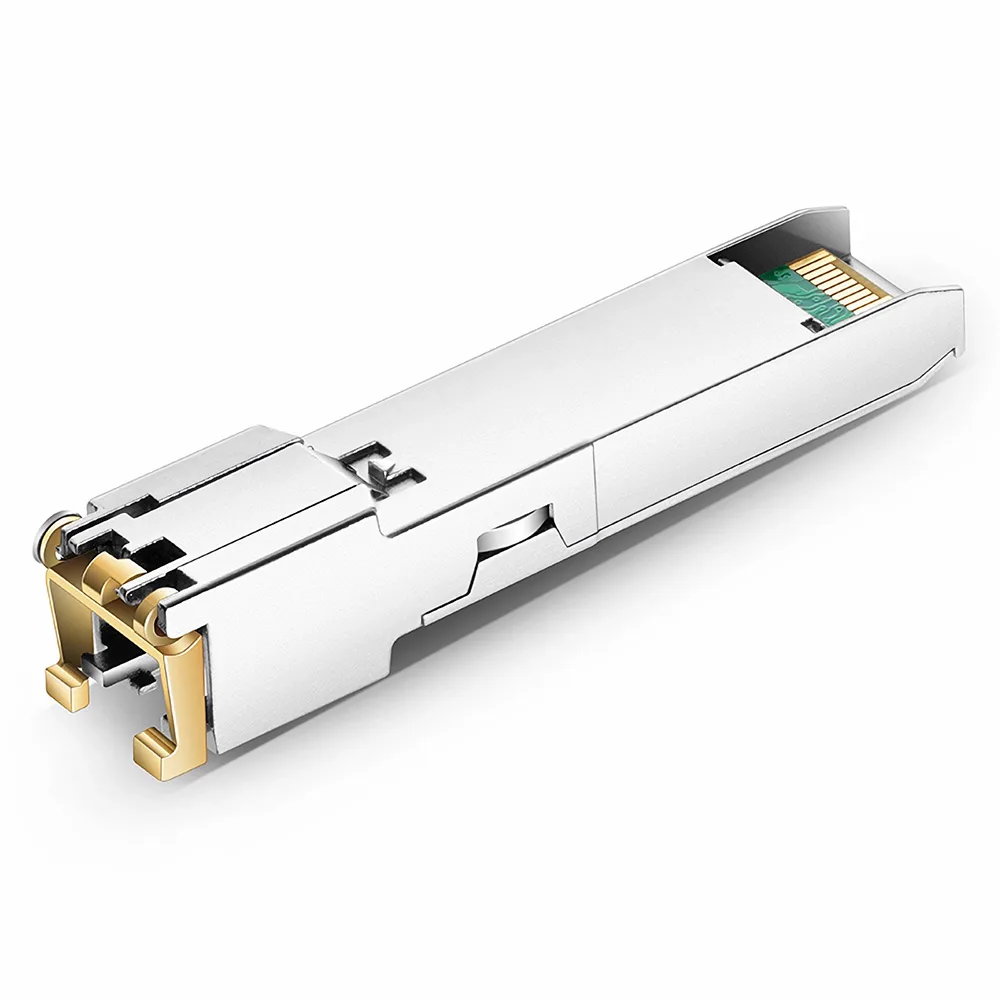

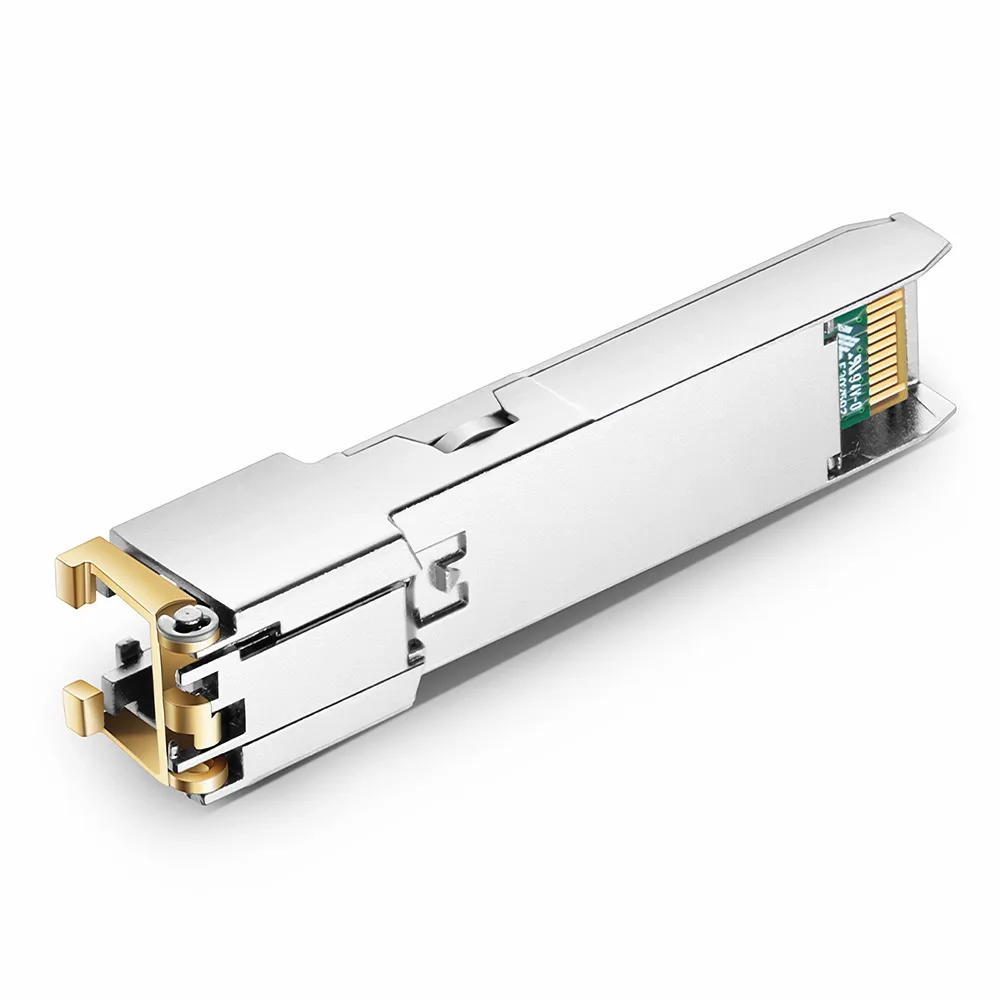

2.5GBASE-T SFP module supports 2.5 GbE over copper cabling in SFP ports and achieves up to 100 m channel reach on Cat5e/Cat6 for seamless operation in a multi-vendor network environment consistent with the SFP MSA specification. This product is specifically designed for applications in enterprise LANs, campus access, Wi-Fi access point uplinks, and server links, in support of IEEE 802.3bz/NBASE-T and MGBASE-T operation, while complying with commercial temperature requirements from 0°C to 70°C for reliable operation. It uses a single 3.3 V supply voltage for simplicity and is consistent with the link behavior specified in the standards, encouraging simple deployment wherever hosts ensure 2.5 G capability naturally in the SFP environment.
Specifications
| Attribute | Details |
| Part Number | SFP‑2.5G‑T |
| Vendor Name | BYXGD |
| Form Factor | SFP, MSA compliant (INF‑8074i) |
| Max Data Rate | 2.5Gbps |
| Max Cable Distance | 100m over Cat5e/6 (environment dependent) |
| Media | Copper (Cat5e or better) |
| Connector | RJ‑45 |
| Power Consumption | ≤ 2W; single +3.3V power supply |
| DDM/DOM | Not model‑dependent via SFP I2C |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Bit Error Ratio (BER) | ≤ target on compliant links |
| EMC | Designed for EMC conformity in enterprise deployment |
| Application | 2.5 Gigabit Ethernet over Cat5e/6 cabling for LAN, servers, storage, Wi‑Fi AP uplinks |
| Protocols | SFP MSA compliant; IEEE 802.3bz (NBASE‑T) and MGBASE‑T alignment |
| Chipset | MAXIM, MINDSPEED, SEMTECH, UX (varies by model) |
| Power | +3.3V single power supply |
| Compliance | IEEE 802.3bz NBASE‑T and MGBASE‑T; INF‑8074i; RoHS/CE observed by vendors |
| Operating Environment | Enterprise networks, datacenters, servers, storage appliances |
