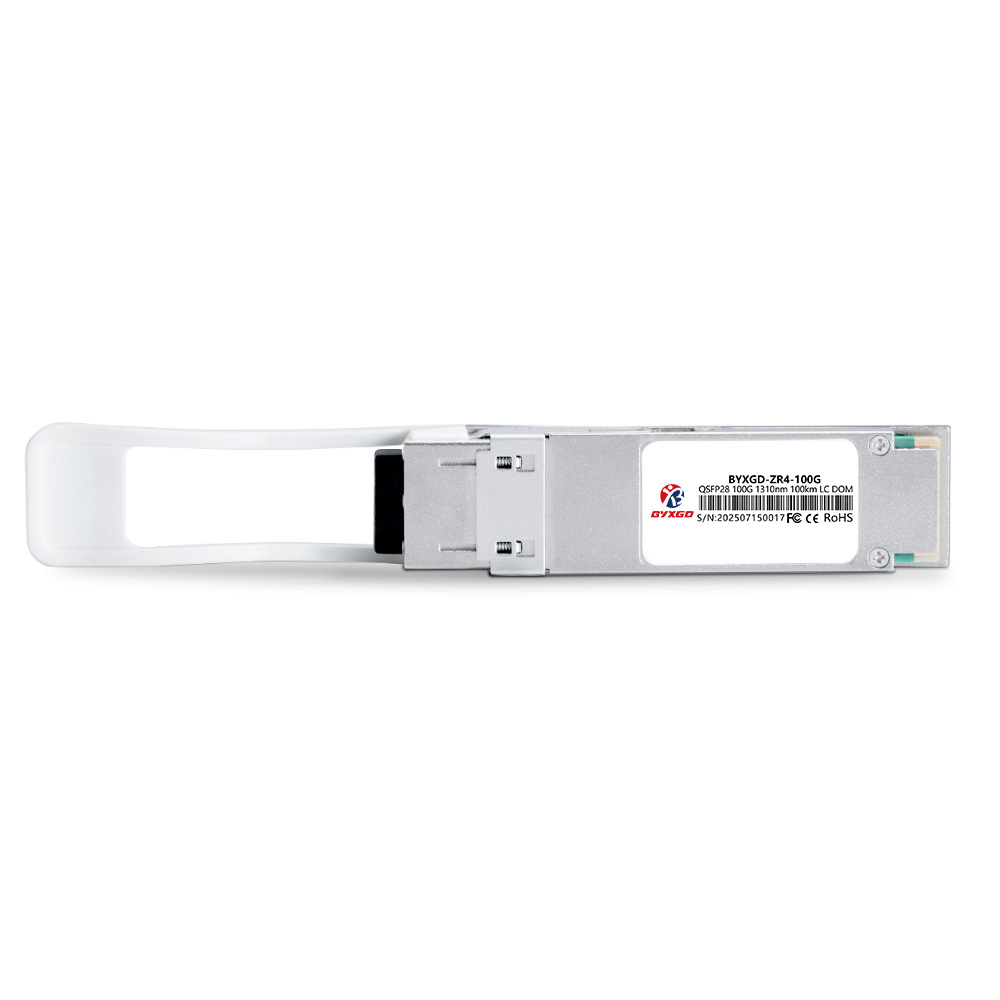

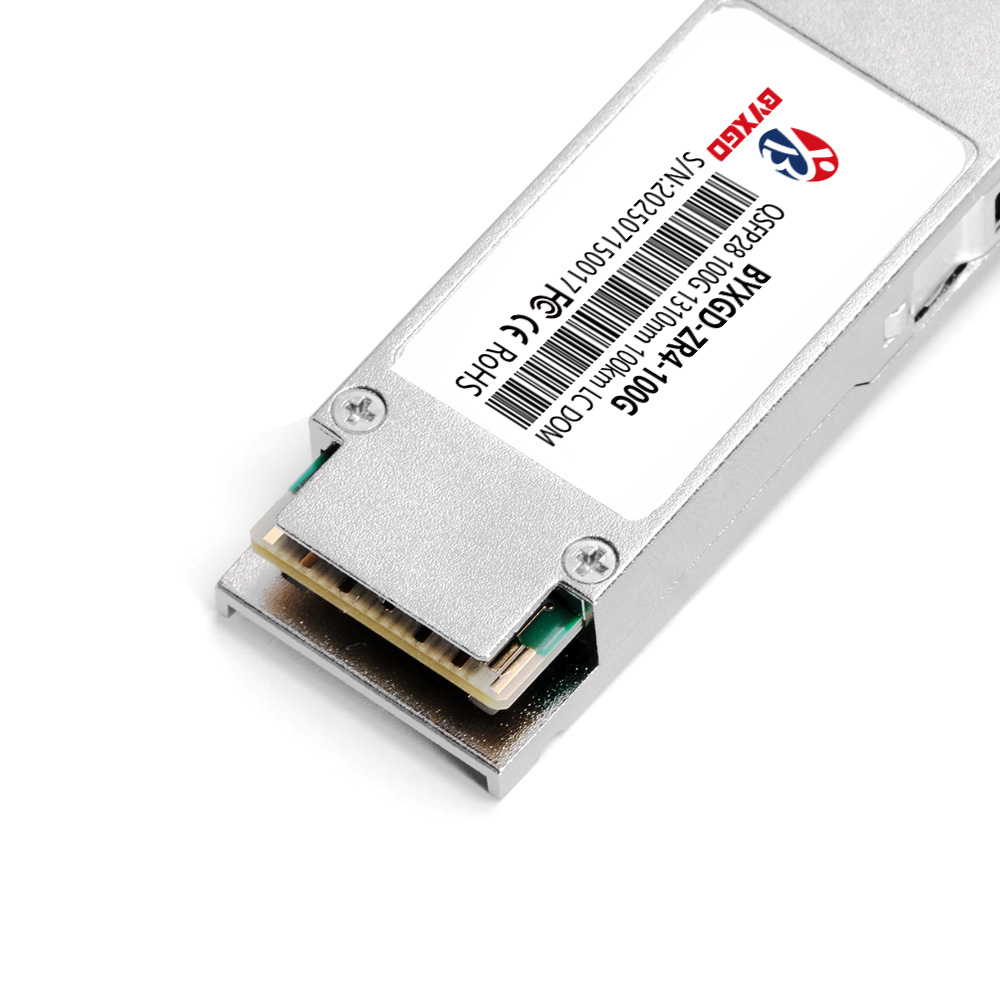

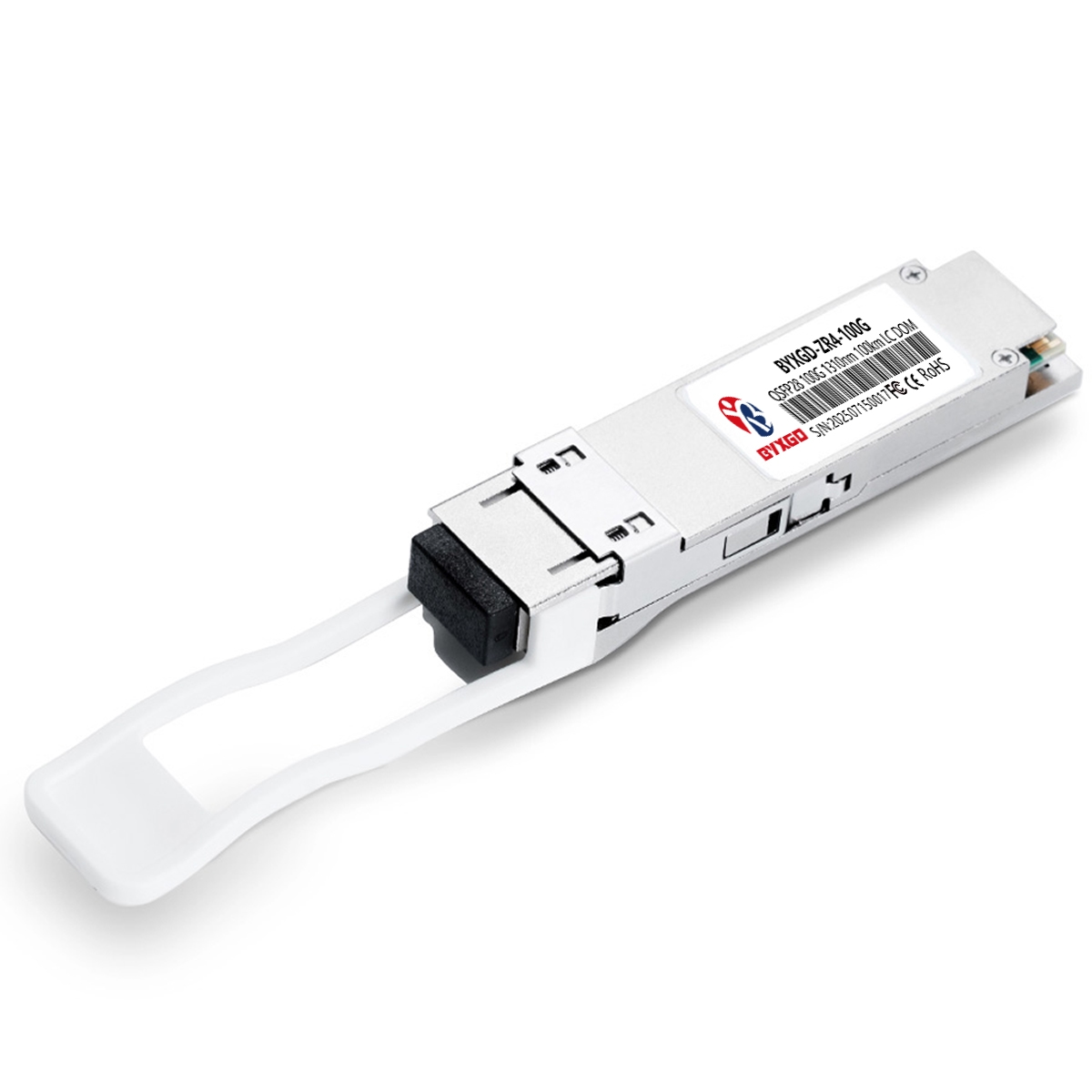

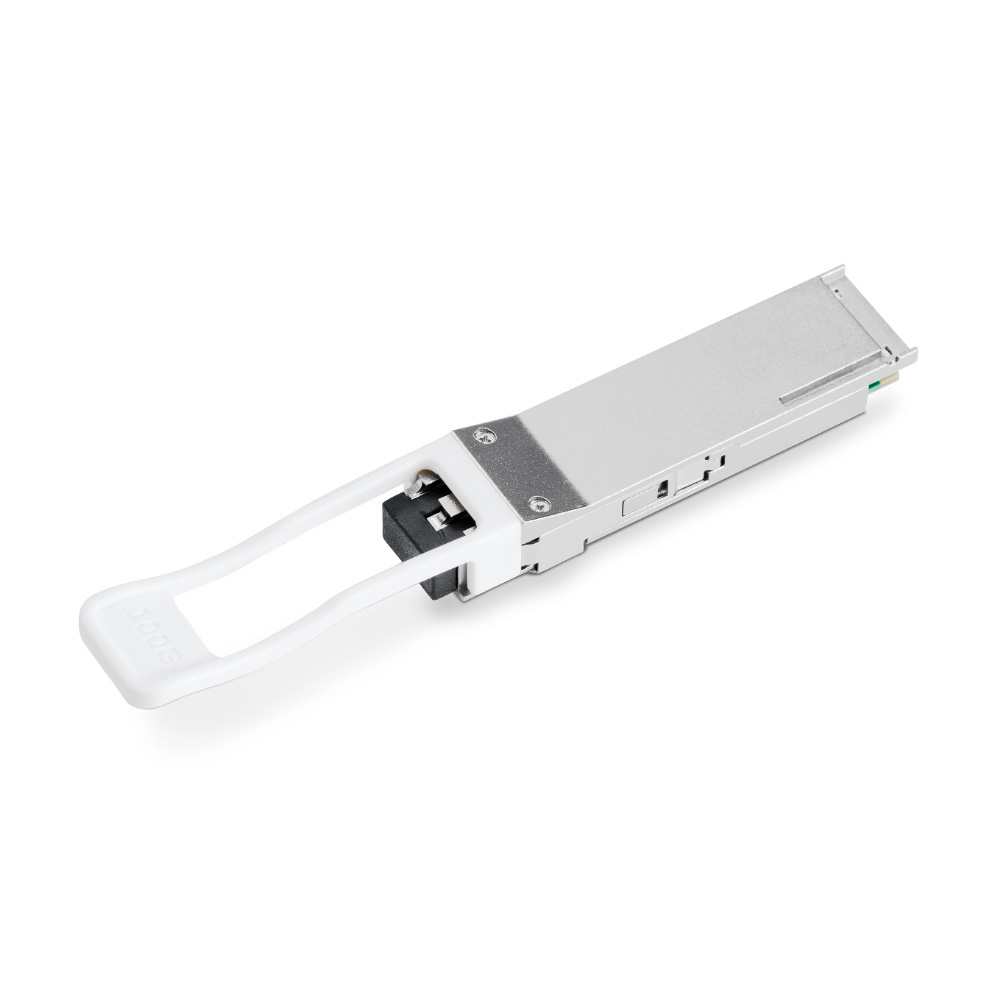

Cisco Compatible 100GBASE-ZR4 QSFP28 1310nm 100km optical transceiver module allows for 100 Gigabit Ethernet communication over a single-mode fiber optic cable with duplex LC connectors, at a wavelength of 1310 nm and up to 100 km in distance. It transmits across four multiplexed wavelengths internally managed for throughput.
Features of the module include a 4-channel EML transmitter, a semiconductor optical amplifier (SOA) for extended reach without external amplification, and a receiver with a 4-channel PIN photodetector to maintain high signal integrity. The module is fully IEEE 802.3, QSFP28 MSA, and SFF-8636 compliant, and it supports digital optical monitoring through an I²C interface for real-time monitoring and diagnostics.
The module is housed in a metal enclosure specifically designed to minimize EMI. It has a maximum power consumption of 6W and is hot-swappable for maintenance. It is a great choice for long-distance connectivity in data centers, enterprise cores, and service provider networks, and is compatible with the Cisco QSFP-100G-ZR4 and other IEEE compliant 100G devices.
Specifications
| Brand | BYXGD |
| Form Factor | QSFP28 |
| Max Data Rate | 100 Gbps (4 x 25 Gbps) |
| Wavelength | 1310 nm |
| Media Type | Single-Mode Fiber (SMF) |
| Max Cable Distance | 100 km |

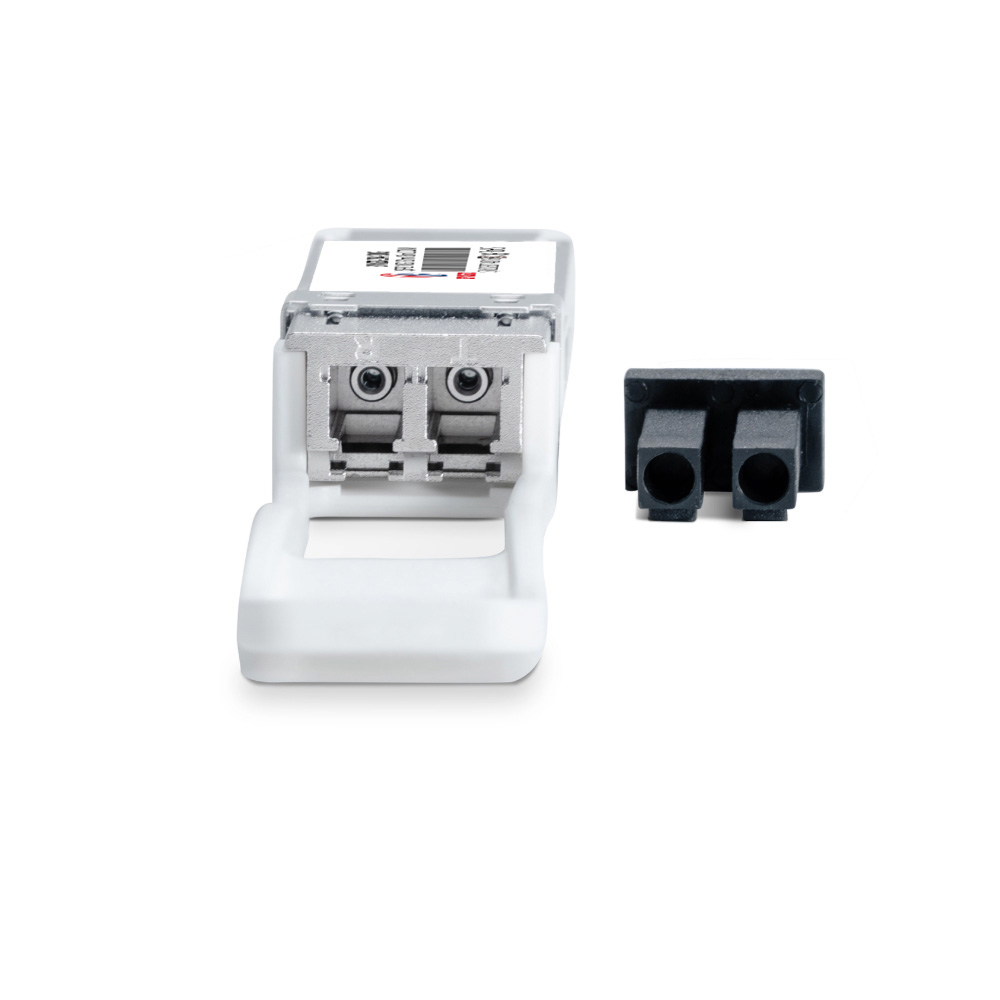

| Connector | Duplex LC |
| Transmitter Type | EML |
| Receiver Type | PIN Photodetector |
| Transmitter Power | 2 to 6 dBm |
| Receiver Sensitivity | -30 to -7 dBm |
| Power Consumption | ≤ 6 W |
| Extinction Ratio | > 6 dB |
| CDR | Built-in TX & RX |
| Host FEC Support | Supported |
| Packaging Technology | BOX Packaging |
| Modulation Format | 4 x 25G NRZ |
| DDM/DOM | Supported |
| Operating Temperature Range | 0 to 70°C (32 to 158°F) |
| Storage Temperature Range | -40 to 85°C |
| Operating Humidity | 5% to 85% (Non-condensing) |
| Storage Humidity | 5% to 95% (Non-condensing) |
| Core Size | 9 µm / 125 µm |
| Protocols | QSFP28 MSA, IEEE 802.3, RoHS 10, SFF-8636 |
| Compliance | RoHS, CE, REACH |
| Dimensions (L x W x H) | 118.3 x 18.4 x 8.5 mm (4.66 x 0.72 x 0.33 in) |
| Weight | 0.09 kg |
| Application | 100GBASE-ZR4 Ethernet Links, Infiniband QDR/DDR, Telecom Networking |
| What’s In The Box | 1x QSFP28 Transceiver |
| Country of Origin | China |
