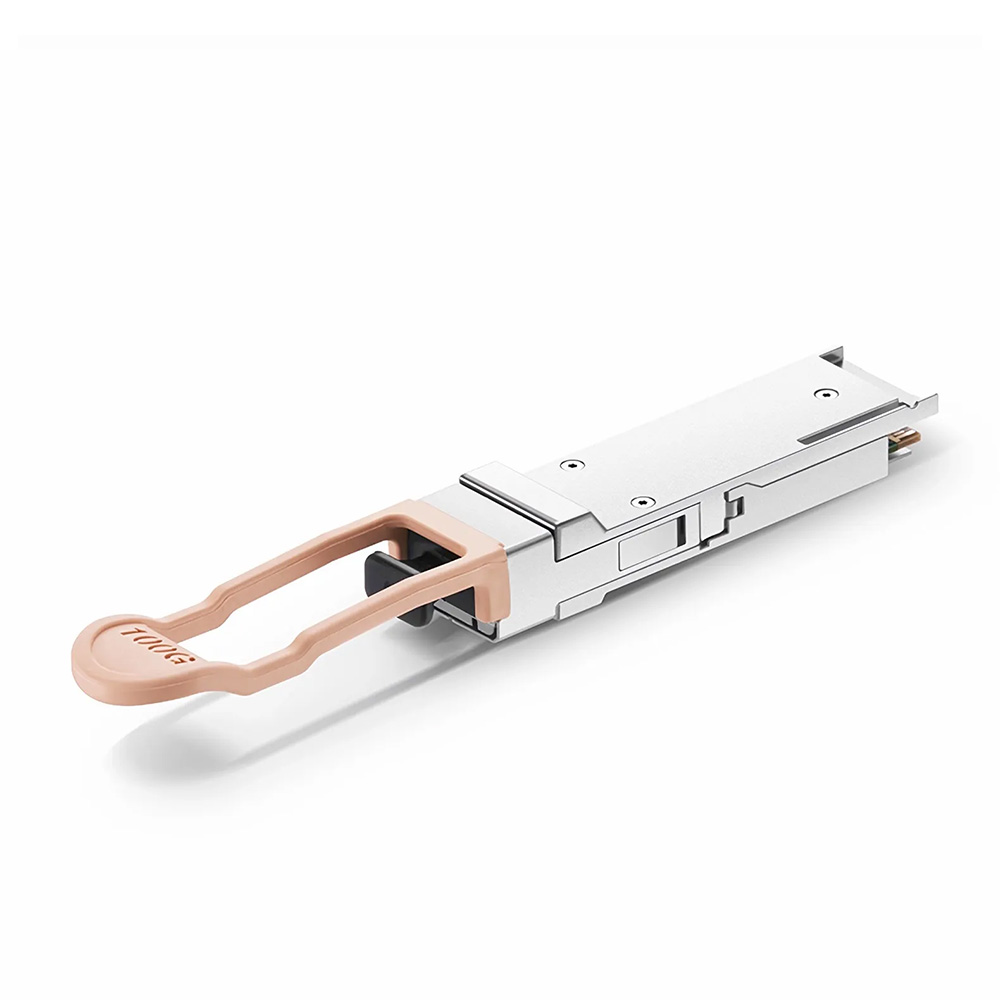

Compatible with the Cisco QSFP-100G-SR4-S, 100GBASE-SR4 QSFP28 850nm Optical Transceiver Module sends out 100Gbps of traffic through four full-duplex lanes (25Gb/s each) on OM3—up to 70m and on OM4—up to 100m using an 850nm VCSEL laser with a PIN receiver.
The 100GBASE-SR4 QSFP28 850nm Optical Transceiver Module has low power consumption (≤ 2.5W) and uses a 3.3V power supply. In addition, it is compliant with IEEE 802.3bm, QSFP28 MSA, SFF8636, and CAUI-4 standards. It also has Digital Diagnostic Monitoring (DDM) for monitoring operation parameters in real time and supports breakout to 4 x 25GBASE-SR SFP28 using an MTP/MPO-12 interface.
The Cisco QSFP-100G-SR4-S compatible Optical Transceiver Module is fit for use (hot-pluggable), has an operating temperature of 0 °C to +70 °C, and is RoHS 6 compliant and lead-free; ideal for high-density data centers, campus networks, and enterprise core layer applications.
Supported brands and models: Cisco QSFP-100G-SR4-S, Huawei 02311GBW, Juniper Networks JNP-QSFP-100G-SR4, Mellanox MMA1B00-C100D, Extreme 10401, H3C QSFP-100G-SR4-MM850, Mikrotik XQ+85MP01D, Avago AFBR-89CDDZ, Edge-Core ET7402-SR4, Palo Alto Networks PAN-100G-QSFP28-SR4, Fortinet FG-TRAN-QSFP28-SR4, Intel SPTMBP1PMCDF, D-Link DEM-Q28X01Q-SR4, etc.
Specifications
| Brand | BYXGD |
| Form Factor | QSFP28 |
| Max. Data Rate | 100 Gb/s (4x 25 Gb/s lanes) |
| Wavelength | 850 nm |
| Max. Cable Distance | 70m@OM3, 100m@OM4 |

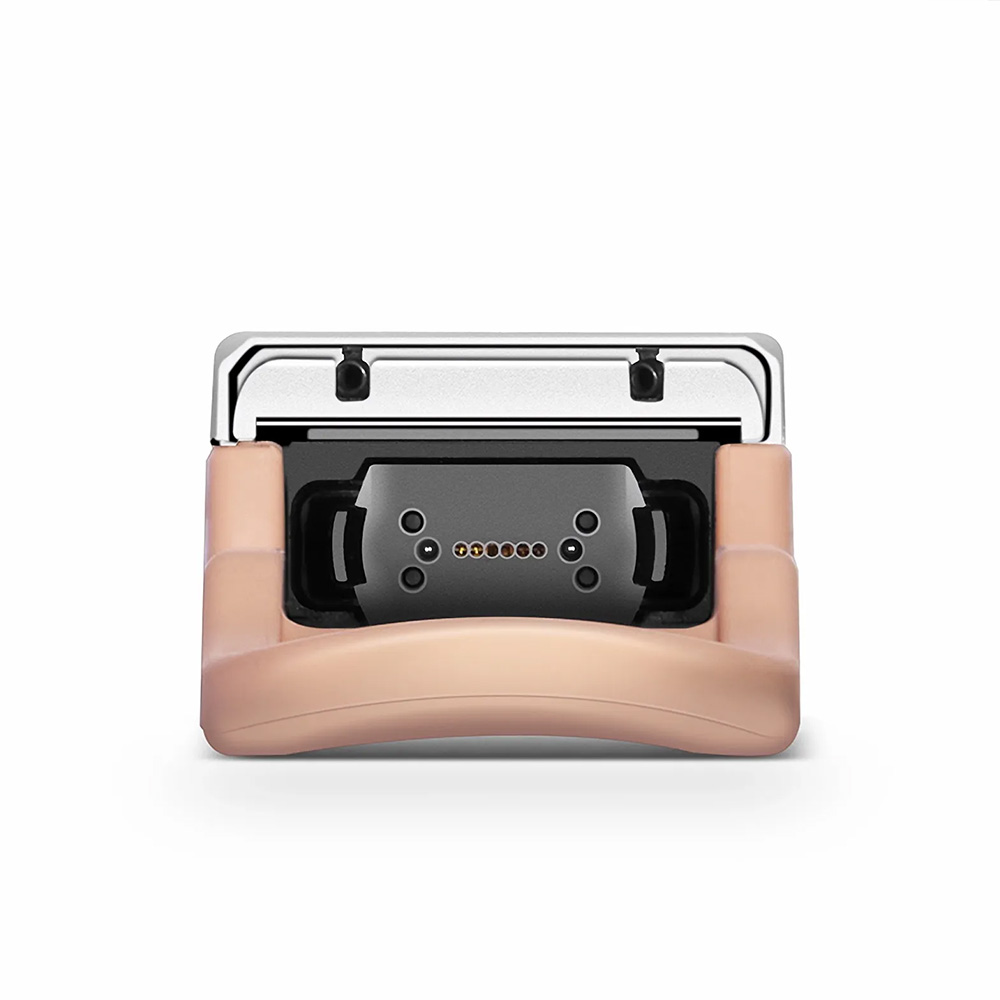

| Connector | MTP/MPO-12 Male |
| Media Type | MMF |
| Transmitter Type | VCSEL 850 nm |
| Receiver Type | PIN |
| TX Power | -8.4 to +2.4 dBm |
| Receiver Sensitivity | < -10.3 dBm |
| Receiver Overload | > 2.4 dBm |
| Power Consumption | ≤ 2.5W |
| Modulation Format | 4x 25G NRZ |
| Extinction Ratio | > 3 dB |
| DDM/DOM | Supported |
| Operating Temperature Range | 0°C to 70°C (32°F to 158°F) |
| BER | ≤ 1E-12 |
| Packaging | COB |
| MTBF | 30,800,000 hours |
| Compliance & Protocols | IEEE 802.3bm, QSFP28 MSA, SFF-8636, CAUI-4 |
| Environmental Compliance | RoHS Compliant, Lead-Free |
| Weight | 0.07 kg |
| Warranty | 5 Years |
| Applications | Data centers, campus networks, enterprise core layer, high performance computing clusters, 100G Ethernet |
