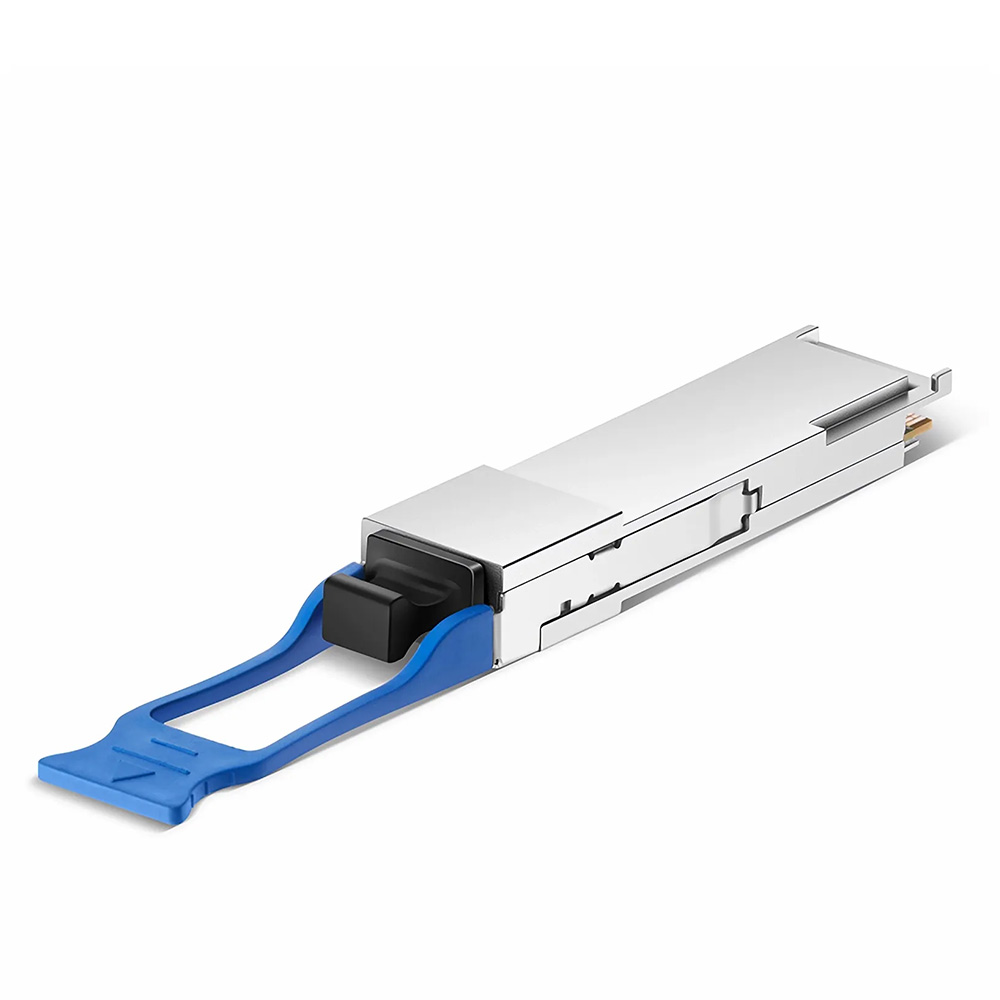

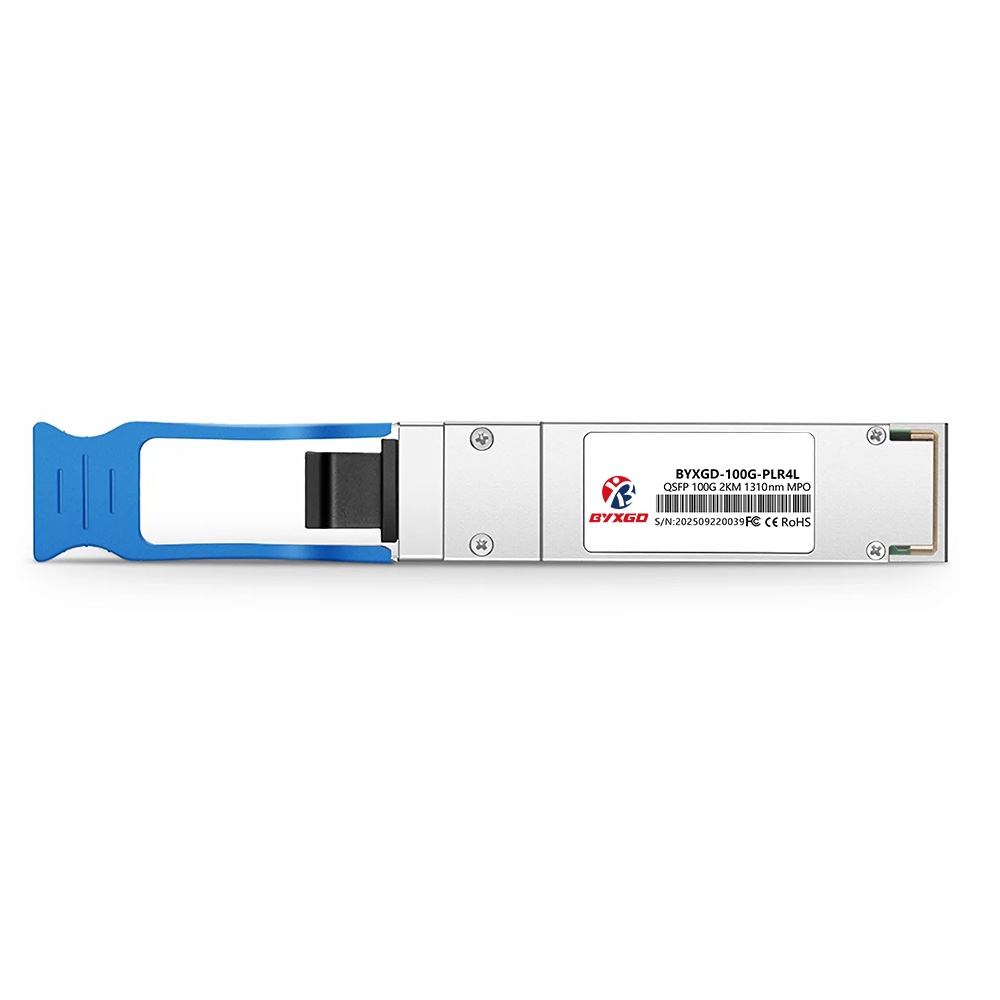

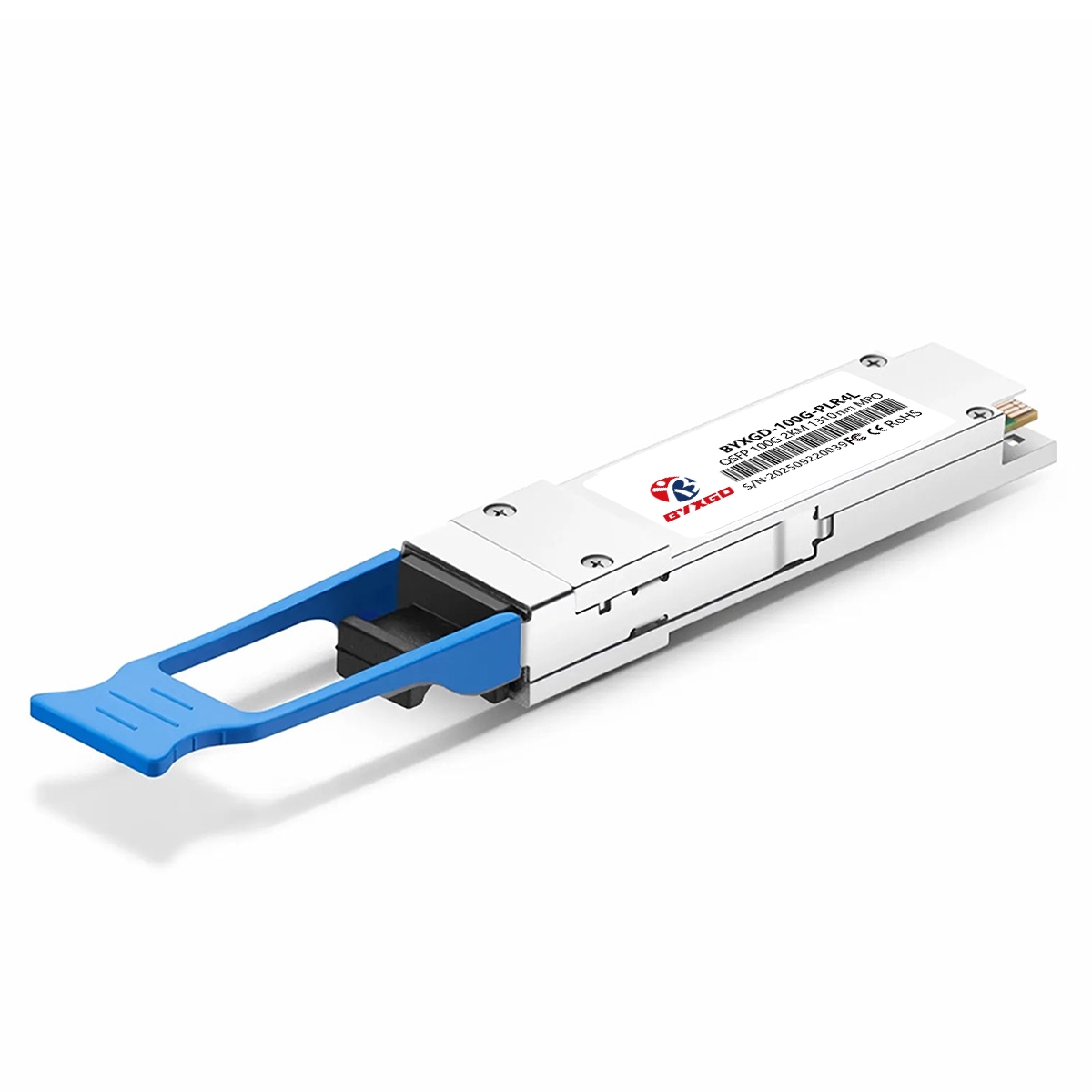

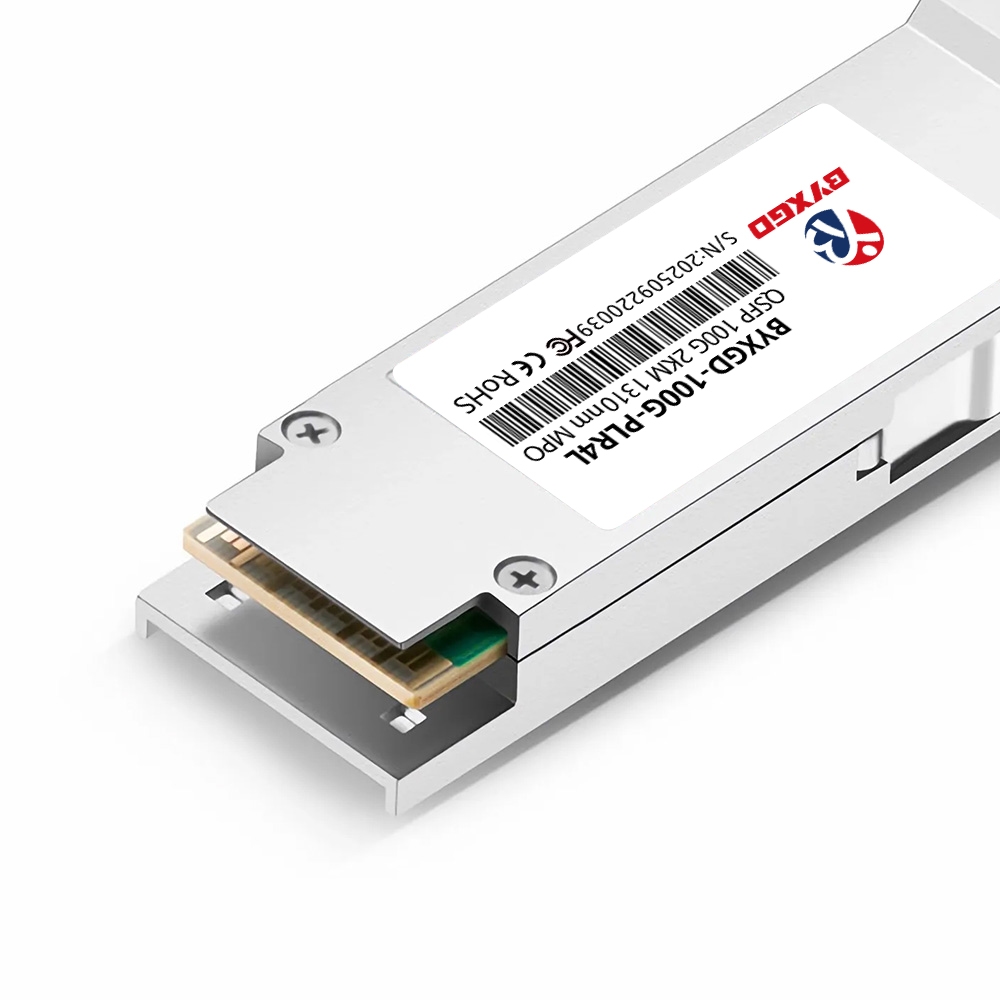

Cisco-Compatible 100GBASE-PLR4L QSFP28 optical transceiver provides 100 Gbps Ethernet transmission through single-mode fiber (SMF) for distances reaching up to 2 kilometers, over the 1310 nm wavelength using an MTP (MPO-12) connector. It meets IEEE 802.3bm and 100G-PLR4L MSA standards for compatibility and improved performance with industry-leading network platforms.
The module includes live digital diagnostics (DDM) via the I²C interface, which grants access to several parameters including temperature, voltage, and optical power for real-time monitoring and management of the system. With a maximum power consumption (Po) of 3.5 W, it offers a lot in terms of operating power efficiency, and its operation is low latency to ensure maximum signal integrity.
As it is a hot-swappable module in the QSFP28 form factor, it allows for easy installation and upgrades with reduced downtime. The 100G to 4 × 25G breakout feature allows for flexible applications, making it ideal for any data center, high-performance computing (HPC) network, and enterprise core and distribution layer applications.
Specifications
| Brand | BYXGD |
| Form Factor | QSFP28 |
| Max Data Rate | 103.125 Gbps (4 × 25.78 Gbps) |
| Wavelength | 1310 nm |
| Max Cable Distance | 2 km |

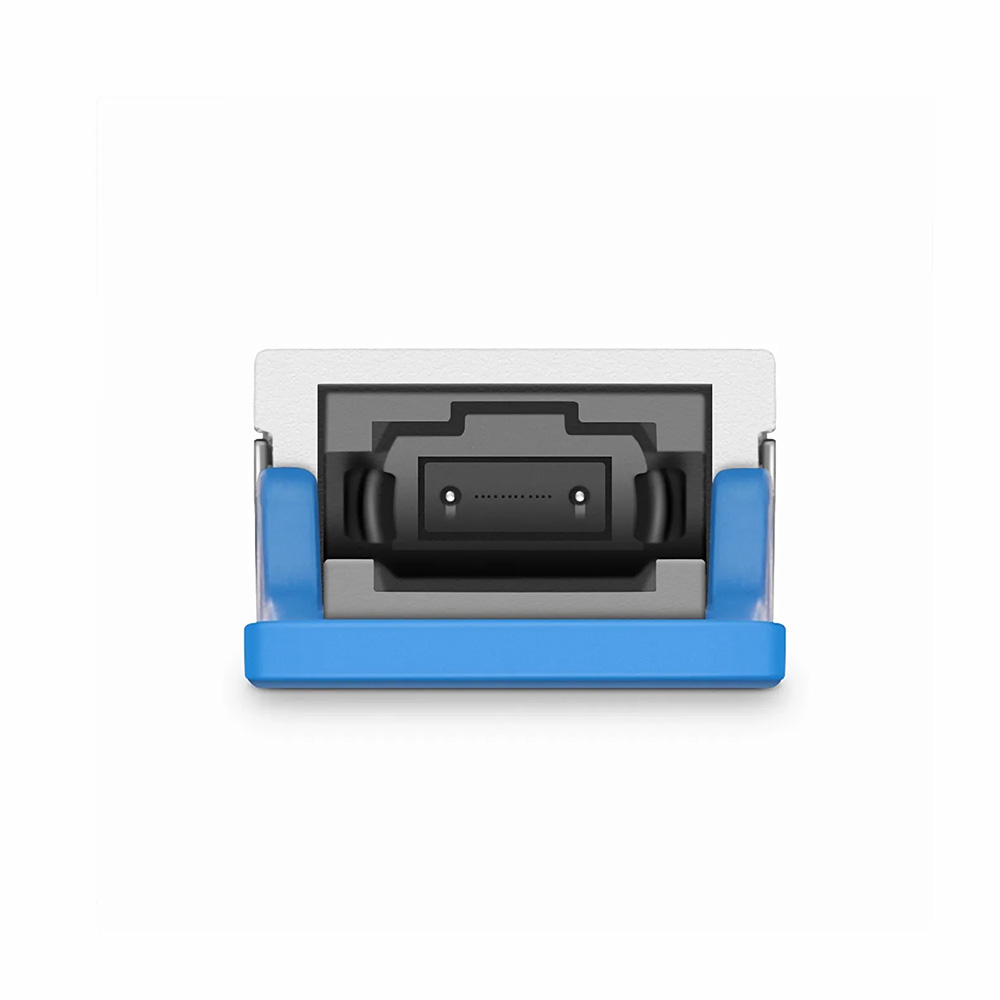

| Connector | MTP/MPO-12 |
| Media | Single Mode Fiber (SMF) |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| TX Power | -6 to 2 dBm |
| RX Power | -12.66 to 2.5 dBm |
| Power Consumption | ≤ 3.5 W |
| Extinction Ratio | > 3.5 dB |
| CDR | Built-in for TX and RX |
| FEC | Not supported |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0°C to 70°C (32°F to 158°F) |
| Packaging Technology | BOX Packaging |
| Modulation Format | 4 × 25 G NRZ |
| Core Size | 9 μm / 125 μm |
| Protocols | QSFP28 MSA, SFF-8636 |
| Warranty | 5 Years |
