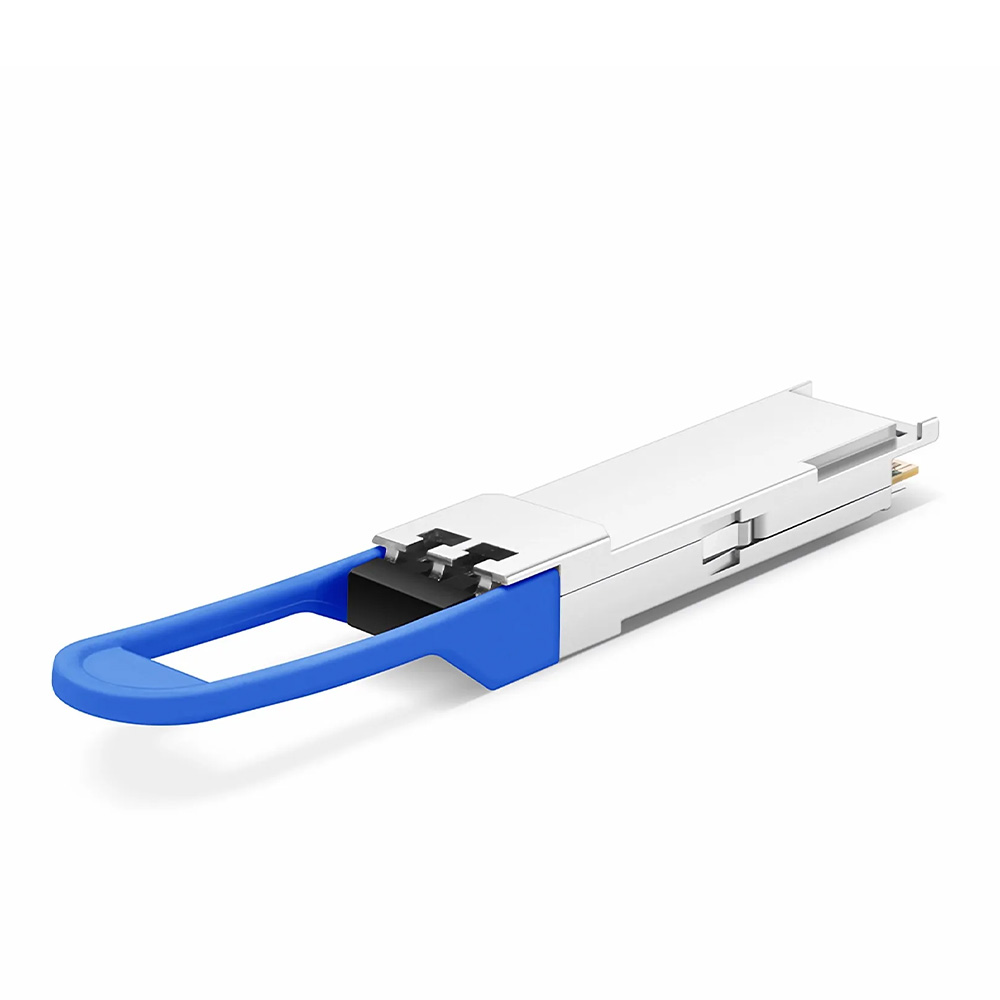

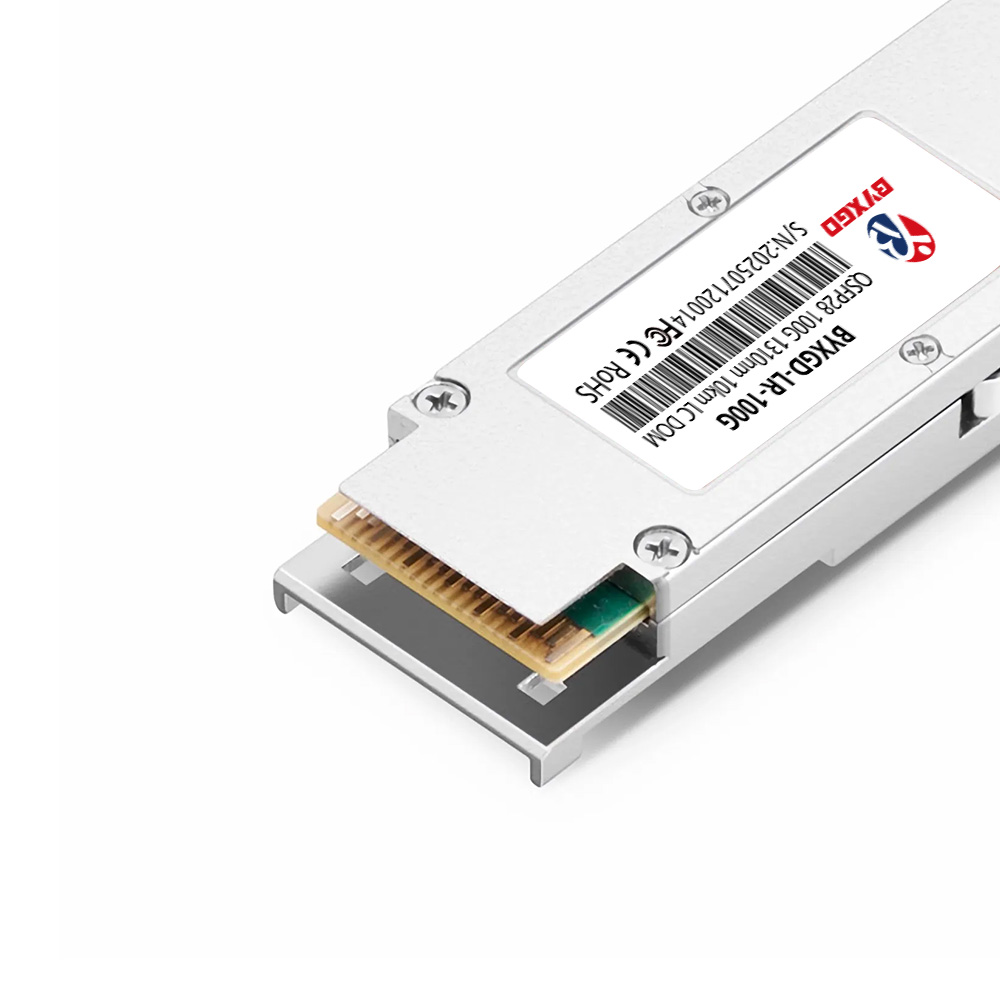

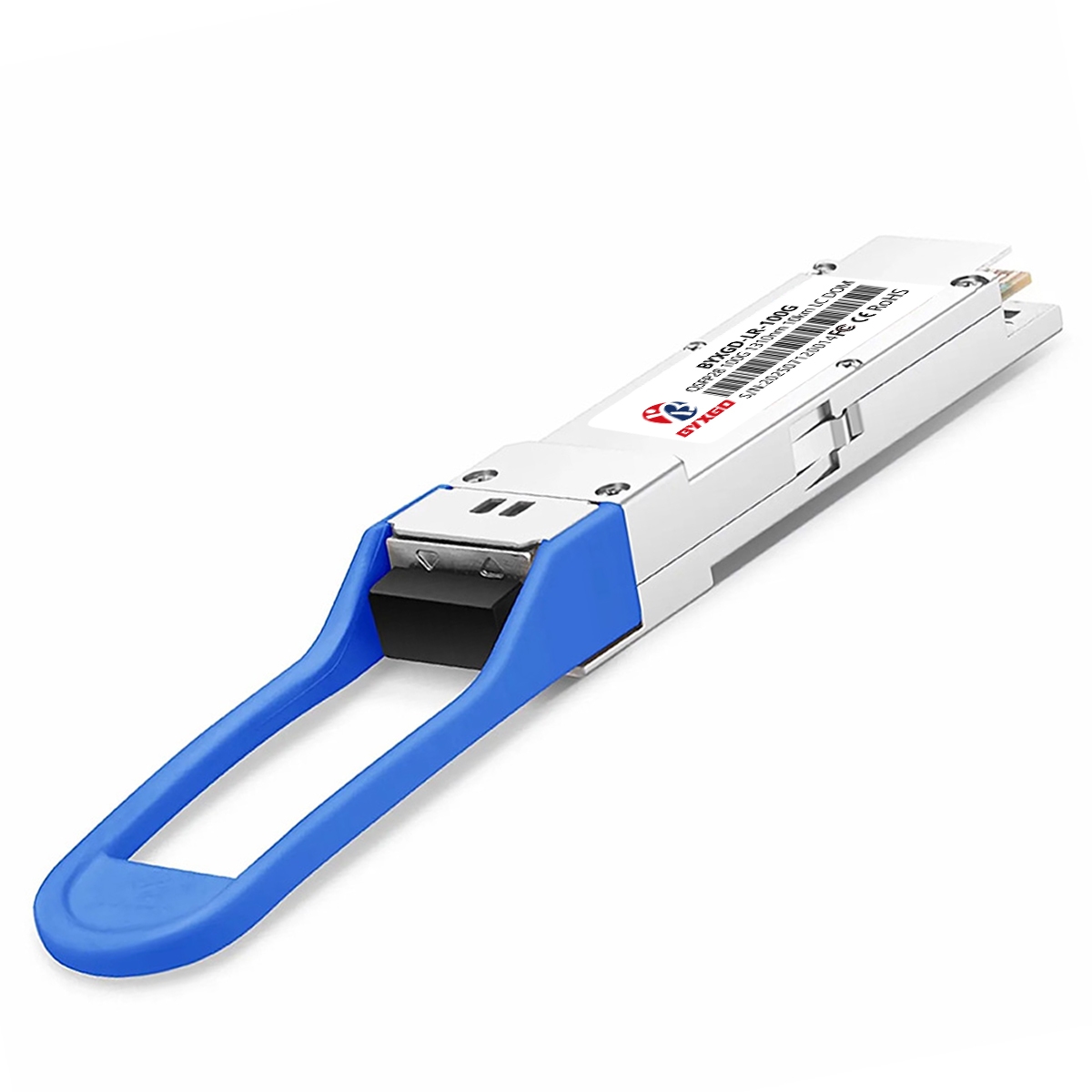

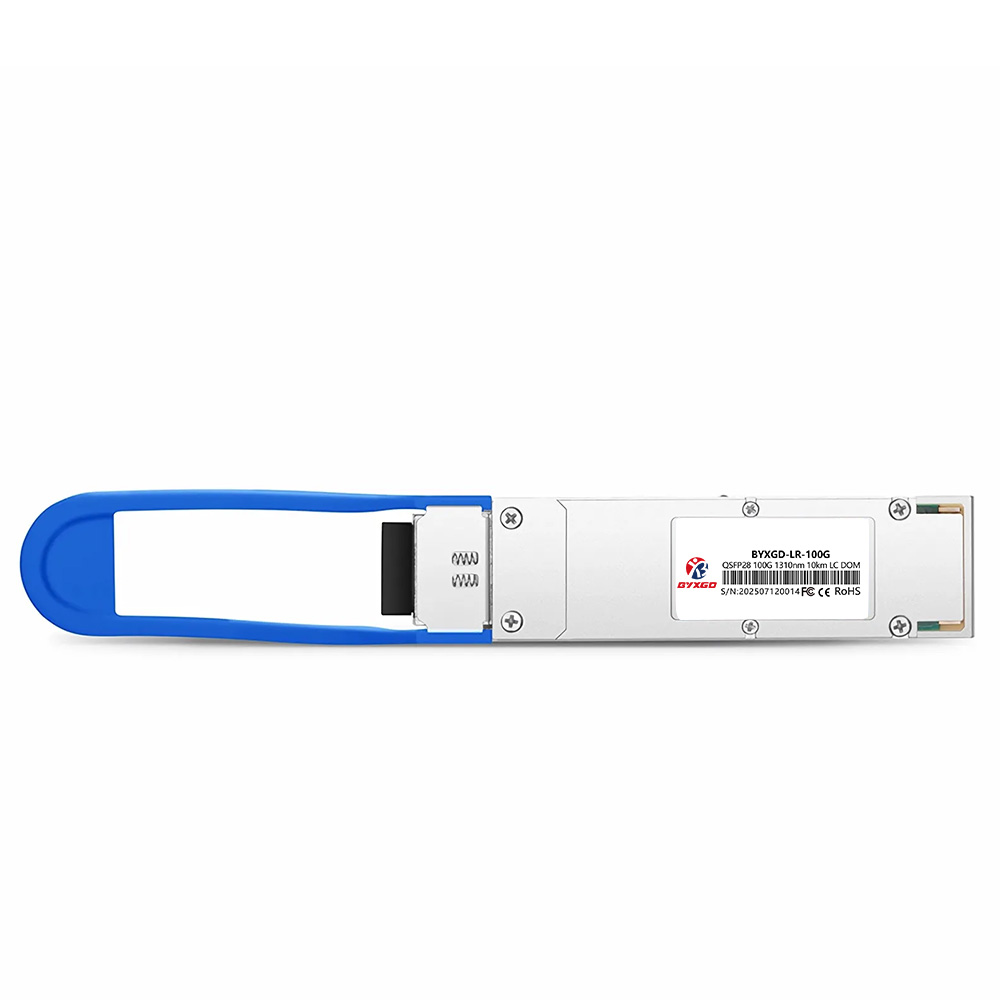

Cisco QSFP-100G-LR-S Compatible 100GBASE-LR Single Lambda QSFP28 PAM4 1310nm 10km Duplex LC/UPC SMF Optical Transceiver Module provides 100Gbps Ethernet over 10 kilometers of Single-Mode Fiber (SMF) at 1310nm using 100G PAM4. The transceiver module includes a duplex LC interface and a single-lane 100G PAM4 optical path converting four 25G NRZ electrical inputs through an integrated digital signal processing (DSP) and gearbox design.
The transceiver is compliant with QSFP28 Multi-Source Agreement (MSA), 100G Lambda MSA, and IEEE 802.3cd 100GBASE-LR standards with support for KP4 Forward Error Correction (FEC). The transceiver also contains a hermetically sealed electro-magnetic light (EML) transmitter and a photodiode (PIN) receiver. The power consumption is up to 4.5W and meets the Class 1 FDA laser safety standard while being RoHS compliant.
Real-time monitoring of critical diagnostic parameters, such as optical output power, temperature, and voltage, is available using DDM via the I2C interface. The transceiver is fully interoperable with 400G-DR4 and 400G XDR4 via an electrical breakout of 4×100G ports; however, it is not backward compatible with legacy 400G LR4, PSM4, or CWDM4 modules—simply ideal for data center applications and high-capacity interconnects.
Compatible with Cisco QSFP-100G-LR-S, Intel SPTSLP4SLCDF, HW QSFP-100G-LR1, and Extreme 100G-LR-QSFP10KM, the transceiver is ready for next-generation applications.
Specifications
| Brand | BYXGD |
| Form Factor | QSFP28 |
| Data Rate | 103.125Gbps (4x 25.78Gbps NRZ) |
| Optical Modulation | 1x 100G PAM4 |
| Wavelength | 1310nm |
| Max. Cable Distance | 10km (OS2 SMF) |

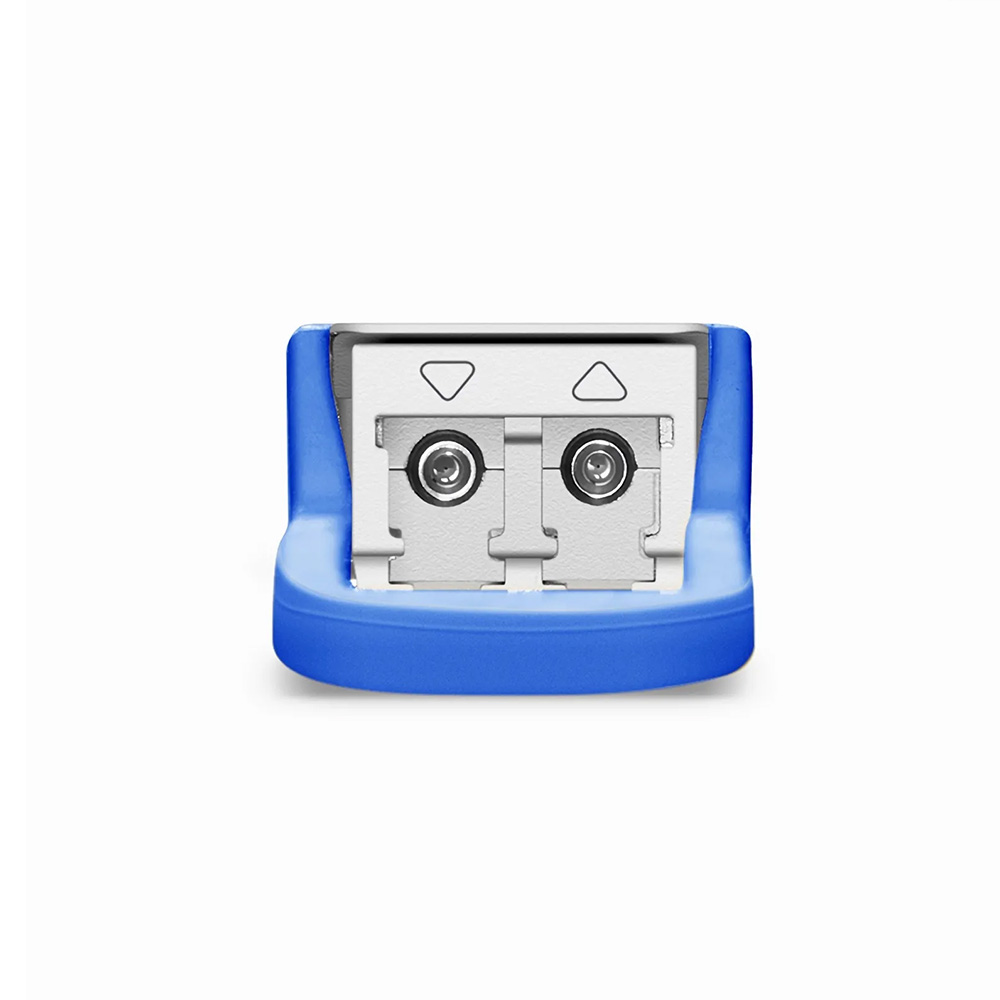

| Connector | Duplex LC/UPC |
| Transmitter Type | EML (Electro-absorption Modulated) |
| Receiver Type | PIN Photodiode |
| TX Power | -1.4 to +4.5 dBm |
| RX Sensitivity | ≤ -7.7 dBm |
| Receiver Overload | 4.5 dBm |
| Power Budget | 6.3 dB |
| Max. Power Consumption | 4.5W |
| Extinction Ratio | >3.5 dB |
| CDR (Clock and Data Recovery) | TX & RX Built-in |
| FEC | Built-in KP4 FEC |
| DDM/DOM | Supported (I2C interface) |
| Packaging Technology | BOX Packaging |
| BER (pre-FEC) | 2.4×10⁻⁴ |
| Supported Protocols | QSFP28 MSA, 100G Lambda MSA, SFF-8636, IEEE 802.3cd, CAUI-4 |
| Operating Temp. Range | 0 to 70°C (32 to 158°F) |
| Storage Temp. Range | -40 to 85°C |
| Operating Humidity | 5% ~ 85% |
| Storage Humidity | 5% ~ 95% |
| Warranty | 5 Years |
| Dimensions (L x W x H) | 118.3 x 18.4 x 8.5 mm |
| Application | 100G Ethernet, Data Center, Breakout, HPC, Enterprise |
| Compliance | RoHS, CE, REACH, FDA Class 1 |
| Shipping Weight | 0.07 kg |
