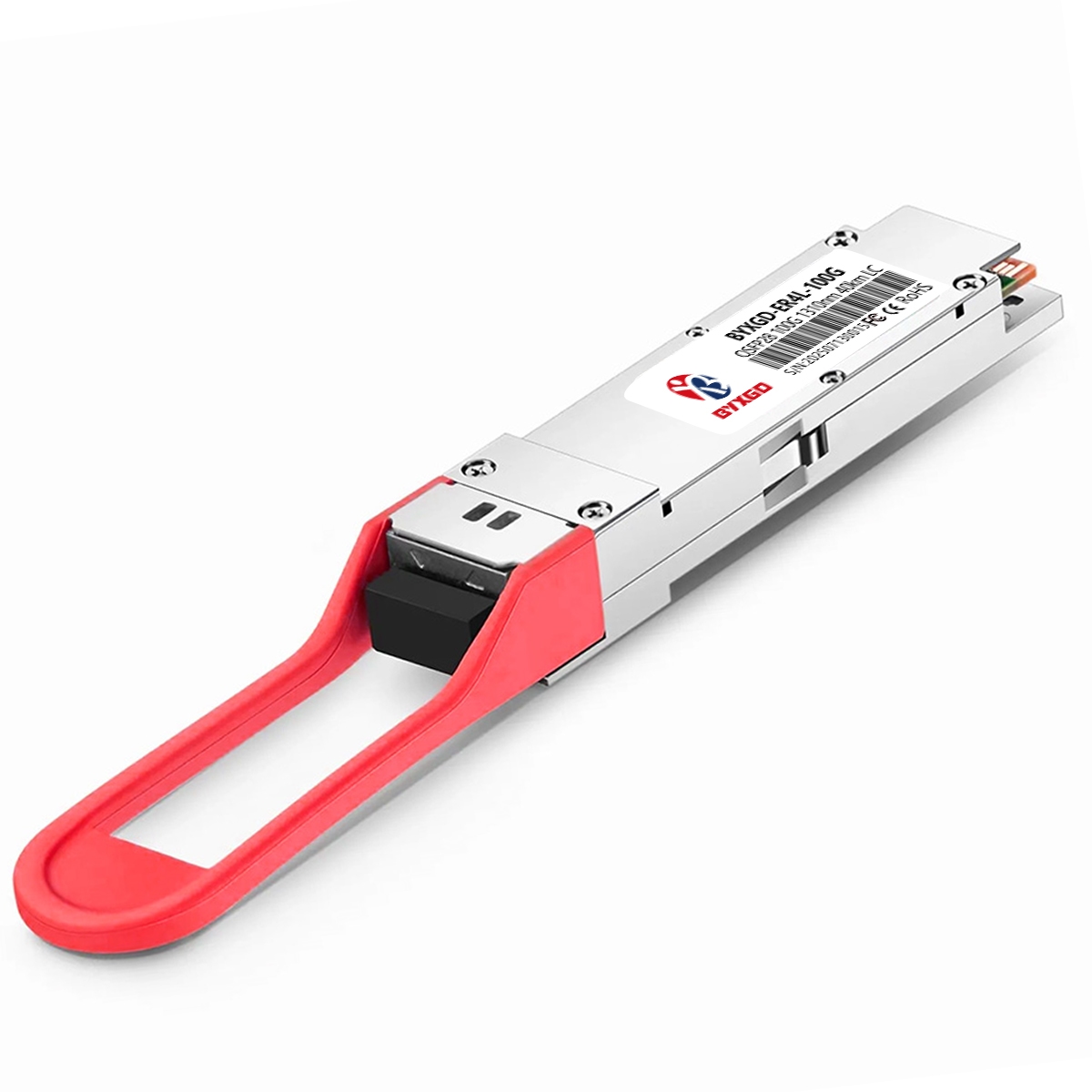

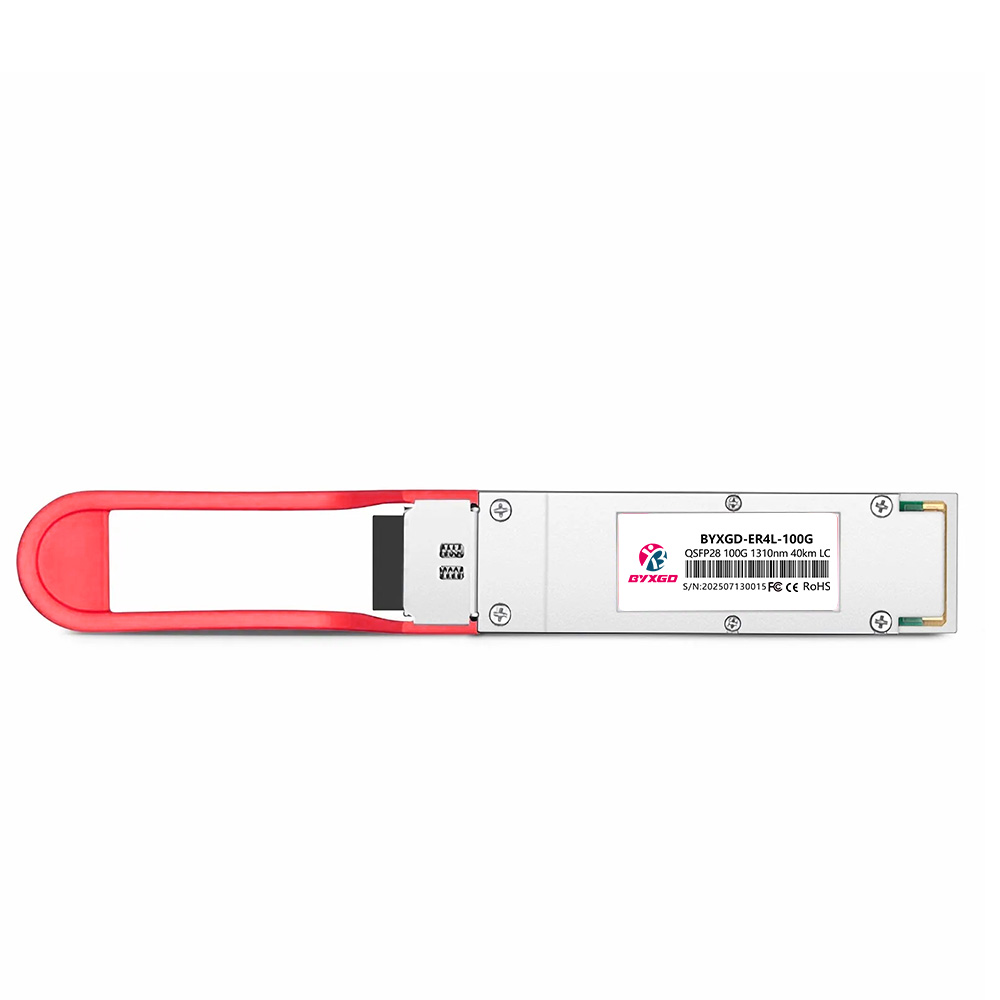

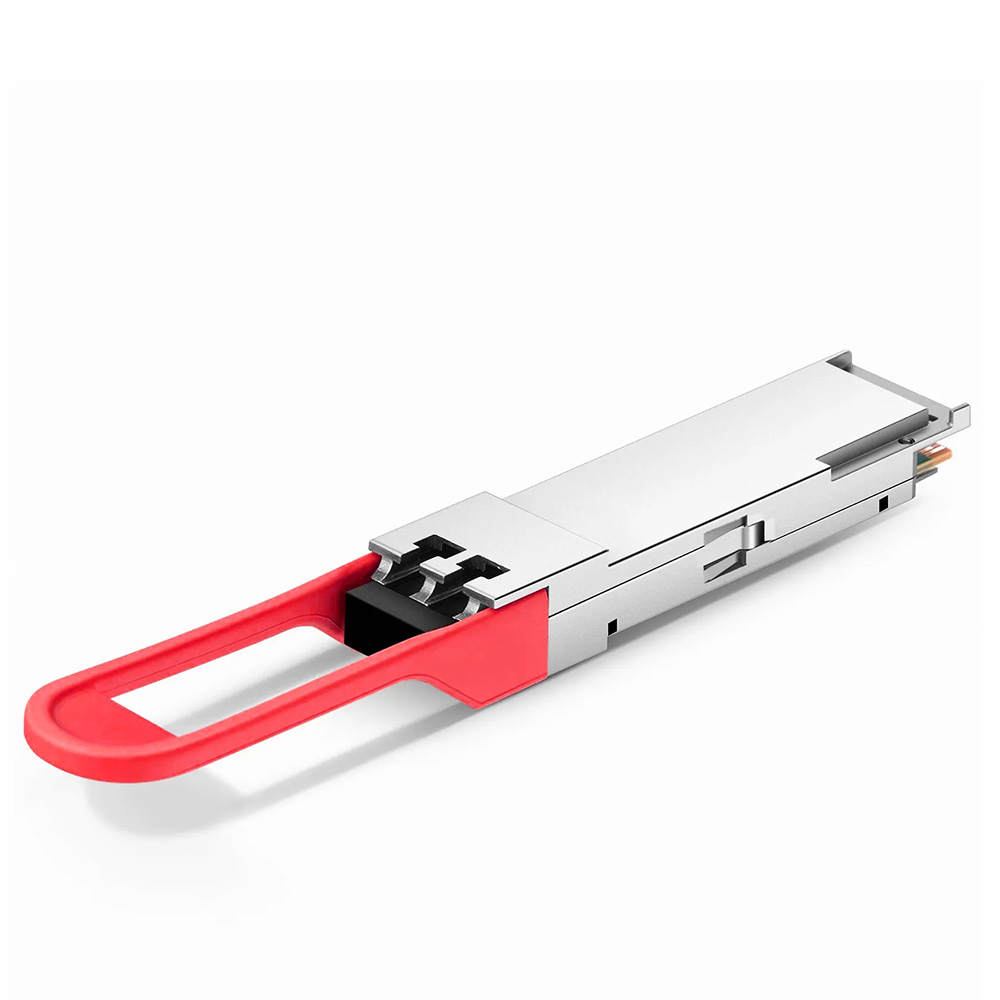

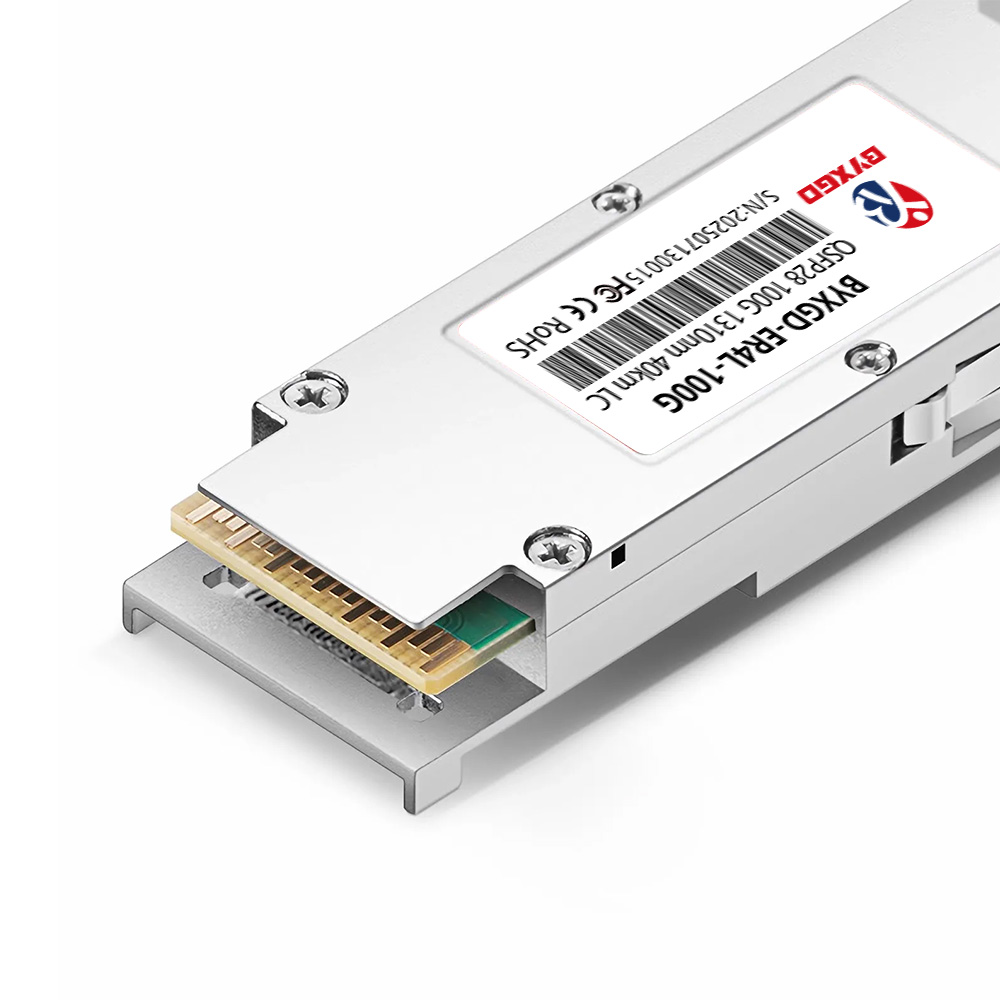

Cisco QSFP-100G-ER4L-S Compatible 100GBASE-ER4L QSFP28 optical transceiver module at 1310nm/40km Duplex LC/UPC SMF supports transmission rates of up to 100Gbps over single-mode fiber up to 40 km at the 1310nm wavelength. The transceiver uses EML transmitters and SOA + PIN receivers, has a maximum power consumption of 4.5 W, and operates reliably in the ambient temperature range of -20°C to 85°C.
This hot-pluggable QSFP28 module is digital diagnostic monitoring (DDM) capable, delivering real-time operational and troubleshooting data to the module when in service. The metal enclosure reduces EMI and improves thermal management, while the BOX packaging design provides both high reliability and heat dissipation to ensure proper cooling and extended operating life. The transceiver complies with IEEE 802.3ba, QSFP28 MSA (SFF-8665, SFF-8679), RoHS, and Class 1 FDA laser safety standards. The transceiver is interoperable with IEEE-compliant 100G Ethernet interfaces, offering reliable network compatibility and interoperability. It is ideal for use in data centers, enterprise core, and campus networks and has been rigorously tested for reliable first-class performance by each respective switch manufacturer.
Brands/models supported include Cisco QSFP-100G-ER4L, Huawei QSFP-100G-ER4-Lite, Brocade 100G-ER4, Dell 407-BBZX, Extreme 100G-ER4LT-QSFP40KM, H3C QSFP-100G-ER4L-WDM1300, Edge-Core ET7402-ER4, Palo Alto Networks PAN-100G-QSFP28-ER4, Avago QSFP-ER4L-100G, Allied Telesis QSFP28-ER4, Check Point CPAC-TR-100ER-SSM160-QSFP28-C, Chelsio SM100G-ER4, D-Link DEM-Q28X40Q-ER4, F5 Networks F5-UPG-QSFP28-ER4, MikroTik LC40D, MRV QSFP28-100GE-ER4, etc.
Specifications
| Brand | BYXGD |
| Form Factor | QSFP28 |
| Max. Data Rate | 103.125 Gbps (4x 25.78 Gbps) |
| Wavelength | 1310 nm (1295.56 nm, 1300.05 nm, 1304.58 nm, 1309.14 nm) |
| Max. Cable Distance | 40 km |

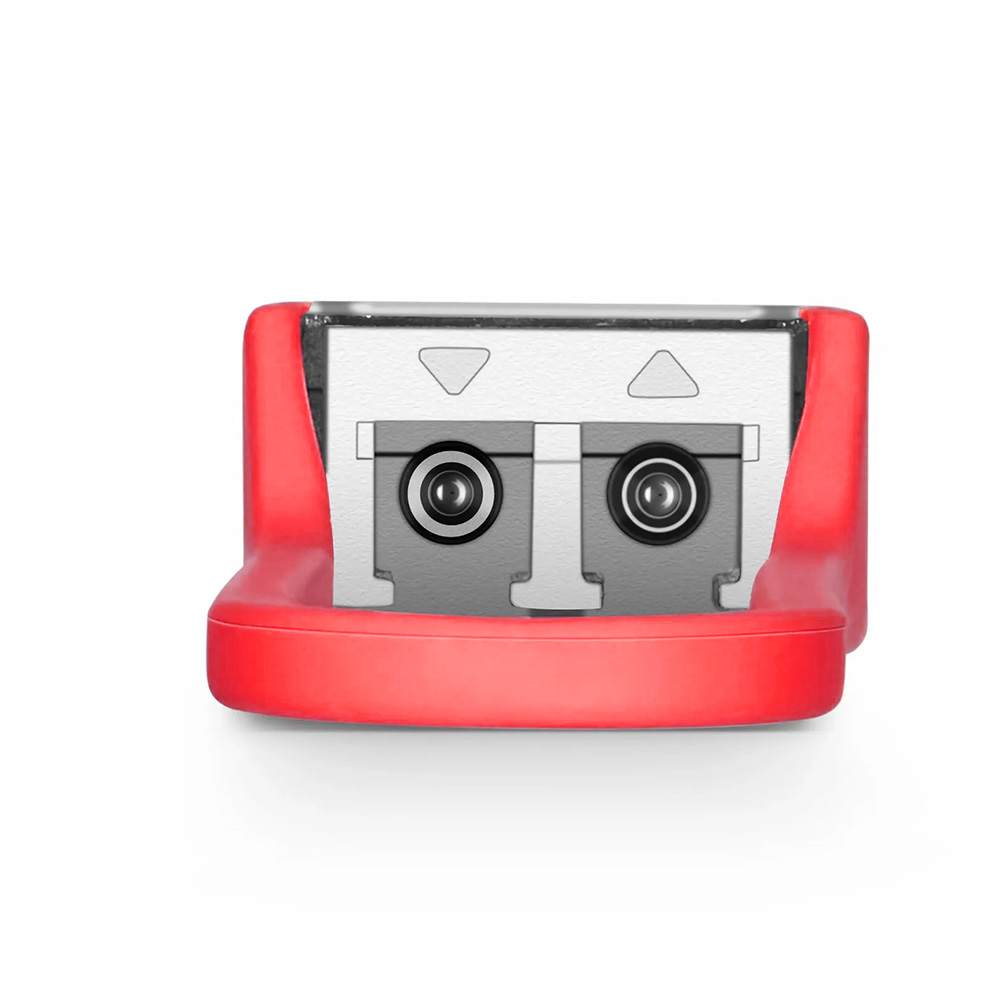

| Connector | Duplex LC/UPC |
| Media | Single-mode Fiber (SMF) |
| Transmitter Type | EML (4 x LAN WDM EML) |
| Receiver Type | APD / SOA+PIN |
| TX Power | -2.5 to 6.5 dBm |
| Receiver Sensitivity | ≤ -20.5 dBm |
| Receiver Overload | > -4.9 dBm |
| Power Budget | 18 dB |
| Max. Power Consumption | ≤ 4.5 W |
| Extinction Ratio | > 4 dB |
| DDM / DOM Support | Yes |
| Commercial Temperature Range | -20 to 85 °C (-4 to 185 °F) |
| Modulation (Electrical) | 4x 25G NRZ |
| Modulation (Optical) | 4x 25G NRZ |
| CDR | TX & RX Built-in CDR |
| Packaging Technology | BOX Packaging |
| BER | 1E-12 |
| MTBF | 16,084,928 Hours |
| Protocols | QSFP28 MSA, SFF-8636, IEEE 802.3bm, CAUI-4, RoHS compliant |
| Warranty | 5 Years |
| Operating Humidity | 5% to 85%, Non-condensing |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Storage Humidity | 5% to 95%, Non-condensing |
| Application | 100GBASE-ER4 Ethernet Links, Telecom Networking, Infiniband QDR and DDR Interconnects |
| Dimensions (LxWxH) | 118.3 x 18.4 x 8.5 mm (4.66 x 0.72 x 0.33 in) |
| Weight | 0.09 kg |
| What’s In The Box | 1x QSFP28 Transceiver |
| Country of Origin | China |
