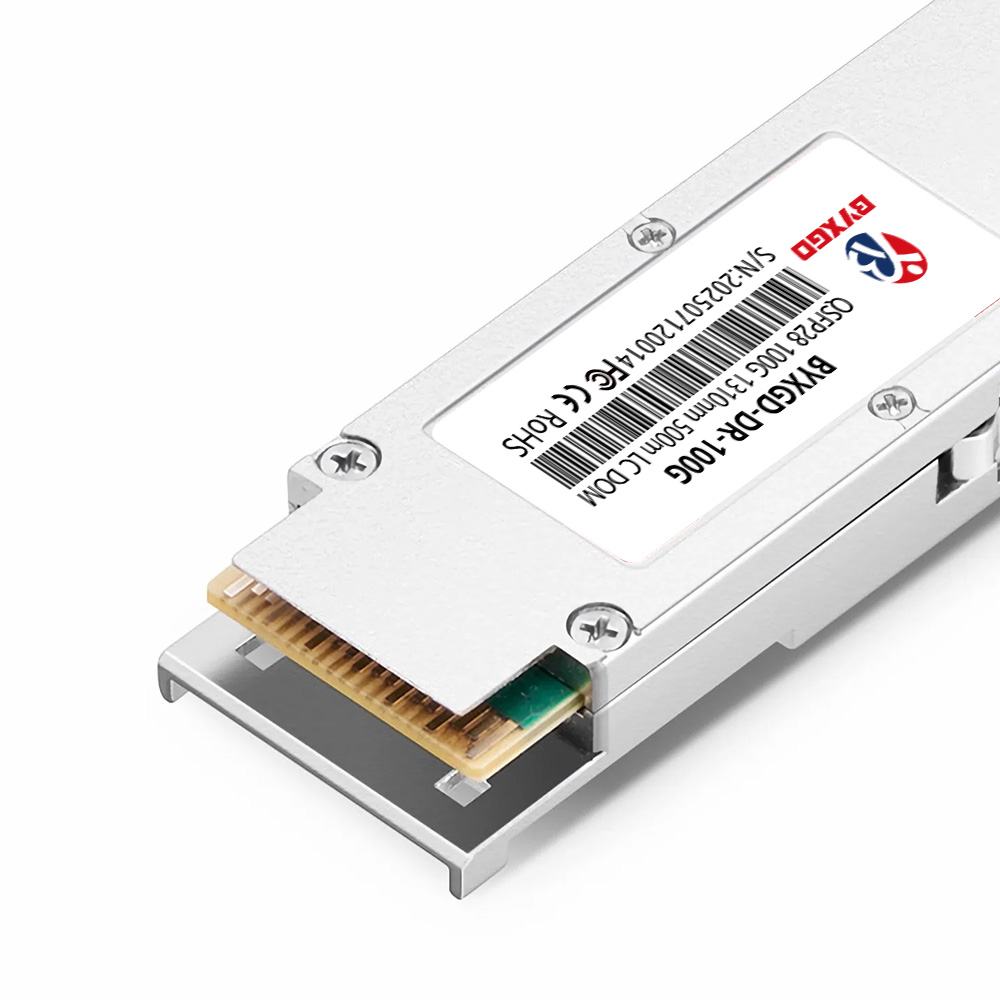

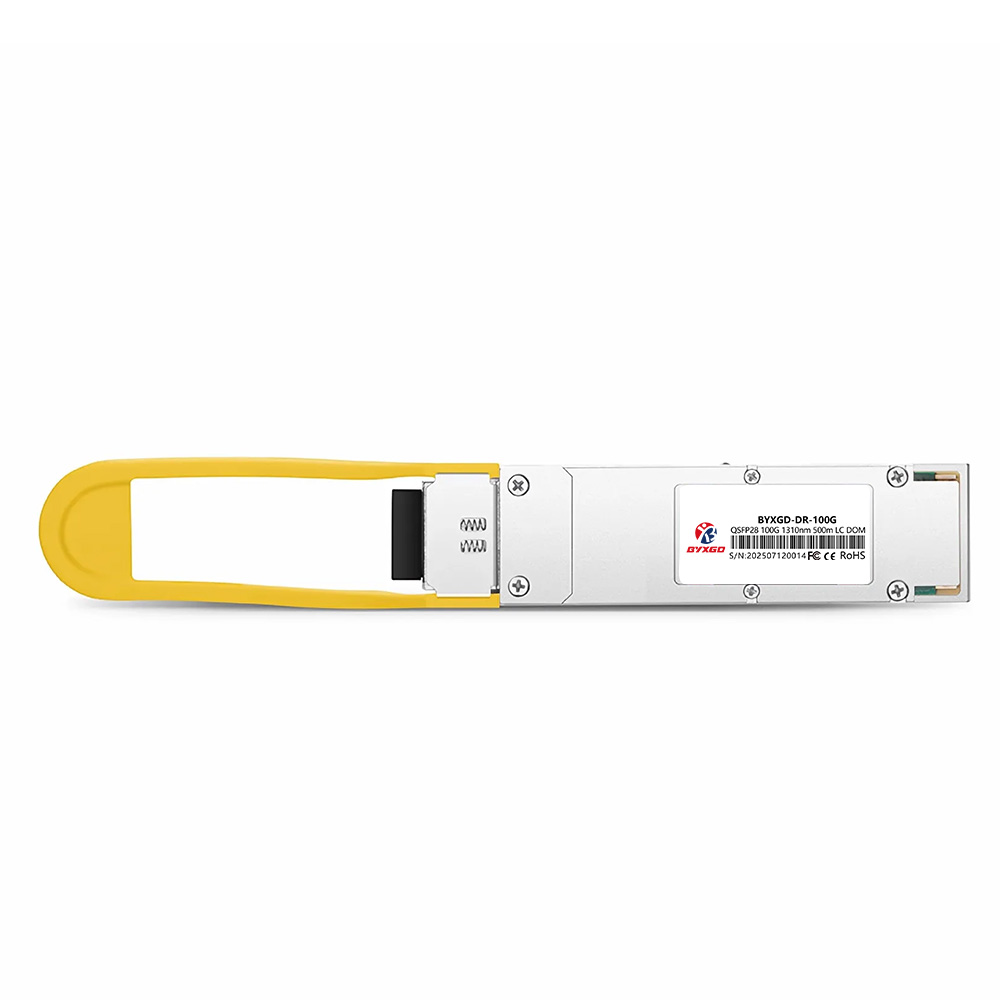

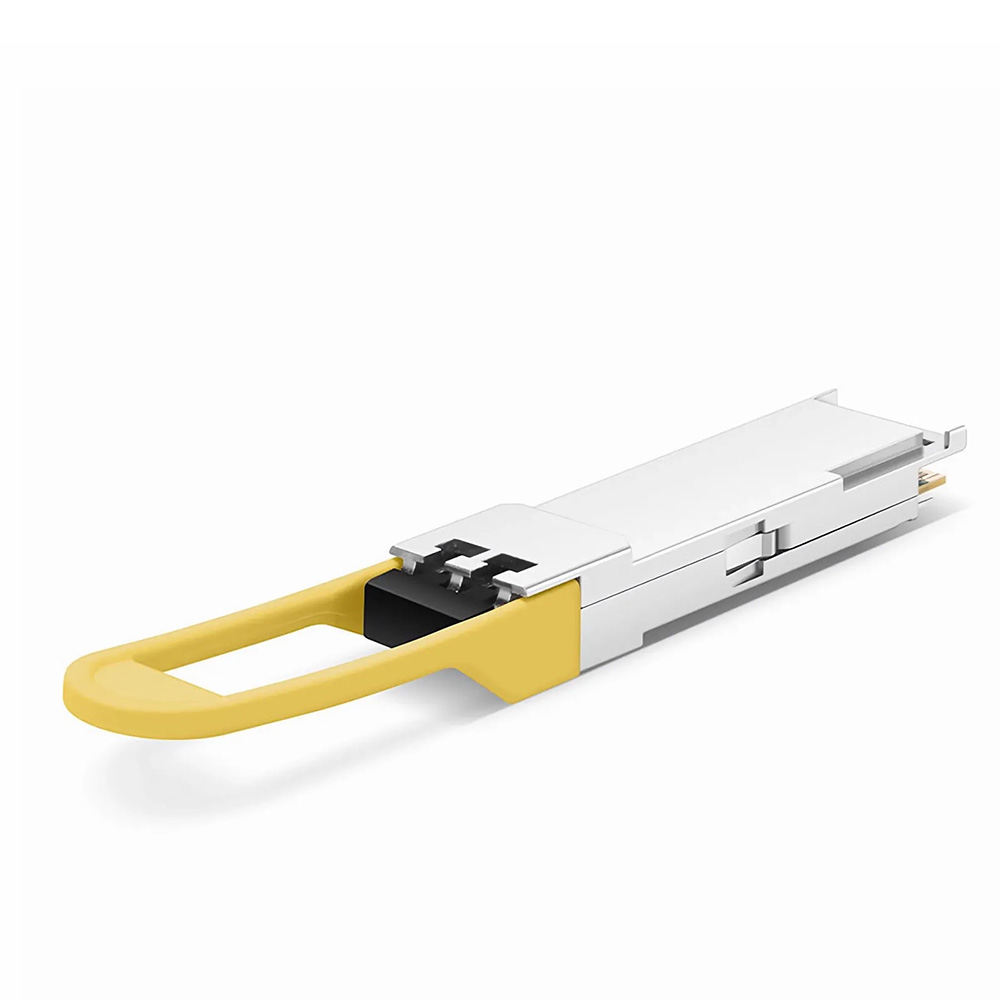

Cisco QSFP-100G-DR-S Compatible 100GBASE-DR QSFP28 Optical Transceiver Module allows for 100Gbps Ethernet over a single 1310nm wavelength for distances up to 500m on OS2 single-mode fiber (SMF) via duplex LC connectors. This optical transceiver allows transmission of 4×25G NRZ electrical signal streams and converts them into a 100G PAM4 optical signal at 53.125 Gbaud. The QSFP-100G-DR-S supports 802.3cd, QSFP28 MSA, and QSFP28 100G Lambda MSA compliance.
This transceiver includes PAM4 modulation with an integrated DSP gearbox and supports Forward Error Correction (FEC). The device has a maximum power consumption of 4.5W and includes digital diagnostics monitoring (DDM) to monitor real-time parameters via an I2C interface. The QSFP-100G-DR-S can be used in 400G breakout applications to support 400G-DR4 and QDD-DR4 module interoperability.
The transceiver is hot-pluggable, Class 1 FDA laser safe, and RoHS compliant, suitable for use in data centers, enterprise core, and high-performance computing environments. This transceiver is capable of reliable performance up to a maximum distance of 500m for OS2 single-mode fiber. It provides low latency and efficient fiber connectivity with a 3 dB minimum optical budget. The module operates within a range of 0–70 degrees Celsius and is CE certified. Supported brands/models include Cisco QSFP-100G-DR-S, Mellanox MMS1V70-CM, Intel SPTSLP2SLCDF, HPE Aruba S3N88A, NVIDIA/Mellanox MMS1V70-CM, and Fortinet FN-TRAN-QSFP28-DR.
Specifications
| Brand | BYXGD |
| Form Factor | QSFP28 |
| Data Rate | 103.125 Gbps (4x 25.78125 Gbps) |
| Wavelength | 1310 nm |
| Distance | 500 m |
| Media Type | OS2 Single Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | EML |
| Receiver Type | PIN Photodiode Receiver |
| Transmitter Output Power | -2.9 dBm (min) to +4.0 dBm (max) |
| Receiver Sensitivity | < -5.9 dBm |
| Receiver Overload | > +4.0 dBm |
| Extinction Ratio | > 3.5 dB |
| Modulation Format | PAM4 |
| Electrical Interface | 4x 25 Gbps NRZ lanes (OIF CEI-28G-VSR compliant) |
| Optical Data Rate (Baud Rate) | 53.125 GBd |
| Bit Error Ratio (BER) | 1E-12 (post FEC) |
| Forward Error Correction (FEC) | KP4 supported |
| DDM/DOM | Supported |
| Power Consumption | ≤ 4.5 W |
| Operating Temperature | 0 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Operating Humidity | 5% to 85% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Compliance Standards | QSFP28 MSA, IEEE 802.3cd (100GBASE-DR), 100G Lambda MSA, RoHS, CE, REACH |
| Dimensions (L x W x H) | 118.3 x 18.4 x 8.5 mm |
| Weight | 0.07 kg |
| Safety Class | Class 1 FDA Laser Safe |
| Applications | 100G Ethernet transmission, High-Performance Computing (HPC), Data Centers, ISP and Mobile Networks |
| Packaging | Box packaging |
