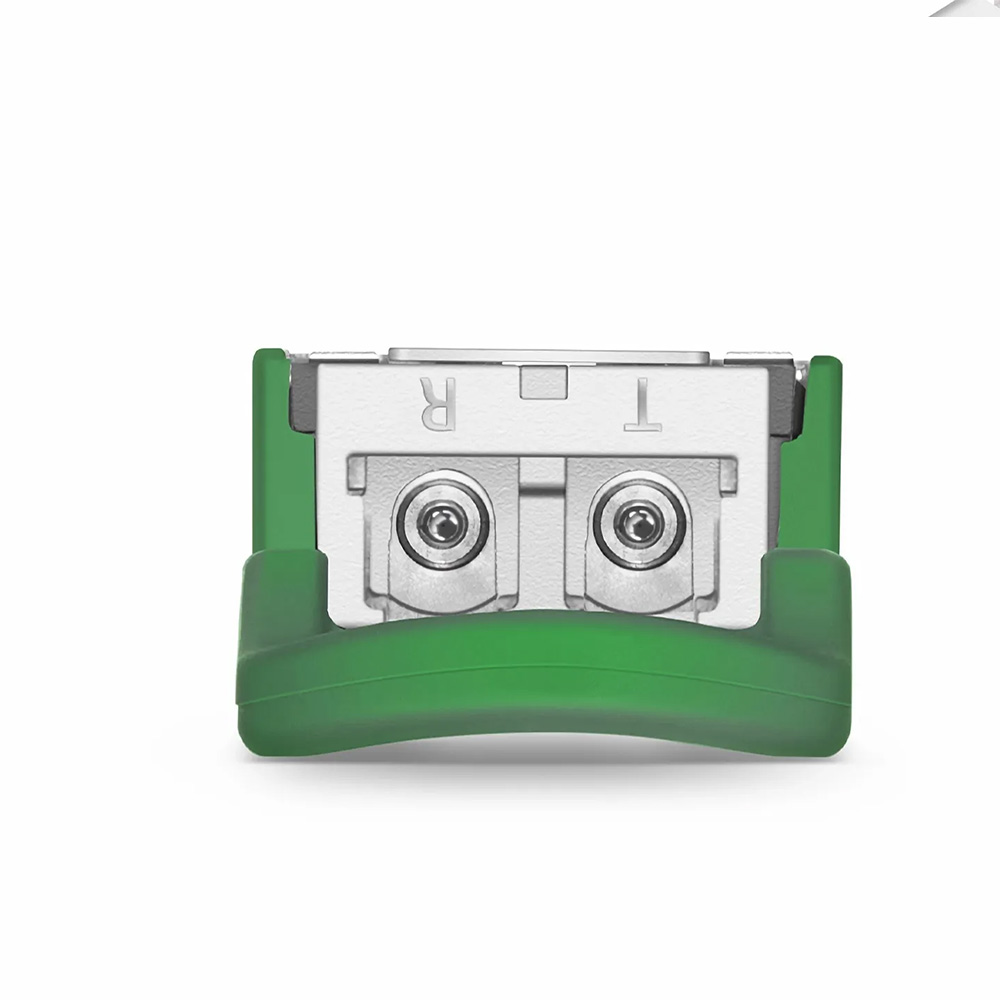

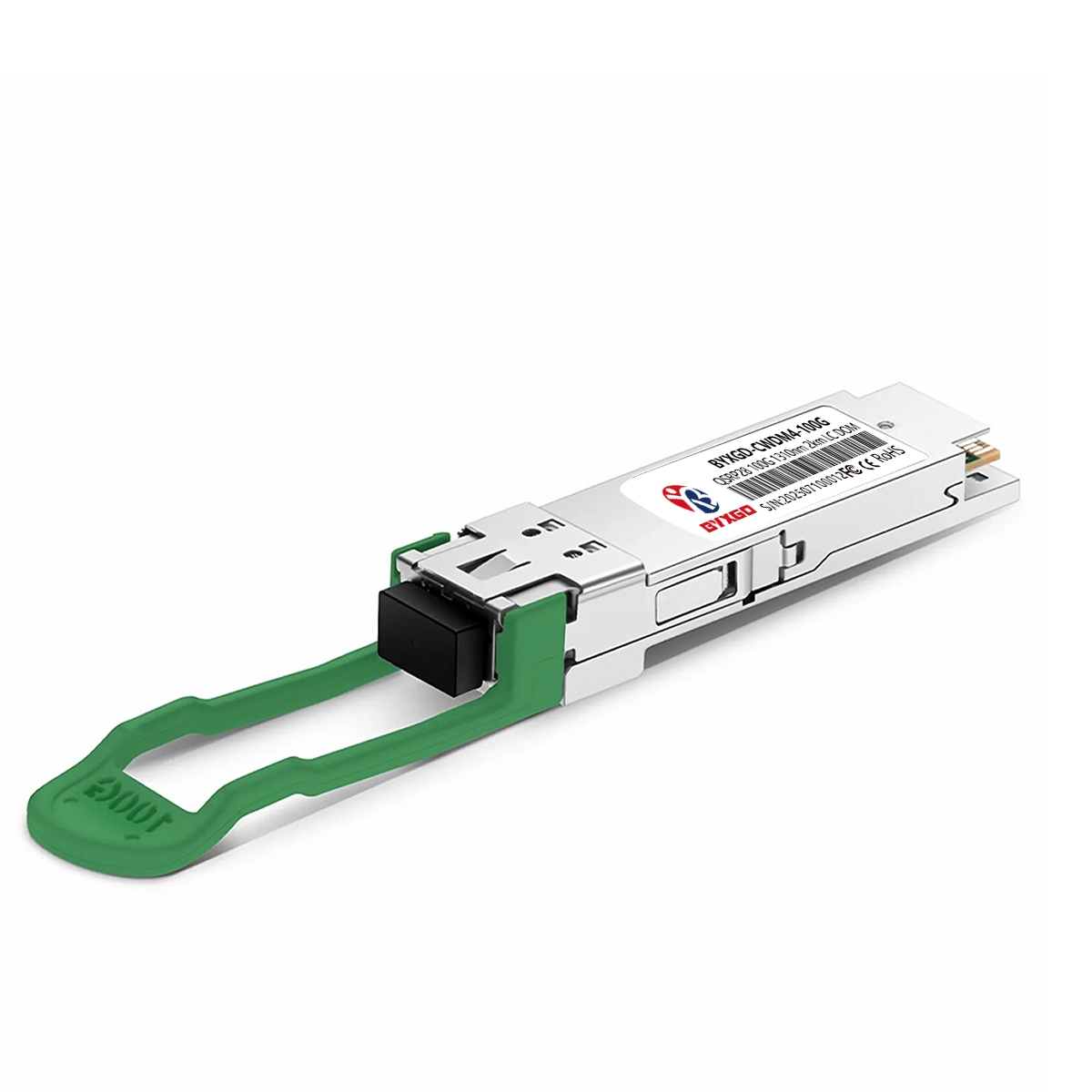

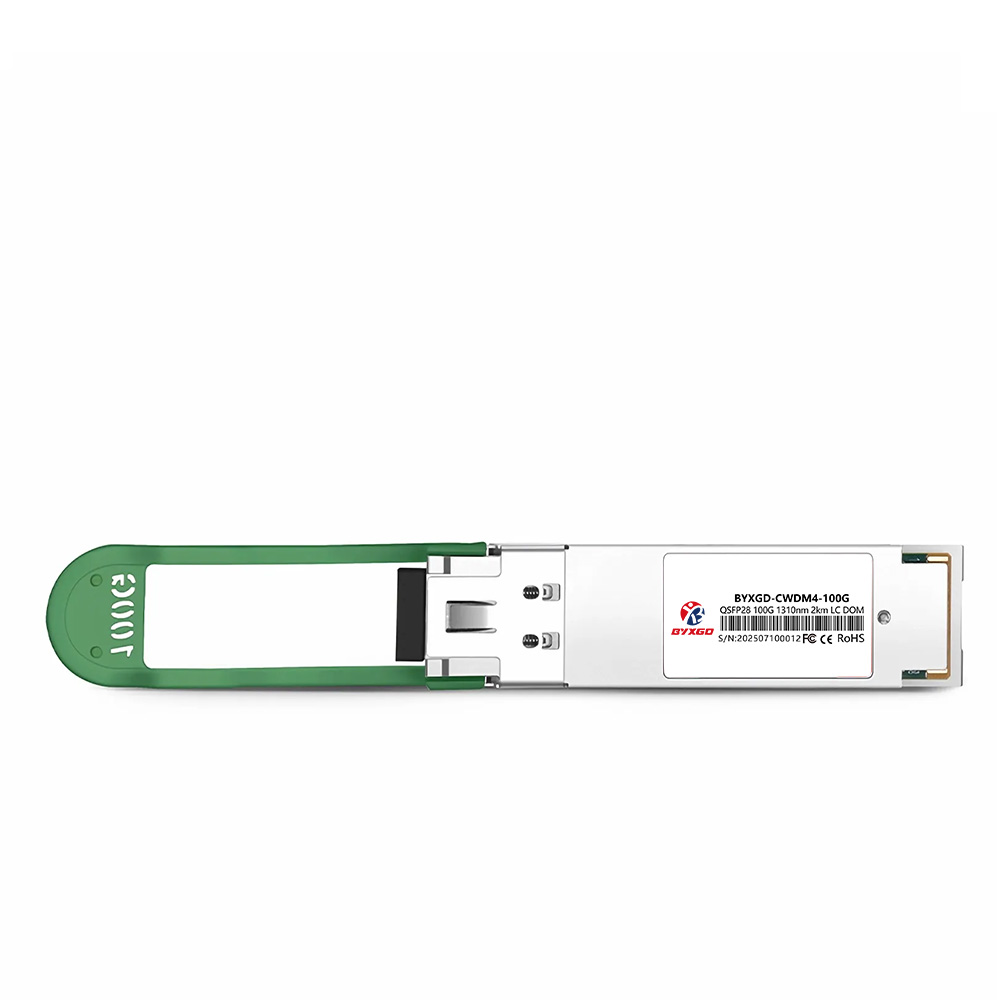

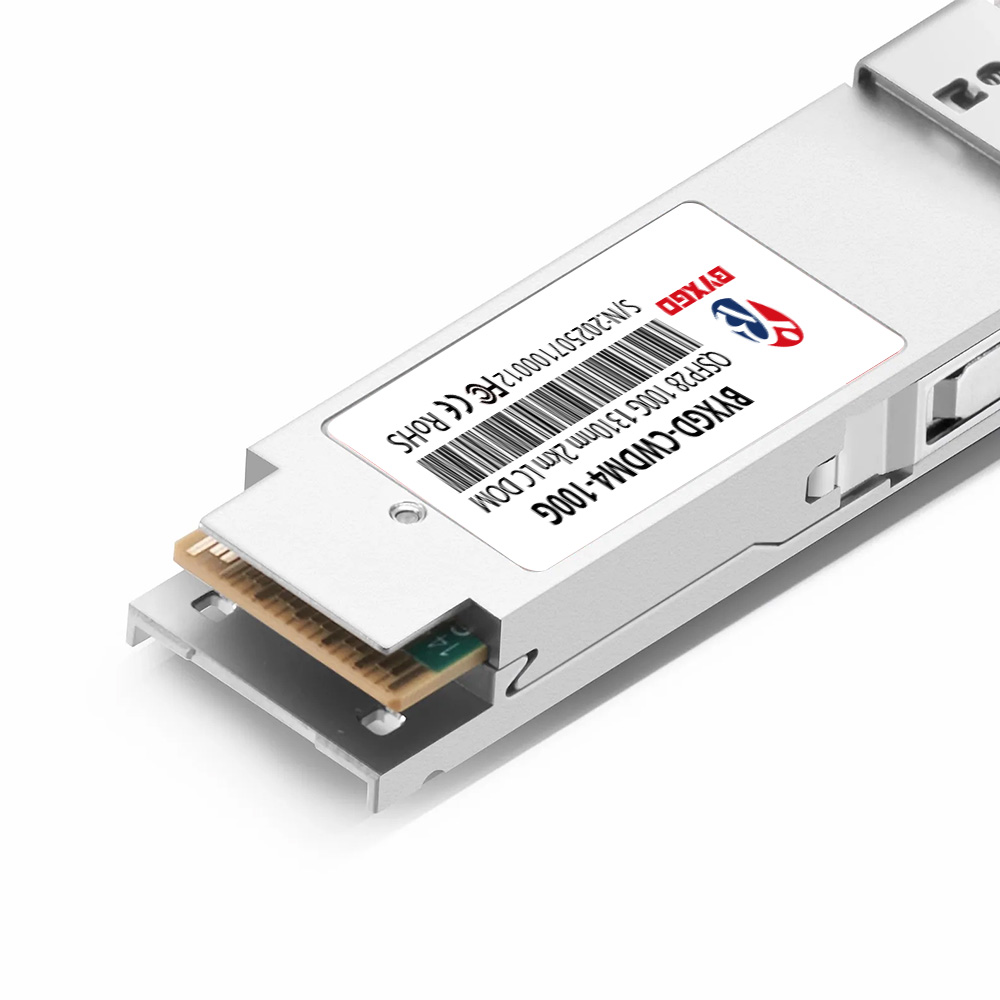

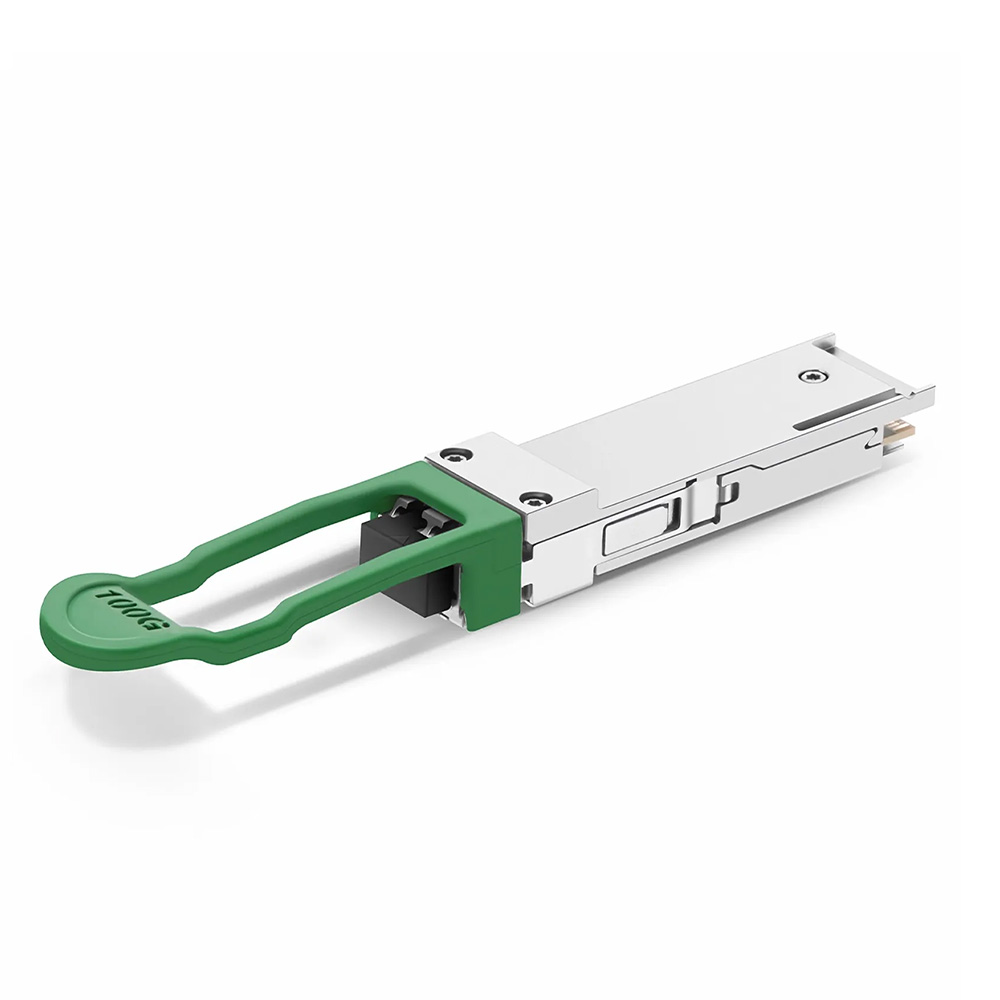

Cisco QSFP-100G-CWDM4-S Compatible 100GBASE-CWDM4 QSFP28 1310nm 2km DOM Duplex LC/UPC SMF Optical Transceiver Module

Cisco QSFP-100G-CWDM4-S Compatible 100GBASE-CWDM4 QSFP28 optical transceiver provides 100 Gbps transfer rates on single-mode fiber (SMF) data links at distances up to 2 km via duplex LC connectors. The module will operate on four CWDM wavelengths: 1271, 1291, 1311, and 1331 nm and has a digital diagnostics monitoring interface. The module is fully compliant with IEEE 802.3ba, IEEE 802.3bm, CWDM4 MSA, SFF‑8665, SFF‑8636, and ITU-T G.694.2. The optical interface uses CWDM DFB lasers and PIN photodiodes for reliable, error-free performance and supports an absolute maximum power consumption of 3.5 W. The hot-pluggable QSFP28 packaging option makes installation in supported network equipment error-free and does not require a service interruption. The module supports digital optical monitoring (DOM) with real-time readouts of temperature, voltage, laser bias current, and optical power to support network reliability, diagnostics, and maintenance.

This transceiver supports a high-speed electrical interface and interoperability with 100G network platforms compliant with standards. Regulatory and safety features include FDA Class 1 laser safety and RoHS compliance. This module is ideal for use in data centers, campus networks, and enterprise core layers, offering optical networking capabilities for high bandwidth and low latency.

Supported Brands and Models: Cisco QSFP-100G-CWDM4-S | Huawei 02311MNN | Mellanox MMA1L30-CM | Brocade 100G-QSFP28-CWDM4-2KM | Extreme 100G-QSFP28-LR4L-2KM | H3C QSFP-100G-LR4L-WDM1300 | MikroTik XQ+31LC02D | Intel SPTSBP3CLCCO, etc.
