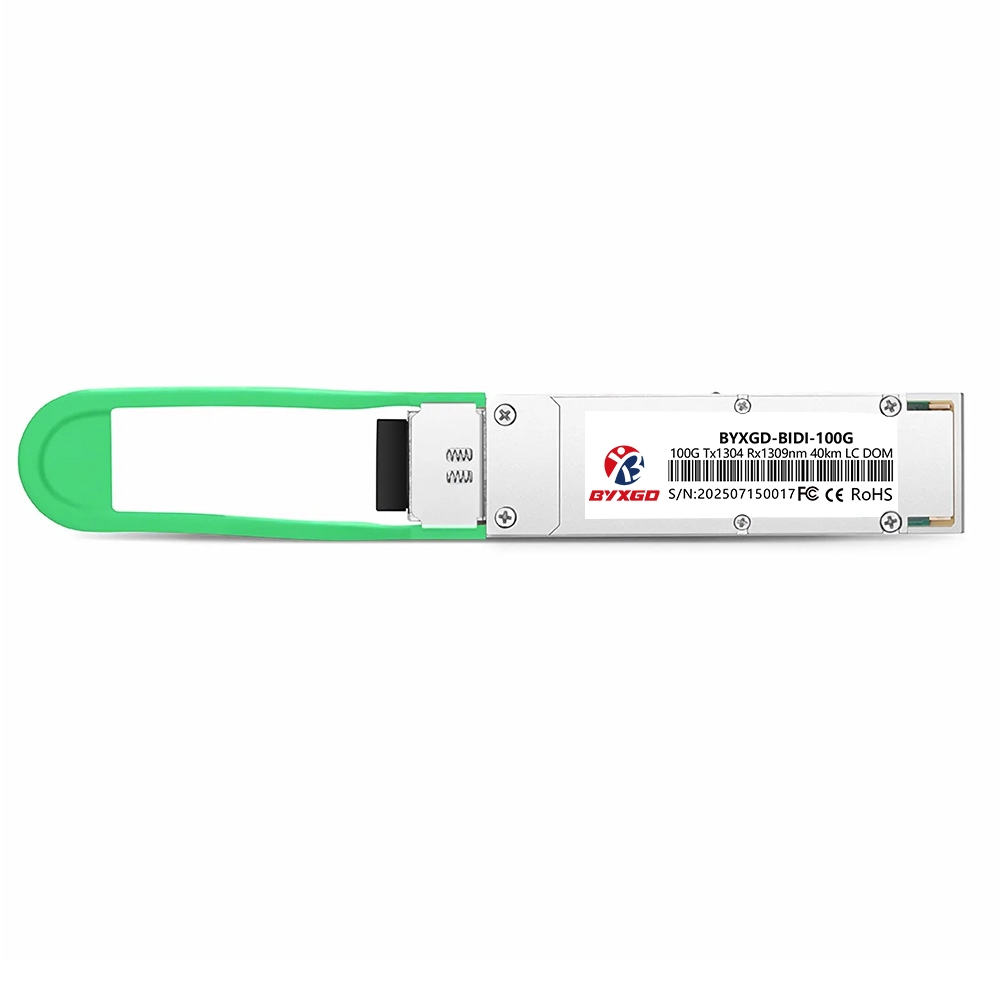

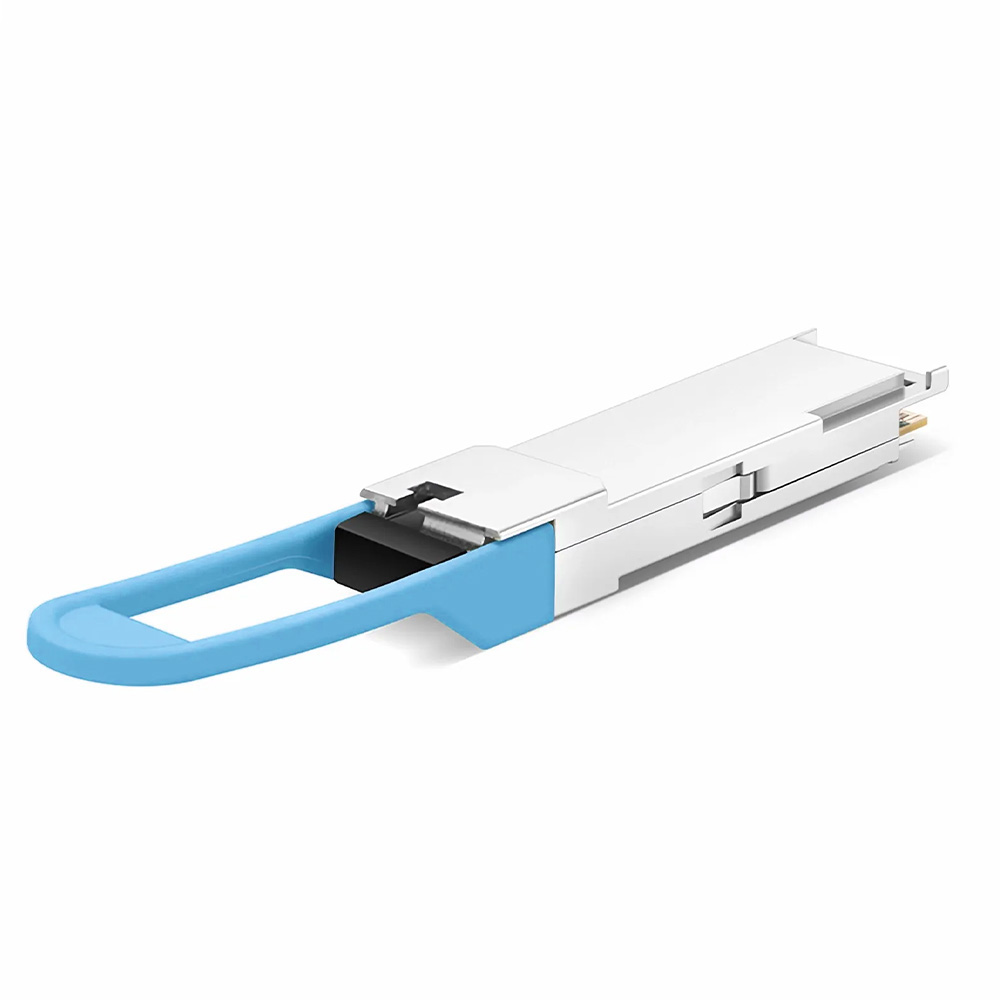

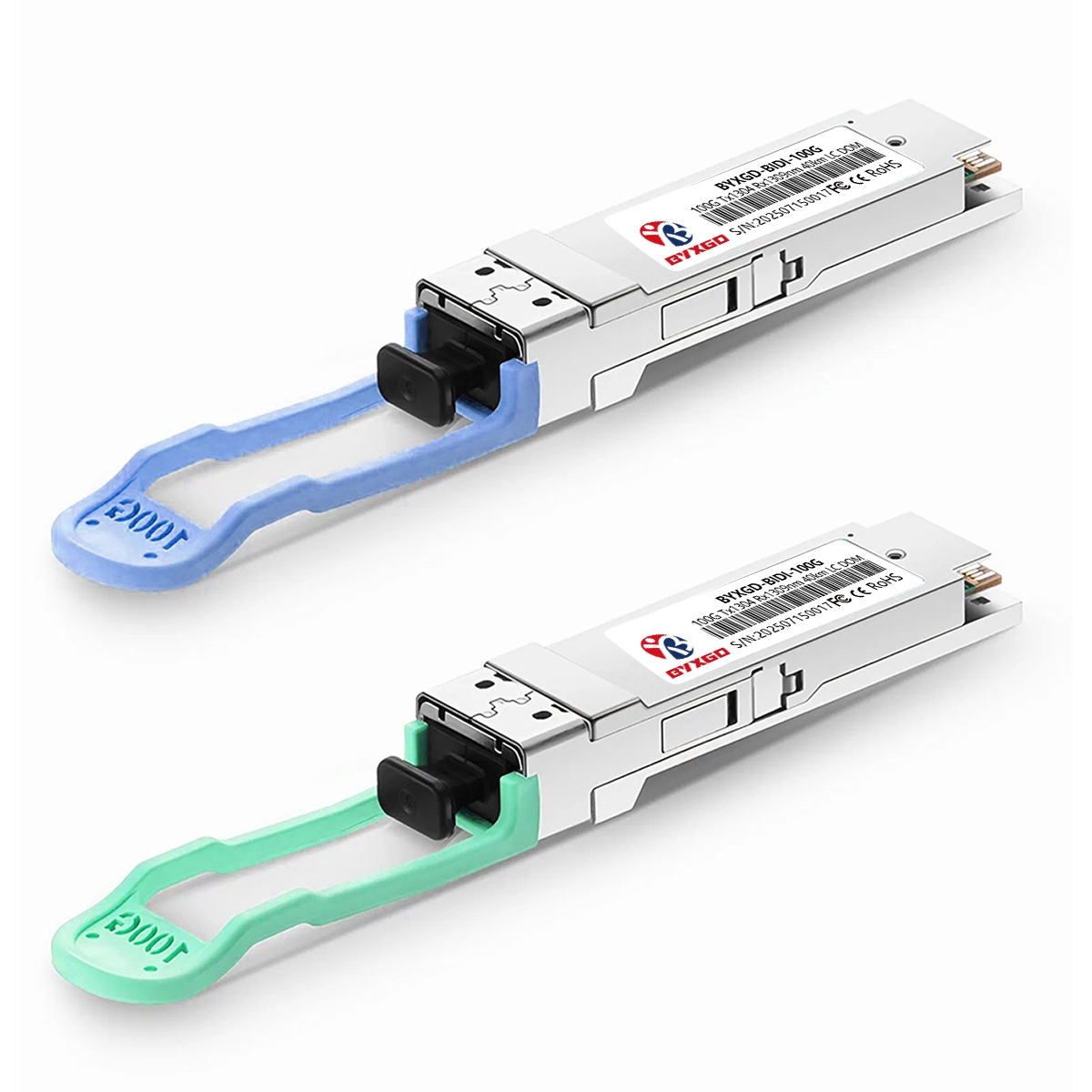

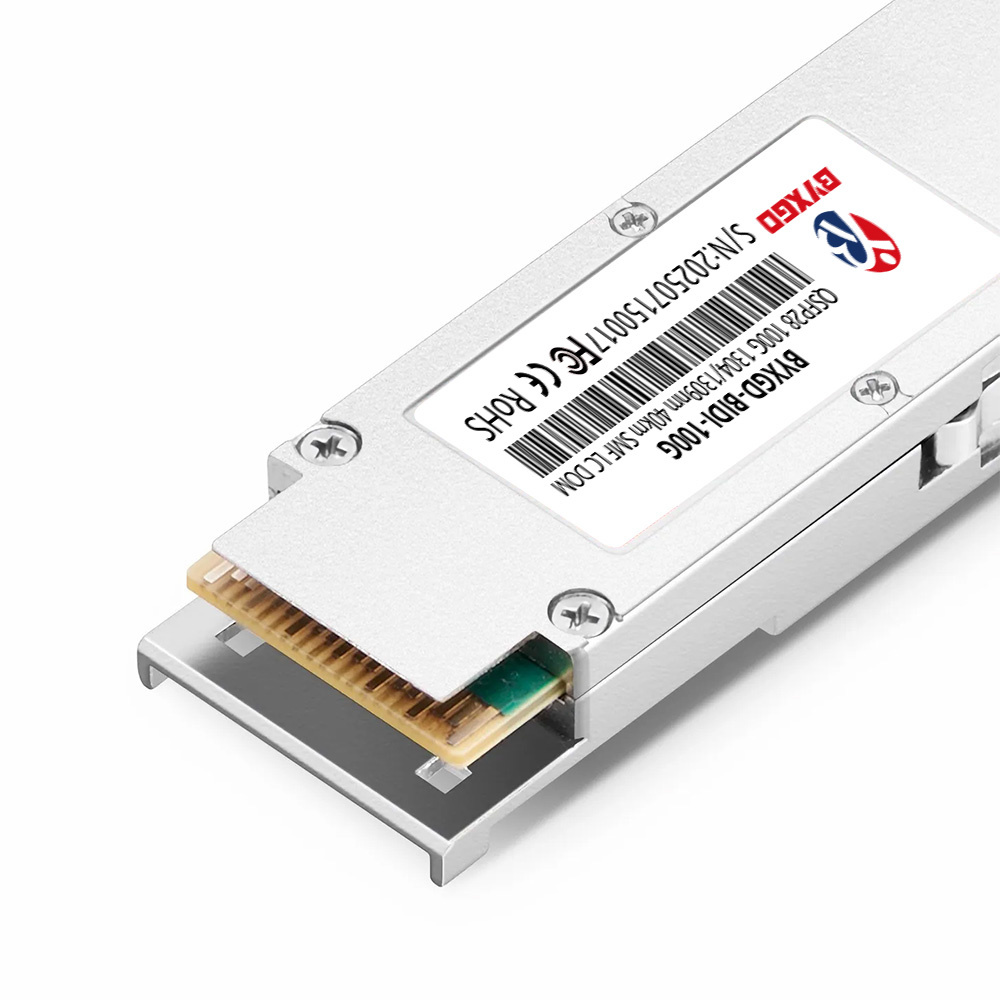

Cisco Compatible 100GBASE-BX40-U QSFP28 BiDi 1304.58nm-TX/1309.14nm-RX 40km module provides bidirectional 100G on one fiber strand of single-mode fiber (SMF), which effectively doubles the network bandwidth capacity. The module is designed to support link lengths of 40km on G.652 SMF with a simplex LC connector. This transceiver contains an EML laser transmitter with a power output range of 1.7 to 7.1 dBm and an APD receiver with a sensitivity greater than -13.8 dBm. It operates at data rates of 106.25Gb/s using PAM4 modulation with less than 4.5W of power consumption. This product meets the QSFP28 MSA and IEEE 802.3cu specification.
This device has Digital Diagnostic Monitoring (DDM) capabilities with a two-wire serial interface to monitor temperature, supply voltage, laser bias current, and transmit and receive optical power in real time. This device is hot-pluggable and meets Class 1 FDA requirements for laser safety. This module is designed for high-speed data transmission and has applications in data centers, metro networks, and enterprise core applications with densely cost-efficient use of fiber and reliable performance. It will accommodate broad interoperability for over 100 OEM brands including Cisco, Brocade, Arista, and Juniper.
Specifications
| Brand | BYXGD |
| Form Factor | QSFP28 |
| Max Data Rate | 106.25Gbps |
| Nominal Data Rate | 100Gbps |
| Wavelength | 1304.58nm TX / 1309.14nm RX |
| Distance | 40km |
| Cable Type | OS2 Single-Mode Fiber (SMF) |

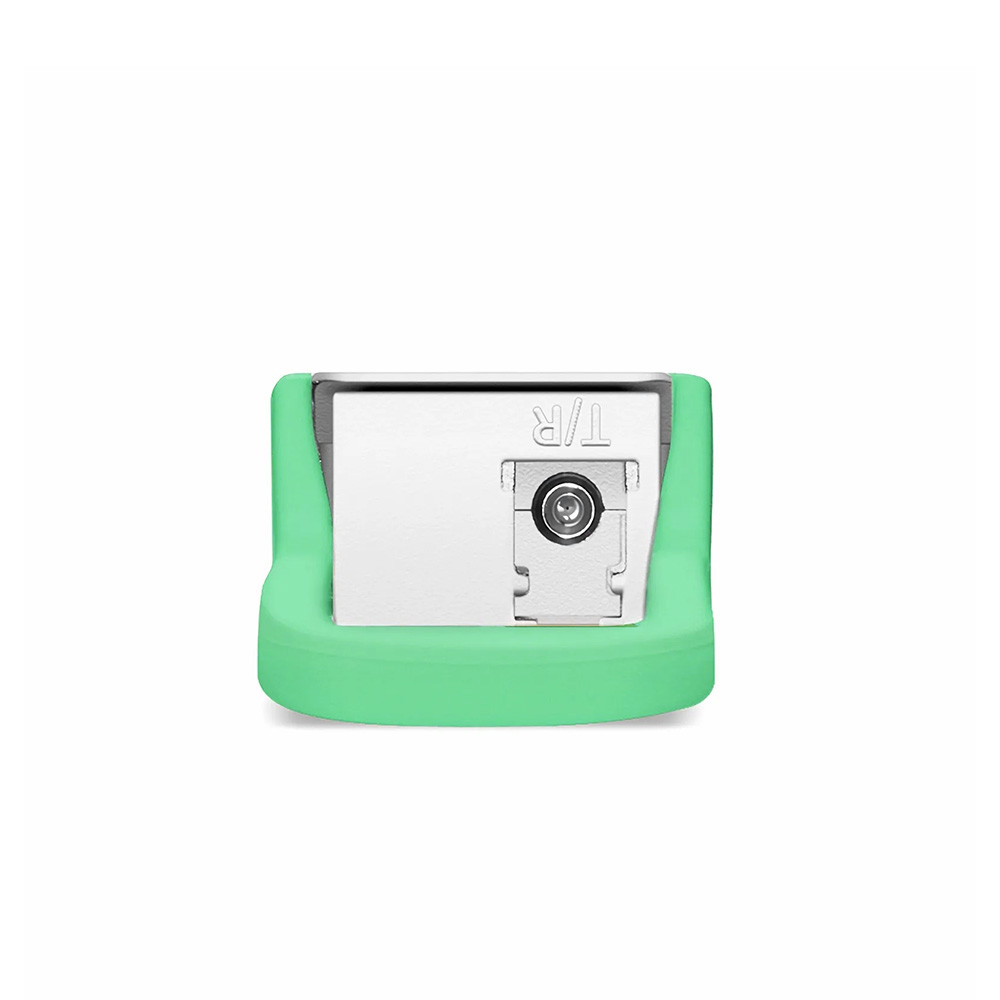

| Connector | Simplex LC |
| Transmitter Type | MZM EML |
| Receiver Type | APD |
| Transmitter Output Power | 1.7 to 7.1 dBm |
| Minimum Receiver Sensitivity | > -16 dBm |
| Receiver Sensitivity | < -13.8 dBm |
| Receiver Overload Threshold | -3 dBm |
| Power Budget | Minimum 17.7 dB |
| Power Consumption | ≤ 4.5W |
| Extinction Ratio | > 5.0 dB |
| Modulation Format | NRZ |
| Forward Error Correction | KP4 |
| DDM | Supported |
| Protocol Compliance | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA, SFF-8636 |
| BER | 1E-12 |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Warranty | 5 Years |
