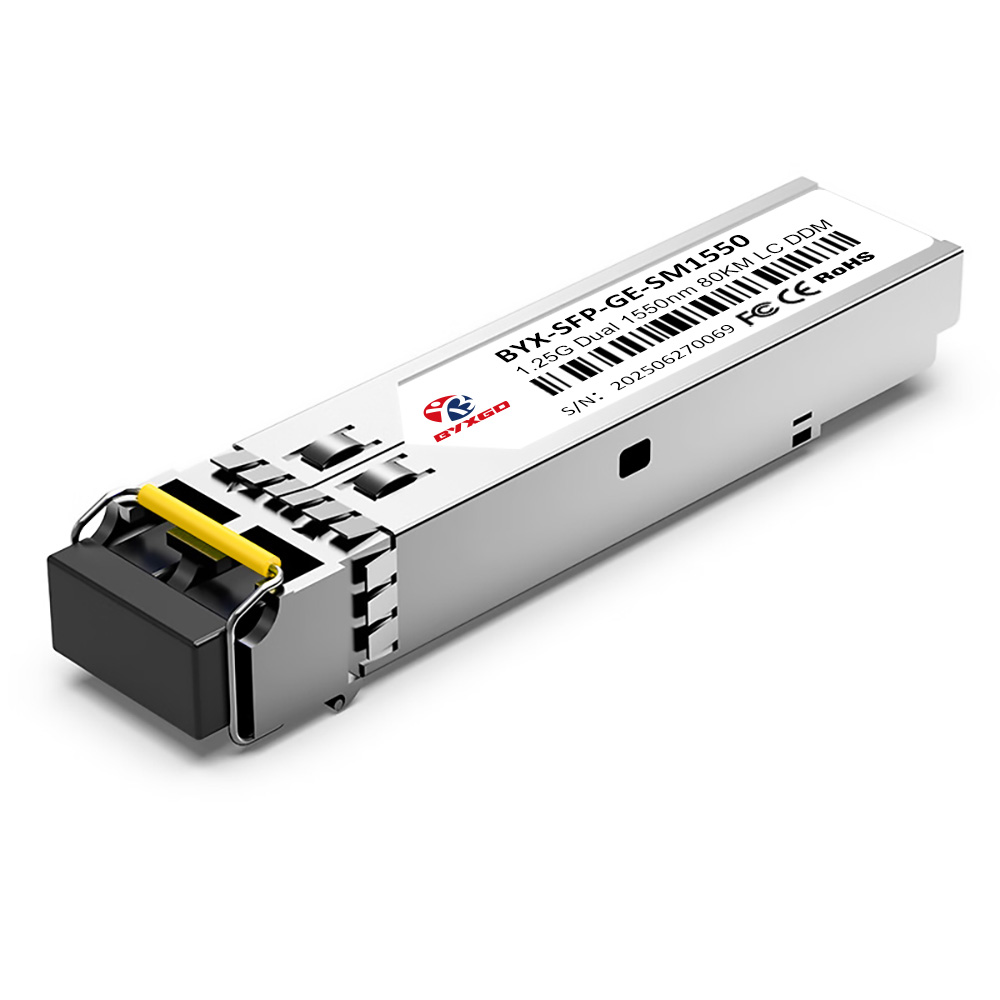

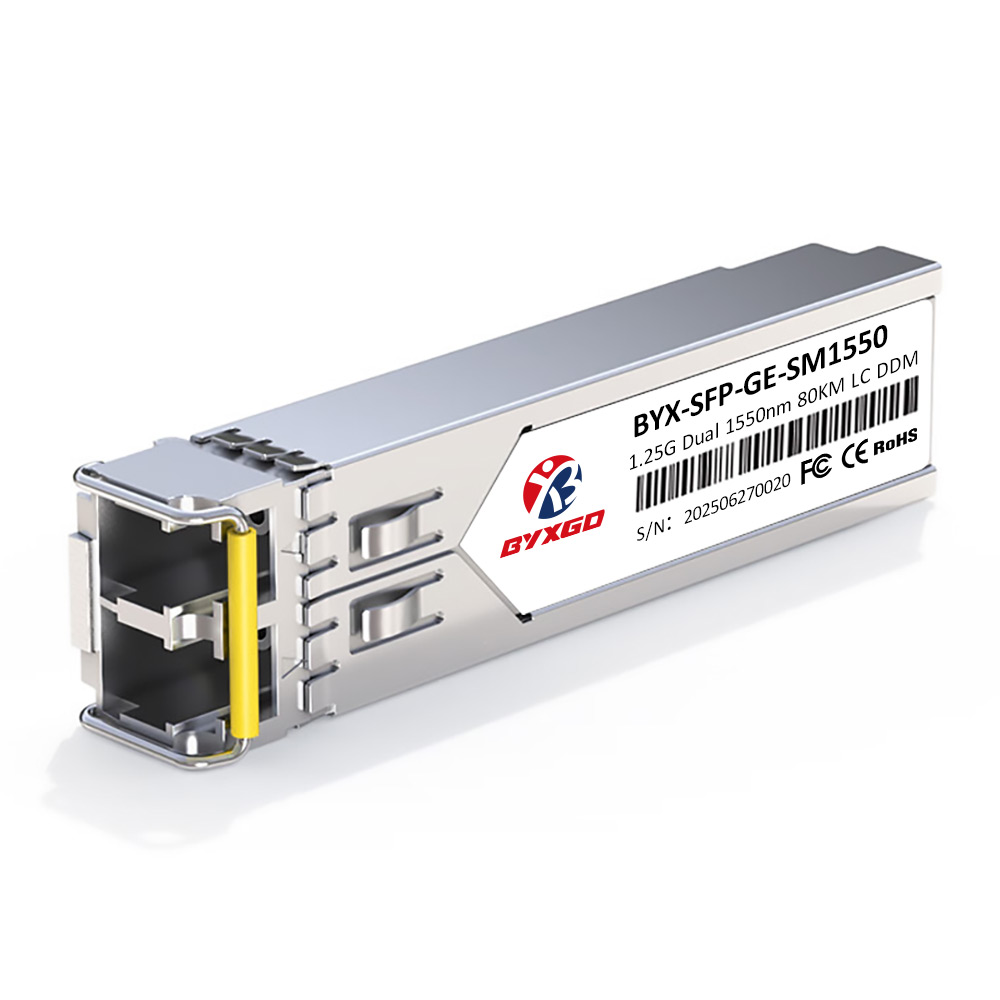

Cisco Compatible 1000BASE-ZX SFP transceiver module has a data transfer rate of 1.25 Gbps and a transmission distance of 80 km using single-mode fiber (SMF). It transmits at a wavelength of 1550 nm over an LC duplex connector to ensure reliable transmission over long distances with stable optical performance for high-speed network connections.
This transceiver module guarantees interoperability with IEEE 802.3z Gigabit Ethernet standards and low power consumption. This transceiver module also supports Digital Diagnostic Monitoring (DDM), which reports optical power levels and transceiver status.
This transceiver has also been designed to offer deployment flexibility and is very well suited for Enterprise LAN & SAN Networks, Data Center LAN & SAN, ISP backbones, and high-performance NIC interfaces.
This module is also compatible with the following manufacturers and models: Juniper Networks SRX-SFP-1GE-LH, Brocade E1MG-LHA, HPE ProCurve J4860A, HPE H3C JD063B, Dell Networking 430-4586, Extreme Networks MGBIC-08, HW SFP-1.25G-ZX70, IBM BNT BN-CKM-S-ZX, D-Link DEM-315GT, Avaya 700260185, Alcatel-Lucent iSFP-GIG-LH70, Allied Telesis AT-SPZX80, SMC Networks SMCBGZLCX1, TRENDnet TEG-MGBS80.
Specifications
| Vendor Name | BYXGD |
| Form Factor | SFP |
| Max. Data Rate | 1.25 Gbps |
| Wavelength | 1550 nm |
| Max. Cable Distance | 80 km |

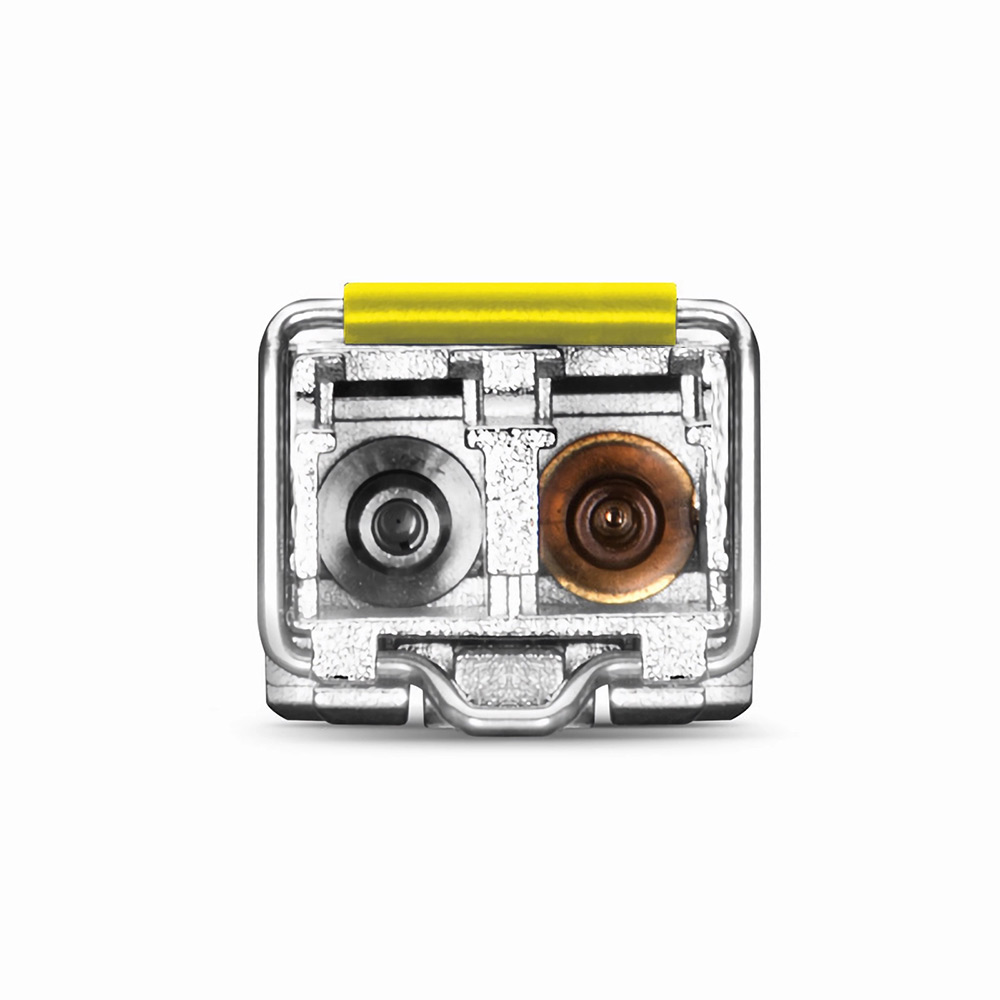

| Connector Type | Duplex LC/UPC |
| Optical Components | DFB Laser 1550 nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| DOM/DDM Support | Yes |
| TX Power | 0 to +5 dBm |
| Receiver Sensitivity | < -24 dBm |
| Receiver Overload | -3 dBm |
| Extinction Ratio | > 10 dB |
| Power Budget | Up to 24 dB |
| Typical Power Consumption | ≤ 1 W |
| Supply Voltage | 3.3 V |
| Commercial Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Protocols | Compliant with SFF-8472 MSA, IEEE 802.3z, and IEEE 802.3ah-2004 |
| Hot Pluggable | Yes |
| Diagnostics Interface | SFF-8472 Digital Diagnostic Monitoring Interface |
| Compliance | RoHS Compliant, Class 1 Laser Safety (IEC 60825) |
| Application | Gigabit Ethernet, Fiber Channel, Enterprise LAN & SAN Networks, Data Center Interconnects, Long-Haul Optical Links |
| Compatible Fiber Mode | 9/125 μm Single-Mode Fiber |
| Transmission Type | Full Duplex |
