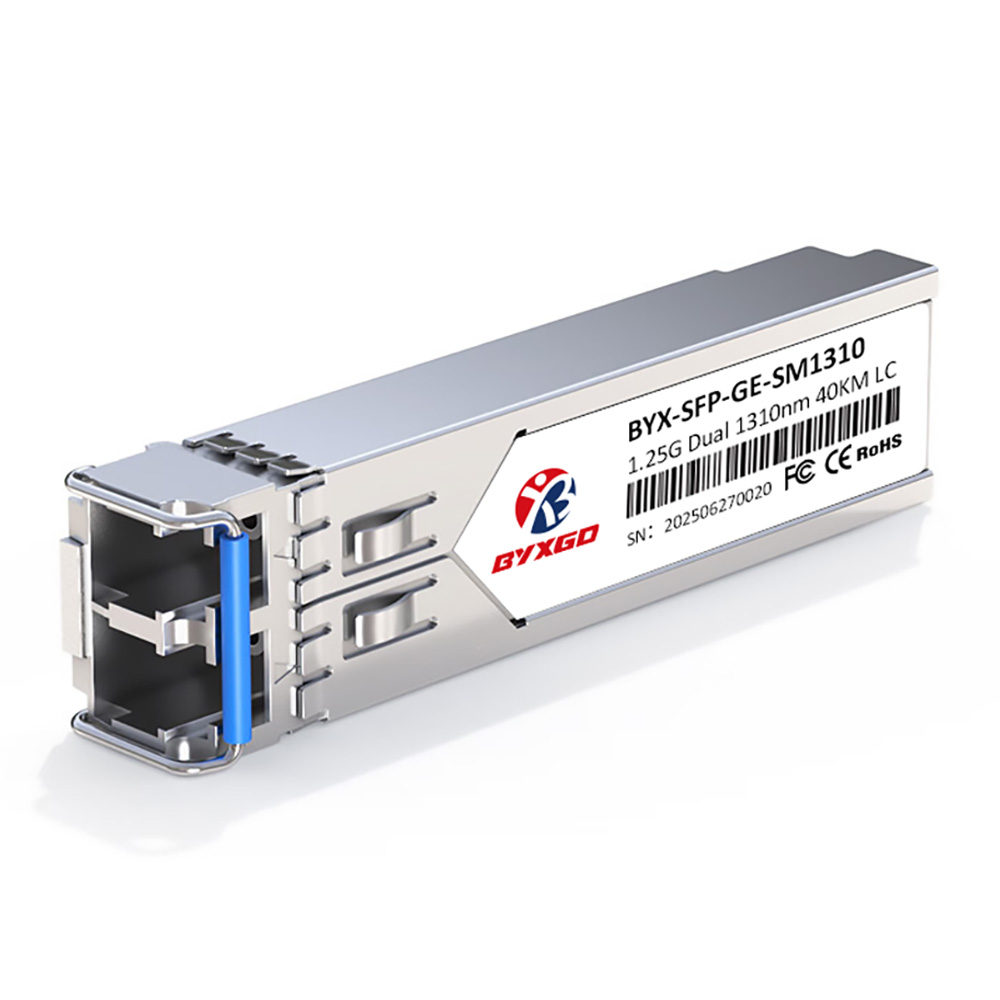

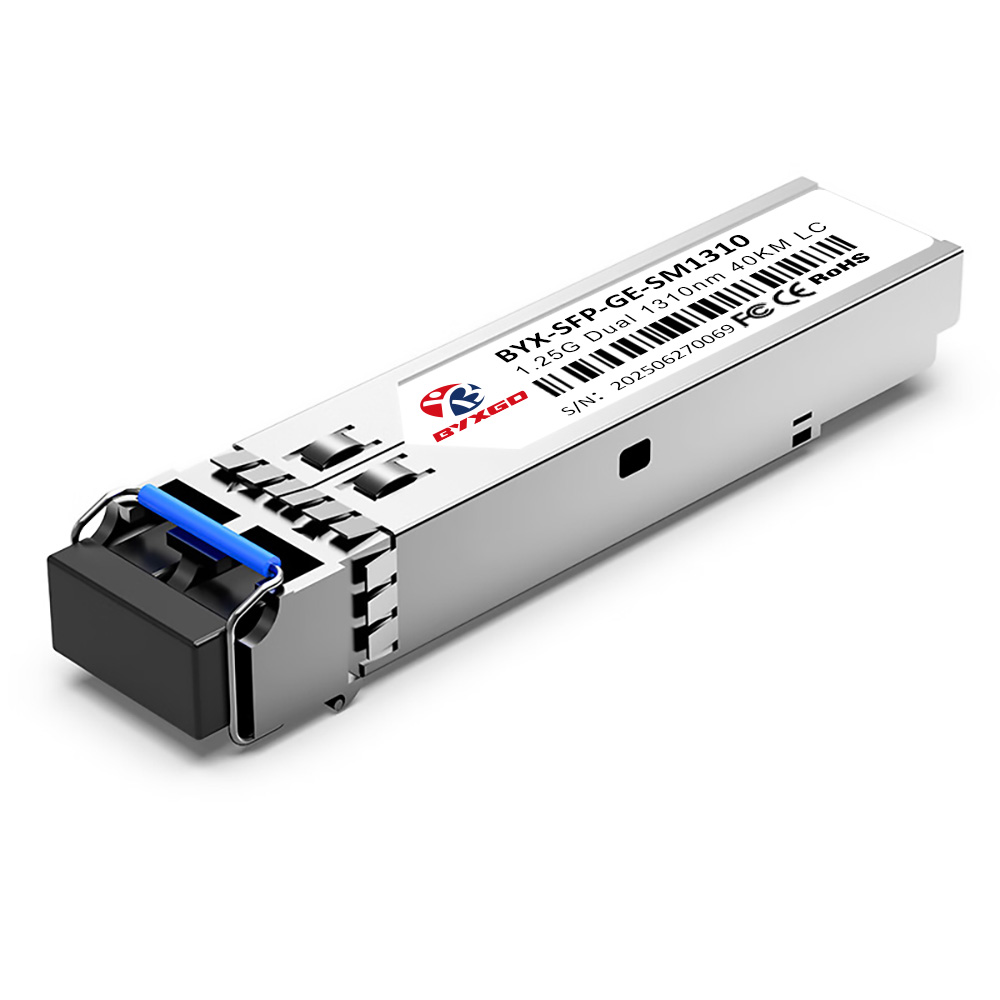

BYXGD 1000BASE-EX SFP is compatible with the Cisco GLC-EX-SMD interface and transfers data at 1.25 Gbps, 1310 nm over single-mode fiber for distances up to 40 km via duplex LC/UPC. The transceiver is designed with an FP/DFB transmitter and a PIN receiver, with a nominal power supply of +3.3 V; power consumption is less than 1 W. It is designed to operate under industrial temperature conditions of −40 to 85°C for outdoor and cabinet use.
Digital diagnostics allow measurement of temperature, voltage, laser bias, and TX/RX optical power through a 2-wire interface. The transceiver is hot-pluggable according to SFP MSA and adheres to the IEEE 802.3z specification for Gigabit Ethernet links. Compatible brands and models include Cisco GLC-EX-SMD; Juniper Networks EX-SFP-1GE-LX40K; Brocade E1MG-LH-OM; HW eSFP-1310nm-LX-40Km; Ciena XCVR-040Y31; Alcatel-Lucent ISFP-GIG-LX; Adtran 1442340G1; Calix 100-01663.
Specifications
| Parameter | Specification |
| Brand | BYXGD |
| Cisco Compatibility | GLC-EX-SMD |
| Form Factor | SFP (hot‑pluggable) |
| Max. Data Rate | 1.25 Gbps |
| Wavelength | 1310 nm |
| Max. Cable Distance | 40 km |

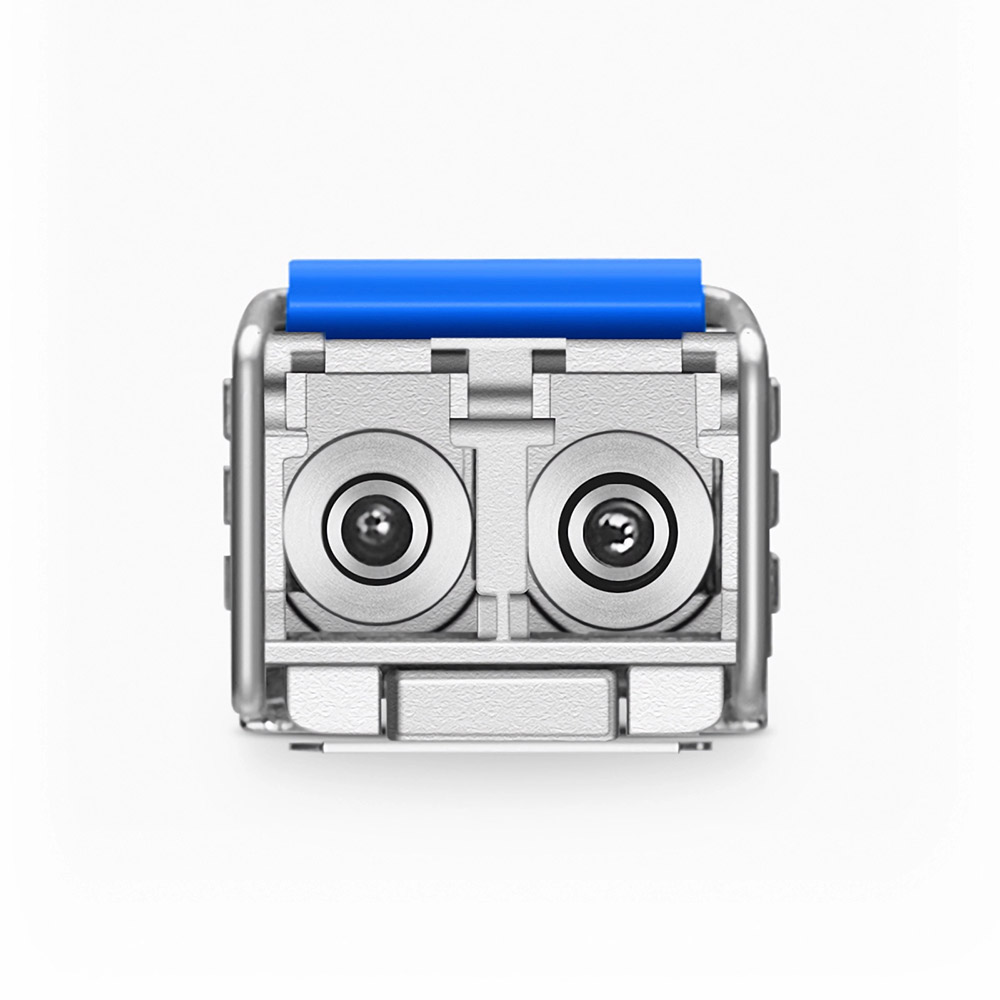

| Connector | Duplex LC/UPC |
| Optical Components | 1310 nm DFB |
| Media | SMF |
| DOM Support | Yes |
| TX Power | −5 to 0 dBm |
| Receiver Sensitivity | < −24 dBm |
| Operating Temperature (Commercial) | 0 to 70 °C (32 to 158 °F) |
| Operating Temperature (Industrial) | −40 to 85 °C (−40 to 185 °F) |
| Protocols | SFF‑8472 MSA Compliant; IEEE 802.3ah‑2004 |
