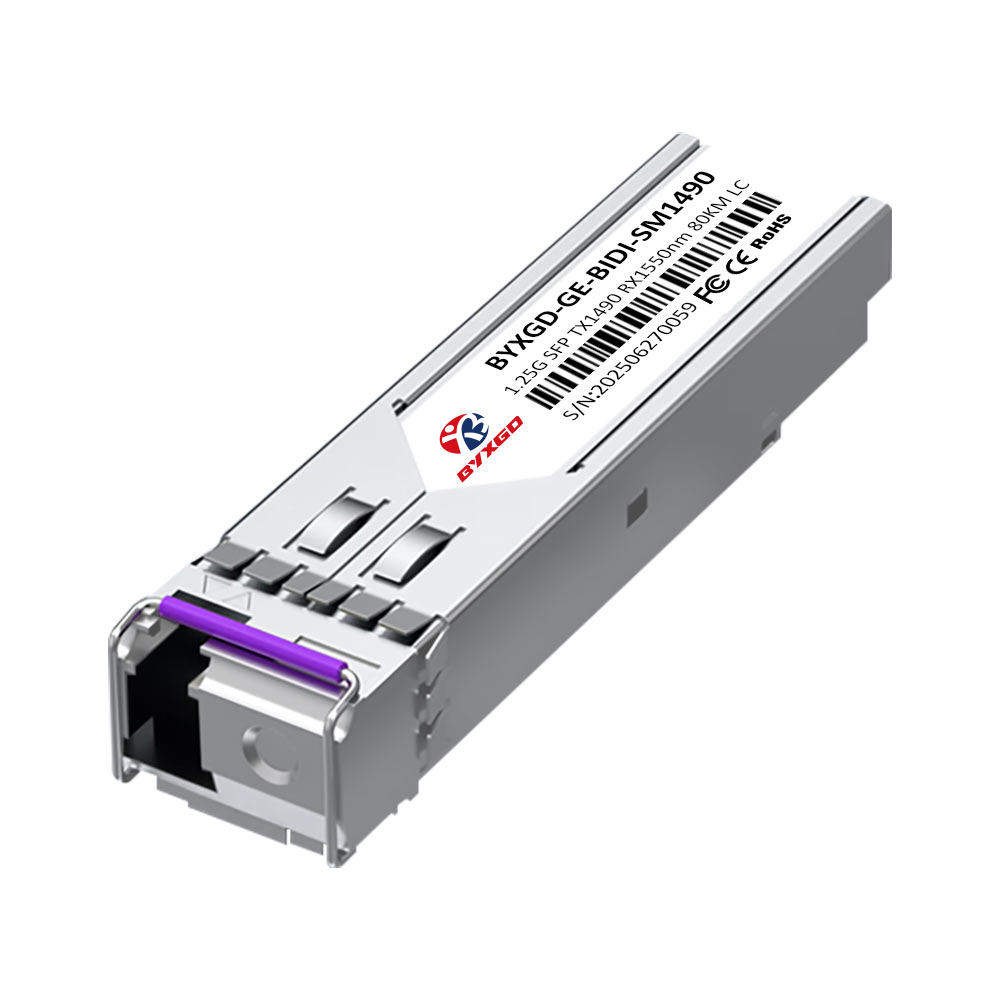

Cisco GLC-BX80-UA Compatible 1000BASE-BX-U SFP BiDi Transceiver Module is a reliable solution for Gigabit Ethernet connectivity over single-mode fiber (SMF). It transmits at 1490 nm and receives at 1550 nm for distances of 80 km using an LC simplex connector. This module is suitable for applications that need reliable long-haul data transfer, including telecoms, Fast Ethernet, and Data Center applications.
This module is compatible with several industry-leading brand models, including Cisco GLC-BX80-UA, Juniper Networks SFP-GE80KT14R15, Brocade E1MG-1G-BXU-80, HPE SFP-1G-BXU-80, H3C SFP-GE-LH70-SM1490-BIDI, HW BiDi SFP-GE-80-SM1490-U, Dell SFP-GE-BX80-1490, Extreme Networks MGBIC-BX80-U, and Mikrotik S-45LC80D, which guarantees interoperability with other networking platforms.
The SFP module is hot-pluggable and supports DDM (Digital Diagnostic Monitoring) and real-time configuration applications for efficient network deployment. The transceiver is fully compliant with the IEEE 802.3z Gigabit Ethernet standard, which ensures reliable and consistent quality performance in any application or environment.
Specifications
| Specification | Description |
| Brand | BYXGD |
| Compatible Model | BYXGD-1000BASE-BX-U |
| Form Factor | SFP (Small Form-Factor Pluggable) |
| Data Rate | 1.25 Gbps |
| Wavelength | 1490 nm (TX) / 1550 nm (RX) |
| Transmission Distance | Up to 80 km |

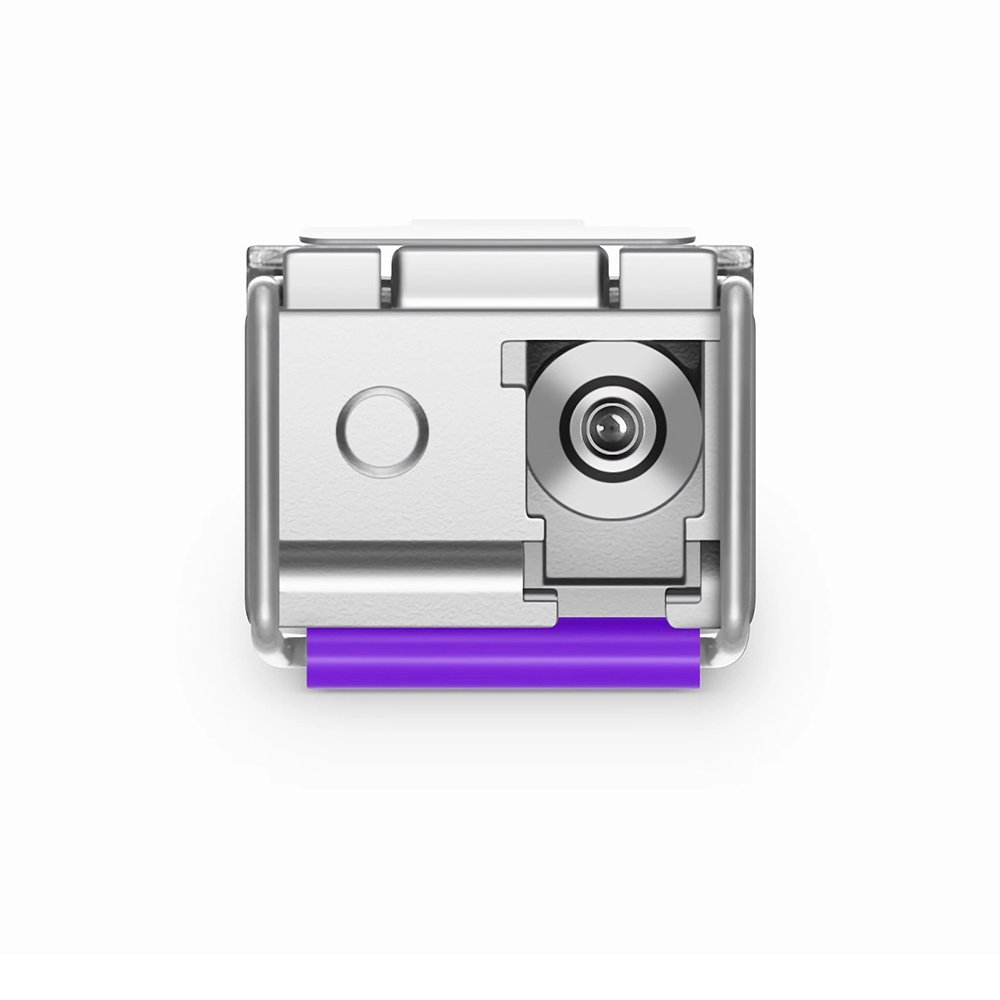

| Connector Type | Simplex LC/UPC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Optical Components | DFB Laser (Tx), PIN Receiver (Rx) |
| Transmitter Power (TX Power) | -2 dBm to +3 dBm |
| Receiver Sensitivity | < -24 dBm |
| Receiver Overload | > -3 dBm |
| Optical Budget | 22 dB typical |
| Digital Diagnostics (DDM/DOM) | Supported |
| Bit Error Rate (BER) | < 1 × 10⁻¹² |
| Power Consumption | ≤ 1 W |
| Power Supply Voltage | 3.3 V DC |
| Operating Temperature | 0 °C ~ 70 °C (32 °F ~ 158 °F), Commercial grade |
| Storage Temperature | -40 °C ~ 85 °C (-40 °F ~ 185 °F) |
| Relative Humidity | 5 % ~ 95 %, non-condensing |
| Protocols Supported | Fast Ethernet, Gigabit Ethernet, Fibre Channel, MSA Compliant |
| EMS/EMI Compliance | FCC Part 15, Class B; CE Mark |
| Laser Safety | Class 1 (IEC 60825-1, FDA 21 CFR 1040.10) |
| Environmental Compliance | RoHS 6/6, lead-free |
| Hot-Pluggable | Yes |
