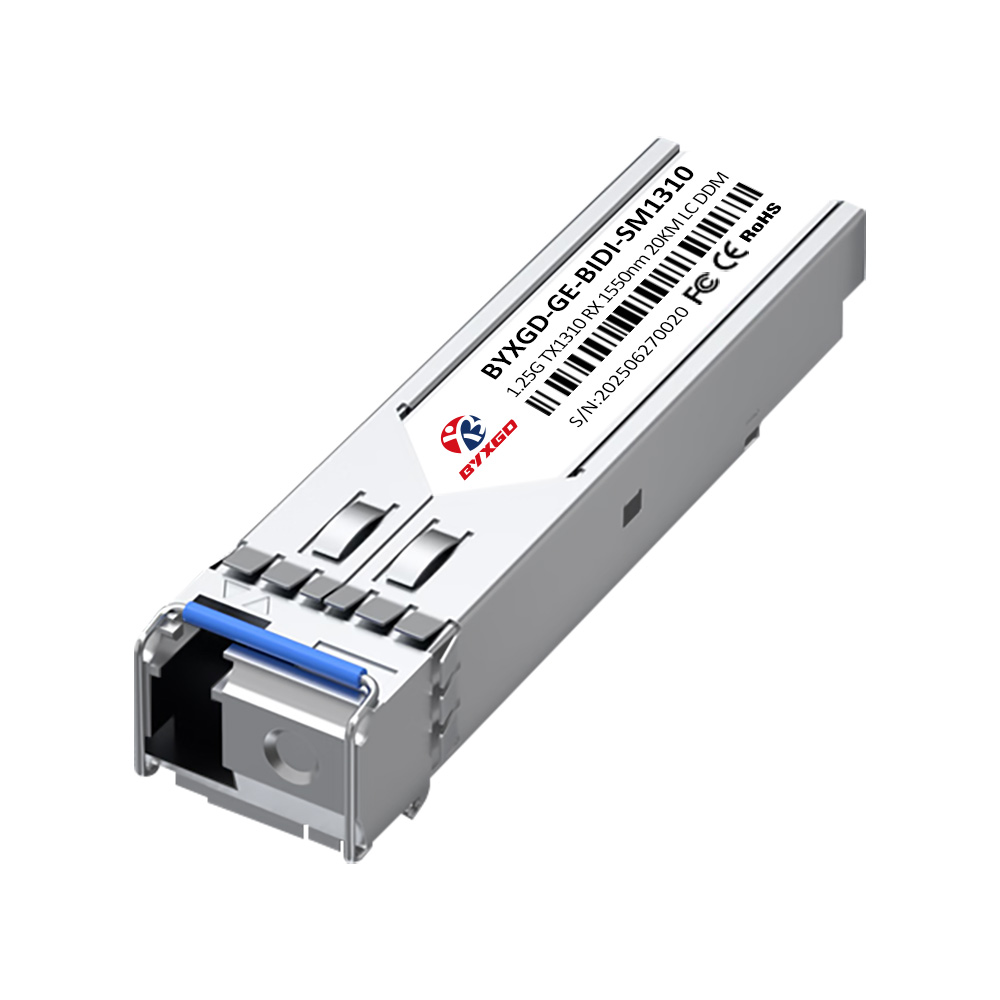

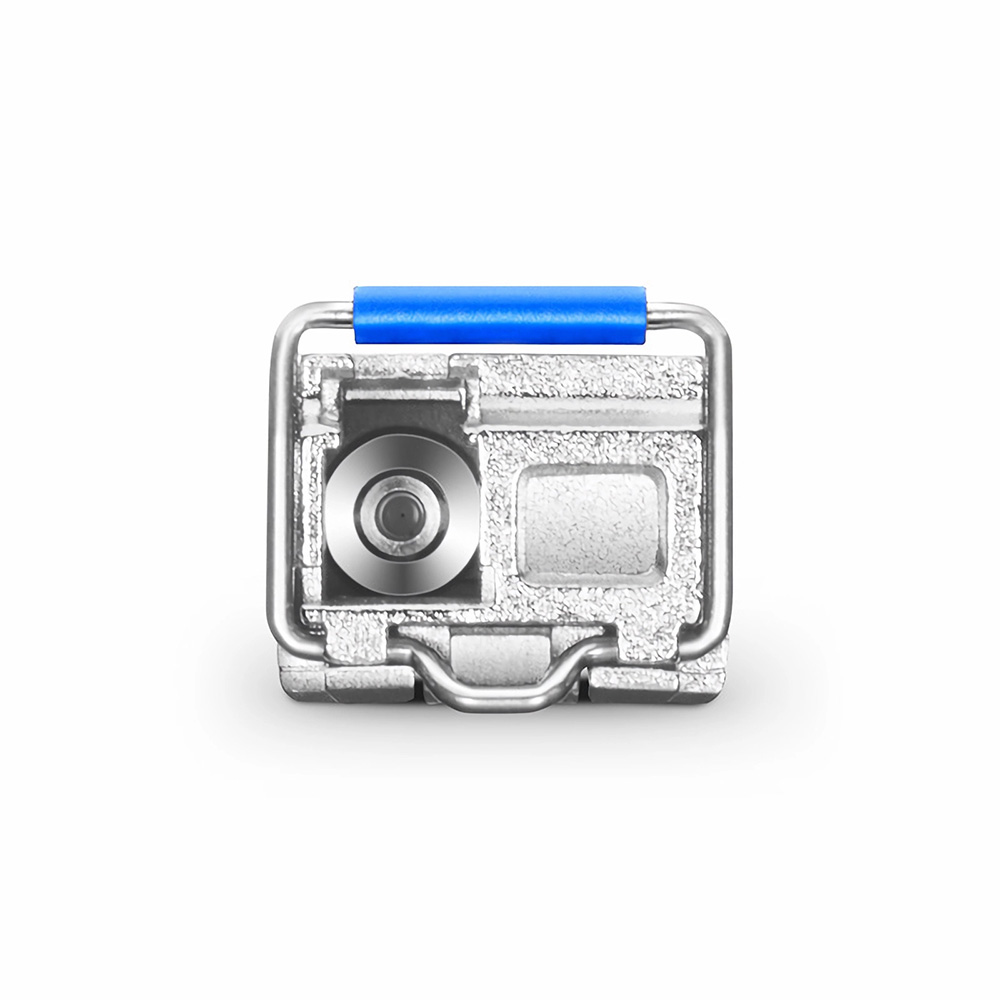

Cisco GLC-BX-20U Compatible 1000BASE-BX-U BiDi SFP transceiver is designed to support full-duplex, bidirectional transmission of data over single-mode fiber using 1310 nm for transmission and 1550 nm for reception. It has a data rate of 1.25 Gbps, a maximum link distance of 20 kilometers, and a single LC or SC optical receptacle.
The module is hot-pluggable and complies with the Multi-Source Agreement (MSA), so it can be used broadly on nearly any networking device. It is compatible with many Ethernet brands and models, including Cisco GLC-BX-20U, Juniper Networks SFP-GE20KT13R15, Brocade E1MG-1G-BXU-20, HPE SFP-1G-BXD-20, H3C SFP-GE-20-SM1310-BIDI, HW BiDi SFP-GE-20-SM1310-D, Dell SFP-GE-BX20-1310, Extreme Networks MGBIC-BX20-D-1310, TRENDnet TEG-MGBS20D3, and Mikrotik S-35LC20D.
This component runs off a 3.3 V power supply and uses less than 1.0 W of power, making it an excellent component for high-density deployments. It supports Digital Optical Monitoring (DOM) functions for real-time diagnostics and is compliant with IEEE 802.3z Gigabit Ethernet standards, FDA Class 1 laser safety, and RoHS compliance. Each unit is thoroughly tested for cross-vendor interoperability and performs reliably, consistently, and predictably.
Specifications
| Parameter | Value |
| Model | BYXGD-1000BASE-BX-U |
| Distance | 20 km |
| Form Factor | SFP |
| Max Data Rate | 1.25 Gbps |
| Wavelength TX/RX | 1310nm-TX / 1550nm-RX |
| Transmitter Type | FP |
| Media | SMF |
| Receiver Type | PIN |
| Output Power (dBm) | -9 to -3 |
| Sensitivity (dBm) | < -22 |
| Voltage | 3.3V |
| Temperature Range | 0 to 70 °C |
| Connector | LC/SC |
| DDM/DOM | Supported |
| Protocols | IEEE 802.3z, Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
| Warranty | 5 years |
