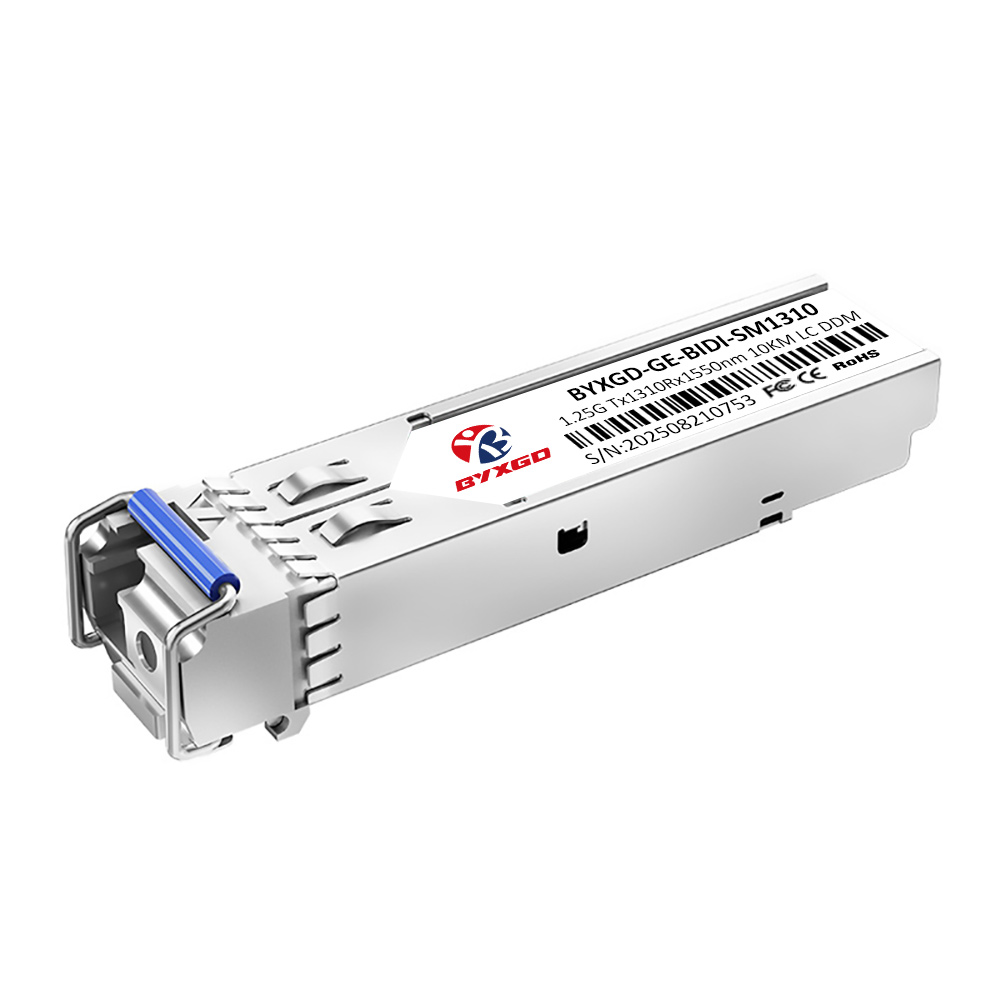

Cisco GLC-BX-10U Compatible 1000BASE-BX-U high-performance 1000BASE-BX bi-directional SFP transceiver modules are for Gigabit Ethernet over single-mode fiber. The transceiver operates at 1310 nm TX and 1550 nm RX wavelengths and supports distances up to 10 km through LC simplex connectivity. Additional specifications conform to IEEE 802.3z and SFP MSA compliance and support Digital Optical Monitoring (DOM) of temperature, voltage, and optical power.

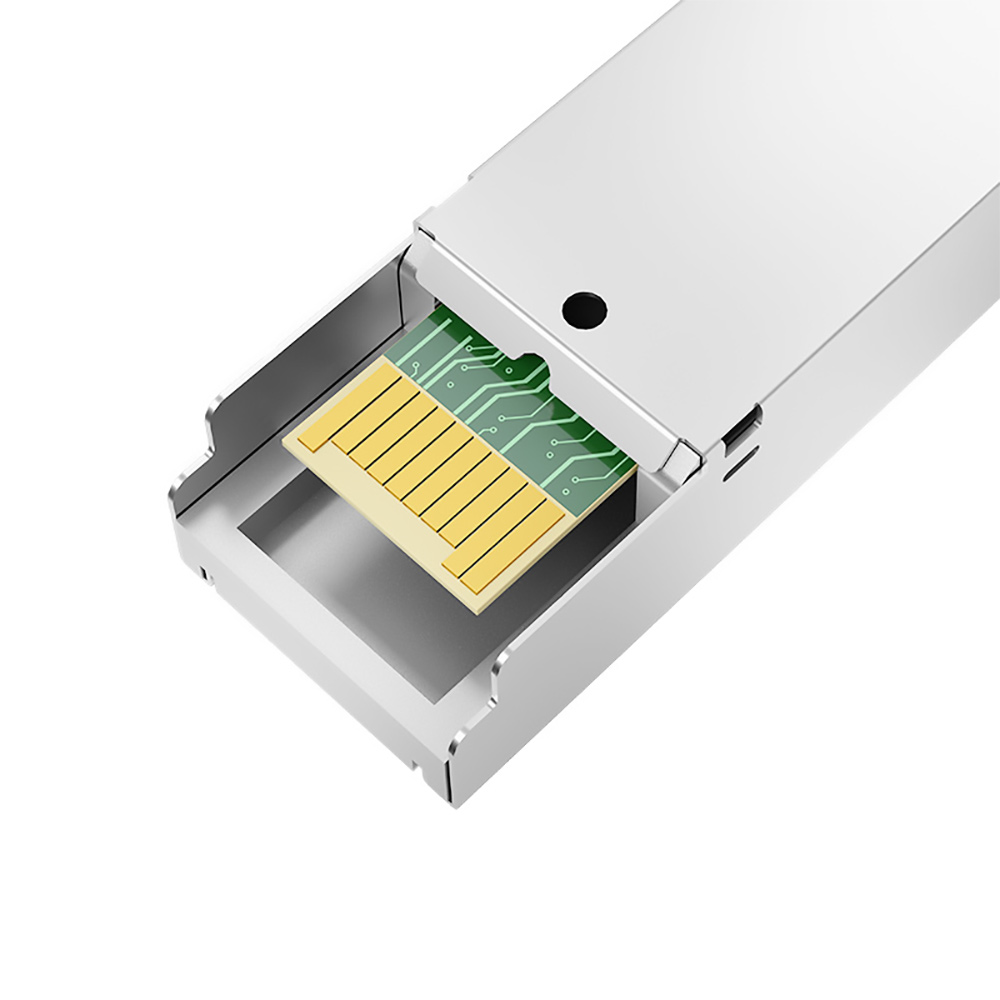

Each transceiver combines a FP/DFB laser transmitter and a high-sensitivity PIN photodiode receiver with a transimpedance amplifier (TIA), providing stabilized optical performance and a low bit error rate. The modules are designed with a 20-pin hot-pluggable interface and support data rates of up to 1.25 Gbps with 100-ohm differential impedance compatibility.
These transceivers are compatible with Cisco GLC-BX-10U, Juniper Networks SFP-GE10KT13R15, Brocade E1MG-BXU-10, HPE SFP-1G-BXD-10, H3C SFP-GE-10-SM1310-BIDI, HW BiDi SFP-GE-10-SM1310, Dell SFP-GE-BX10-1310, Extreme Networks MGBIC-BX10-D-1310, Alcatel-Lucent SFP-DUAL-BX-U, D-Link DEM-330R, and TRENDnet TEG-MGBS10D3 transceivers.
Specifications
| Parameter | Specification |
| Brand | BYXGD |
| Cisco Compatibility | GLC-BX-10U |
| Form Factor | SFP |
| Max Data Rate | 1.25 Gbps |
| Wavelengths | 1310 nm TX / 1550 nm RX |
| Max Distance | 10 km |
| Fiber/Media | Single-Mode Fiber (SMF) |

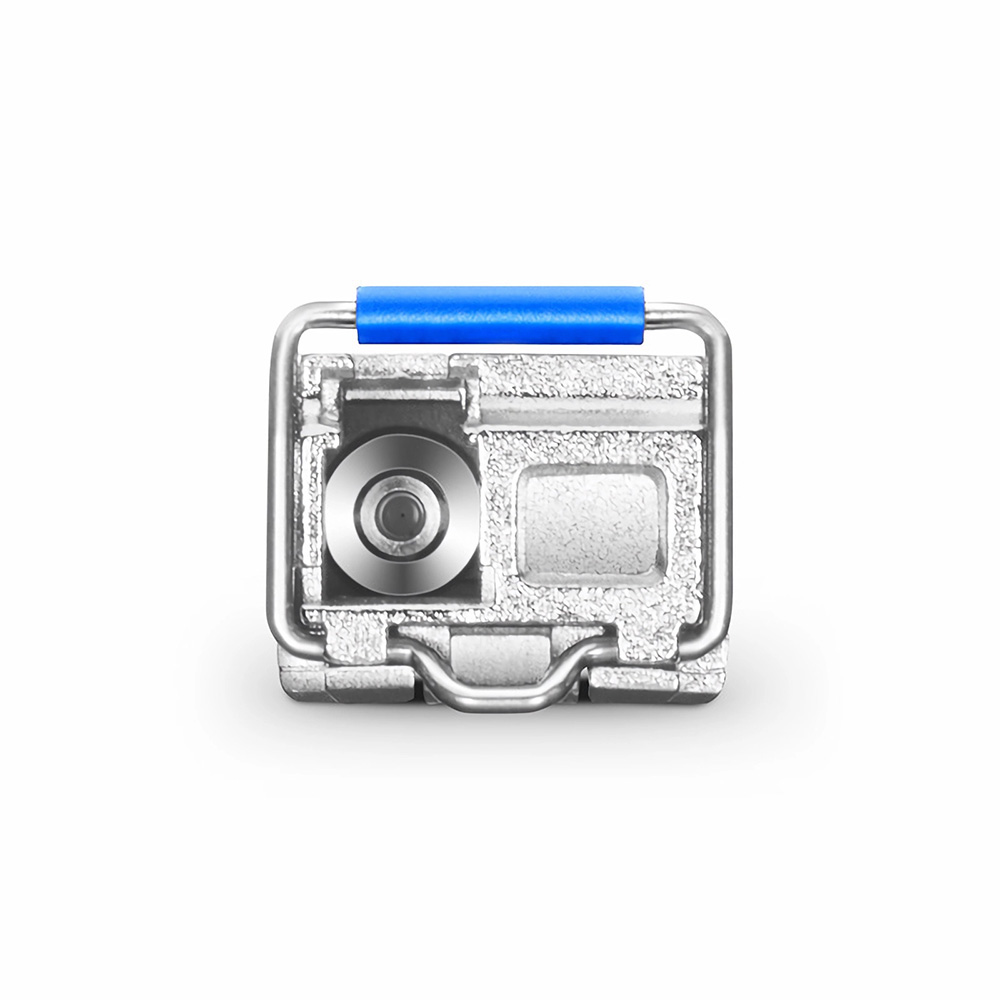

| Connector | Simplex LC/UPC |
| Optical Components | FP or DFB BiDi; PIN receiver |
| TX Optical Power | −9 to −3 dBm |
| Receiver Sensitivity | ≤ −22 dBm |
| Receiver Overload | −3 dBm |
| Link Budget | ~8 dB |
| Digital Diagnostics | DOM/DDM (Temp, Vcc, Tx/Rx power, Bias) |
| Management Interface | I²C, SFF‑8472 memory map |
| Protocols | Gigabit Ethernet; MSA interoperable; SFF‑8472 |
| Operating Temp (Commercial) | 0 to 70 °C (32 to 158 °F) |
| Storage Temp | −40 to 85 °C |
| Electrical Interface | 100 Ω differential, AC‑coupled |

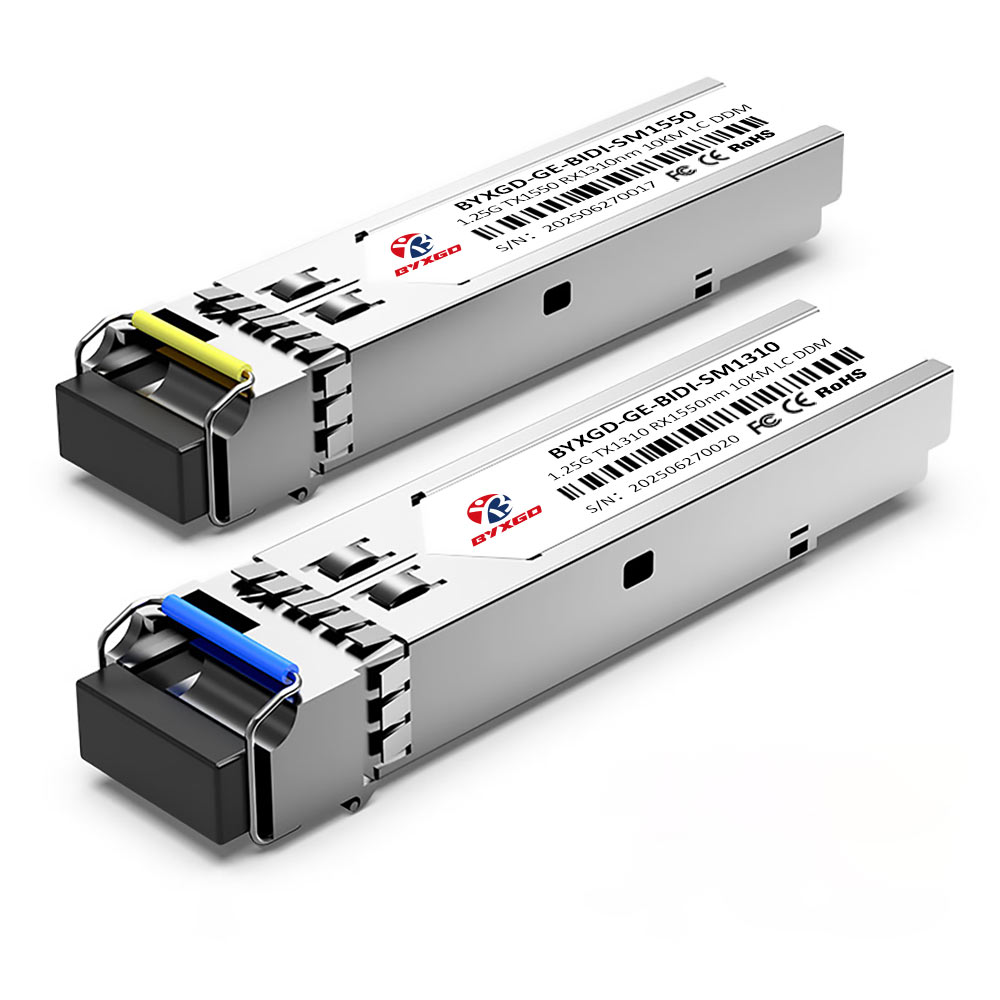

| Pairing Requirement | Works with BX‑D (1550 nm TX / 1310 nm RX) |
| Laser Safety | Class 1 |
| Environmental | RoHS compliant |
| Dimensions | ~55.4 × 13.4 × 8.5 mm |
| Typical Power | ≤ 1 W |
