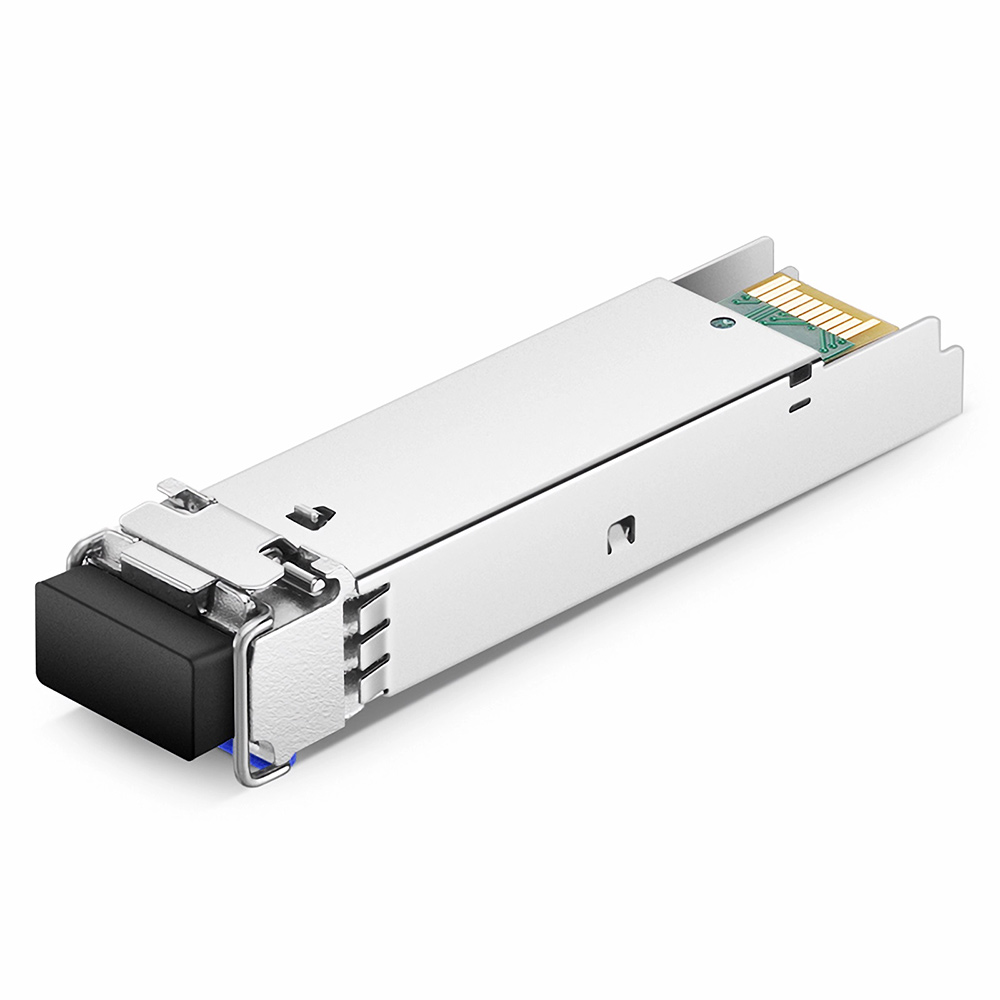

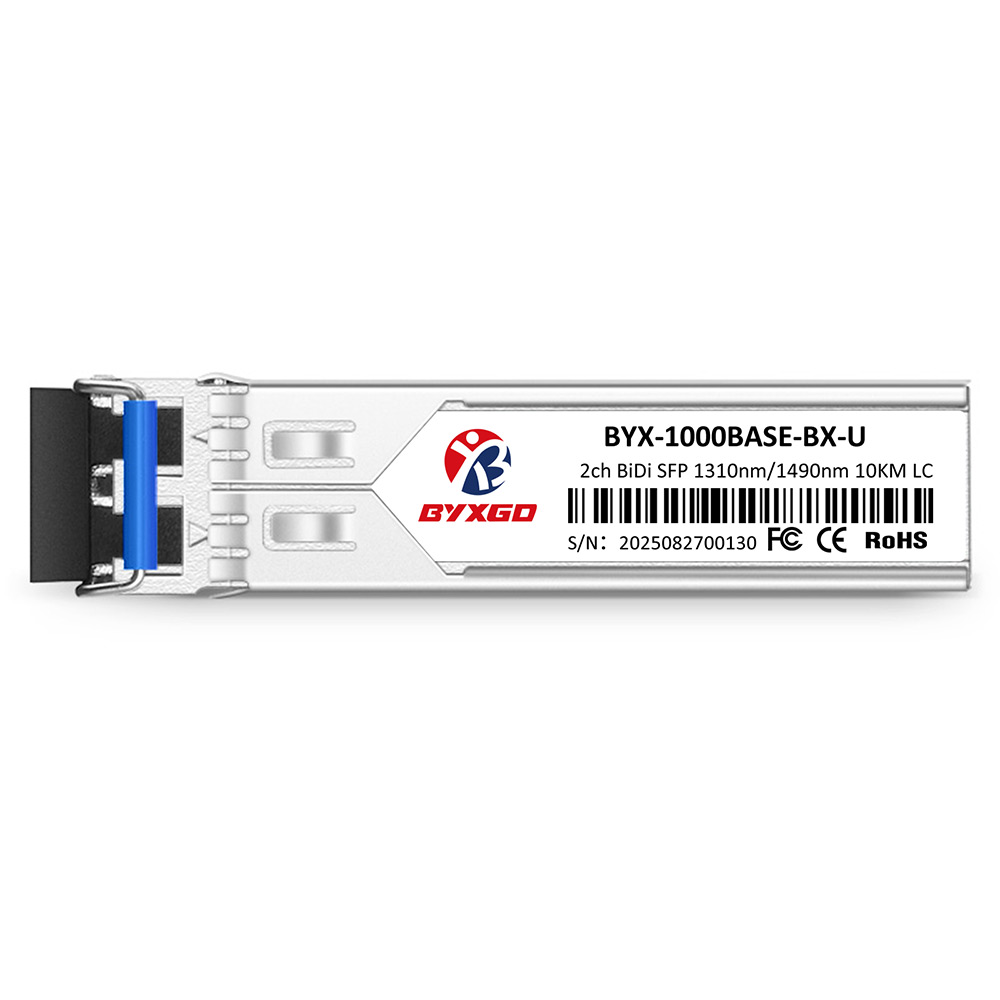

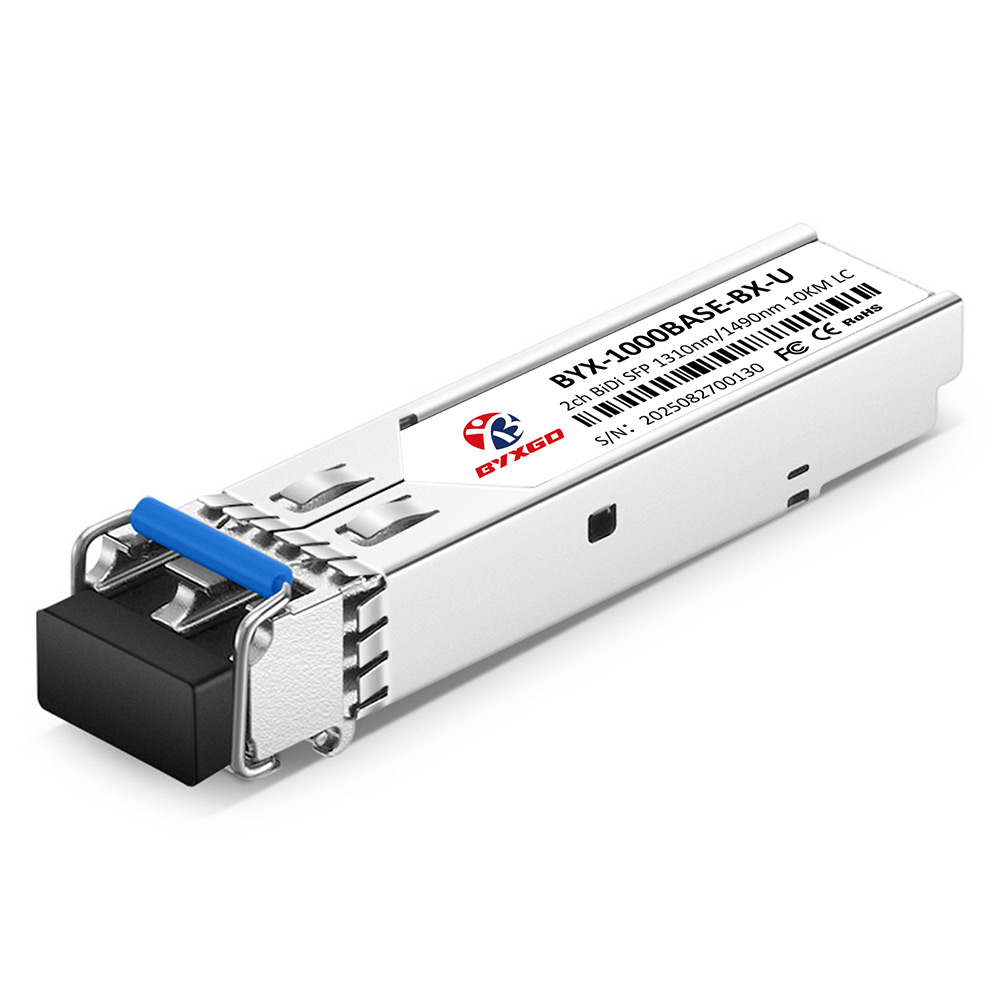

Cisco GLC-2BX-U Compatible 1000BASE-BX-U Compact 2-Channel Transceiver Module is a dual-channel optical device designed for transmitting Gigabit Ethernet signals bi-directionally over single-mode fiber. It supports two optical channels, each capable of data rates of 1.25 Gbps and a distance of up to 10 km using a 1310 nm FP laser transmitter and a 1490 nm PIN photodetector with LC/UPC duplex connectors.
The module is a hot-pluggable transceiver that is compliant with the CSFP MSA and IEEE 802.3ah standards, which includes monitoring support for Digital Diagnostic Monitoring (DOM) to provide real-time values of optical power, voltage, and temperature, ensuring reliable operation and simple maintenance and troubleshooting. The module runs off a single +3.3V supply, consuming little power and generating low EMI radiated noise, enclosed in a durable metal enclosure. The GLC-2BX-U Compatible (CSFP) transceiver provides compatible bi-directional optical channels that meet the high-performance and space-constrained connectivity needs in Fast Ethernet, Telecom, and Data Center application spaces.
Specifications
| Parameter | Description |
| Brand | BYXGD |
| Cisco Compatible Model | GLC-2BX-U |
| Form Factor | Compact SFP (CSFP) |
| Channels | 2 (Dual Independent 1000BASE-BX-U) |
| Data Rate | 1.25 Gbps per channel |
| Wavelength | Transmit: 1310 nm / Receive: 1490 nm |
| Transmission Distance | Up to 10 km |

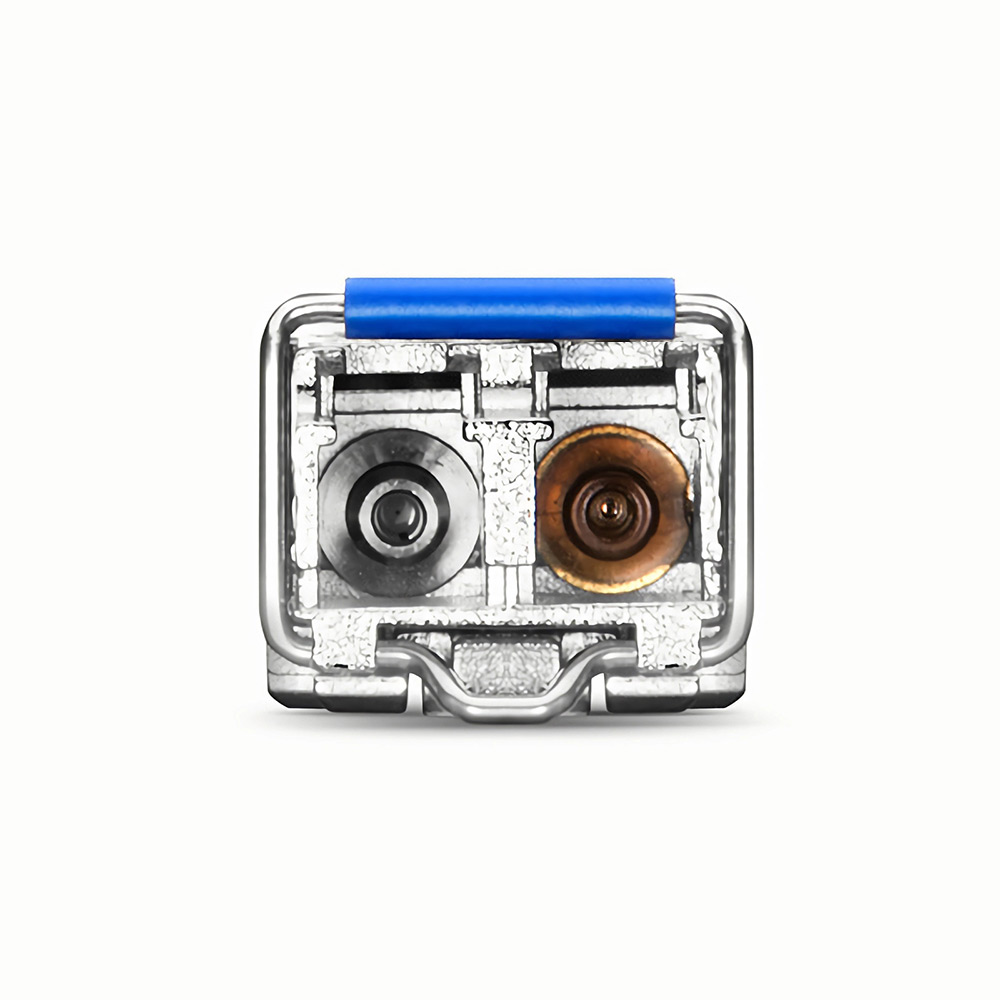

| Connector Type | Duplex LC/UPC |
| Optical Components | FP Laser, PIN Photo-Detector |
| Fiber Type | Single-Mode Fiber (SMF) |
| Media | SMF (9/125 µm) |
| Transmit Power (TX) | -9 to -3 dBm |
| Receiver Sensitivity (RX) | < -22 dBm |
| Receiver Overload | > -3 dBm |
| Extinction Ratio | > 9 dB |
| DOM Support | Yes |
| Power Consumption | ≤ 1.5 W |
| Power Supply Voltage | +3.3 V |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Housing | Metal enclosure for low EMI interference |
| Compliance Standards | IEEE 802.3z, CSFP MSA, SFF-8472, IEC/EN 60825, IEC/EN 61000-4-2, FDA 21CFR 1040.10/1040.11, RoHS |
| Application | Fast Ethernet, Gigabit Ethernet, Fibre Channel, Switch-to-Switch, Router/Server Interface, Data Center and Telecom Optical Links |
| Weight | 0.025 kg |
| Safety | Class 1 Laser Product |
| Environmental Compliance | RoHS Compliant, Lead-Free |
| Warranty | 5 Years |
| Technical Support | Lifetime |
