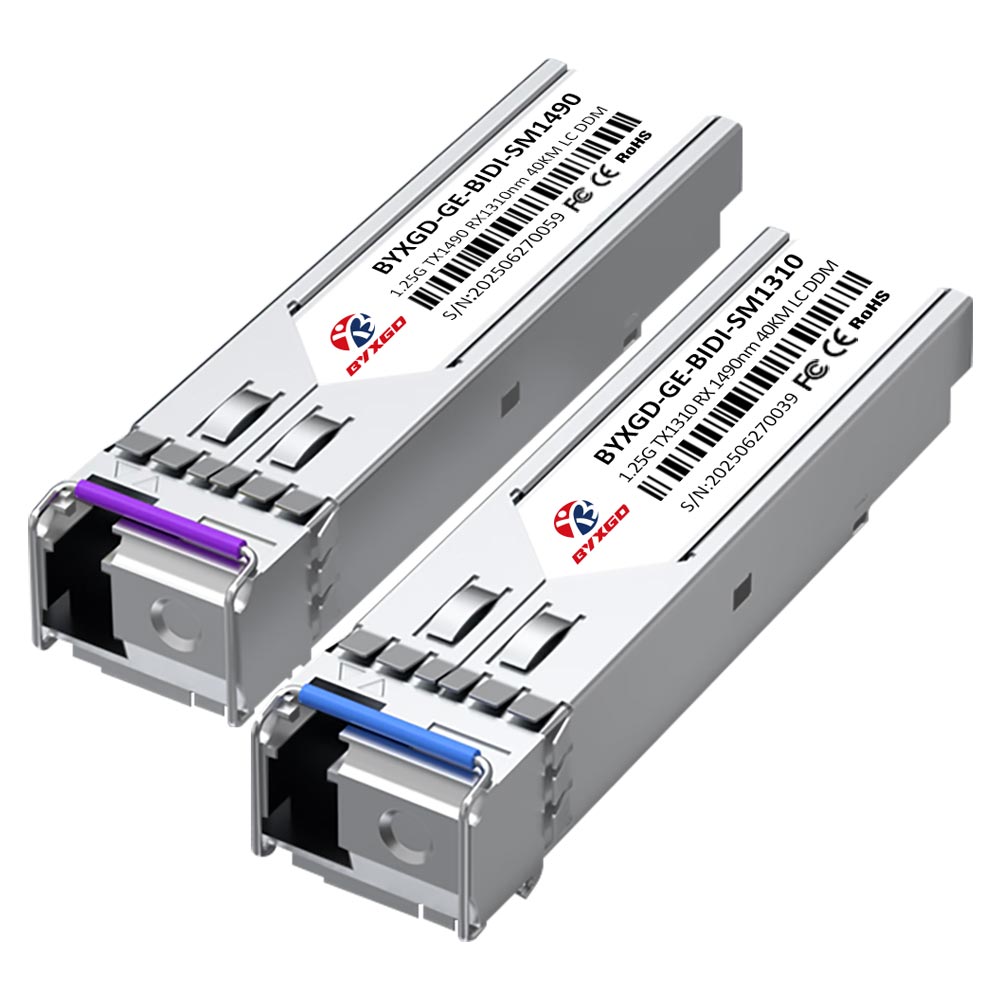

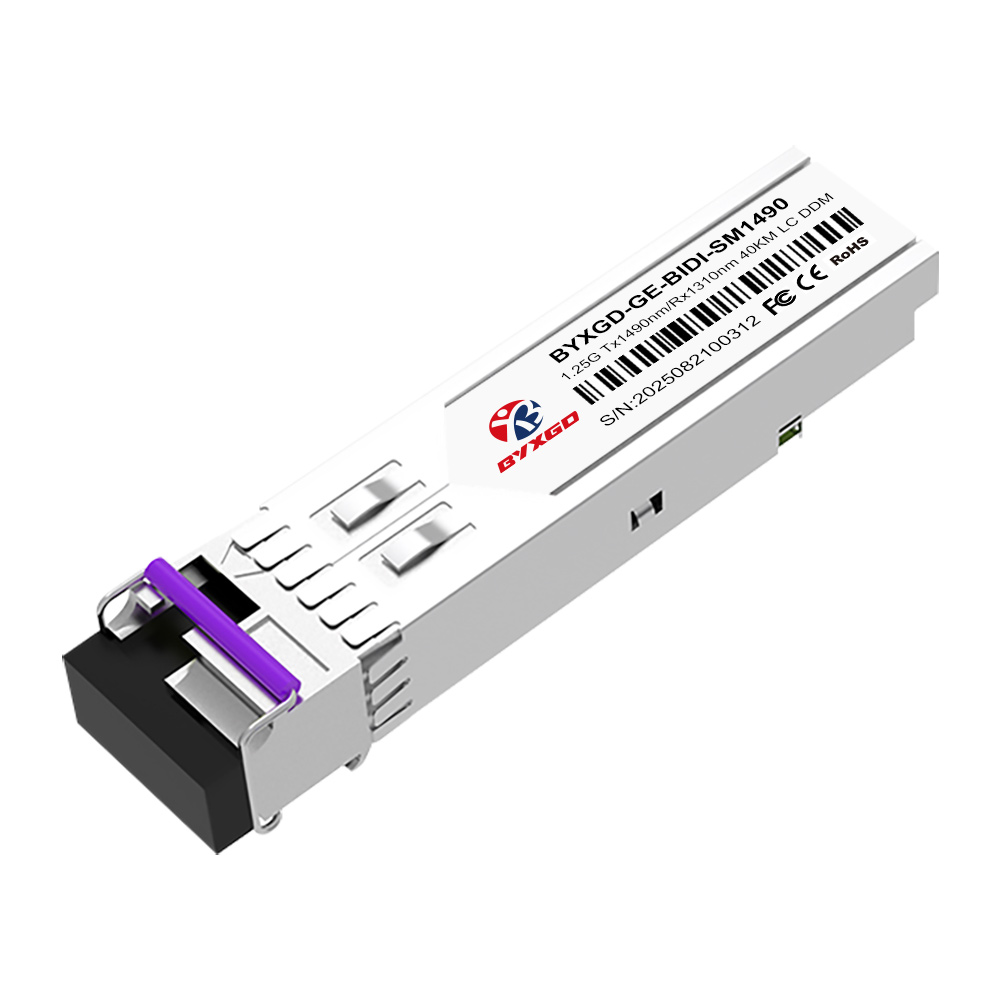

1000BASE-BX-D SFP transceiver (SMF, 1490 nm-TX/1310 nm-RX, 40 km, Simplex LC, DOM) is a Cisco GLC-BX40-DA compatible transceiver that transmits and receives data over a single strand of single-mode fiber at distances of up to 40 km at a rate of 1.25 Gbps. Effective 40 km long-range transmission is achieved through the passing of light at a wavelength of 1490 nm for transmission and 1310 nm for receiving, while keeping power consumption low at less than 1 W.
This module is fully compliant with IEEE 802.3ah and SFP MSA specifications and is hot-swappable to allow for flexibility in deployment. This device comes with a DFB (distributed feedback) laser transmitter, a PIN photodiode receiver, and DOM (digital diagnostic monitoring), which allows users to monitor the physical connection in real time. This unit’s operational temperature range is from 0°C to 70°C with a supply voltage of 3.3 V.
Compatible versions include: Cisco GLC-BX40-DA, Juniper Networks SFP-GE40KT14R13, Brocade E1MG-1G-BXDA-40, HPE SFP-1G-BXDA-40, H3C SFP-GE-LH40-SM1490, HW LE2MGSC40ED0, Dell SFP-GE-BX40D-1490, Extreme Networks MGBIC-BX40-D, Alcatel-Lucent SFP-GIG-BX-D40, and Avaya AA1419077-E6.
Specifications
| Parameter | Specification |
| Brand | BYXGD |
| Model | BYXGD-1000BASE-BX-D |
| Compatibility | Cisco GLC-BX40-DA and equivalent 1000BASE-BX-D SFP modules |
| Form Factor | SFP |
| Maximum Data Rate | 1.25 Gbps |
| Wavelength | TX: 1490 nm / RX: 1310 nm |
| Transmission Distance | Up to 40 km |

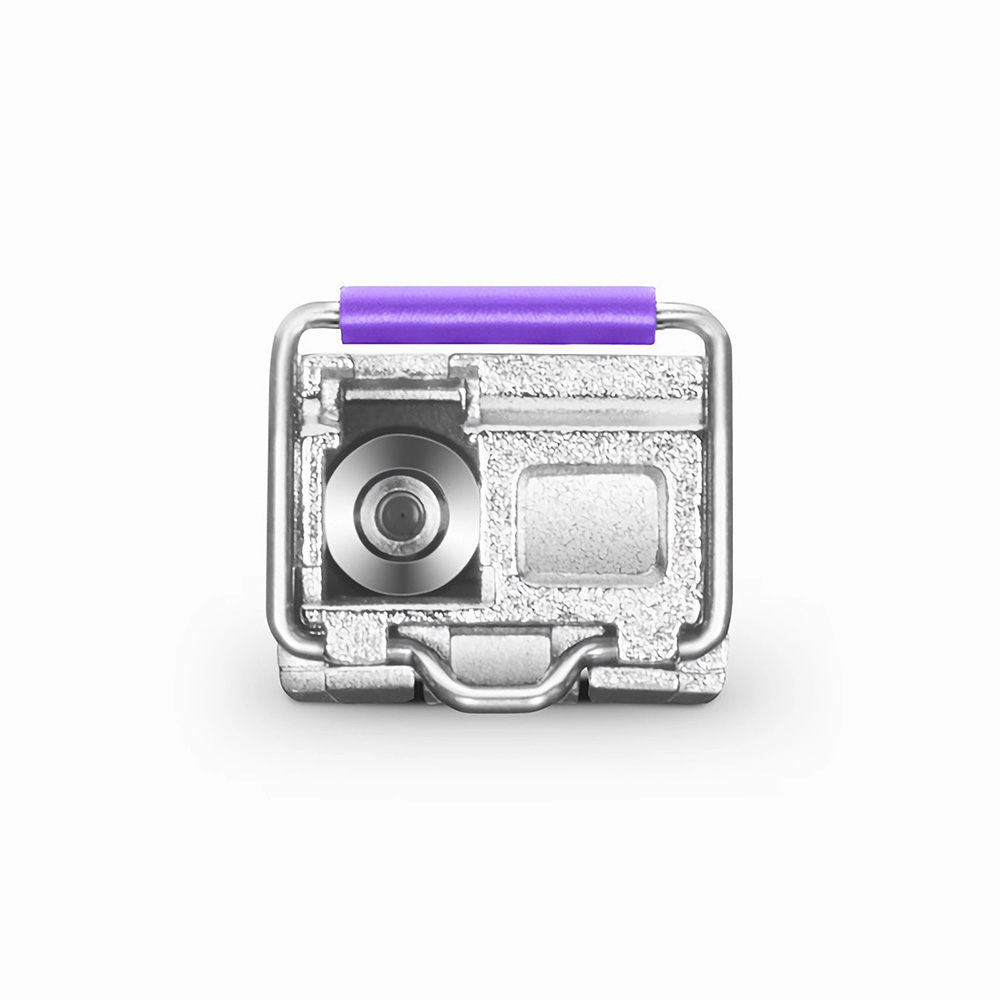

| Connector Type | Simplex LC/UPC |
| Optical Components | DFB Laser Transmitter / PIN Photodiode Receiver |
| Fiber Type | Single-Mode Fiber (SMF) |
| Digital Optical Monitoring (DOM/DDM) | Supported (SFF-8472) |
| Transmit Power (TX) | -5 to 0 dBm |
| Receiver Sensitivity (RX) | < -23 dBm |
| Power Supply Voltage | 3.3 V |
| Maximum Power Consumption | < 1 W |
| Operating Temperature Range | 0 to 70°C (32 to 158°F) |
| Storage Temperature Range | -40 to 85°C (-40 to 185°F) |
| Protocols Supported | IEEE 802.3ah 1000BASE-BX, Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
| Media Type | SMF (Single-Mode Fiber) |
| Hot Pluggable | Yes |
| Laser Type | Class 1 FDA and IEC 60825-1 Compliant |
| EMI/EMC Standards | FCC Part 15 Class B, EN55022, CISPR 22 |
| Case Material | Metal housing with EMI shielding |
| MTBF (Mean Time Between Failures) | > 1,000,000 hours |
| DOM Functions | Measures optical power, voltage, temperature, TX bias current |
| Power Budget | 18 dB typical |
| Insertion Loss | ≤ 0.5 dB |
| Packaging | Individually tested, anti-static protective bag |
| Warranty | 5 years |
