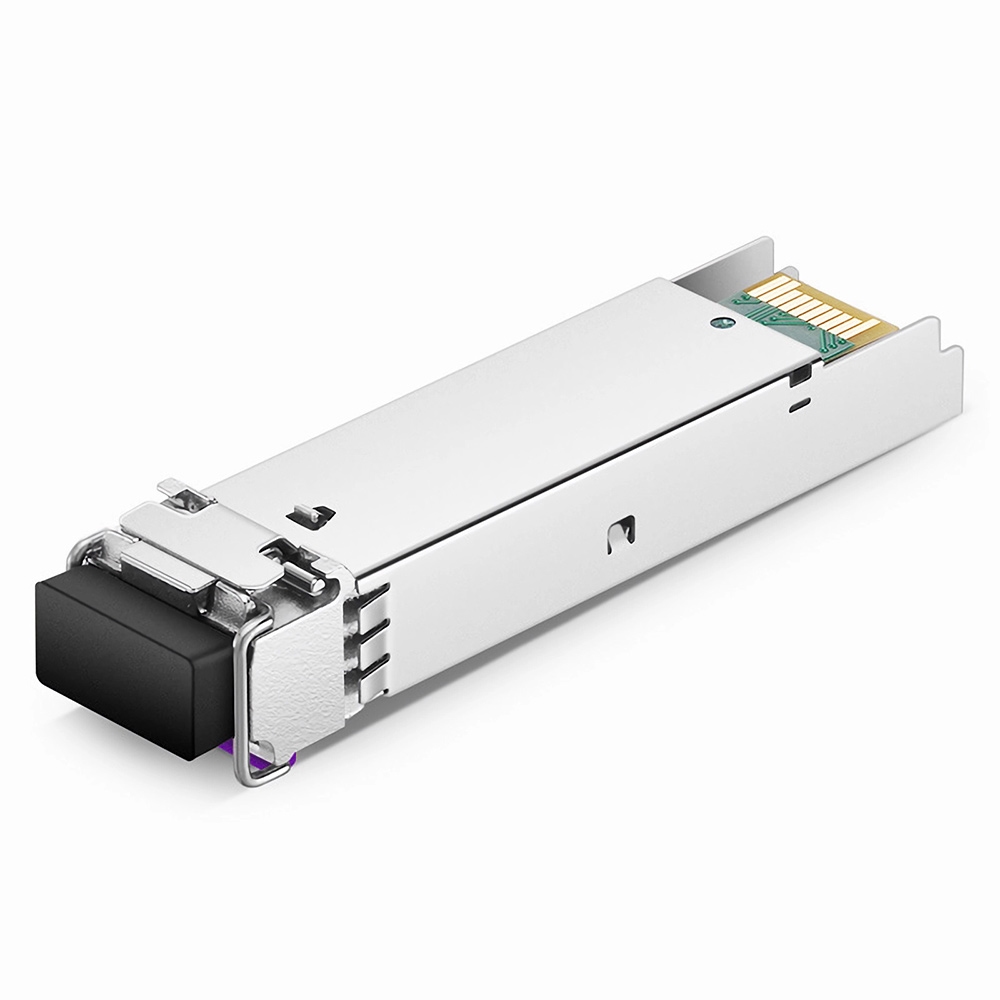

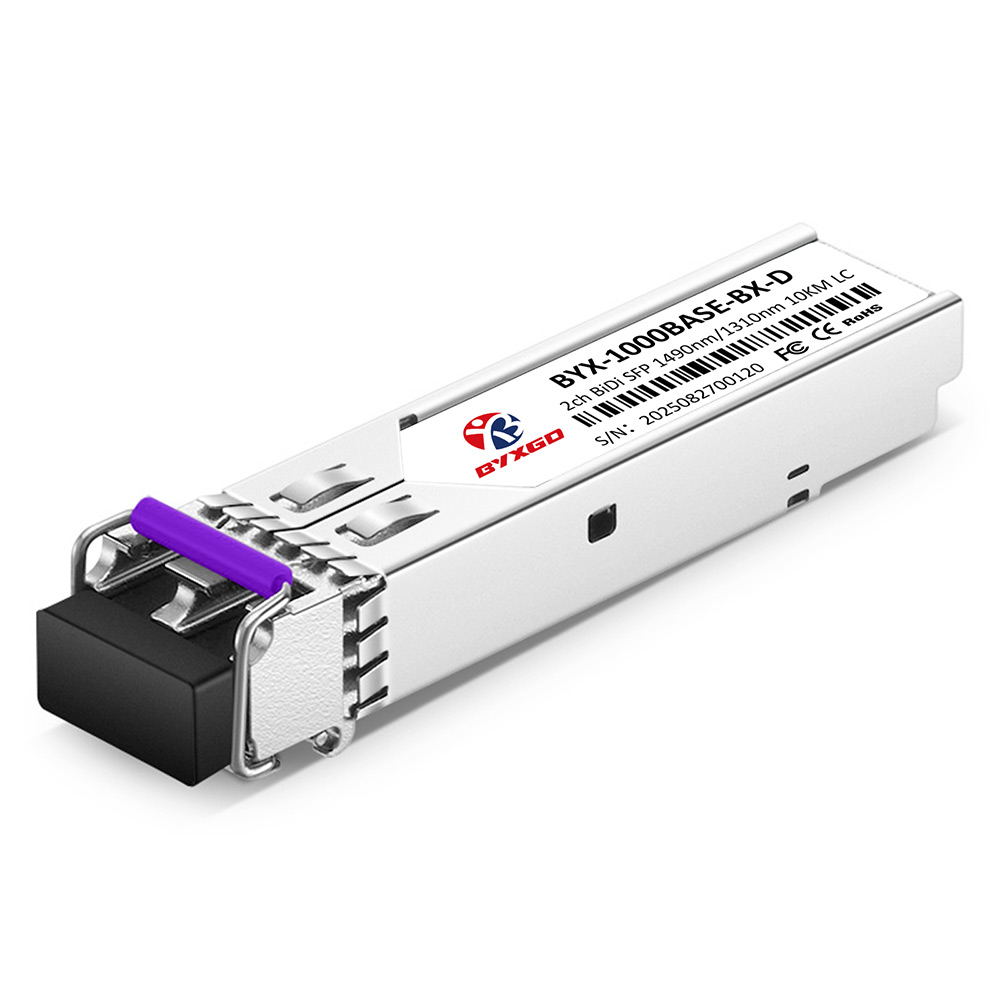

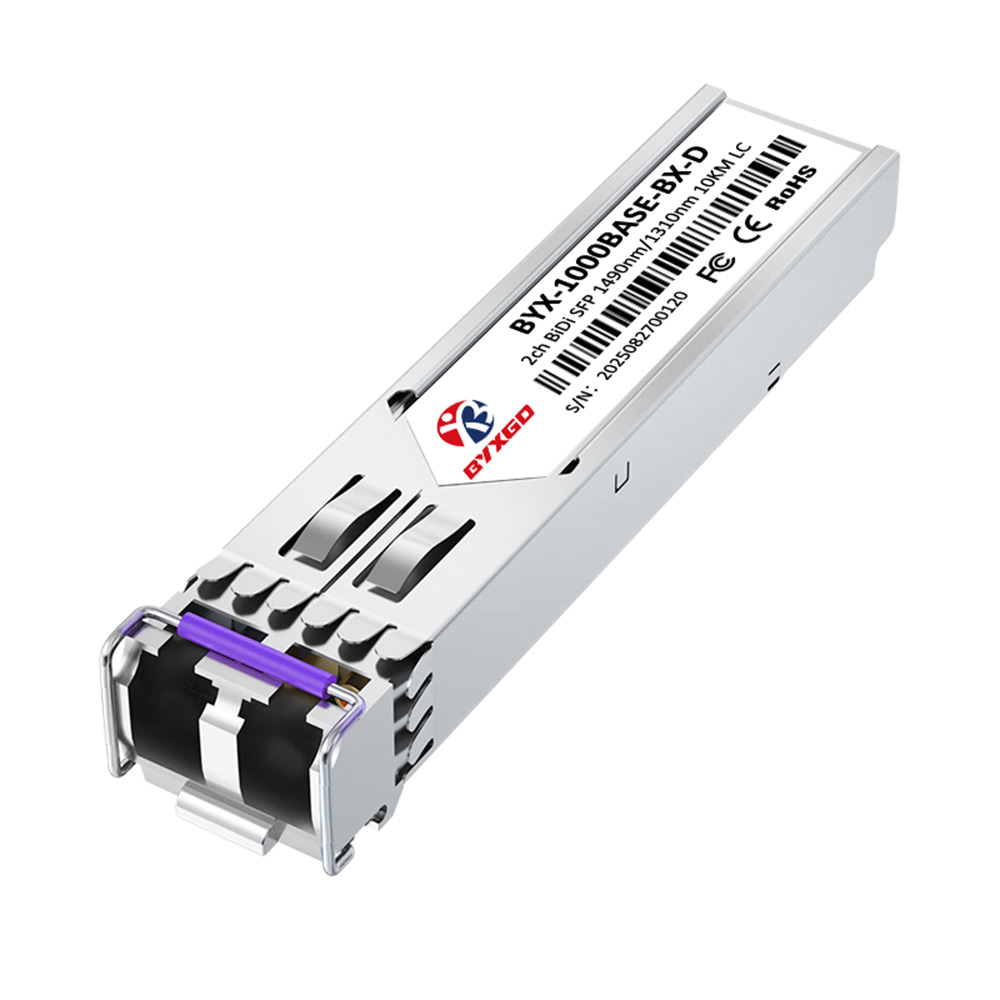

Cisco GLC-2BX-D Compatible 2-Channel 1000BASE-BX CSFP Transceiver Module (SMF, 1490nm-TX/1310nm-RX, 10km, LC Duplex, DOM) provides an efficient option for those looking to implement two independent Gigabit Ethernet channels in a single compact SFP module. Each channel supports 1.25 Gbps over 9/125 µm single-mode fiber (SMF) using a 1490 nm DFB laser for transmission and a 1310 nm PIN photodetector for reception, producing bi-directional transfer for distances up to 10 km, ensuring reliable and stable bi-directional transmission.
This module is hot pluggable, CSFP MSA compliant, and has Digital Diagnostic Monitoring (DOM) capabilities to analyze real-time power, voltage, and temperature. The TX/RX utilizes a power supply of 3.3 V, comes with a low EMI metal housing, supports applications utilizing an LC/UPC duplex interface, and provides a high level of electrical integrity. The module meets full compatibility with Cisco GLC-2BX-D specifications while allowing for identical operation with compatible sourced products from other major vendors. Delivery is suitable within a network topology working with Fast Ethernet, Telecom, and Data Center applications.
Specifications
| Parameter | Description |
| Brand | BYXGD |
| Cisco Compatible Model | GLC-2BX-D |
| Form Factor | Compact SFP (CSFP) |
| Channels | 2 (Dual Independent 1000BASE-BX-D) |
| Data Rate | 1.25 Gbps per channel |
| Wavelength | Transmit: 1490 nm / Receive: 1310 nm |
| Transmission Distance | Up to 10 km |

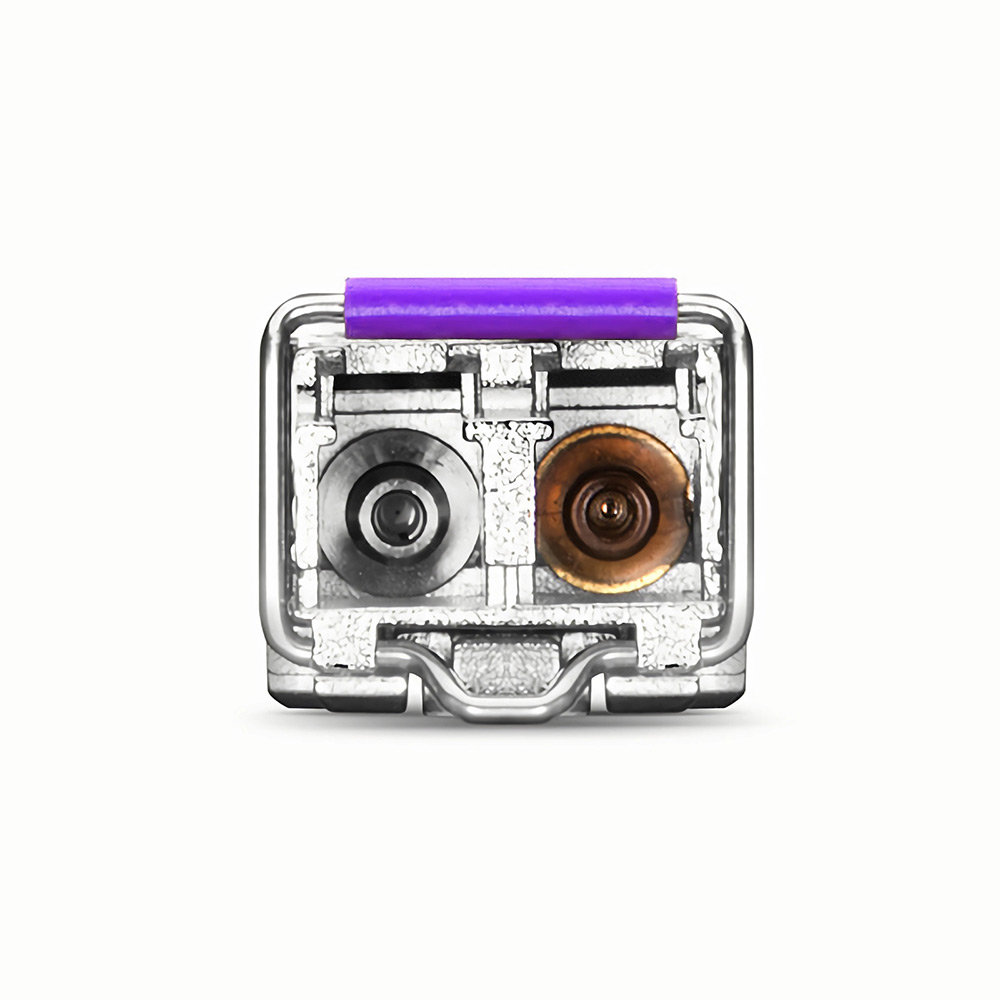

| Connector Type | Duplex LC/UPC |
| Optical Components | FP/DFB Laser, PIN Photo-Detector |
| Fiber Type | Single-Mode Fiber (SMF) |
| Media Type | SMF (9/125 µm) |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Transmit Power (TX) | -9.5 to -3 dBm |
| Receiver Sensitivity (RX) | < -22 dBm |
| Receiver Overload | > -3 dBm |
| Extinction Ratio | > 9 dB |
| Power Consumption | ≤ 1.5 W |
| Power Supply Voltage | 3.3 V |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Compliance Standards | IEEE 802.3z, SFF-8472, CSFP MSA, IEC/EN 61000-4-2, IEC 60825, FDA 21CFR 1040.10/1040.11 |
| Safety & Environment | Class 1 Laser Product, RoHS Compliant |
| Application | Fast Ethernet, Gigabit Fibre Channel, Switch-to-Switch Interface, Router/Server Links, Data Center and Telecom Optical Links |
| EMI Shielding | Metal housing for low interference |
| Weight | 0.025 kg |
| Warranty | 5 Years |
| Technical Support | Lifetime |
