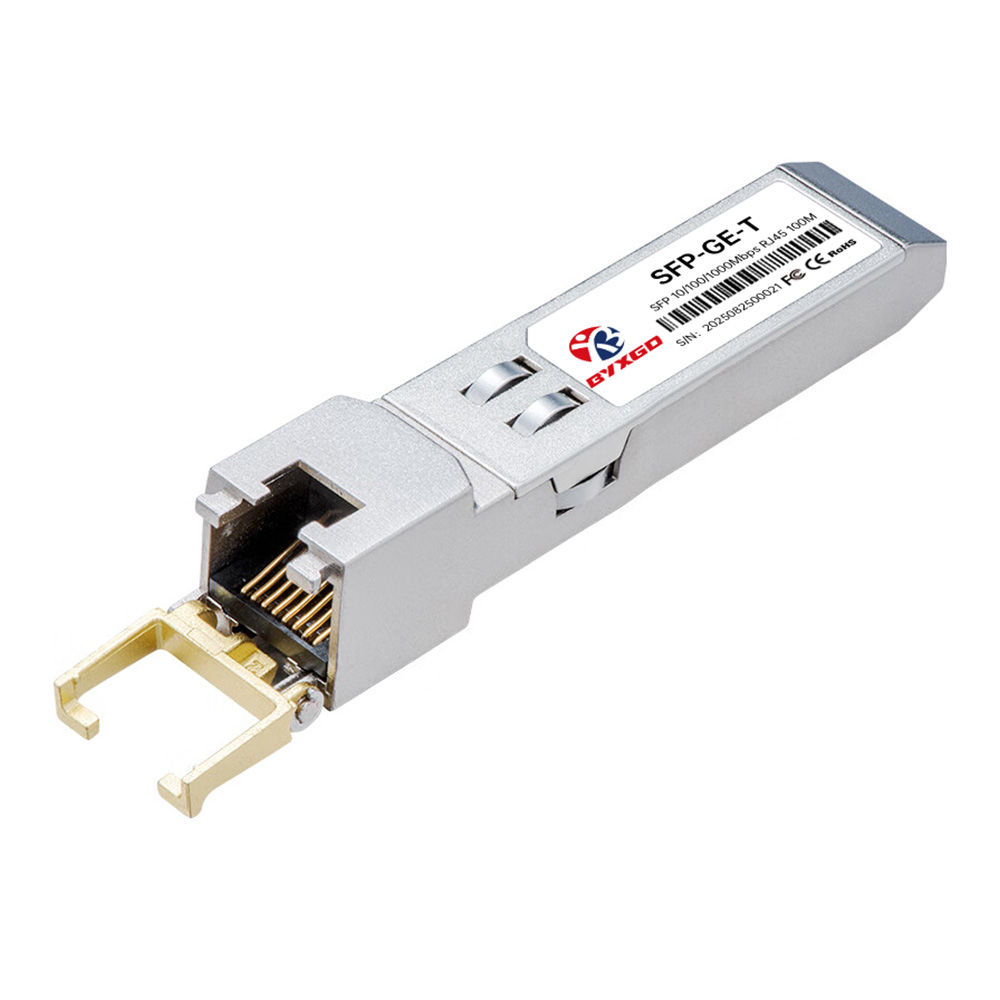

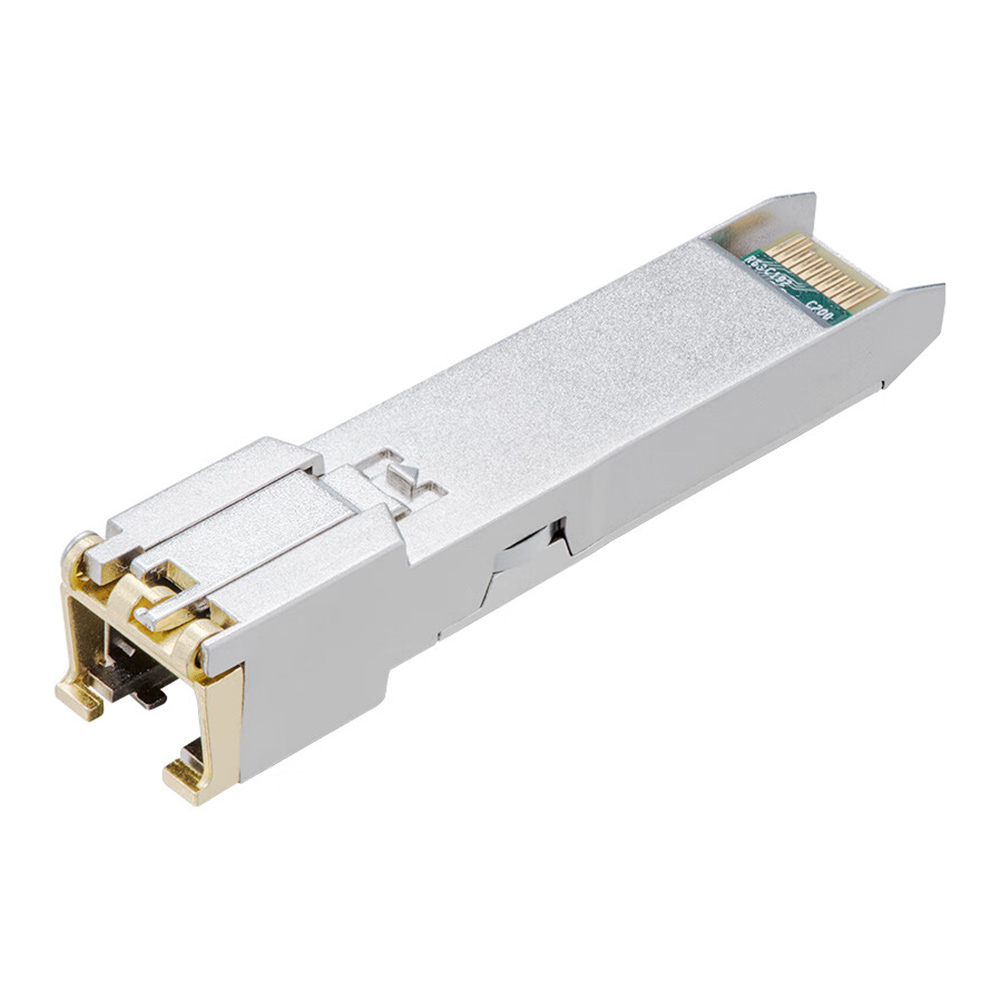

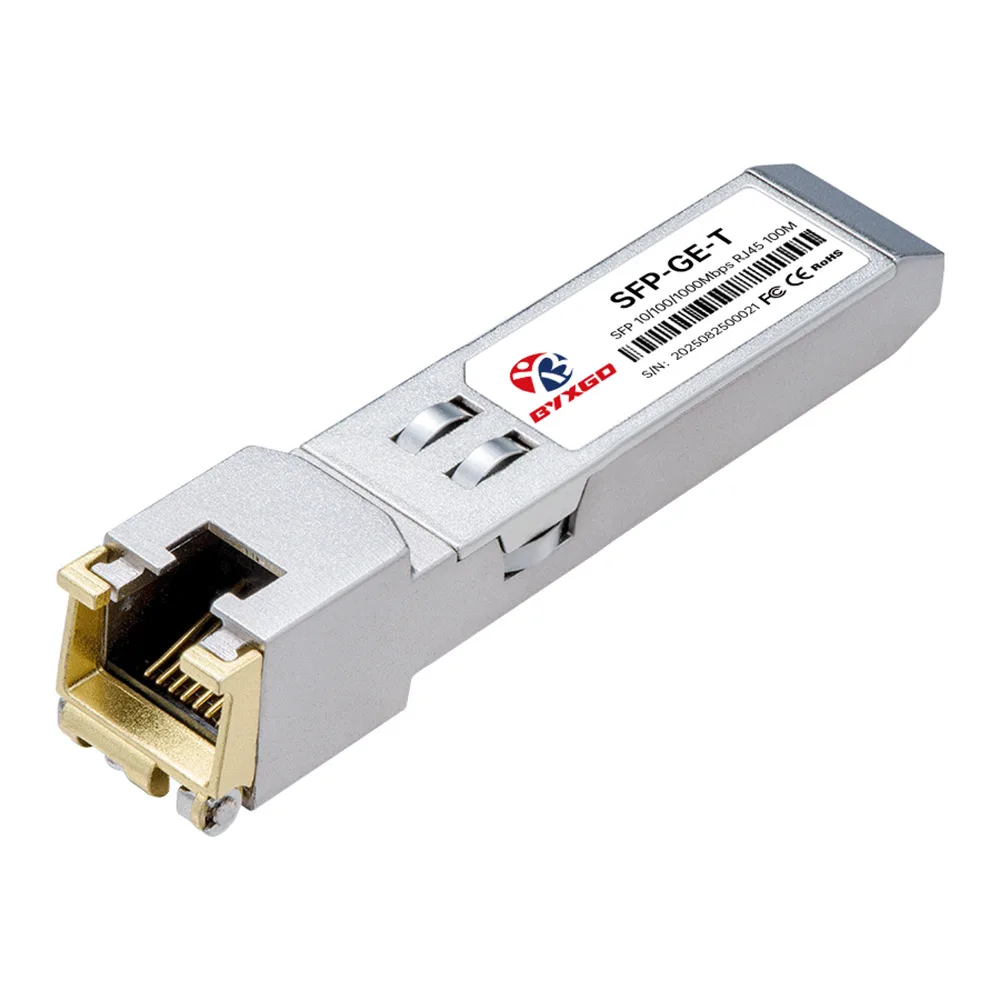

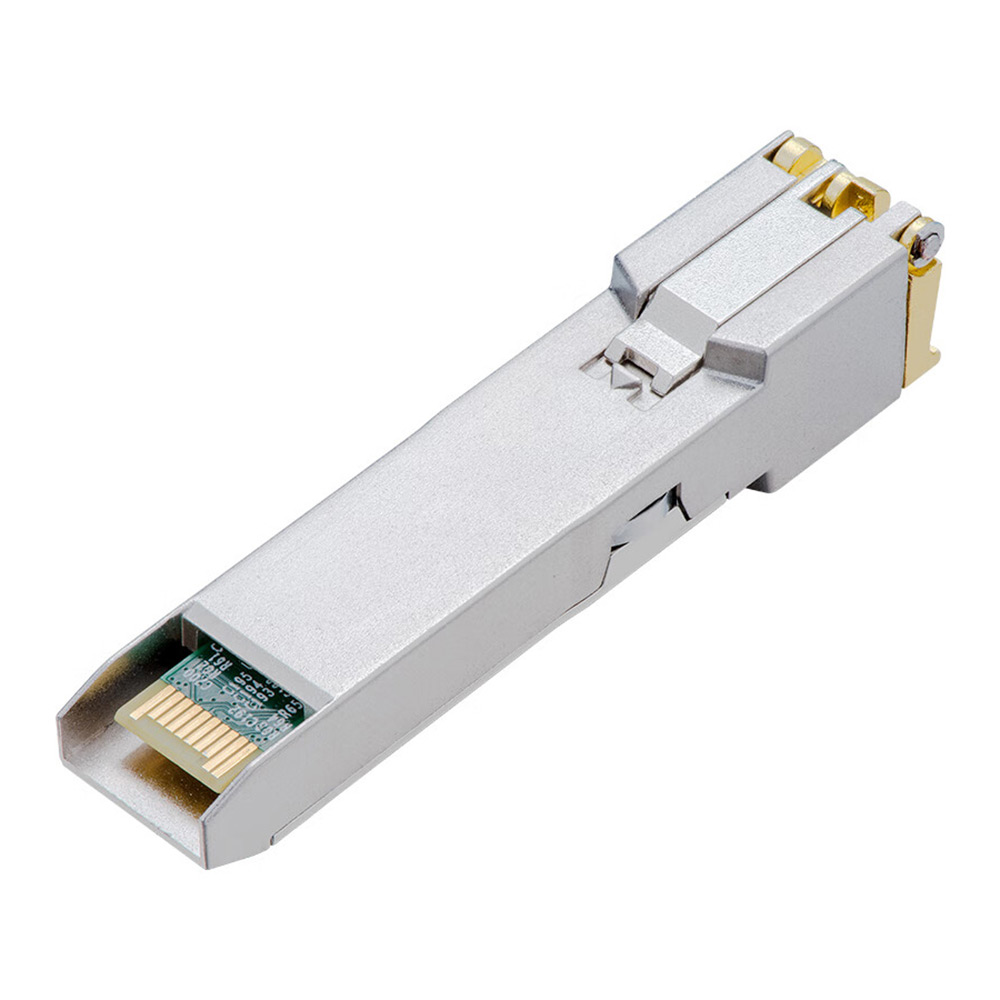

10/100/1000Mbps 1000BASE-T SFP copper transceiver provides Gigabit Ethernet over Cat5e/6/6a cabling up to 100m when used with a standard RJ-45 interface, allowing for affordable copper networking without the need for fiber re-cabling. The SFP (SGMII) form factor is hot-swappable on switches, routers, servers, and NICs, reducing the amount of downtime required to be productive while installing or maintaining.
Designed to meet SFP MSA and IEEE 802.3/802.3ab specifications, the module will reliably support 1Gbps links within an enterprise LAN, switch-to-switch, and router/server interfaces. The fully metallic housing will reduce EMI for reliable operation in dense racks. The ≤1.2W power design and 0°C-70°C commercial temperature range allow operation in constrained spaces and power budgets. The BER targeted at 1E-12, EMC support, and a 5-year warranty further support use for mainstream deployments with dependable copper connectivity.
Specifications
| Specification | Details |
| Product Title | 10/100/1000Mbps Cisco Compatible 1000BASE‑T SFP Copper RJ45 Transceiver Module |
| Part Number | BYXGD‑GE‑T |
| Vendor Name | BYXGD |
| Form Factor | SFP (SGMII) |
| Max. Data Rate | 1000Mbps |
| Supported Rates | 10/100/1000Mbps (host systems with SGMII) |
| Max. Cable Distance | 100m |
| Media | Cat 5e/6/6a (UTP) |
| Connector | RJ‑45 |
| Power Consumption | ≤1.2W |
| DOM/DDM | Not Supported |
| Rx LOS | No |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Bit Error Ratio (BER) | 1E‑12 |
| EMC | Supported |
| Enclosure | Fully metallic case for low EMI |
| Protocols | SFP MSA, IEEE 802.3, IEEE 802.3ab |
| Warranty | 5 Years |
