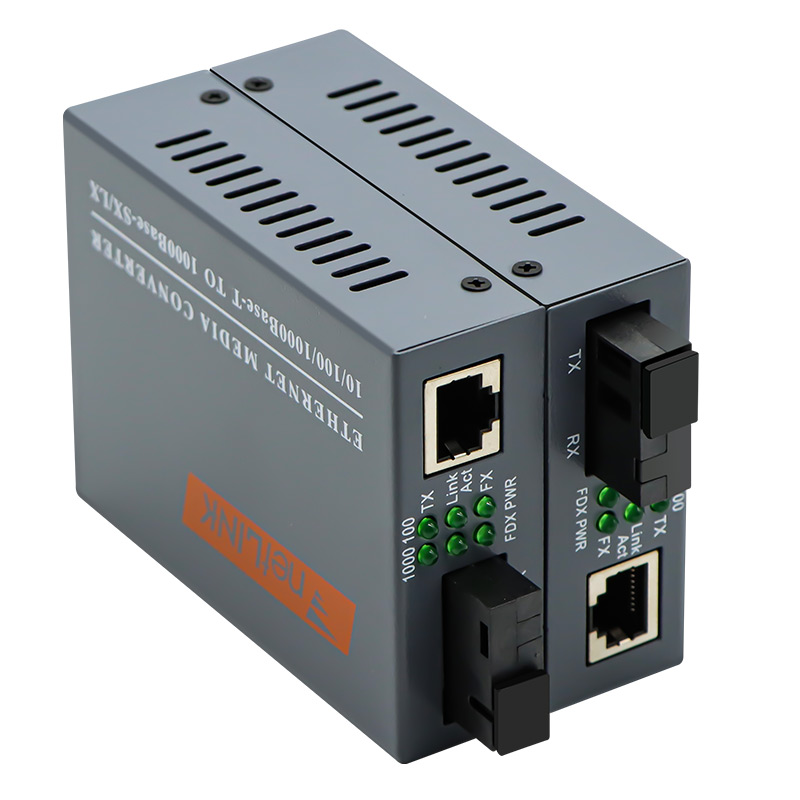

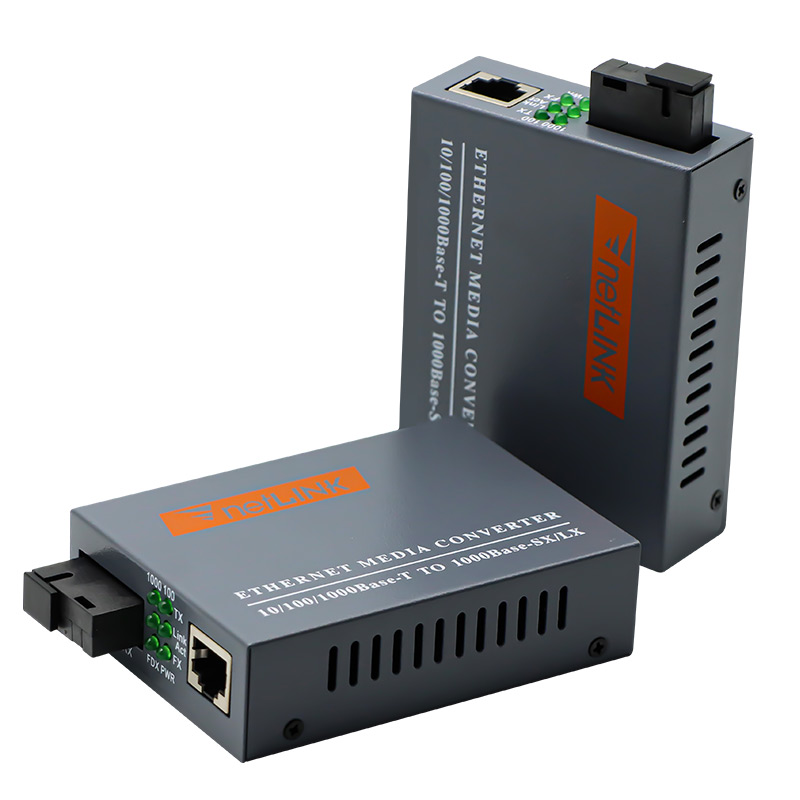

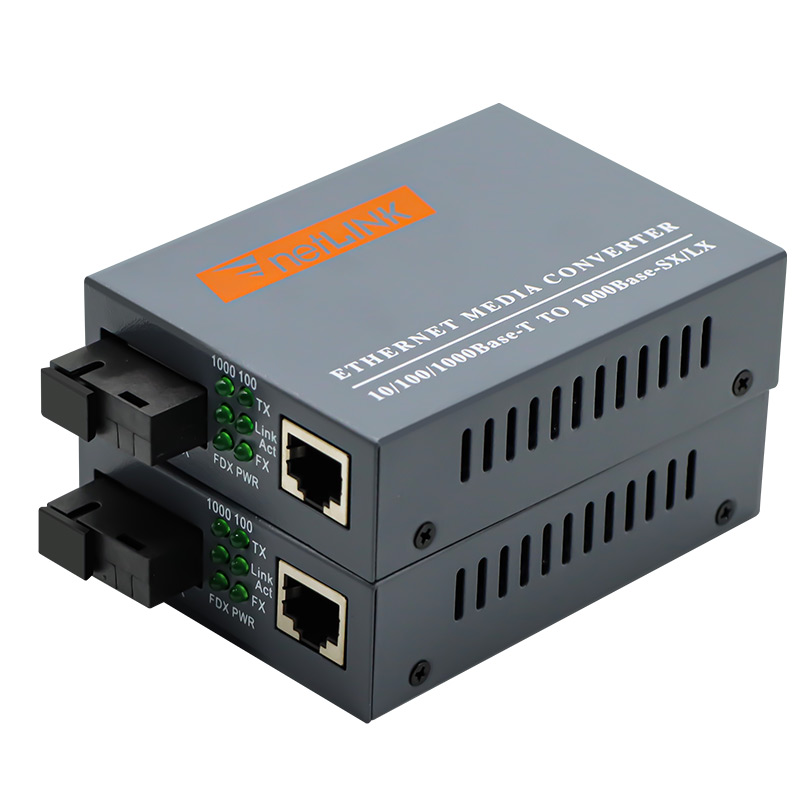

| Product Type | 1 Pair Netlink Fiber Media Converter |
| Data Rate | 10/100/1000Mbps (Gigabit Ethernet) |
| Electrical Interface | Auto-negotiation for 10/100/1000Mbps Ethernet |
| Optical Interface | Single-mode single fiber, SC port, 1000Mbps |
| Transmission Distance | 20KM or 30KM (depending on fiber quality and environment) |
| Ports | 1 × RJ45 Ethernet port, 1 × SC optical port |
| Fiber Mode | Single mode, single fiber (one-way transmission) |
| Standards Compliance | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x flow control |
| Duplex Mode | Supports full and half duplex |
| Flow Control | IEEE802.3X duplex flow control, half-duplex backpressure |
| Cable Support | UTP up to 100 meters; fiber optic up to 100 km |

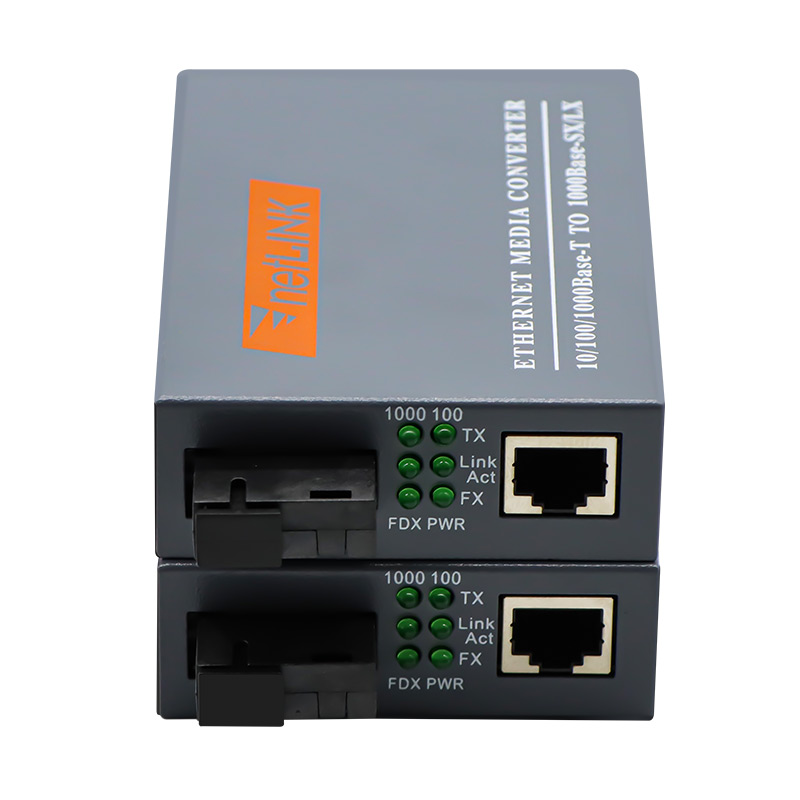

| LED Indicators | Power, TX 100, TX Link/Activity, FX 100, FX Link/Activity, Full Duplex/Collision |
| Power Supply | External AC 100~265V or DC 5V switching power supply; EU adapter default; UK, US, BR, AU optional |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Lightning Protection | Built-in circuit to reduce damage from lightning induction |
| Dimensions | External power supply: 70 × 26 × 93 mm; Built-in: 120 × 30 × 140 mm; Outer: 95 × 71 × 25 mm |

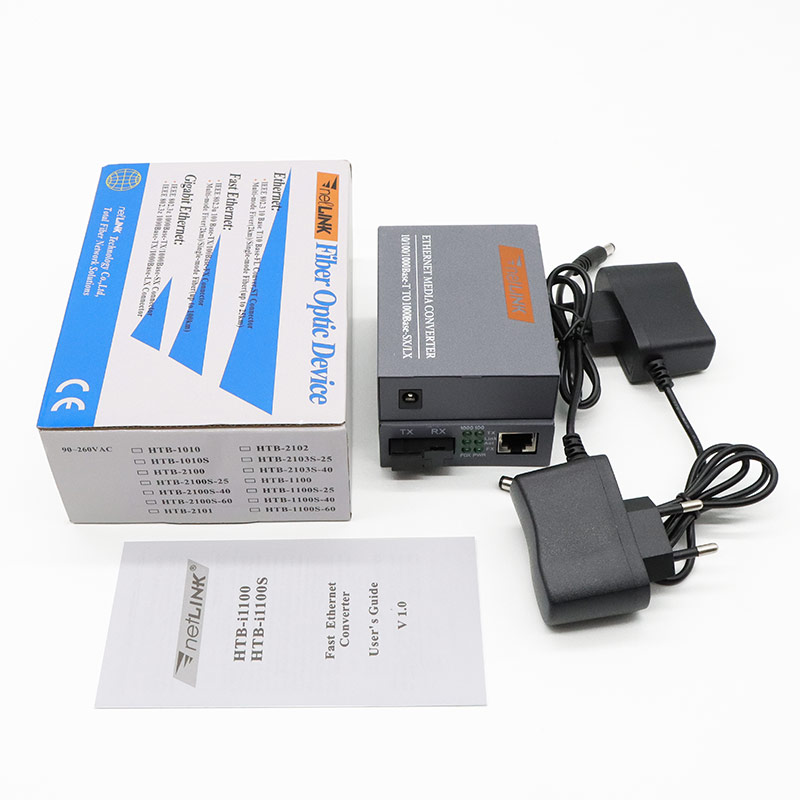

| Package | ESD protective packaging, carton box |
| Additional Features | Broadcast storm prevention, support for large data frames (1916 bytes optional), plug & play |
| PoE Support | Yes |
| GSM Support | Yes |
| Buffer Size | 2M bit buffer space |
| MAC Address Table | 2K entries |
| Chipset | US Marvel industrial chip for low power consumption and high stability |
| Heat Dissipation | Built-in heat sink for efficient long-term operation |
